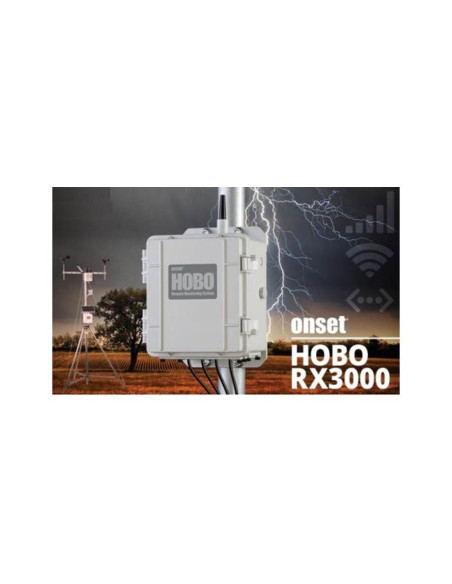

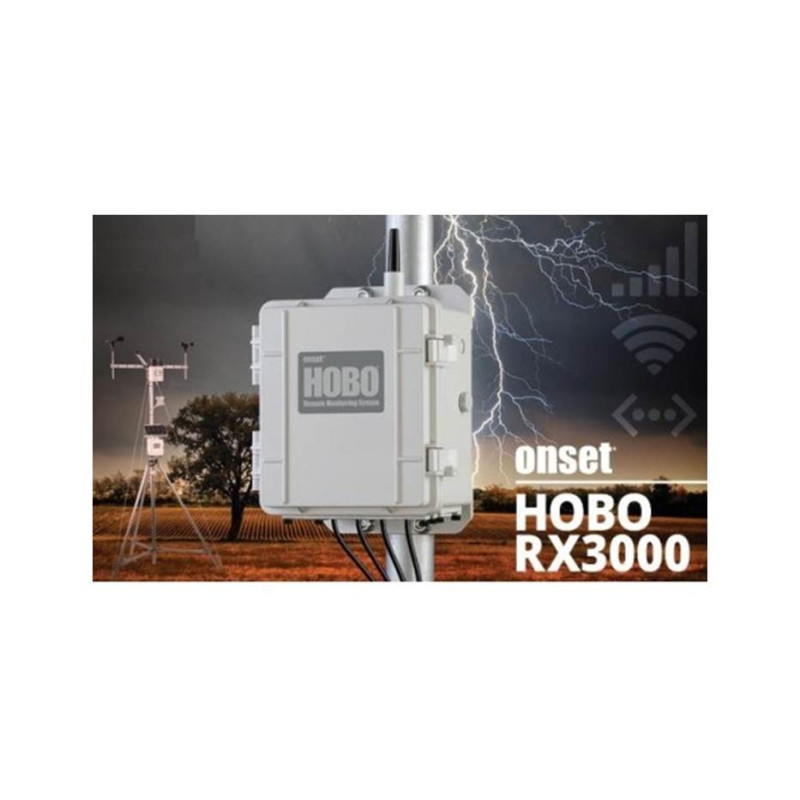

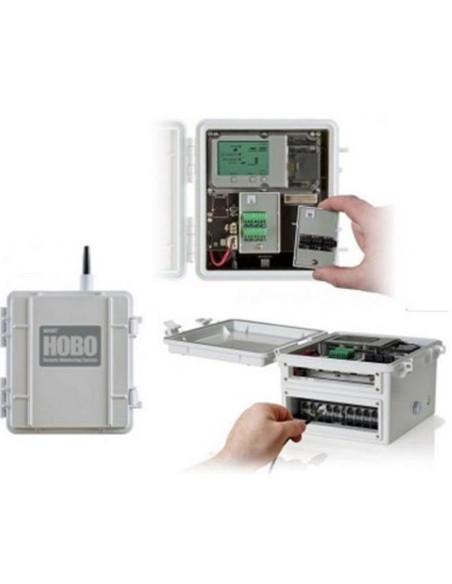

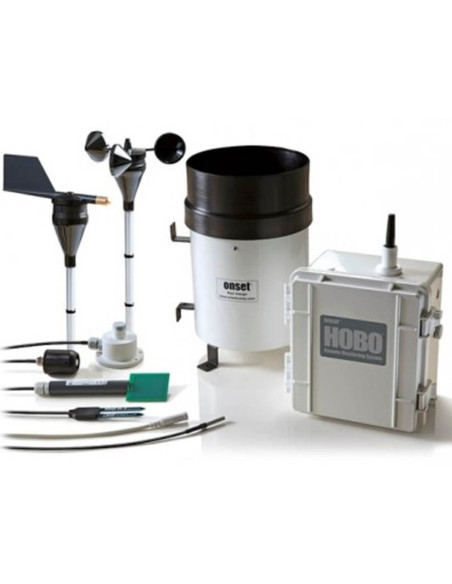

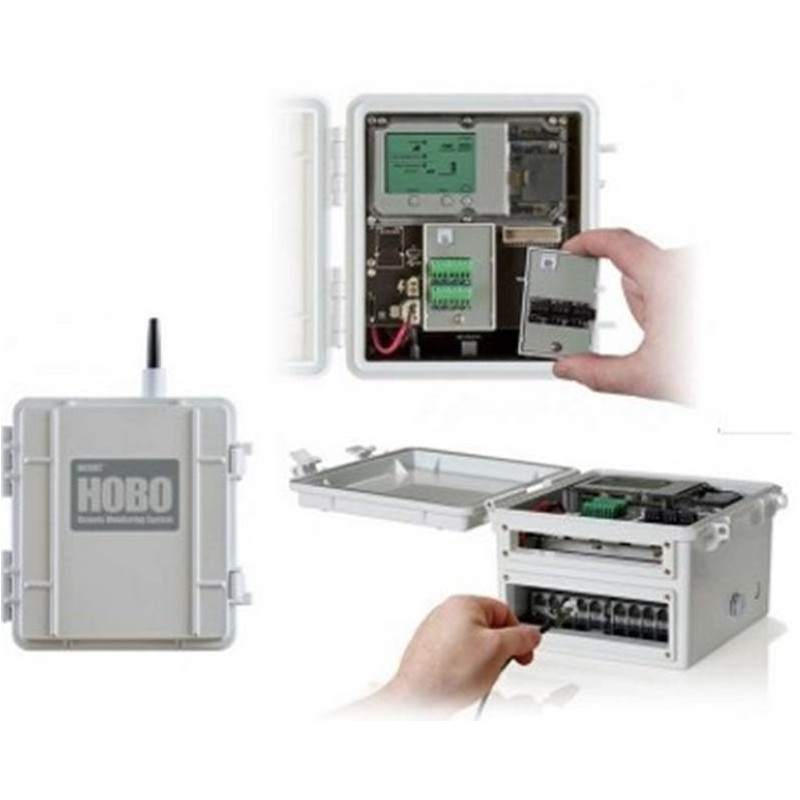

RX3004-GSM/GPRS-4G Remote Monitoring Meteorological Weather Station 4G

Operating Range

-40° to 60°C (-40° to 140°F); no remote communications for battery voltage less than 3.9 V DC

Smart Sensor Connectors

10

Smart Sensor Network Cable Length

100 m (328 ft) maximum

Smart Sensor Data Channels

Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)

Module Slots

2

Logging Rate

1 second (RX3001 and RX3002) or 1 minute (RX3003) to 18 hours

Time Accuracy

±8 seconds per month in 0° to 40°C (32°F to 104°F) range;
±30 seconds per month in -40° to 60°C (-40° to 140°F) range

Battery Type/Power Source

4 Volt, 10 AHr, rechargeable sealed lead-acid; external power required using one of these options: AC power adapter (AC-U30), solar panel (SOLAR-xW), or external power source 5 V DC to 17 V DC with external DC power cable (CABLE-RX-PWR)

Rechargeable Battery
Service Life

Typical 3–5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F); operation outside this range will reduce the battery service life

Memory

32 MB, 2 million measurements, continuous logging

Alarm Notification Latency

Logging interval plus 2–4 minutes, typical

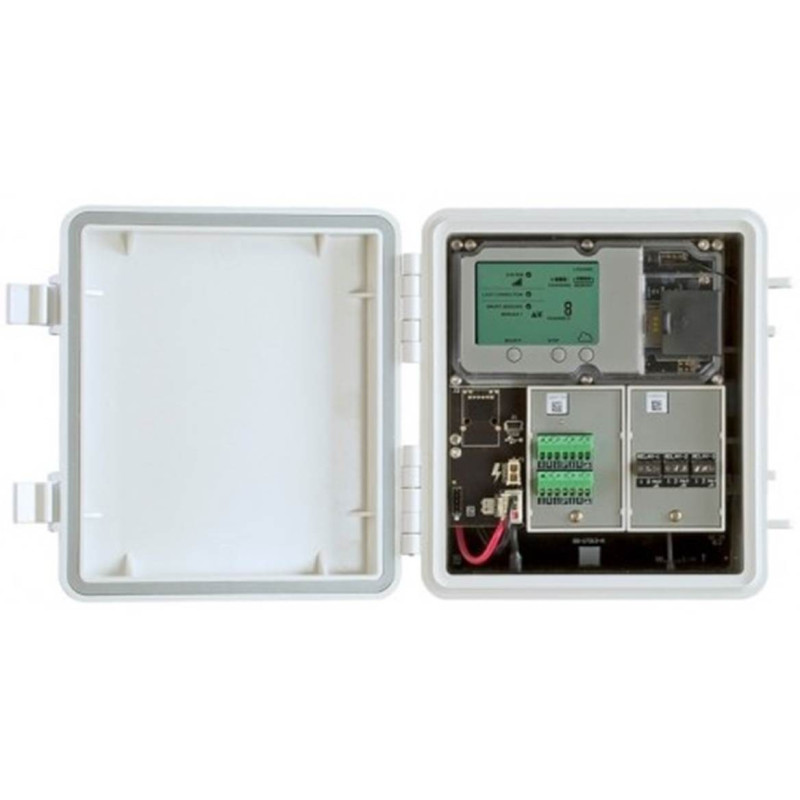

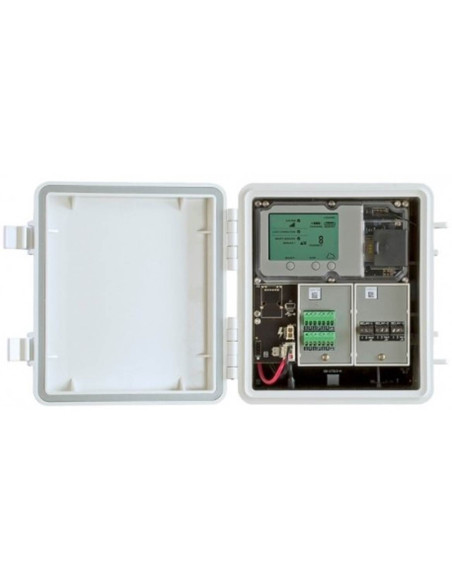

Enclosure Access

Hinged door secured by two latches with eyelets for use with user-supplied padlocks

LCD

LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range

Materials

Outer enclosure: Polycarbonate/PBT blend with stainless steel hinge pins and brass inserts; Inner enclosure: Polycarbonate; Gaskets: Silicone rubber; Cable channel: EPDM rubber; Cable opening cover: Aluminum with ABS plastic thumb screws; U-Bolts: Steel with zinc dichromate finish

Size

18.6 x 18.1 x 11.8 cm (7.3 x 7.1 x 4.7 in.); see diagrams on next page

Weight

2.2 kg (4.85 lb)

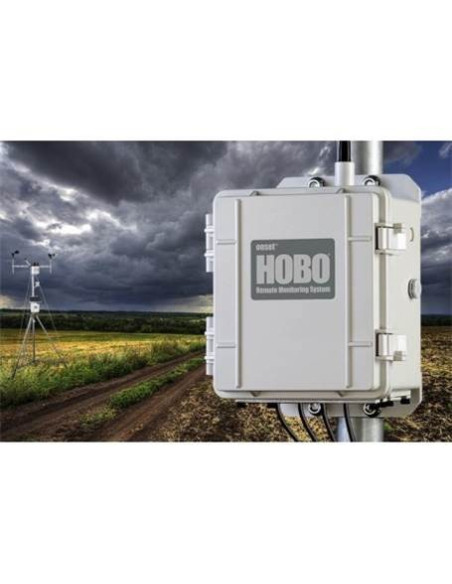

Mounting

3.8 cm (1.5 inch) mast or wall mount

Environmental Rating

Weatherproof enclosure, NEMA 4X (requires proper installation of cable channel system)

The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)

Approved for use in the USA and Canada, see last page; contains FCC ID R68XPICOW, IC ID 3867A-XPICOW (RX3002) and FCC ID QIPEHS6, IC ID 7830A-EHS6 (RX3003)

Wireless Radio

GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz, UMTS/HSPA+: Five band 800/850/900/1900/2100 MHz

Antenna

Penta band

Ethernet (RX3001)

Connector

One RJ45/100BaseT

Network Standards

IEEE 802.11b/g/n

Frequency Range

2.412–2.484 GHz

Antenna Connector

1, no diversity supported

1, 2, 5.5, 11 Mbps (802.11b); 6, 9, 12, 18, 24, 36, 48, 54 Mbps (802.11g); 802.11n, HT20 MCS0 (6.5 Mbps) to HT20 MC87 (65 Mbps)

Number of Selectable Radio Subchannels

Up to 14 channels; profiles available will include USA, France, Japan, Spain, Canada, and “Other” (multiple countries)

Radio Modulations

OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM

Security

WEP 64/128, WPA-PSK, AES end-to-end encryption

Maximum Receive Level

-10 dBm (with PER <8%)

Receiver Sensitivity

-72 dBM for 54 Mbps, -87 dBm for 11 Mbps, -89 dBm for 5.5 Mbps,
-90 dBm for 2.0 Mbps, -92 dBm for 1.0 Mbps

Cellular (RX3003)

Wireless Radio

GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz, UMTS/HSPA+: Five band 800/850/900/1900/2100 MHz

Antenna

Penta band
