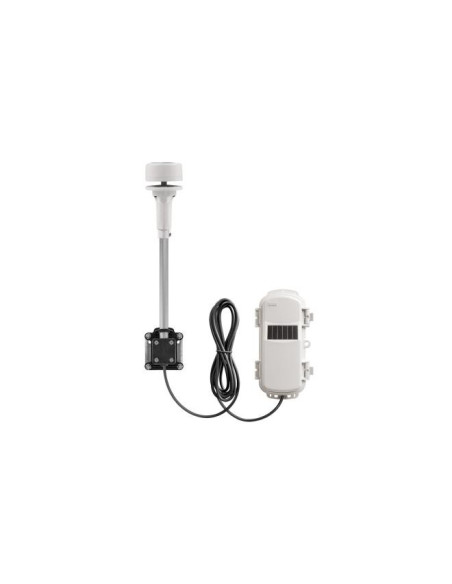

HOBOnet Ultrasonic Wind Speed & Direction Sensor

Reference

Manufacturer: Onset

Condition: New

The HOBOnet Ultrasonic Wind Speed & Direction Sensor is a wireless device capable of measuring very low wind speeds, down to 0.4 m/s. This sensor works with HOBOnet and is ideal for real-time meteorological monitoring applications.

A complete system requires at least one HOBO RX3000 Remote Monitoring Station, a HOBOnet Wireless Manager, and a HOBOnet Wireless Sensor, OR one HOBO MicroRX Station with an integrated HOBOnet Wireless Manager and a HOBOnet Wireless Sensor. HOBOnet Wireless Repeaters (RXW-RPTR-xxx or RXW-RPTR-B-xxx) can be added to extend the range.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Select Sensor

Add to wishlist

OVERVIEW
SPECIFICATIONS
Download

RXW-WCG Manual Download (1.35M)

RXW-WCG Quick Guide Download (1.06M)

A wireless ultrasonic wind speed & direction sensor that works with HOBOnet. Compact and rugged, with no moving parts, this ultrasonic sensor can measure very low wind speeds, down to 0.4 m/s (compared to 1.0 m/s for our mechanical sensors). HOBOnet wireless sensors communicate data directly to the HOBO RX3000 or the HOBO MicroRX station or pass data through other wireless sensors back to the central station. They are preconfigured and ready to deploy, and data is accessed through HOBOlink, Onset's innovative cloud software platform.

Features

Sensor Features
Compact and rugged with no moving parts
No starting threshold – suitable for low wind speeds
No wind direction dead band – accurate wind data in all directions
Powered by its own built-in solar panel
Wireless Features
900 MHz wireless mesh self-healing technology
450 to 600 meter (1,500 to 2,000 feet) wireless range and up to five hops
Up to 50 wireless sensors or 336 data channels per HOBO RX station
Simple button-push to join the HOBOnet wireless network
Onboard memory to ensure no data loss
Powered by rechargeable AA batteries and built-in solar panel

Specification	Wind Speed/Gust	Wind Direction
Measurement Range	0 to 41.16 m/s (0 to 92.07 mph)	0 to 359 degrees
Accuracy	±0.8 m/s (1.79 mph) or ±4% of reading, whichever is greater	0.2 to 3 m/s (0.44-6.7 mph): ±4 degrees >3 m/s (6.7 mph): ±2 degrees
Resolution	0.4 m/s (0.89 mph)	1 degree (0 to 359 degrees)
Measurement Definition	Wind speed readings are taken every three seconds for the duration of the logging interval. Wind speed: Average speed for the entire logging interval Gust speed: The highest three-second wind recorded during the logging interval See Measurement Operation.	Unit vector averaging used; vector components for each wind measurement are calculated every three seconds for duration of logging interval (see Measurement Operation).
Operating Temperature Range Without Icing	-15°C to 55°C (5°F to 131°F)
Wireless Mote
Operating Temperature Range	-25° to 60°C (-13° to 140°F) with rechargeable batteries -40 to 70°C (-40 to 158°F) with lithium batteries
Radio Power	12.6 mW (+11 dBm) non-adjustable
Transmission Range	Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) high
Wireless Data Standard	IEEE 802.15.4
Radio Operating Frequencies	RXW-WCG-900: 904-924 MHz RXW-WCG-868: 866.5 MHz RXW-WCG-921: 921 MHz RXW-WCG-922: 916-924 MHz
Modulation Employed	OQPSK (Offset Quadrature Phase Shift Keying)
Data Rate	Up to 250 kbps, non-adjustable
Duty Cycle	<1%
Maximum Number of Motes	Up to 50 wireless sensors or 336 data channels per one HOBO RX station
Logging Rate	1 minute to 18 hours
Number of Data Channels	4
Battery Type/Power Source	Sensor: Photovoltaic panel, LIFEP04 3.2 V -600 mAh battery Mote: Two AA 1.2 V rechargeable NiMH batteries powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40 to 70° C(-40 to 158° F)
Battery Life	With NiMH batteries: Typical 3-5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F) and positioned toward the sun (see Deployment and Mounting), operation outside this range will reduce the battery service life With lithium batteries: 1 year, typical use
Memory	16 MB
Dimensions	Sensor length: 380 mm (14.96 inches) Sensor head diameter: 60 mm (2.36 inches) Sensor rod diameter: 16 mm (0.63 inches) Cable length: 3 m (9.8 ft) Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)
Weight	Sensor and cable: 200 g (7 oz) Mote: 223 g (7.87 oz)
Materials	Sensor: Polyacetal Mote: PCPBT, silicone rubber seal
Environmental Rating	Sensor and cable: Weatherproof Mote: IP67, NEMA 6
