CABLE-2.5-ESTEREO 0 to 2.5 VoltsDC Voltage Input Sensor

Reference CABLE-2.5-STEREO

Manufacturer: Onset

Condition: New

BUYING IN BULK, OR JUST WANT SOME USEFUL ADVICE? Call +34 916292106 or complete our More info about this product. form

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
Compatible Loggers
Download
Accessories

CABLE-2.5-STEREO Datasheet Download (60.78k)

CABLE-2.5-STEREO Guide Download (152.86k)

UX90-004 Motor/State On/Off Data Logger for Motors
139,00 €

Add to cart
UX120-006M HOBO 16-bit 4-Channel Analog Data Logger
199,00 €

Add to cart

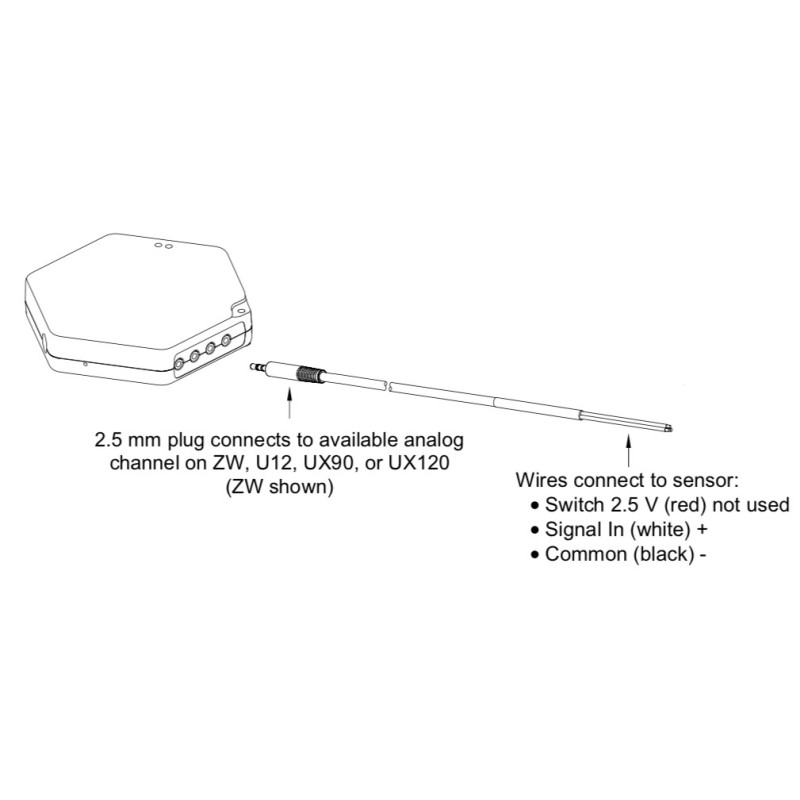

An external input cable with 13mm (0.5") tinned braided wire leads. Voltage input specifications vary with attached data logger.Overall length of this cable is 1.8m (6 feet).

Highlighted Features:

- Plug directly into the external input jacks of U12, UX120, or ZW Series loggers to expand the range of measurement options and applications

In what environment does this sensor operate?

This sensor operates in indoor and outdoor environments.

What measurements does this sensor support?

The CABLE-2.5-STEREO sensor supports the following measurement: DC Voltage

- Input range: 0 to 2.5 VDC
- Accuracy w/U12: ±2 mV ±2.5% of absolute reading
- Accuracy w/UX120-006M: ±0.1 mV ±0.1% of absolute reading
- Accuracy w/ZW: ±1.5 mV ±2% of reading typical
- Resolution w/U12 and ZW: 0.03% of full scale
- Resolution w/UX120-006M: : 0.002% of full scale
- Length: 1.8 m (6 foot) cable with 13 mm (0.5 in.) tinned braided wire leads
