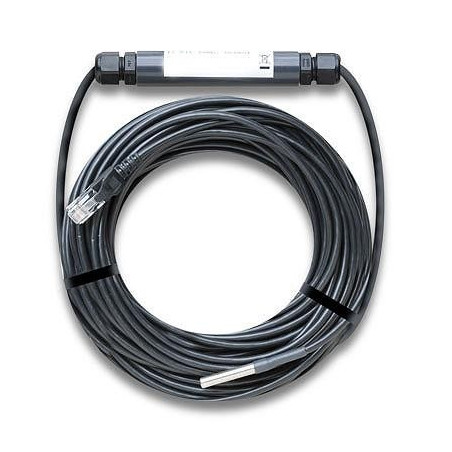

> >>S-TMB-M017 12-Bit Temperature (17 m Cable) Smart Sensor
S-TMB-M017 12-Bit Temperature (17 m Cable) Smart Sensor View larger

S-TMB-M017 12-Bit Temperature (17 m Cable) Smart Sensor

S-TMB-M017

Onset

New

150,00 €

tax excl.

Add to wishlist

ADC Bits 12 bit
The Sensor measures: Temperature
Output Signal: HOBO Smart Sensor
Cable Length: 1.8 m
Sensor for use in: Outdoor

S-TMB-M017 Manual Download (504.15k)

S-TMB-M017 Quick Start Download (297.79k)

The 12-bit Temperature Smart Sensor provides < ± 0.2° C total accuracy (< ±0.36° F) and resolution of < ± 0.03° C (< ±0.054° F) over the range of from 0° to 50° C (32° to 122° F). The full measurement range is -40° to 100° C (-40° to 212° F). A selectable measurement-averaging feature further improves accuracy. Reliable service is assured by a stainless steel sensor tip and robust cable rated for immersion in water up to 50° C for up to 1 year. This model has a cable length of 17m.
Also available in a wireless model for use with the HOBOnet Field Monitoring System.

  • Highlighted Features:

- Measurement range of -40° to 100°C (-40° to 212°F)
- Stainless steel sensor tip
- Sensor and cable rated for immersion in water or soil up to 50°C for up to 1 year

  • In what environment does this sensor operate?

This sensor operates in indoor, outdoor and underwater environments.

  • What measurements does this sensor support?

The S-TMB-M017 sensor supports the following measurements: Temperature and Water Temperature

To see the full specifications for this product, please see our product manual found under the documentation tab if available.

Measurement range: -40° to 100°C (-40° to 212°F) sensor tip*
Accuracy: < ± 0.2°C from 0° to 50°C (< ±0.36°F from 32° to 122°F)
Resolution: < ± 0.03°C from 0° to 50°C (< ± 0.054°F from 32° to 122°F)
Drift: < ± 0.1°C (0.18°F) per year
Response time (to 90% of change):
< 3 minutes typical to 90% in 1 m/sec air flow
< 30 seconds typical to 90% in stirred water
Measurement averaging option: Yes
Environmental rating: Waterproof sensor tip and cable rated for 1-year immersion in water up to 50°C
Housing: Stainless steel sensor tip
Dimensions:5.1 x 33 mm (0.2 x 1.3 inches)
Approximate weight: 100 g (1 oz), 310 g (4 oz), 880 g (12 oz)—varies with cable length
Cable length: 17 m (55.8 ft)
Number of data channels: 1
Length of Smart Sensor network cable: 0.5m (1.6 ft)

* Sensor tip and cable immersion in fresh water up to 50°C (122°F) for one year. Cable electronics are rated for up to 75°C (167°F). Radiation Shield strongly recommended for use in sunlight (part # M-RSA)

Description: ce - The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
