> >>>CDI-5200-10S Compressed Air Flow Meter (1 - 80 SCFM)

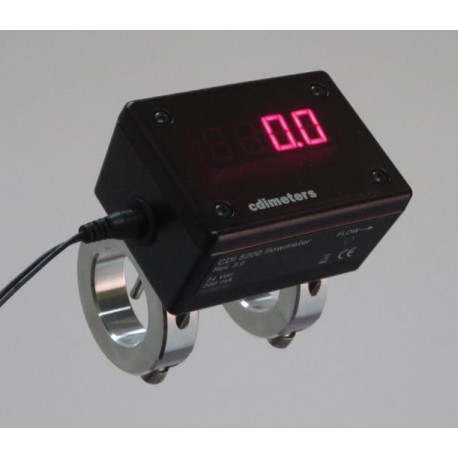

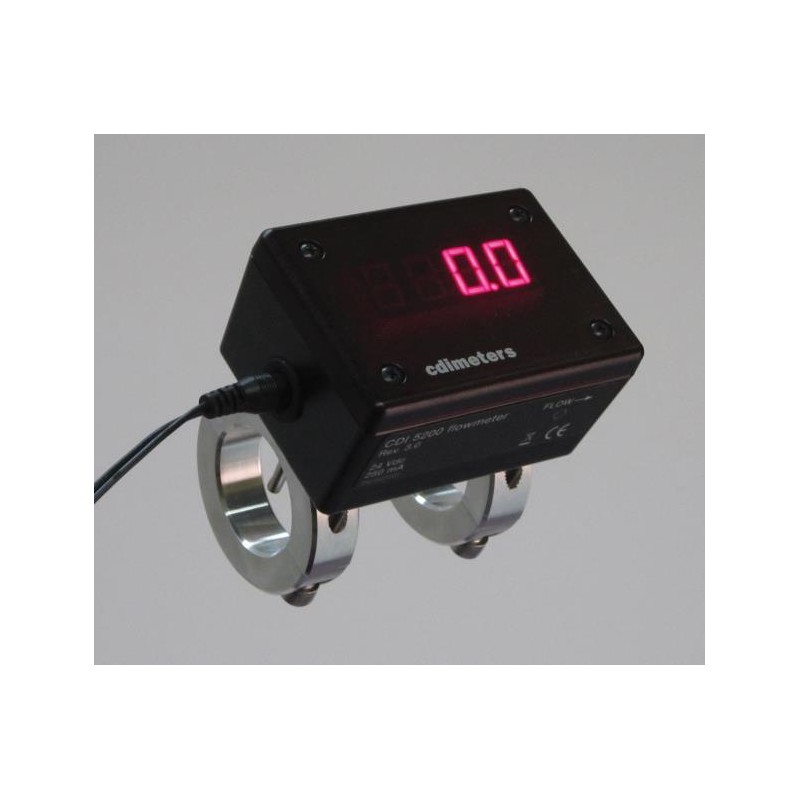

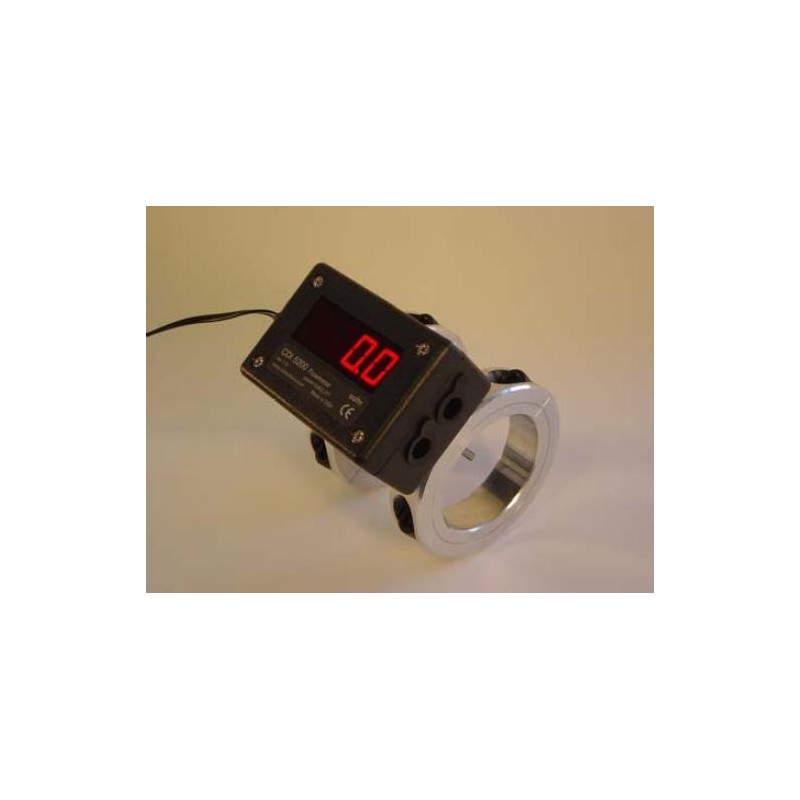

CDI-5200-10S Compressed Air Flow Meter (1 - 80 SCFM) View larger

CDI-5200-10S Compressed Air Flow Meter (1 - 80 SCFM)

CDI-5200-10S

CDI Meters

New

● Easy to install
● No moving parts
● Weather resistant and surge protected (new with Rev. 3)
● Milliamp output
● Pulse output convertible to threshold output
● User-configurable scaling, filtering and units of measure
● Optional RS-485 output for networking

1 035,00 €

tax excl.

Add to wishlist

With Display LED's
The Sensor measures: Compressed Air
Output Signal: Seleccionable 4 - 20mA or pulses
Power Supply: 250 mA @ 18 - 24 VDC

T-CDI-5200-10S MANUAL Download (41.93k)

CDI QSG Download (494.51k)

The CDI-5200-10S is a flowmeter for compressed air systems.
It measures flow by maintaining one probe warmer than the other.
It calculates the mass velocity from the amount of heat required, and then calculates the flow on the basis of pipe area.
This model fits 1' steel pipes.

Analog or Pulse output, user selectable.
Requires analog port selection during U30 system configuration and use of a S-FS-CVIA when using the H22-001 logger.
When using a U12 logger, this sensor requires a 4-20mA input cable (CABLE-4-20mA).

Features:
  • This adds the ability for users to be able to measure compressed air flow (SCFM).
  • Easy to install
  • Digital display
Environment:
The T-CDI-5200-10S Sensor is for use in Indoor environments
Measurements:
The T-CDI-5200-10S Sensor supports the following measurements : Compressed Air Flow
CDI METERS SIZES
Measurement range, 5200 model: 1 - 80 SCFM
Measurement range, 5400 model: 3 - 350 SCFM (calibrated), 350 - 600 (unclibeated)
Accuracy: (5200 model) 5% of reading plus 1% of full scale @ air temperatures 40 - 120F
Accuracy: (5400 model calibrated range) 5% of reading plus 1% of full scale @ air temperatures 40 - 1200F; (5400 model extended range) 7% of reading from rated fule scale to 150% of calibrated range, @ air temperatues 40 - 1200F
Medium: Compressed air, nitrogen
Operating pressure, 5200 model: 30 to 170 psig for best accuracy. 200 psig max on Sch 40 steel
Operating pressure, 5400 model: 200 psig max on Sch 40 steel
Input power: 250 mA @ 18 - 24 VDC
Output resistence: 400Ω max
Response time: 1 sec to 63% of final value
Output: selectable 4 - 20mA or pulse
Display: 4-digit LED
Ring material: Aluminum
Size / Weight, 5200 model: 3.2x2.2x1.6 in / approx. 1.2 lb
Size / Weight, 5400 model: 3.2x2.2x1.6 in / approx. 1.4 lb

























Note: Recommended: 5200-DG (and 5400-S-DG) Drill Guide that facilitates accurately locating the holes that are needed to mount the flowmeter.
