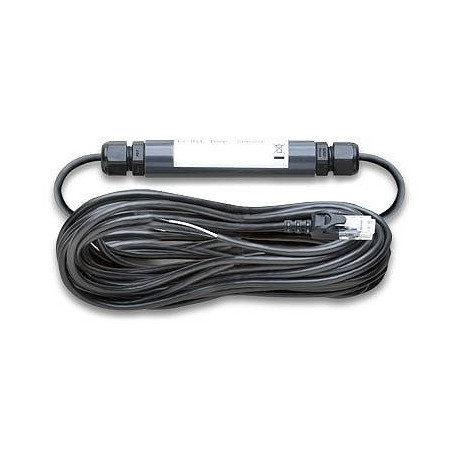

S-UCD-M006 2Hz Pulse Sensor
Pulse Sensor
The Contact Closure Pulse Input Adapter connects sensors with pulse outputs to loggers with smart-sensor inputs. This smart sensor is compatible with contact closures, such as tipping-bucket rain gauges or reed switches with a maximum input frequency of 2 Hz (2 pulses per second), and a preferred switch-type of normally-open.
Cable 6m Included
Specs:
Maximum Input Frequency: 2 Hz (2 pulses per second)
Measurement Range: 0 – 65,533 pulses per logging interval
Resolution: 1 pulse
Lockout time: 327 ms ± 10%
Recommended Input Type: Mechanical contact closure (example: reed switch in a tipping-bucket rain gauge)
Preferred Switch State: Active low input Normally open
Edge Detection: Falling edge, Schmitt Trigger buffer (logic levels: low ≤ 0.6 V, high ≥ 2.7 V)
Minimum Pulse Width: 1 ms
Input/Output Impedance: 100 KΩ
Open Circuit Input Voltage: 3.3 V
Maximum Input Voltage: 3.6 V
User Connection: 24 AWG wires, 2 leads: white(+), black(-)
Operating Temperature Range: -40° to 75°C (-40° to 167°F)
Overall Cable Length: 6.5 m (21 ft.)
Housing: Weatherproof PVC housing protects input adapter electronics
Housing Dimensions: 14 x 0.95 cm (5.5 x 0.375 in.)
Weight: 310 g (11 oz.)
Bits per Sample: 16
Number of Data Channels: 1
- The Sensor measures:
- Pulses 2Hz
- Output Signal:
- HOBO Smart Sensor
- Cable Length:
- 1.8 m
- Sensor for use in:
- Outdoor
