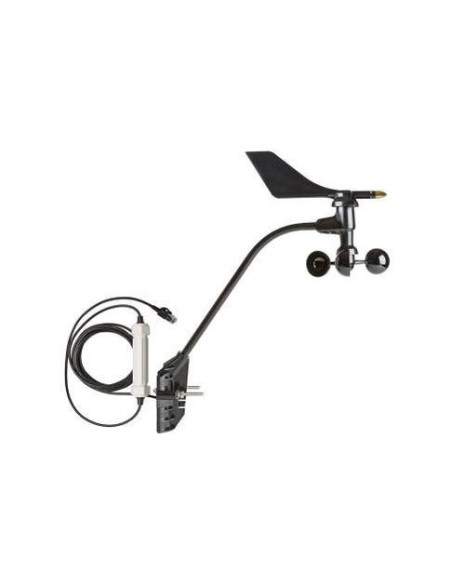

S-WCF-M003 Anemo y Veleta Davis para HOBO con Sensor Inteligente
Davis Wind Speed/Direction Smart Sensors are compatible with all HOBO weather station loggers, HOBOware, and HOBOlink.
They offer the same ease-of-use as existing Onset Smart Sensors, providing cost-effective HOBO weather stations for projects on a tight budget.
The sensors feature a plug-in modular connector for easy installation, and all configuration parameters are stored in the sensor and automatically communicated to the logger, eliminating the need for programming or extensive setup.
|
Wind Speed/Gust |
Wind Direction |
|
|
Measurement Range |
0 to 76 m/sec (0 to 170 mph) |
0 to 355 degrees |
|
Accuracy |
±1.1 m/sec (±2 mph) or ±5% of reading, whichever is greater |
±7 degrees |
|
Resolution |
0.5 m/sec (1.1 mph) |
1 degrees (0 to 355 degrees) |
|
Starting Threshold |
≤1 m/sec (2.2 mph) |
1 m/sec (2.2 mph) |
|
Measurement Definition |
Cup revolutions are accumulated every three seconds for the duration of the logging interval Wind speed: Average speed for the entire logging interval Gust speed: The highest three-second wind recorded during the logging interval See Measurement Operation. |
Unit vector averaging used; vector components for each wind measurement are calculated every three seconds for duration of logging interval (see Measurement Operation) |
|
Operating Temperature Range |
-40°C to 70°C (-40°F to 158°F) |
|
|
Environmental Rating |
Weatherproof |
|
|
Housing |
Polycarbonate wind cups |
UV-resistant ABS wind vane and black-anodized aluminum anemometer arm |
|
Bearing Type |
Sealed stainless steel |
|
|
Turning Radius |
108 mm (4.25 in.) |
Approximately 135 mm (5.25 in.) |
|
Dimensions |
470 x 191 x 121 mm (18.5 x 7.5 x 4.75 in.) |
|
|
Weight |
1.332 kg (2 lb, 15 oz) |
|
|
Bits per Sample |
8 for each channel, 24 total |
|
|
Number of Data Channels* |
3 |
|
|
Measurement Averaging Option |
Automatic averaging (see Measurement Operation) |
|
|
Cable Length Available |
3 m (9.8 ft) |
|
|
Length of Smart Sensor Network Cable* |
0.5 m (1.6 ft) |
|
|
|
The CE Marking identifies this product as complying with all relevant directives in the European Union (EU). |
|
Smart Sensor Mounting:
- Slide the vane on its axis. The cross section of the shaft is D-shaped to ensure correct installation of the anemometer. The wind direction has already been calibrated at the factory to be accurate when the arm points north and the vane is correctly installed.
- Tighten the vane fixing screw with the Allen wrench.
- Insert the wind cups over the stainless steel shaft of the anemometer.
- Slide the wind cups up as far as possible.
- Use the provided Allen wrench to tighten the set screw on the side of the wind cups. The wind cups should fall slightly when released.
- Make sure the set screw is fully tightened. Insufficient tightening may cause incorrect operation of the anemometer.
- Turn the wind cups; They must move freely. If not, remove them and repeat these steps.
- The Sensor measures:
- Wind Speed/Direction
- Output Signal:
- HOBO Smart Sensor
- Cable Length:
- 1.8 m
- Sensor for use in:
- Outdoor
INSIDE & OUTSIDE USE

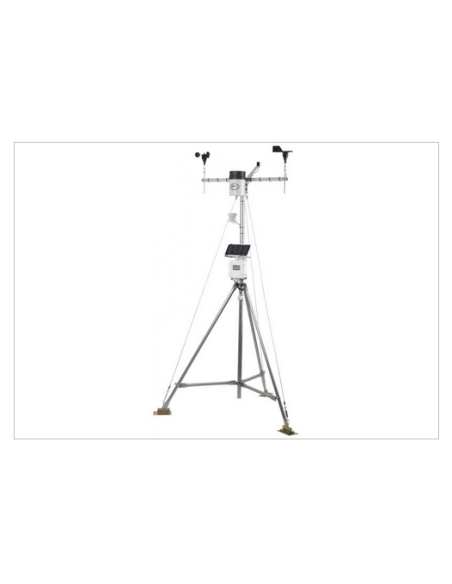

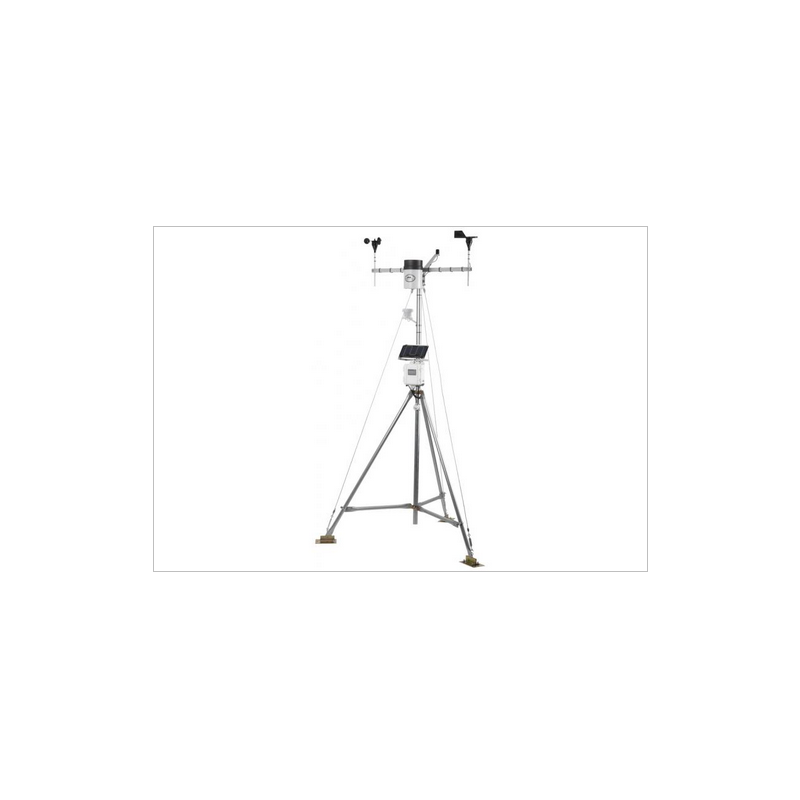

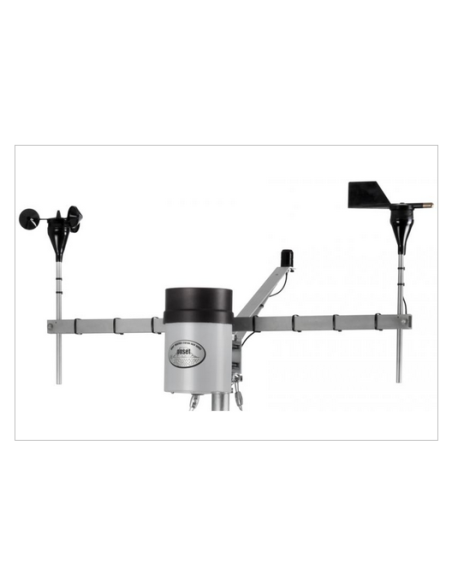

RX3000-WIFI/ETHERNET HOBO WEATHER STATION RX3001: ETHERNET RX3002: WIFI
