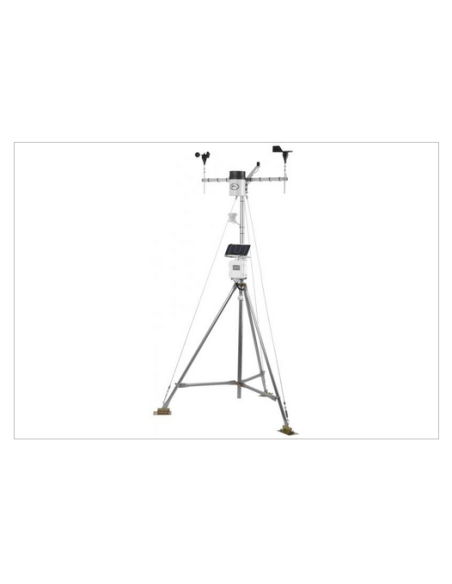

S-WDA-M003 HOBO Wind Vane Sensor with Inteligente View larger
Previous Next

S-WDA-M003 HOBO Wind Vane Sensor with Inteligente

S-WDA-M003

Onset

New

591,00 €

tax excl.

Add to wishlist

(S-WDA-M003) Quick Start Download (398.59k)

The Wind Direction Smart Sensor is a research-grade plug-and-play sensor for measuring and logging wind data. It provides average wind direction for the measurement interval. This highly-durable wind vane has a drip overhang for anti-icing. Its shielded stainless-steel ball bearings and static-dissipating housing provide a long sensor long life. The sensor calculates a unit vector average of the wind direction, providing data directly in degrees.

NOTE: an M-CAA Full Cross Arm or M-CAB Half Cross Arm is required for mounting.

Environment:
The S-WDA-M003 Sensor is for use in Indoor and Outdoor environments

Measurements:
The S-WDA-M003 Sensor supports the following measurements: Wind

SpecificationsWind Direction
Measurement Range 0 to 355 degrees, 5 degree dead band
Maximum Wind Speed Survival

60 m/sec (134 mph)
Accuracy ± 5 degrees
Resolution 1.4 degrees
Starting Threshold 1.0 m/s (2.2 mph)
Measurement Definition Unit vector components of wind direction are accumulated every three seconds for duration of logging interval. Average direction is calculated from the average of these.
Operating Temperature Range -40°C to +70°C (-40°F to +158°F)
Environmental Rating Weatherproof
Service Life 4 to 6 years typical depending upon environmental conditions
Housing Injection-molded housing and vane, static dissipating base, lead-free silicon bronze nose, and aluminum mounting rod.
Bearing Type two shielded stainless steel ball bearings
Turning Radius Approximately 13.5 cm (5.25 in.)
Dimensions 46 x 20 cm (18 x 8.5 in) including 1.27 cm (0.5 in) diameter mounting rod, 2.5 mm (0.1 in) drip overhang
Weight Approximately 370 g (13 oz)
Number of Data Channels 1
Measurement Averaging Option Automatic averaging (see Measurement Definition)
Cable Length Available 3.5 m (11.5 ft)
Length of Smart Sensor Network Cable 0.5 m (1.6 ft)
CE The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
Part Number S-WDA-M003


A single HOBO Weather Station logger can accommodate 15 data channels and up to 100 m (325 ft) of smart sensor cable (the digital communications portion of the sensor cables).
