Reference: T-MAG-0400 - Manufacturer: Onset
Input Amp Options

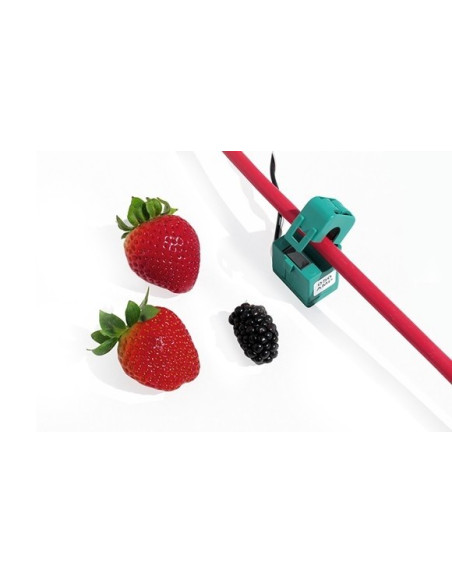

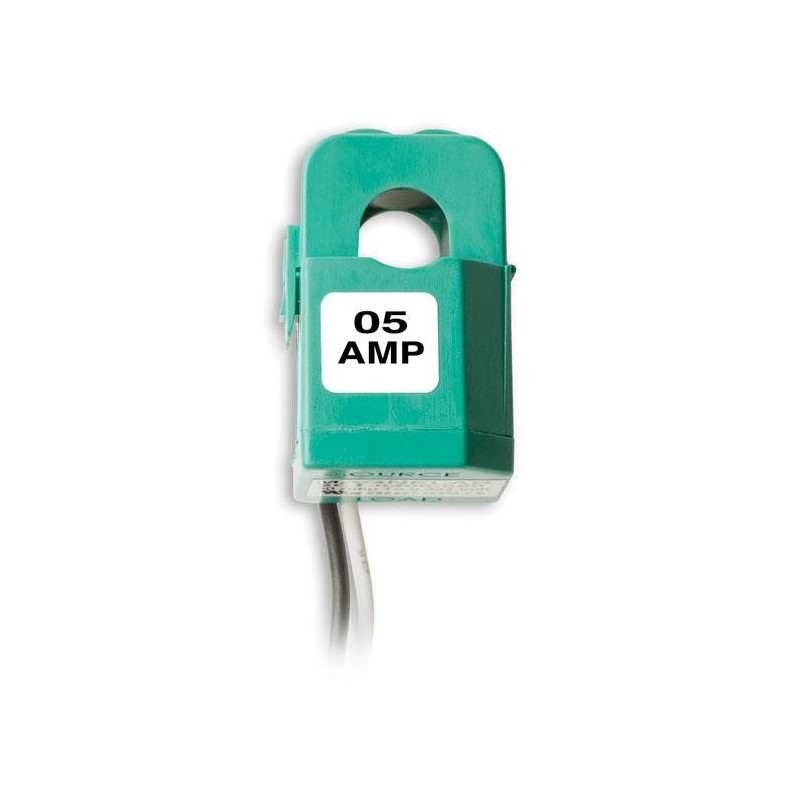

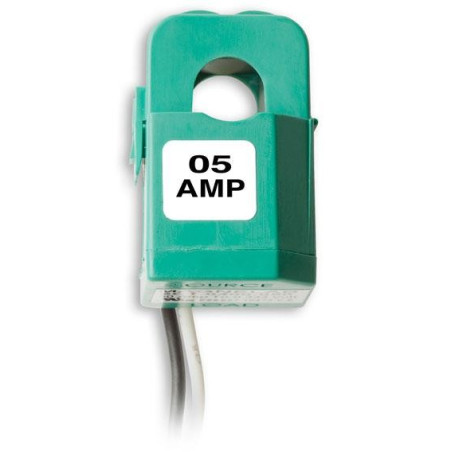

The small size AMP split-core AC Current Transformers series T-MAG-0400 are mounted around a current carrying wire to measure AC amperage.
This CT provides a 0 to .333 Volt AC output proportional to current flow and is used with Onset loggers via the HOBO Energy Logger TRMS module (Part # S-FS-TRMSA-D) and with kWh Transducers (WattNodes) for True RMS measurement of sinusoidal and non-sinusoidal waveforms. The result is an accurate current measurement for many types of electrical equipment.

Features:
  • UL recognized, CE and RoHS compliant
  • Works from 50 Hz to 400 Hz
  • Split-core design for fast, easy installation
  • Precision burden resistor
  • 8 ft. (2.44m) 24 AWG twisted pair leads
  • 0.40' (10.15mm) Opening
  • Models & Inputs/Outputs:
    T-MAG-0400-01     up to 1 Amp       Output 0 to 0.333 Volts AC
    T-MAG-0400-05     1 to 5 Amps       Output 0 to 0.333 Volts AC
    T-MAG-0400-10     1 to 10 Amps     Output 0 to 0.333 Volts AC
    T-MAG-0400-20     1 to 20 Amps     Output 0 to 0.333 Volts AC
    T-MAG-0400-50     1 to 50 Amps     Output 0 to 0.333 Volts AC
    T-MAG-0400-75     1 to 75 Amps     Output 0 to 0.333 Volts AC
  • Operates from 50 Hz to 400 Hz
  • Linearity accuracy ± 1%
  • Accuracy at 10% to 130% of rated current
Environment:
The T-MAG-0400 Sensor Range is for use in Indoor environments
Measurements:
The T-MAG-0400 Sensor Range support the following measurements: AC Current
