S-WSB-M003
New
Availability date:
The Sensor measures: | Air Speed m/sec |
Output Signal: | HOBO Smart Sensor |
Cable Length: | 1.8 m |
Sensor for use in: | Outdoor |

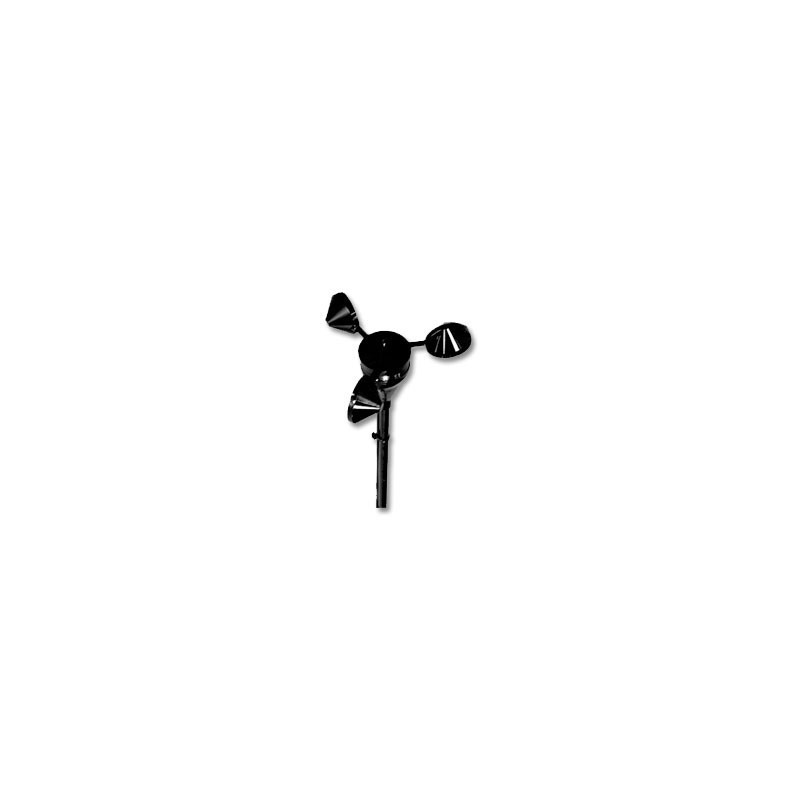

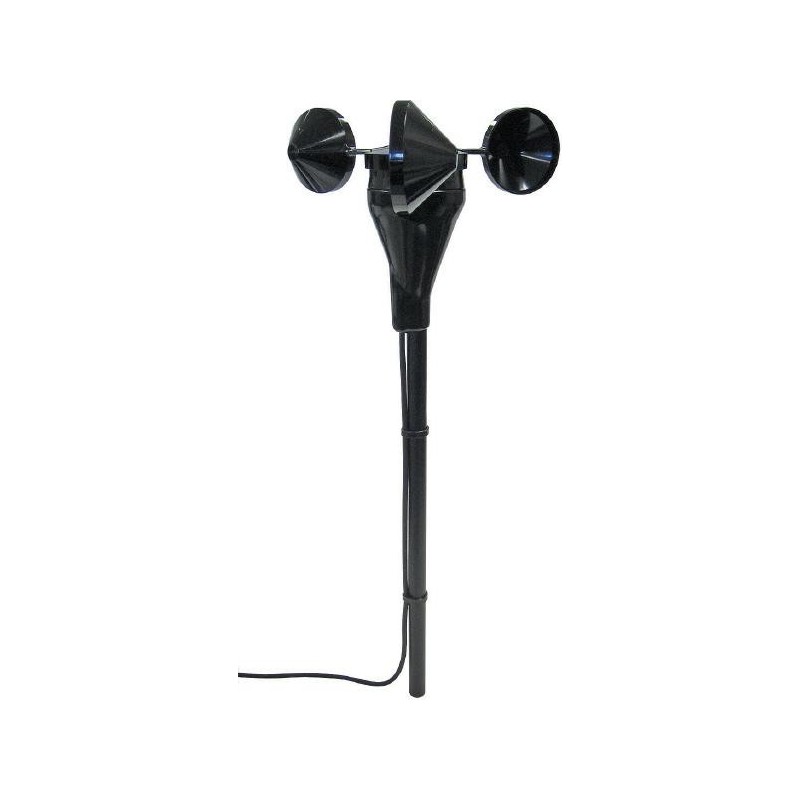

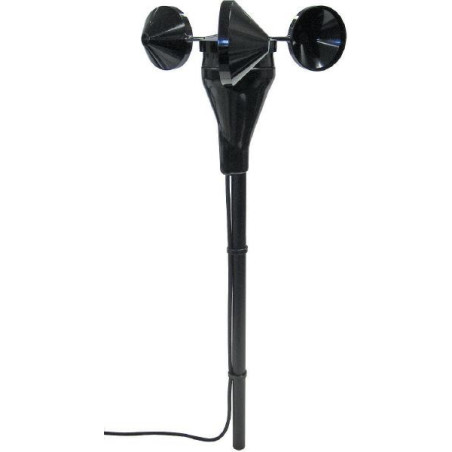

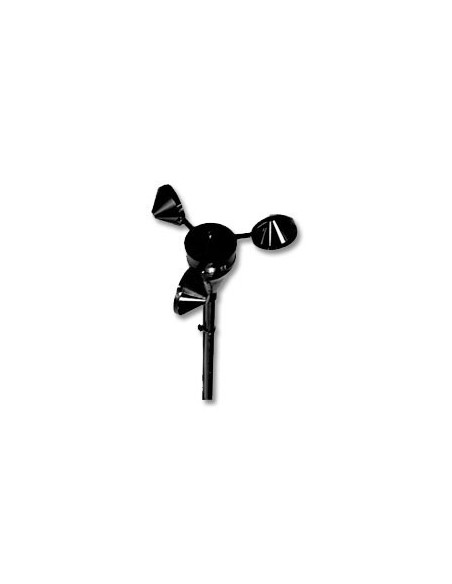

The Wind Speed Smart Sensor S-WSA-M003 is a 3 cup anemometer with TEFLON® bearings and hardened beryllium shaft designed to measure wind speed from 0 to 76 m/s (0 to 170 mph). Meets World Meteorological Organization requirements.
This smart sensor provides data reporting average wind speed and highest 2 second gust for each logging interval.
The starting threshold for this instrument is only 1 m/s (2.2 mph); instrument survives through 120 mph.
This model comes with a 3m cable.
NOTE: Requires the M-CAB Half Cross Arm for mast mounting.
Measurement Range: 0 to 76 m/sec (0 to 170 mph)
Accuracy: ±1.1 m/sec (2.4 mph) or ±4% of reading, whichever is greater
Resolution: 0.5 m/sec (1.1 mph)
Service Life: > 5 year life typical, factory replaceable mechanism
Distance: Constant 3 m (9.8 ft)
Starting Threshold: ≤ 1 m/sec (2.2 mph)
Maximum Wind Speed Surviva:l 76 m/sec (170 mph)
Measurements
Wind speed: Average wind speed over logging interval
Gust: Highest 3-second gust during the logging interval. See Measurement Operation for more information.
Operating Temperature Range: -40° to 75°C (-40° to 167°F)
Environmental Rating Sensor and Cable Jacket: Weatherproof
Housing: Three cup polycarbonate anemometer: Modified Teflon® bearings and hardened
beryllium shaft with ice shedding design
Dimensions: 41 x 16 cm (16 x 6.5 in.) including 1.27 cm (0.5 in) diameter mounting rod; 5.5 cm (2.1 in.) drip overhang
Weight: 300 g (10 oz)
Bits per Sample: 8 for each channel, 16 total
Number of Data Channels*: 2
Measurement Averaging Option: No
Cable Length Available: 3.5 m (11.5 ft)
Length of Smart Sensor Network Cable*: 0.5 m (1.6 ft)
Part Number S-WSB-M003
The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
* A single HOBO Weather Station can accommodate 15 data channels and up to 100 m (328 ft) of smart sensor cable (the digital communications portion of the sensor cables).
