RS3-B
New
Availability date:
Mounting Accessories: | Solar Radiation Shield |

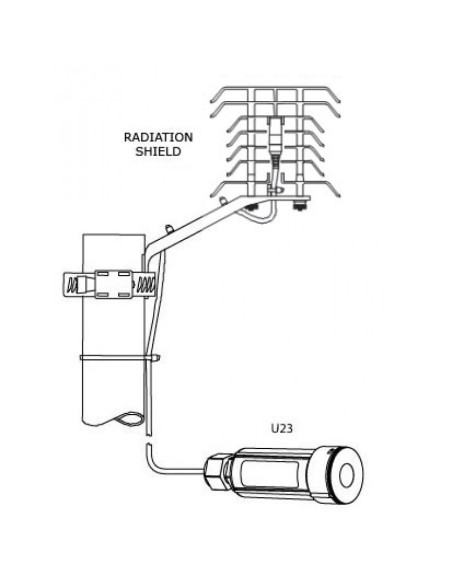

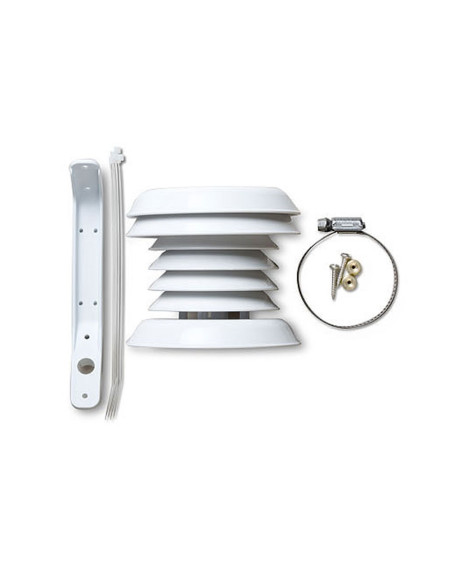

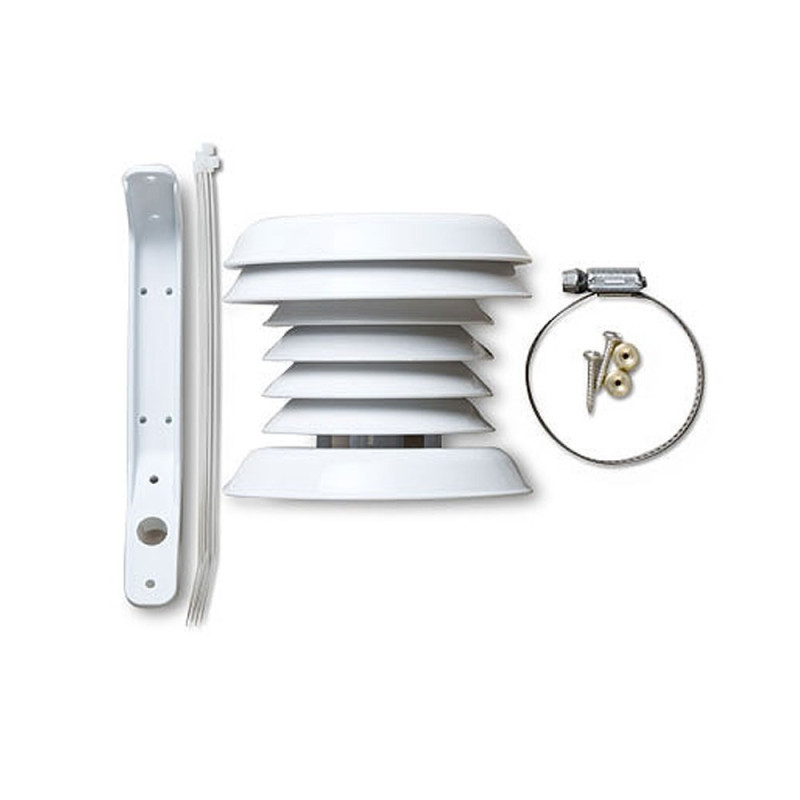

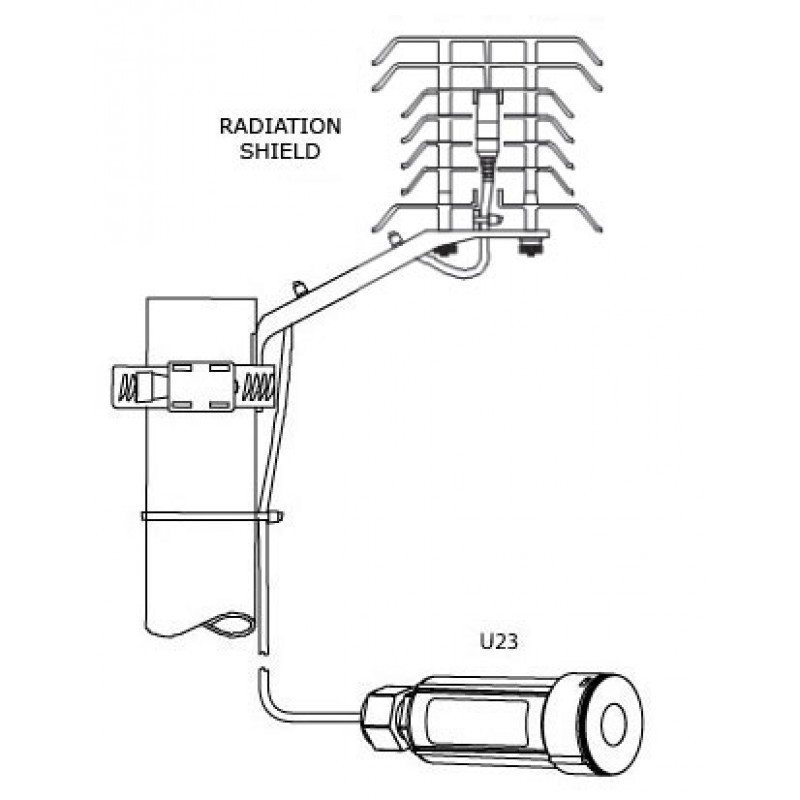

The RS3 Solar Radiation Shield protects external sensors from the effects of sunlight and rain to ensure high accuracy measurements. Designed to allow maximum air flow around the sensor, the RS3 shield offers 2.5x faster response time to changing conditions.
The RS3 Solar Radiation Shield works with most of Onset’s external temperature and Temp/RH sensors, including those for our award winning HOBO Weather Station products.
Use the RS3 Solar Radiation Shield to protect your external sensors from sunlight and rain. This shield ensures users gain more accurate measurements, due to increased airflow around sensors. And users benefit from 2.5x faster response time to changing conditions.
The RS3 Solar Radiation Shield works with most of Onset’s external temperature and Temp/RH sensors, including those for our award winning HOBO Weather Station products.
For customers interested in deploying a radiation shield with Onset logger such as a HOBO Pendant or U-Series logger, Onset also offers two other models of solar radiation shields; the RS1 and the pre-assembled M-RSA
Time response: 2.5 times faster than the RS1 and M-RSA
Wind resistance: Tested in sustained winds up to 129 kph (80 mph), Tested in gusts up to 161 kph (100 mph)
Materials
Shield: ASA styrene (UV-stable)
Bracket: Glass-filled nylon (UV-stable)
Mounting hardware: Stainless steel and brass
Temperature: -40° to 75°C (-40° to 167°F)
Weight: 113 g (4 oz)
Height: 89 mm (3.5 inches); 159 mm (6.25 inches) with bracket
Diameter: 102 mm (4 inches); bracket protrudes an additional 51 mm (2 inches) from shield

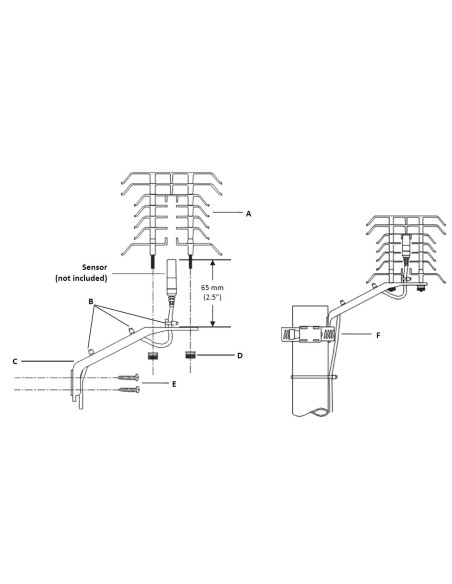

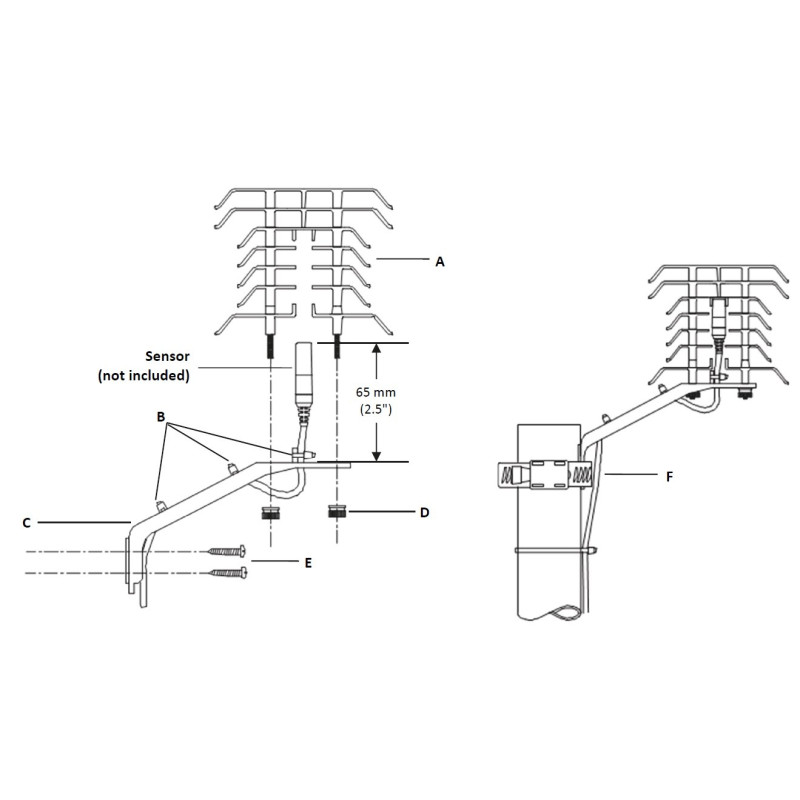

Mounting: Up to 51 mm (2 inches) mast diameter with hose clamp; unlimited with screws
Compatible sensors: Onset part numbers S-THB-M00X, S-TMA-M0XX, S-TMB-M0XX, TMCx-HB, TMCx-HD, W-TMB, and external sensors from U23-00X; NOT compatible with S-THA
Note: This shield does not protect sensors from light reflected from below the shield at some angles. For deployments over reflective surfaces, consider using Onset’s RS1 or M-RSA Solar Radiation Shields.
