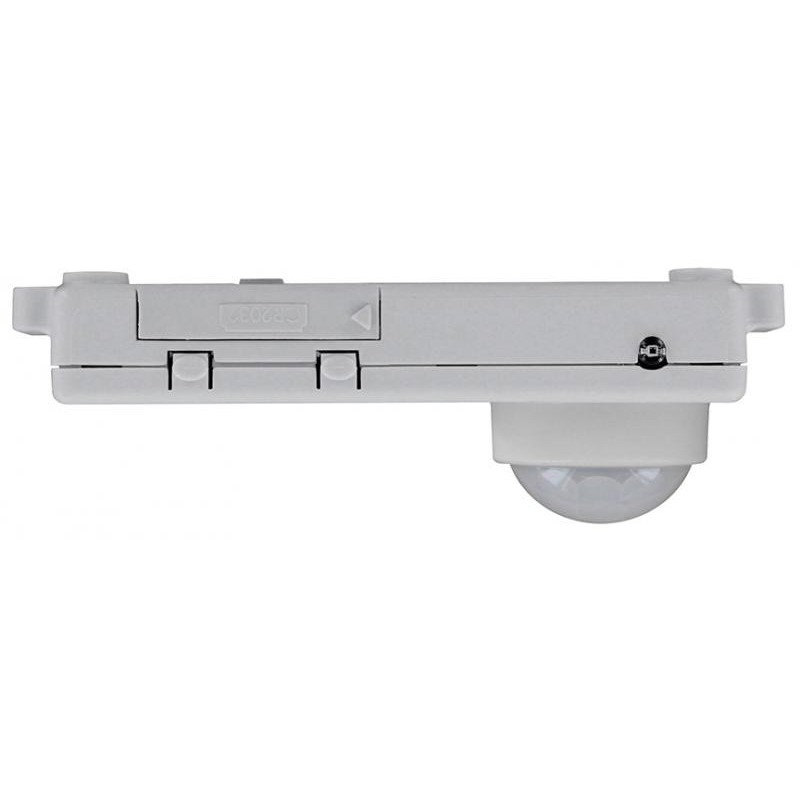

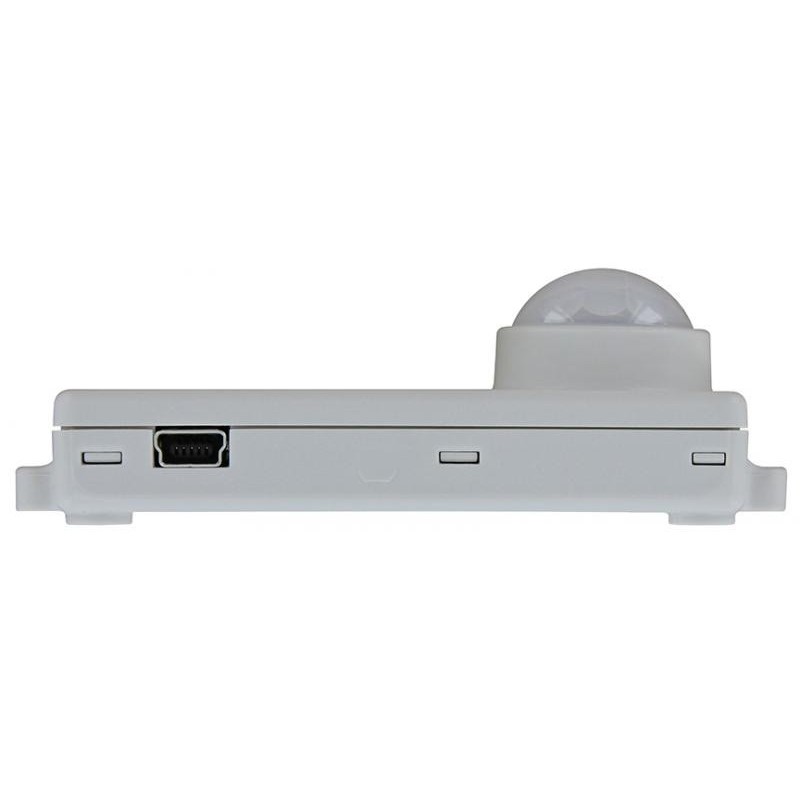

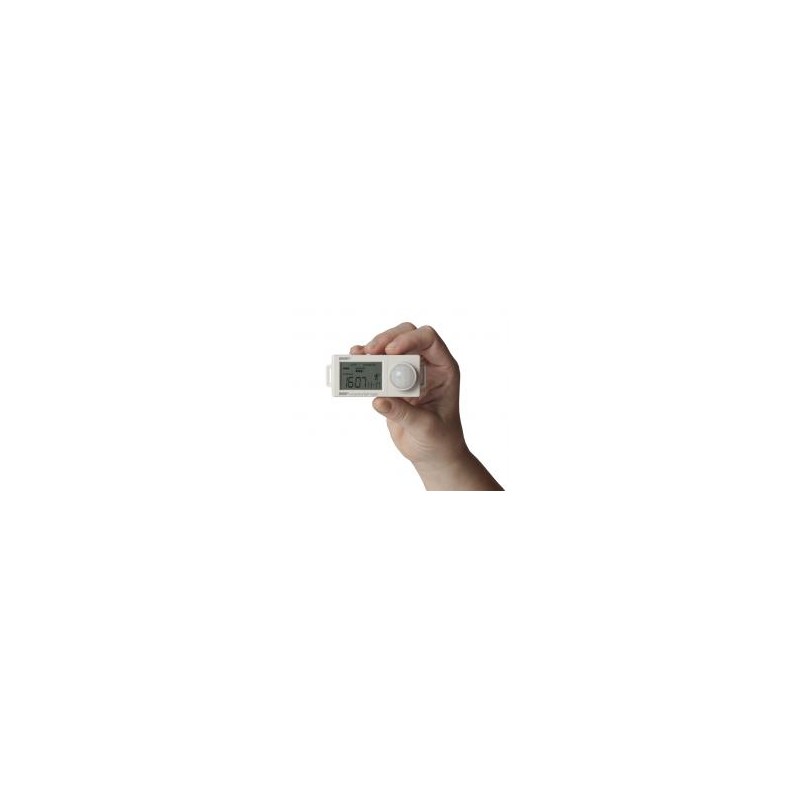

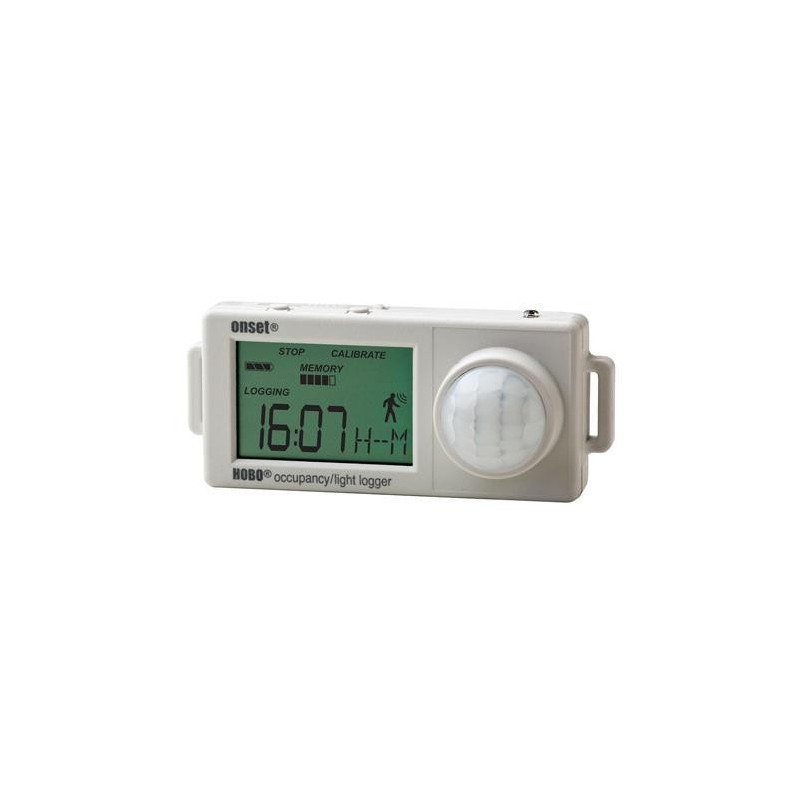

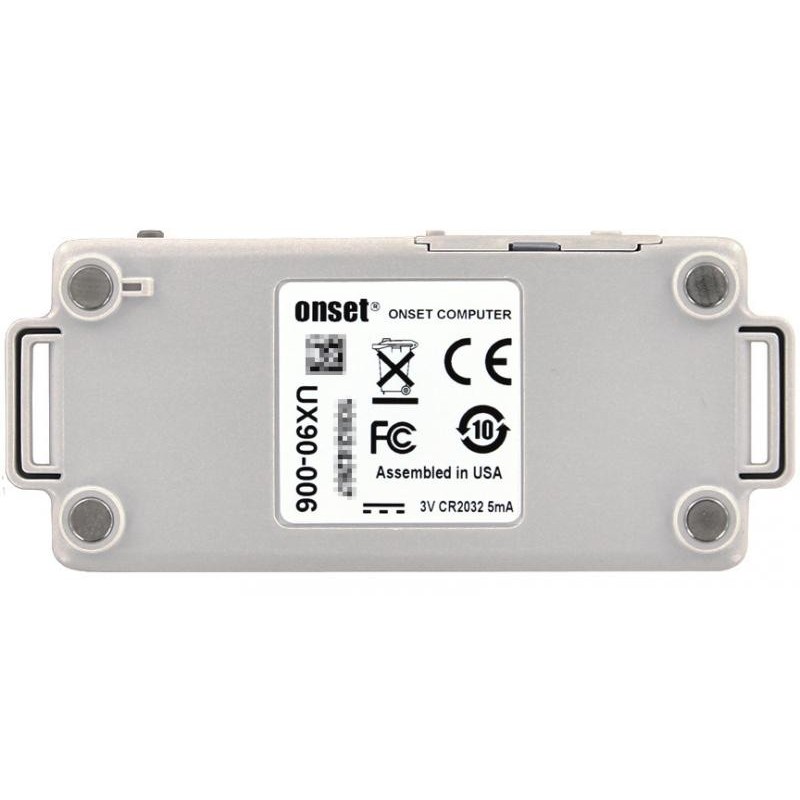

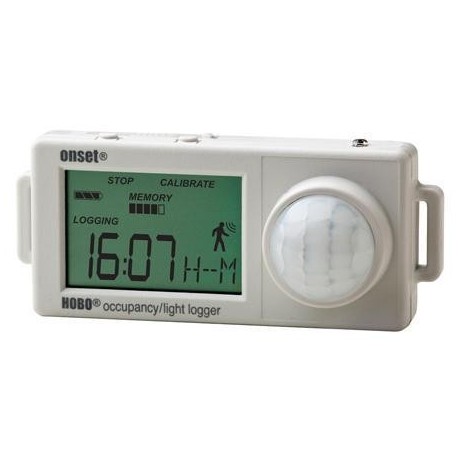

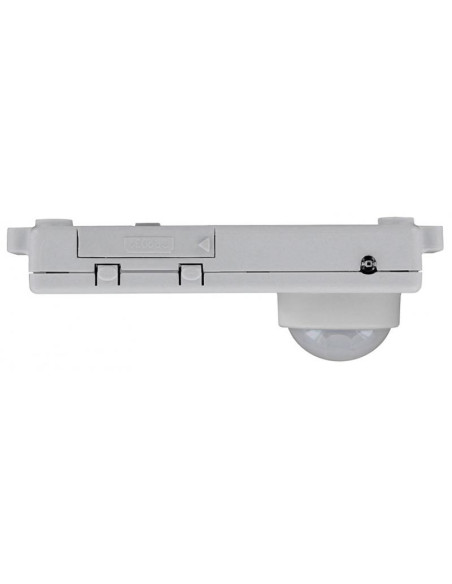

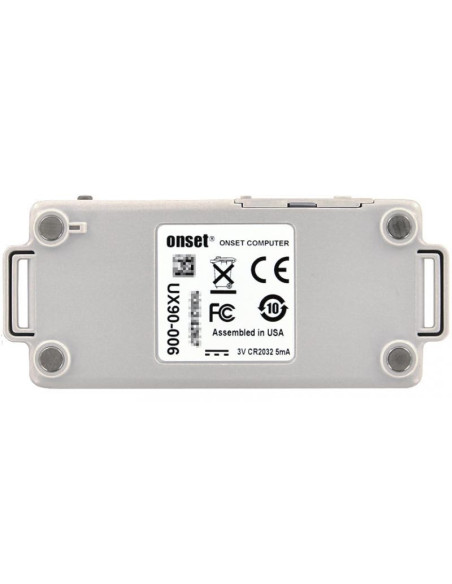

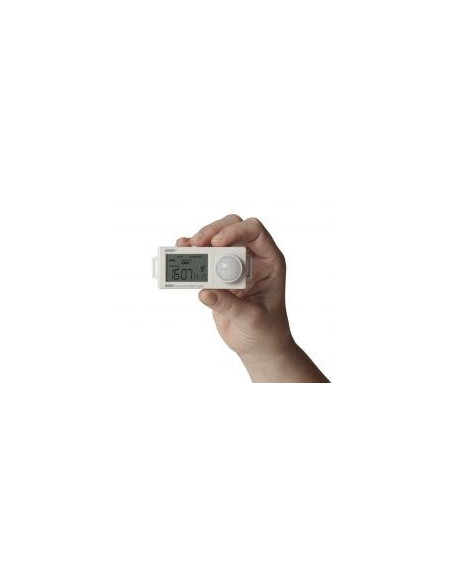

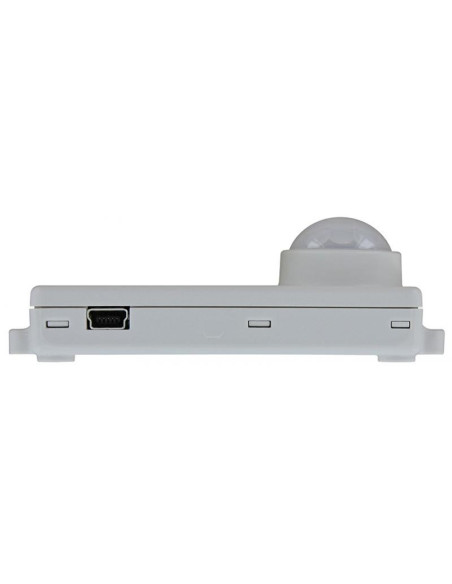

UX90-006 Occupancy & Light Logger (Range: 12m)

Reference

Manufacturer: Onset

Condition: New

Measures the occupation of the room up to 12 meters away.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

279,00 €

tax excl.

Quantity

Memory Options

Add to wishlist

Overview
Specifications
VIDEO
Data sheet
Download
Accessories

Environment of Use	Indoor
Type of Logger	Portable
Measured Parameters	Occupation and Light

UX90-006 MANUAL Download (181.62k)

The USB/micro-USB...

BHW-PRO HOBOware Pro Mac/Win Data Logger Software
112,00 €

Add to cart
BUYING IN BULK, OR...

CABLE-USBMB USB Interface Cable
18,00 €

Add to cart
The HOBO...

UX90-001 Data Logger for State, Pulses, Events, & Time
139,00 €

Add to cart
- UX90-002 Light...

UX90-002 HOBO Light On/Off Data Logger
139,00 €

Add to cart
UX90-004 Motor/State On/Off Data Logger for Motors
139,00 €

Add to cart

The HOBO Occupancy & Light data logger monitors room occupancy and indoor light changes to identify occupancy patterns and determine energy usage and potential savings.

The HOBO UX90-006 Room Occupancy/Light Logger is available in a standard 128 KB memory model (UX90-006) capable of 84,650 measurements and an expanded 512KB memory version (UX90-006M) capable of over 346,795 measurements.

Measures room occupancy up to 12 meters away
Auto-calibration of ON and OFF thresholds ensures reliable readings
LCD screen displays signal strength, enabling proper logger placement
Optional light pipe eliminates effects of ambient sunlight or other
lighting sources

Environment:
The UX90-006 Data Logger is for use in Indoor environments

Measurements:
The UX90-006 Data Logger supports the following measurements: Light On/Off, Occupancy

Occupancy Sensor:

Detection Range: UX90-005x: maximum 5 m (15.4 ft);
UX90-006x: maximum 12 m (39.4 ft)

Detection Performance:
UX90-005x: 94° (±47°) Horizontal; 82° (±41°) Vertical (see Figure A)
UX90-006x: 102° (±51°) Horizontal; 92° (±46°) Vertical (see Figure B)

Detection Zones:
UX90-005x: 64 (see Figure A)
UX90-006x: 92 (see Figure B)

Light Sensor:

Light Threshold: > 65 lux

Light Type: LED, CFL, fluorescent, HID, incandescent, natural

Logger:

Time Accuracy: ±1 minute per month at 25°C (77°F) (see Plot A)

Battery Life: 1 year typical use

Memory:
UX90-005/-006: 128 KB (84,650 measurements, maximum)
UX90-005M/-006M: 512 KB (346,795 measurements, maximum)

Download Type: USB 2.0 interface

Download Time: 10 seconds for 128 KB; 30 seconds for 512 KB

Logger Operating Range:
Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification

Occupancy Sensor Range: 20° to 60°C (-4° to 140°F); 15 to 85% RH (non-condensing)

LCD: LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range

Size:
UX90-005x: 3.66 x 8.48 x 2.36 cm (1.44 x 3.34 x 0.93 in.)
UX90-006x: 3.66 x 8.48 x 2.87 cm (1.44 x 3.34 x 1.13 in.)

Weight: 30 g (1.06 oz)

Environmental Rating: IP50

- The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
