RX2105 HOBO MicroRX Indoor Low Cost & easy implementation Cellular Station

RX2105

Onset

New

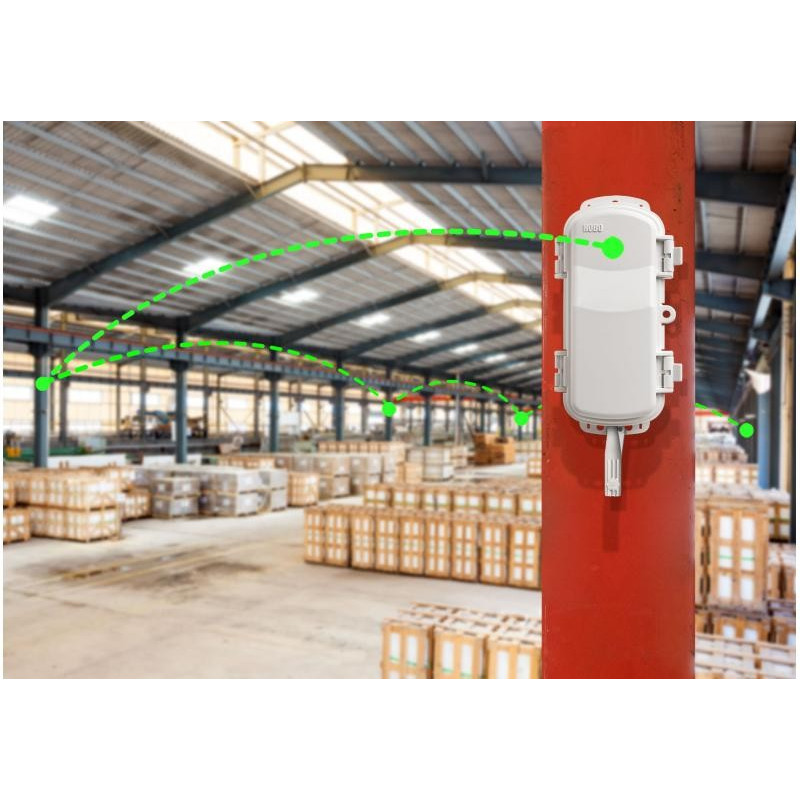

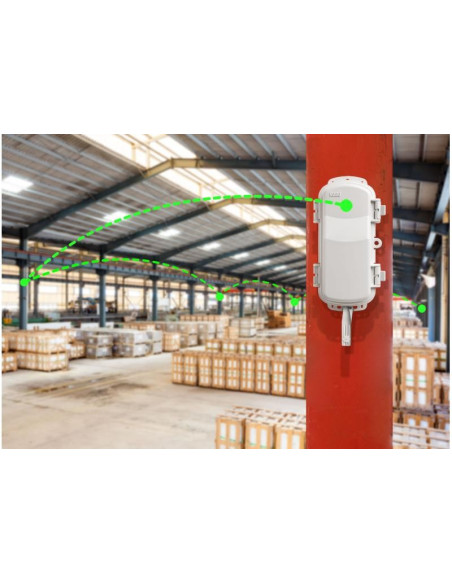

The compact HOBO MicroRX Station is an easy-to-deploy, low-cost cellular solution for long-term, reliable monitoring of indoor conditions in warehouses, cold storage facilities, data centers, museums, commercial and residential buildings, and more.

960,00 €

tax excl.

Add to wishlist

Environment of Use Indoor
Type of Logger Multicanal
Number of Channels 5 Smart Sensors
With Display LCD
IP Classification IP66
Communications GSM

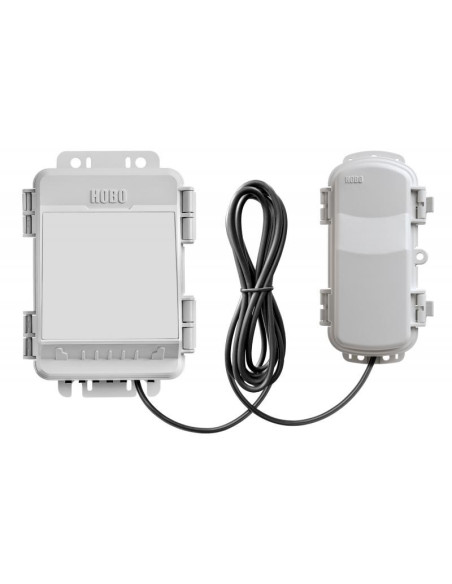

The station includes an integrated HOBOnet Manager, for easy deployment with wireless HOBOnet sensors. The station also features inputs for up to five of Onset’s research-grade plug-and-play sensors. Configurable station-side alarms trigger immediate notifications of critical conditions, and Onset’s cloud-based HOBOlink platform makes it easy to view, access, and share data.

Highlighted Features

  • Compact size and integrated HOBOnet Manager for easy deployment
  • Scalable, with option to connect up to 50 wireless sensors; 600 m line-of-sight range
  • Inputs for five plug-and-play sensors
  • Includes AC power adapter and user-replaceable AA lithium batteries for battery back-up

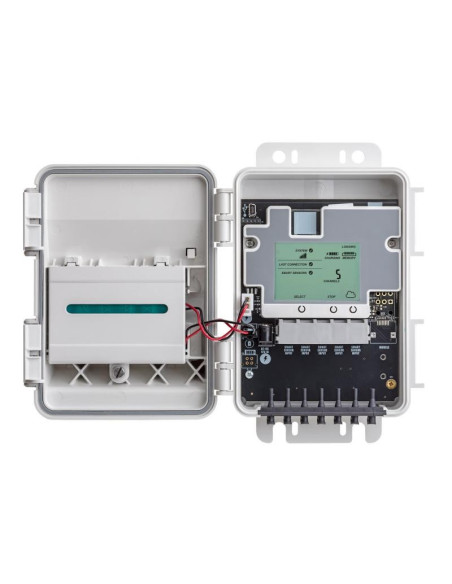

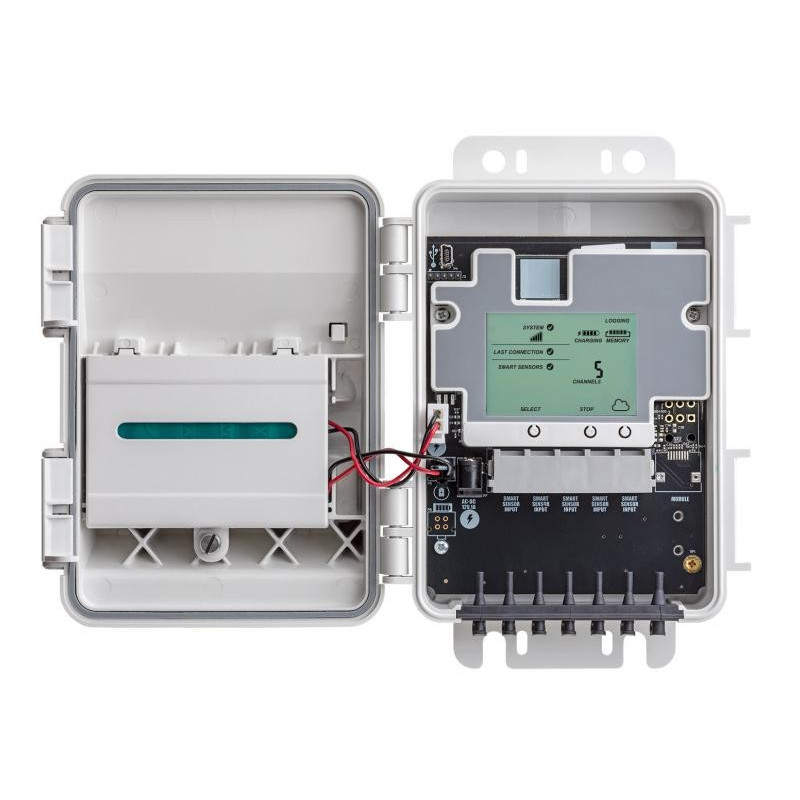

  • Built-in LCD confirms proper setup and operation
  • Up to 10-minute connection rates via 4G cellular data plans
  • Cloud-based monitoring and data access through HOBOlink
  • Integrated mounting tabs for use with screws, zip ties, or U-bolts

In what environment does this data logger operate?

This data logger operates in an indoor environment.

What measurements does this data logger support?

The RX2105 data logger supports the following measurements: 4-20mA, AC Current, AC Voltage, Amp Hour (Ah), Amps (A), DC Voltage, Event, Kilowatt Hours (kWh), Kilowatts (kW), Light Intensity, Power Factor (PF), Pulse Input, Relative Humidity, Temperature, Volt-Amp Reactive, Volt-Amp Reactive hour, Volt-Amps (VA), Volts (V), Water Flow, Watt Hours (Wh) and Watts (W)

Station
Operating Range RX2105: -40° to 60°C (-40° to 140°F)
Smart Sensor Connectors 5
Smart Sensor Network Cable Length 100 m (328 ft) maximum
Smart Sensor Data Channels Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
Logging Rate 1 minute to 18 hours
Time Accuracy ±8 seconds per month in 0° to 40°C (32°F to 104°F) range;
±30 seconds per month in -40° to 60°C (-40° to 140°F) range
Battery Type/Power Source RX2105: AC power adapter (P-AC-1) and 6 AA 1.5 V lithium batteries

Battery Life/Power Source RX2105:
Runs continuously with the included AC adapter.
Batteries can be used as a backup to AC power; battery life of 3 months with 1 minute logging and daily connections or 2 months with 1 minute logging and hourly connections, and with approximately 10 motes. Note: Deployments in areas with weak cellular strength could reduce battery life.

Alarm Notification Latency Logging interval plus 2–4 minutes, typical

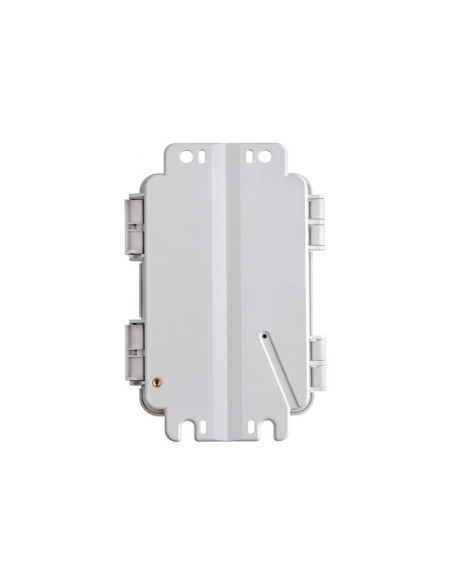

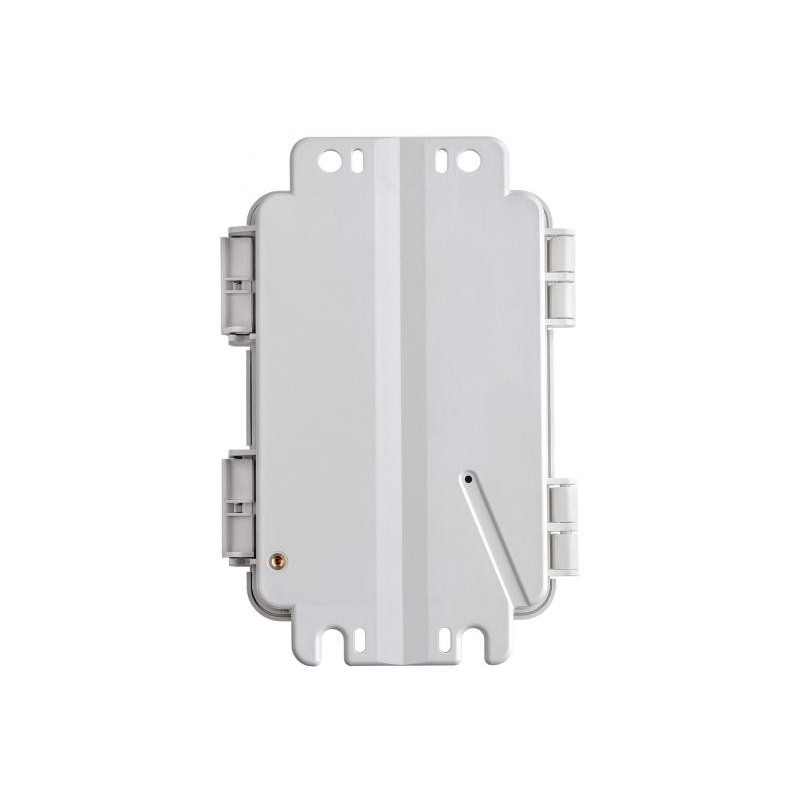

Enclosure Access Hinged door secured by two latches with eyelets for use with user-supplied padlocks
LCD LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range

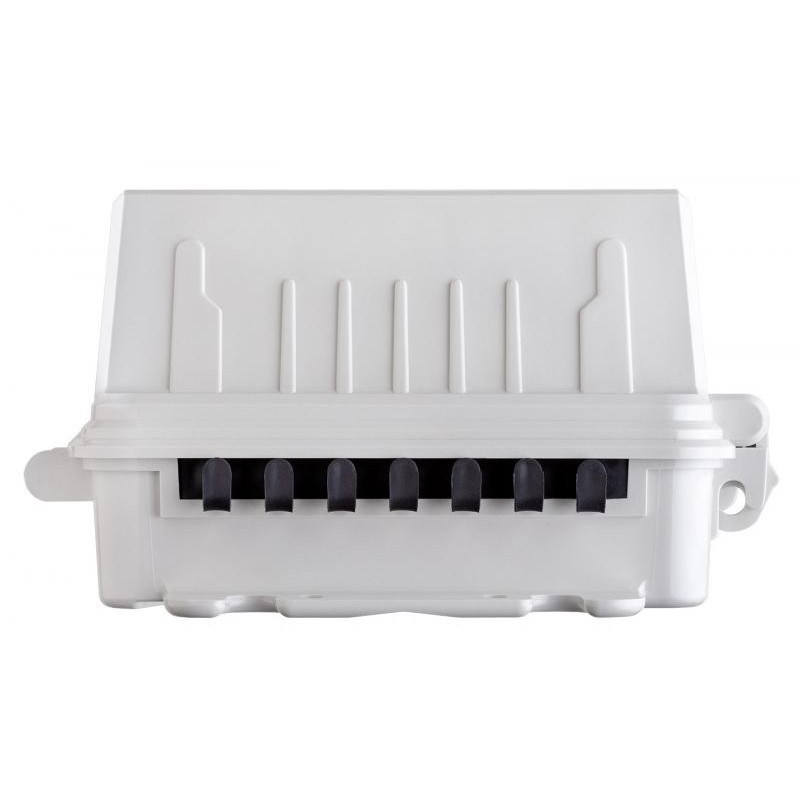

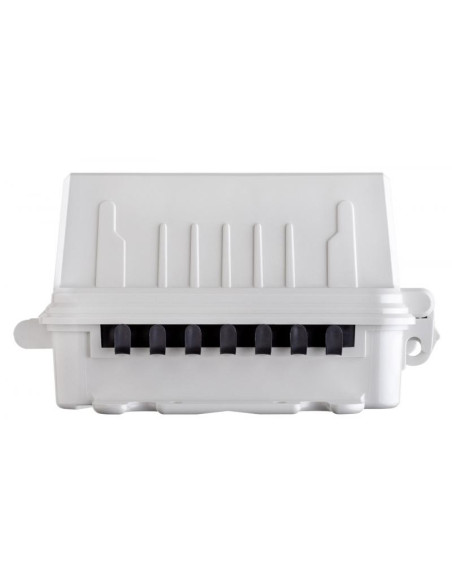

Materials Outer enclosure: Polycarbonate/PBT blend with brass inserts; Interior: Polycarbonate/PBT; Gasket: Silicone foam; Cable channel: Santoprene™ TPE; U-Bolts (not included): Steel with zinc dichromate finish
Dimensions 19.95 x 13.68 x 7.49 cm (7.85 x 5.39 x 2.95 in.); see diagrams at left
Weight 678 g (23.9 oz)
Mounting Optional U-bolts are compatible with masts up to 4.14 cm (1.63 in.) mast diameter; can also be mounted with zip ties or mounted to a flat surface with screws
Environmental Rating Weatherproof enclosure, NEMA 4X and IP66 (requires proper installation of cable channel system)
Wireless Radio GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz
Antenna 4G LTE
CE Compliant The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
FCC Logo Australia/New Zealand General Compliance mark
Manager
Operating Range -25° to 60°C (-13° to 140°F)
Radio Power 12.6 mW (+11 dBm) non-adjustable
Transmission Range Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high
Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) high
Wireless Data Standard IEEE 802.15.4
Radio Operating Frequencies RX210x-900: 904–924 MHz
RX210x-868: 866.5 MHz
RX210x-922: 916–924 MHz
Modulation Employed OQPSK (Offset Quadrature Phase Shift Keying)
Data Rate Up to 250 kbps, non-adjustable
Duty Cycle <1%
Maximum Number of Motes 50 motes per one HOBOnet wireless sensor network
Power Source Powered by the station
Dimensions Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)
Cable length: 2 m (6.56 ft)
Weight 159 g (5.62 oz)
Materials PCPBT, silicone rubber seal
Environmental Rating IP67, NEMA 6
  • HOBO RX2105 MicroRX Station
  • Manager
  • Cable
  • Grease packet
  • Cable ties
  • Screws and washers
  • Six AA lithium batteries
