TR-74Ui Measurements and cumulative values in LCD

View larger

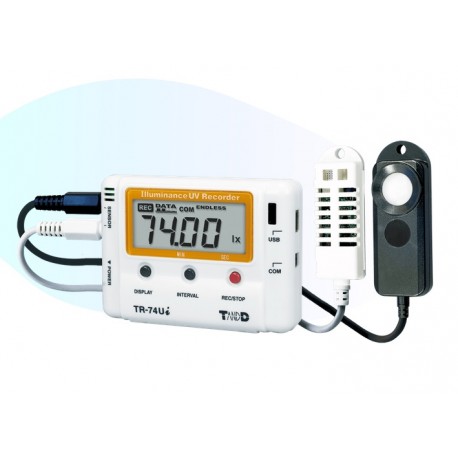

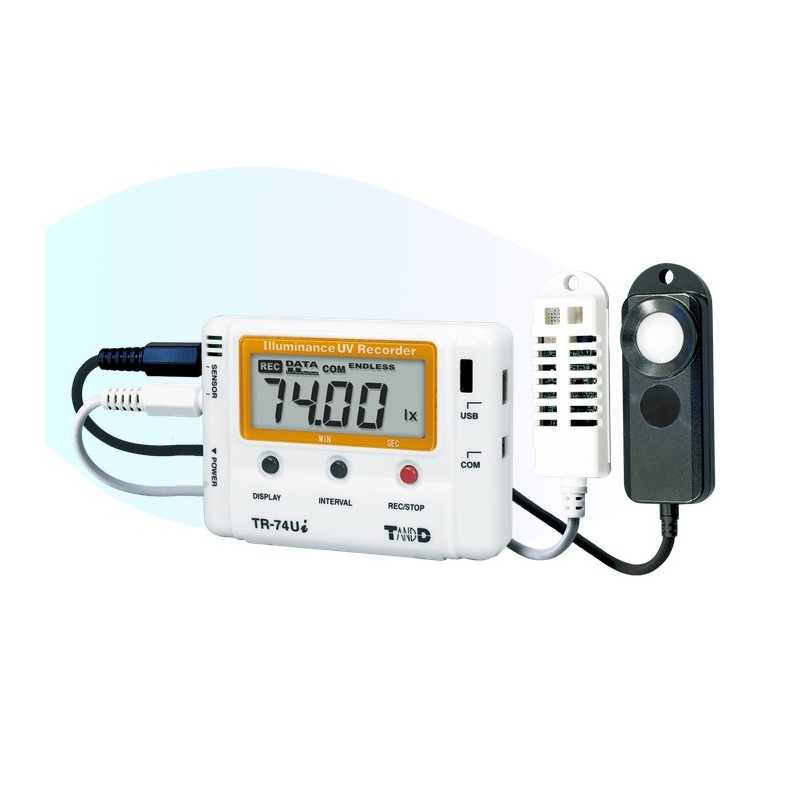

TR-74Ui Temp / HR / UV & Iluminance Logger with LCD display

Reference

Condition: New

The TandD TR-74Ui Illuminance UV Recorder can simultaneously measure and record illuminance, ultraviolet light (UV), temperature and humidity.

Volume discounts

Quantity	Price (tax excl.)	You Save %
1+	255,00 €	0%
5+	247,35 €	3%
10+	239,70 €	6%
15+	232,05 €	9%

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

255,00 €

tax excl.

Quantity

Select Model

Add to wishlist

OVERVIEW
ESPECIFICATIONS
Data sheet

Number of Channels	4 channels
Precision	Varies with model
With Display	Yes
Communications	USB, Serial, Infrared
Battery Life	6 months
Memory Capacity	8000 data

The TR-7Ui series, has a simple USB connection to the PC and provides an easy way to make detailed settings and download logged data.

Basic settings and REC start/stop can also be done by simply pressing buttons on the front panel of the units.

The TR-74Ui model can not only measure and record UV, Illuminance, temperature and humidity, but it can also record and display cumulative UV and Illuminance.

It is a perfect unit for use in the protection of exhibits and archives in museums and libraries.

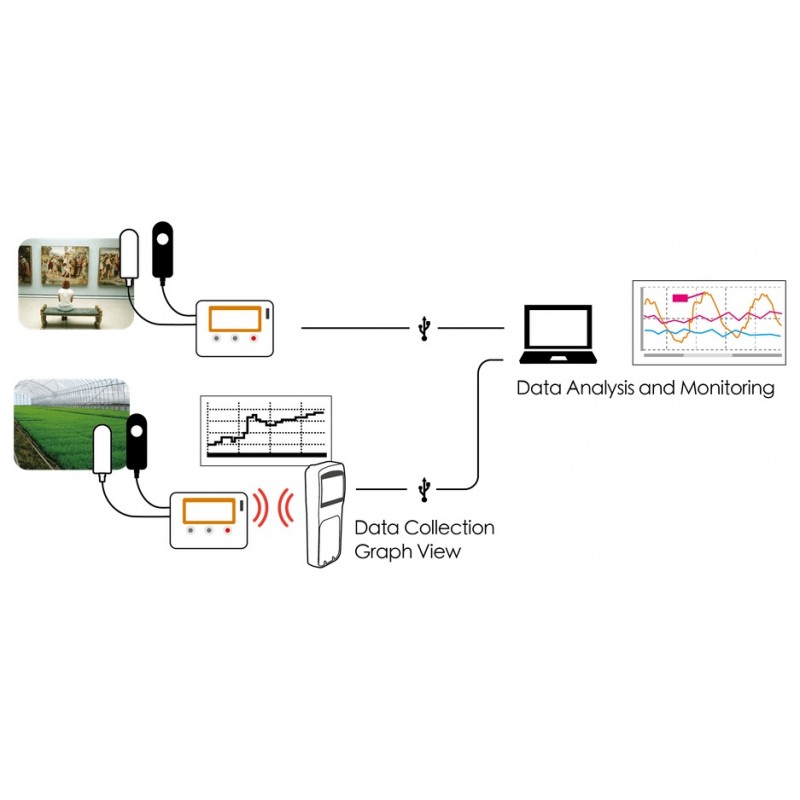

Place the TR-74Ui at the measurement site after starting recording. The Logged data can then be downloaded by connecting the logger to a PC with a USB cable and using our Windows software “Illuminance UV Recorder for Windows”.
Data downloaded to your PC can then be viewed and analyzed with our Windows compatible software “T&D Graph”.
By connecting a logger to your PC, it is also possible to monitor current readings using our Windows software.

Measurement Channels	Illuminance, UV Intensity, Temperature, Humidity
Measurement Range	TR-74Ui Illuminance: 0 to 130klx UV Intensity: 0 to 30mW/cm2 Temperature: 0 to 55°C Humidity: 10 to 95%RH TR-74Ui-S (High-Precision) Illuminance: 0 to 130klx UV Intensity: 0 to 30mW/cm2 Temperature: -25 to 70°C Humidity: 0 to 99%RH (-20°C~)
Accuracy	TR-74Ui Illuminance: ±5% UV Intensity: ±5% Temperature: ±0.5°C Humidity: ±5%RH TR-74Ui-S (High-Precision) Illuminance: ±5% UV Intensity: ±5% Temperature: ±0.3°C Humidity: ±2.5%RH
LCD Display	Measurements, Battery Life Warning, etc.
Logging Capacity	8,000 data sets
Recording Intervals	15 choices from 1 sec. to 60 min.
Recording Mode	Endless/Onetime
Comm Interfaces	USB, Serial, Infrared
Power	AA Alkaline Battery x 1
Operating Environment	Temperature: -10 to 60°C Humidity: 90%RH or less (no condensation)
Dimensions	H:55mm × W:78mm × D:18mm
Waterproof Capacity	None
Battery Life	Approx. 6 months
Accessories	Illuminance-UV Sensor, Temperature-Humidity Sensor
