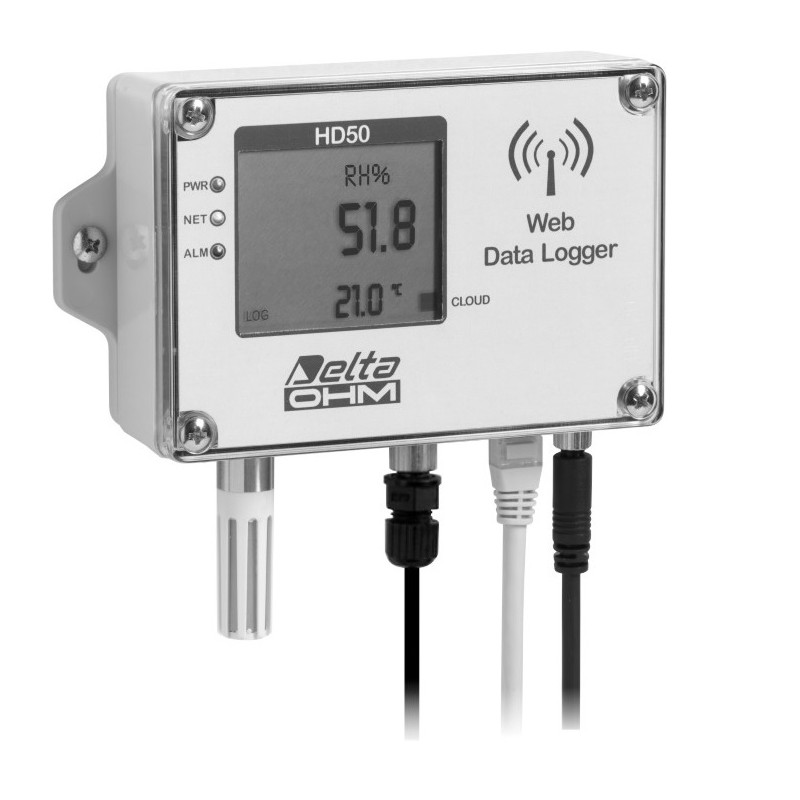

Reference: HD 50 14bNI… TCV - Manufacturer: SENSECA (Delta Ohm)

◆ Number of samples: Min. = 323,800, Max. = 906,640 (according to the number of quantities stored).
◆ Optional customized (option L) or graphic (option G) LCD display.
◆ Combined vertical temperature and fixed relative humidity probe (with NTC10KΩ temperature sensor). ◆ One input with M12 connector for the LP 35 PHOT illumination probe.
◆ Photodiode with spectral response similar to the standard photopic curve V (λ). Integrated pressure sensor.

Select Model


Sensors measuring ranges:
- temperature: -40 ... + 105 ° C
- relative humidity: 0 ... 100% RH
- atmospheric pressure: 300 ... 1100 hPa
- illuminance:

  • 0 ... 20,000 lux (HD 50 14bNI TCV)
  • 0 ... 200,000 lux (HD 50 14bNI2 TCV)

RH. Sensor operating temperature: -20 ... + 80 ° C.
Instrument operating temperature / humidity: -20 ... + 70 ° C / 0 ... 100% RH.
Calculated quantities: dew point, wet bulb temperature, absolute humidity, mixing ratio, partial vapor pressure.
It includes HD35AP-S downloadable software from Delta OHM web site.
Supplied with: pair of flanges for wall mounting, M8 connector for connecting the power supply, operating manual. The LP 35 PHOT illuminance probe, the LP BL base or the LP BL3 wall mount support, the SWD10M8 power supply or the CPM8 ... power supply cable have to be ordered separately. The Ethernet cable is not included.

RELATED PRODUCTS:

-----------------DATA LOGGERS----------------
Data Acquisition
Environment of Use
Indoor
Measured Parameters
Temp./Rel. Humidity, Pressure, Light.
IP Classification
IP54
Communications
Wifi/Ethernet
