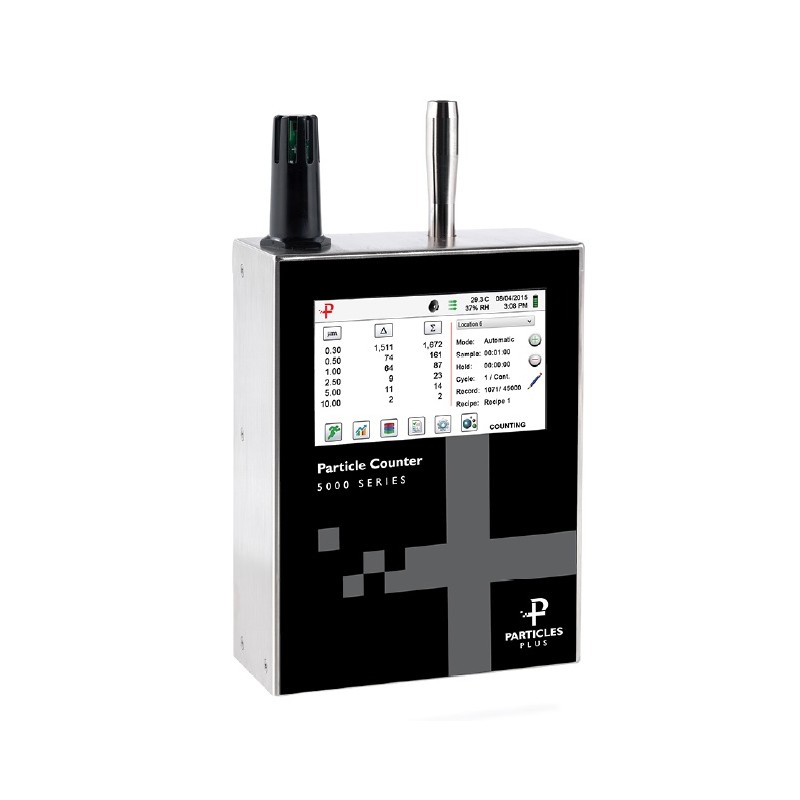

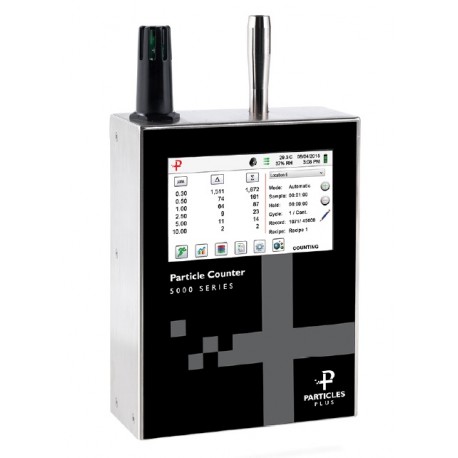

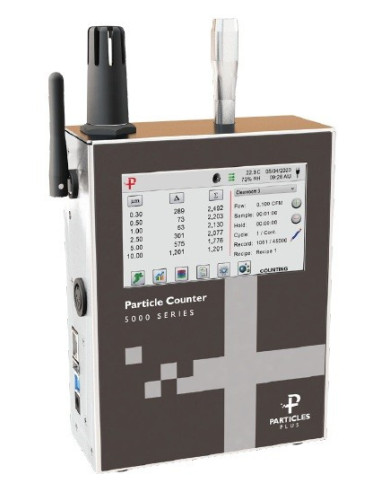

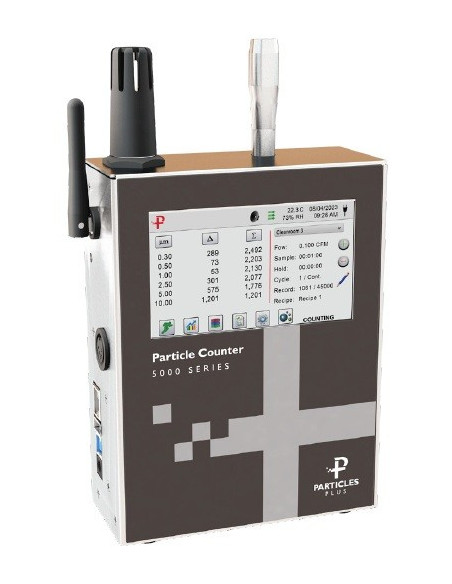

5501P Remote Particle Counter (0.3 – 25 µm @ 0.1 CFM with internal pump)

Reference 5501P

Condition: New

The Particles Plus® 5301P Remote Particle Counter is the most feature-advanced remote particle counter available. Integration is easy into a building automation and cleanroom management system via Ethernet, or (optional) Wireless 802.11 b/g, RS485 or RS232.

5301P is a stand alone instrument. You can download the data (Excel) using our IMS software, or can view the data on a web browser using Ethernet or Wi-Fi.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
ACCESSORIES
Data sheet

Type of Instrument	Particles in Air Monitor
The instrument measures:	Optical Particle Counting
Instrument for:	Particles in the Air
Function:	Analyze Particle Size

The 5301P remote particle counters display and report 6 user-selectable particle size channels, as well as temperature and relative humidity, flow and sensor status, date of last calibration, serial number, laser on-time and date of manufacture for easy maintenance and warranty management.

This remote particle counter stores up to 45,000 time stamped particle count and environmental data records which provides data redundancy on every instrument. Particles Plus® counters can be controlled and monitored remotely via web browser.

All Particles Plus® counters meet ISO 21501-4 and JIS B9921. The 5301P ensures compliance with an on-board pulse height analyzer.

Measures 0.3 μm to 25 μm

0.1 CFM (2.83 LPM) flow rate

Long-life laser diode technology

Measures up to 6 channels of simultaneous data

Approximates mass concentration in μg/m³

Large easy-to-use icon driven color touch screen display

(Optional) temperature and relative humidity probe

Internal vacuum pump

Stores up to 45,000 sample records for on-board data redundancy

Easy configuration and transferable from instrument to instrument

Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232.

Static or dynamic IP address (DHCP)

Internal audible alarm

User-selectable channel sizes

Complies with ISO 21501-4 and JIS B9921 standards

Easy to clean and wipe down with minimal particle traps

Versatile mounting options

Seamless integration into a facility monitoring system

Light weight stainless steel enclosure

2 year warranty. Extended warranties available.

Size Range	0.3 to 25 μm
Size Channels	Factory calibrated at 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm
Flow rates	0.1 CFM (2.83 LPM)
Concentration Limit	10,000,000 Particles/ft³ @ 10% coincidence loss
Counting Efficiency	50% @ 0.3 μm; 100% for particles >0.45 μm per JIS
Light Source	Long Life Laser Diode
Zero Count	<1 count / 5 minutes (<2 particles / ft³) (per ISO 21501-4 & JIS)
Count Modes	Automatic, manual, real-time meter, cumulative/differential, count or concentration
Count Alarms	1 to 9,999,999 counts
Calibration	NIST traceable
Display	4.3″ (10.9 cm) WQVGA (480×272) color touch screen
Internal Vacuum Pump	Internal pump with automatic flow control
Number of Channels	6
Custom Size Channels	Calibration for custom size channels available
Airflow	Internally monitored
Audible Alarm	Adjustable built-in alarm
Communication Modes	Ethernet and USB
Optional Communication Modes	Wireless 802.11 b/g, RS485 or RS232
Environmental Sensor	Optional temperature and relative humidity probe 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC), 15-90% ±2% relative humidity
Alarm	Alarms on counts for all particle sizes, sensor failure, environmental sensors and flow
Standards	ISO 21501-4 and JIS B9921
Calibration	Recommended minimum once per year
External Surface	Stainless steel
Dimensions (L x W x H)	5.2” x 2.3” x 8.9” (13.3 cm x 5.8 cm x 22.6 cm) includes barb fittings
Weight	2.6 lb (1.18 kg)
Accessories	Operating manual on USB flash drive, isokinetic probe, power supply & cable
Optional Accessories	Printed manual, temperature relative humidity sensor, isokinetic probes, purge filter, data cable, mounting bracket and sample tubing
Buffer Memory	45,000 sample records (rotating buffer) including particle count data and environmental data
Sample Time	1 second to 99 hours
Power	110 to 240 VAC 50/60 Hz universal in-line power supply
Operating Conditions	41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing
Storage Conditions	32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing
Warranty	2 Years. Extended warranties available.
