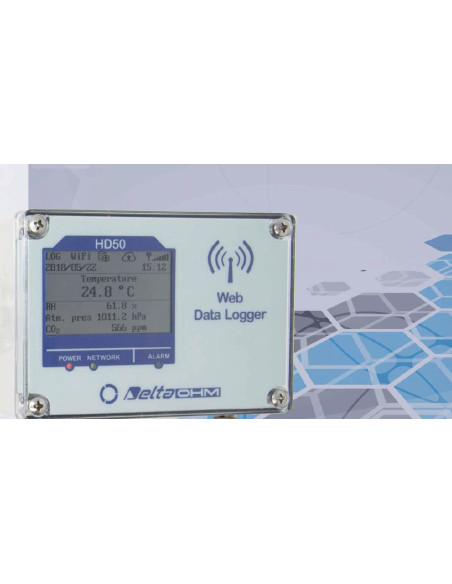

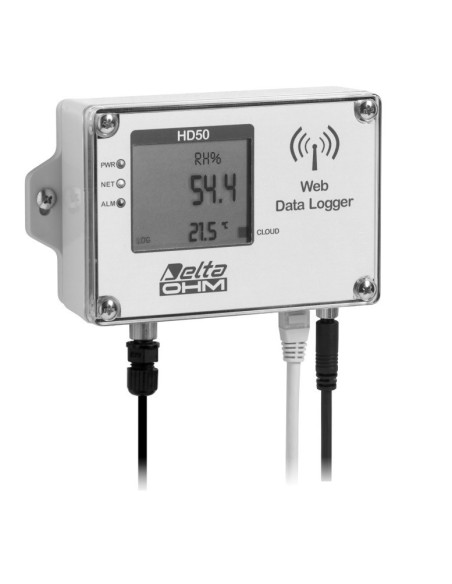

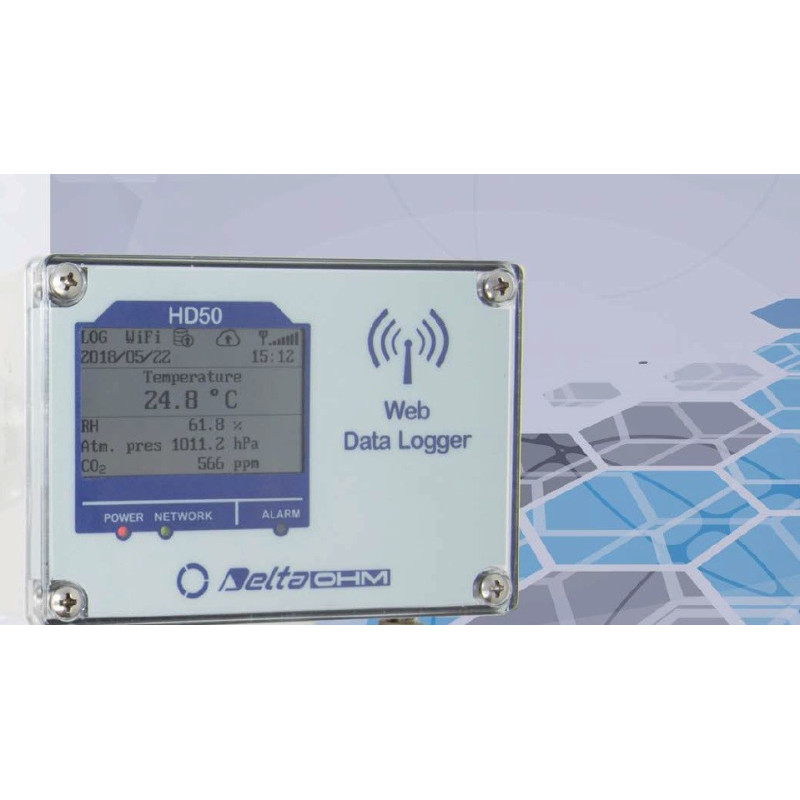

HD 50 1N TC Temperature and Humidity Data Logger

Reference

Manufacturer: Delta Ohm

Condition: New

Number of samples: Min = 388.560, Max = 906.640 (depending on the number of stored quantities). Optional custom (option L) or graphical (option G) LCD display. One input with M12 connector for the HP3517TC ... temperature and relative humidity combined probe (with NTC10KΩ temperature sensor).

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

399,00 €

tax excl.

Quantity

Select Model

Add to wishlist

OVERVIEW
RELATED PRODUCTS
SPECIFICATIONS
MODELS
Data sheet
Download

-----------------DATA LOGGERS----------------	Data Acquisition
Environment of Use	Indoor
IP Classification	IP54

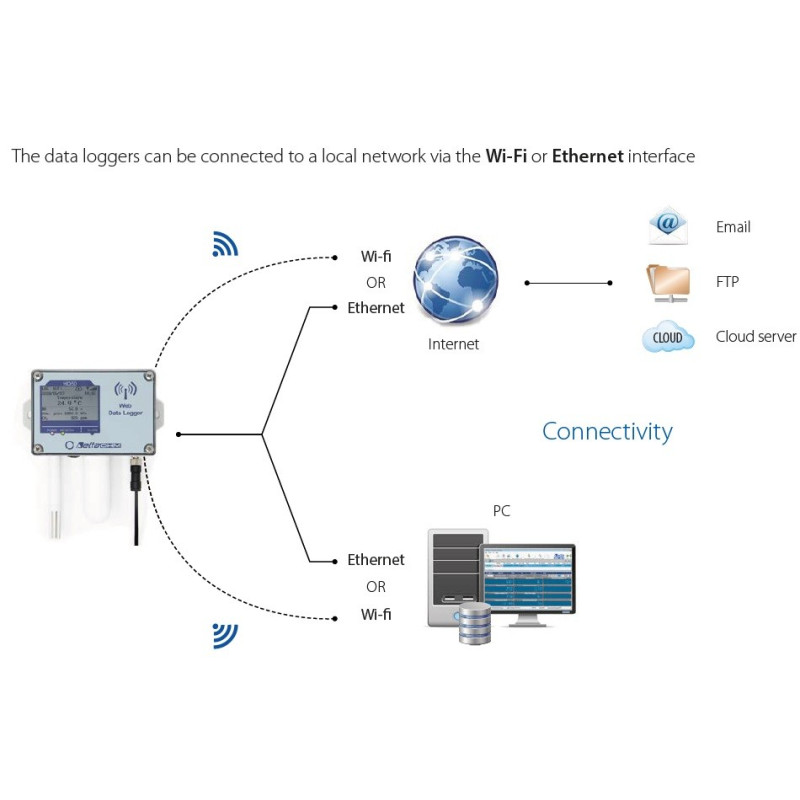

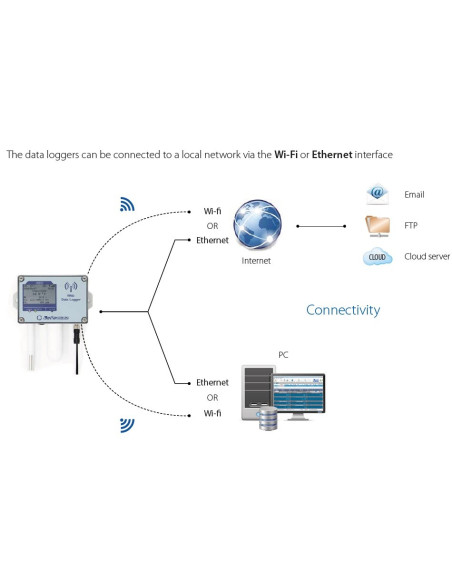

Communications	Wifi/Ethernet

HD 50 Manual Download (3.16M)

HD 50 Data Sheet Download (1.43M)

Instrument measuring ranges:
- temperature: -40 ... + 105 ° C
- relative humidity: 0 ... 100% RH
RH. Sensor operating temperature: -20 ... + 80 ° C.
Instrument operating temperature / humidity: -20 ... + 70 ° C / 0 ... 100% RH.
Calculated quantities: dew point, wet bulb temperature, absolute humidity, mixing ratio, partial vapor pressure.
It includes HD35AP-S downloadable software from Delta OHM web site.
Supplied with: pair of flanges for wall mounting, M8 connector for connecting the power supply, operating manual. The external probe (HP3517TC ... series) and the SWD10M8 power supply or the CPM8 ... power supply cable have to be ordered separately. The Ethernet cable is not included.
