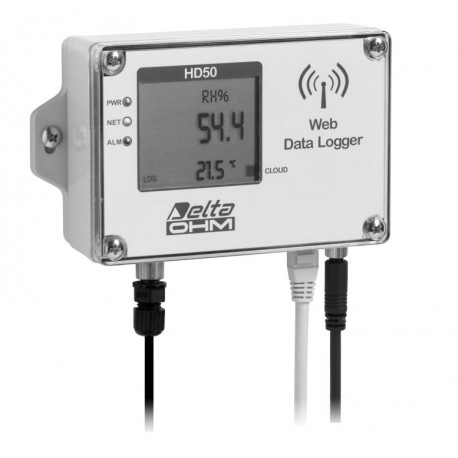

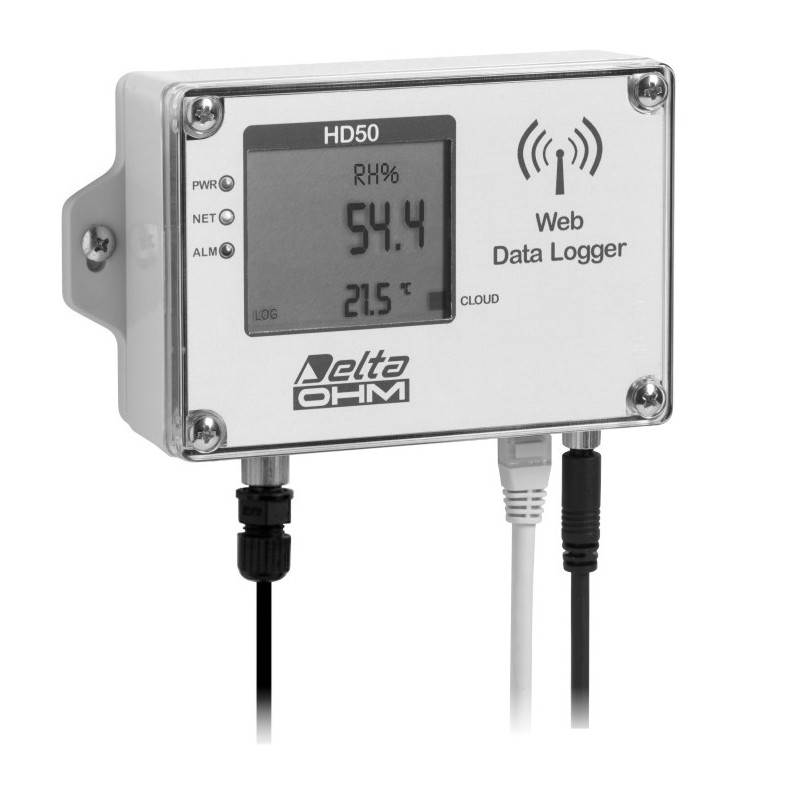

HD 50 14bN TC Temperature, Humidity and Atmospheric Pressure Data Logger

HD 50 14bN TC Temperature, Humidity and Atmospheric Pressure Data Logger

HD 50 14bN TC Temperature, Humidity and Atmospheric Pressure Data Logger

Reference: HD 50 14bN TC - Manufacturer: SENSECA (Delta Ohm)

Number of samples: Min = 356,180, Max = 906,640 (depending on the number of stored quantities). Optional custom (option L) or graphical (option G) LCD display. One input with M12 connector for the HP3517TC ... temperature and relative humidity combined probe (with NTC10KΩ temperature sensor). Integrated pressure sensor.

Select Model

OVERVIEW
RELATED PRODUCTS

Instrument measuring ranges:
- temperature: -40 ... + 105 ° C
- relative humidity: 0 ... 100% RH
- atmospheric pressure: 300 ... 1100 hPa
RH. Sensor operating temperature: -20 ... + 80 ° C.
Instrument operating temperature / humidity: -20 ... + 70 ° C / 0 ... 100% RH.
Calculated quantities: dew point, wet bulb temperature, absolute humidity, mixing ratio, partial vapor pressure.
It includes HD35AP-S downloadable software from Delta OHM web site.
Supplied with: pair of flanges for wall mounting, M8 connector for connecting the power supply, operating manual. The external probe (HP3517TC ... series) and the WD10M8 power supply or the CPM8 ... power supply cable have to be ordered separately. The Ethernet cable is not included.
