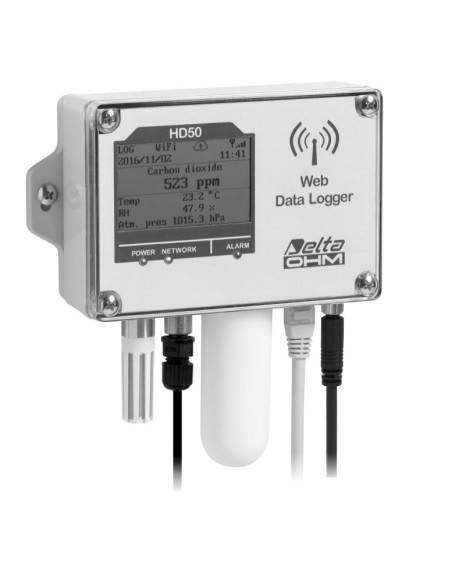

HD 50 14bNB…I… TCV Temperature, Humidity, Atmospheric Pressure, Carbon Dioxide and Illuminance Data Logger
HD 50 14bNB…I… TCV Temperature, Humidity, Atmospheric Pressure, Carbon Dioxide and Illuminance Data Logger
HD 50 14bNB…I… TCV Temperature, Humidity, Atmospheric Pressure, Carbon Dioxide and Illuminance Data Logger
HD 50 14bNB…I… TCV Temperature, Humidity, Atmospheric Pressure, Carbon Dioxide and Illuminance Data Logger

HD 50 14bNB…I… TCV Temperature, Humidity, Atmospheric Pressure, Carbon Dioxide and Illuminance Data Logger

Reference: HD 50 14bNB…I… TCV - Manufacturer: SENSECA (Delta Ohm)

◆ Number of samples: Min = 291,420, Max = 906,640 (depending on the number of quantities stored).
◆ Optional customized LCD screen (option L) or graphic (option G).
◆ Fixed vertical temperature and relative humidity combined probe (with NTC10KΩ temperature sensor).
◆ Fixed CO2 probe with removable protection filter. One input with M12 connector for the LP 35 PHOT illumination probe.
◆ Photodiode with spectral response similar to the standard photopic curve V (λ). Integrated pressure sensor.

Select Model


Sensors measuring ranges:
- temperature: -40 ... + 105 ° C
- relative humidity: 0 ... 100% RH
- CO2:

  • 0 ... 5,000 ppm (HD 50 14bNBI TCV, HD 50 14bNBI2 TCV)
  • 0 ... 10,000 ppm (HD 50 14bNB2I TCV, HD 50 14bNB2I2 TCV)

- illuminamento:

  • 0 ... 20,000 lux (HD 50 14bNBI TCV, HD 50 14bNB2I TCV)
  • 0 ... 200,000 lux (HD 50 14bNBI2 TCV, HD 50 14bNB2I2 TCV)

RH. Sensor operating temperature: -20 ... + 80 ° C.
CO2 sensor operating temperature: -20 ... + 60 ° C.
Instrument operating temperature / humidity: -20 ... + 70 ° C / 0 ... 100% RH.
Calculated quantities: dew point, wet bulb temperature, absolute humidity, mixing ratio, partial vapor pressure.
It includes HD35AP-S downloadable software from Delta OHM web site.
Supplied with: pair of flanges for wall mounting, M8 connector for connecting the power supply, operating manual. The LP 35 PHOT illuminance probe, the LP BL base or the LP BL3 wall mount support, the SWD10M8 power supply or the CPM8 ... power supply cable have to be ordered separately. The Ethernet cable is not included.

RELATED PRODUCTS:

-----------------DATA LOGGERS----------------
Data Acquisition
Environment of Use
Indoor
IP Classification
IP54
Communications
Wifi/Ethernet
