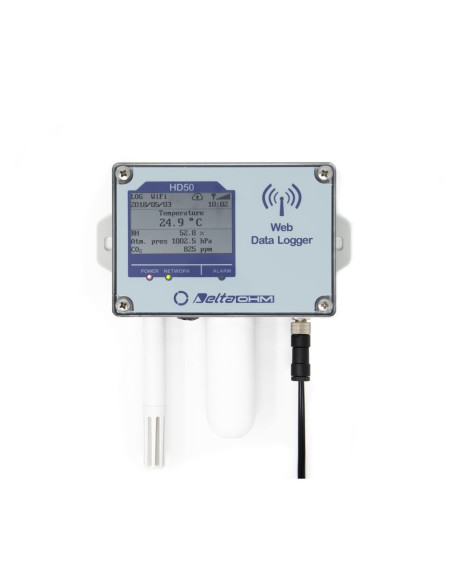

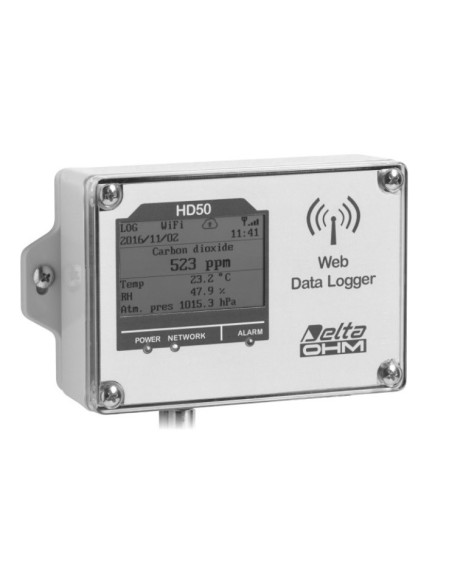

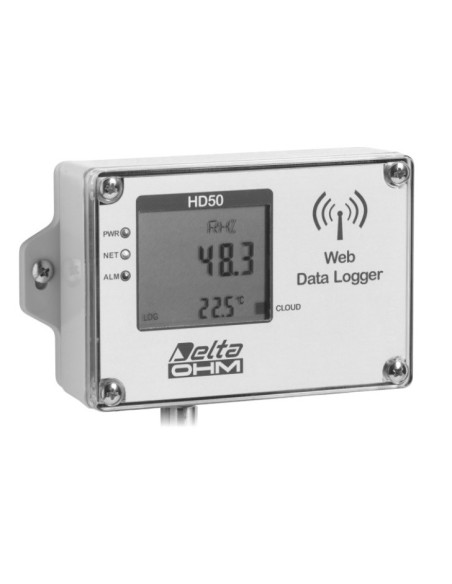

Serie HD 50... Web Data Loggers

Reference Serie HD 50...

Manufacturer: Delta Ohm

Condition: New

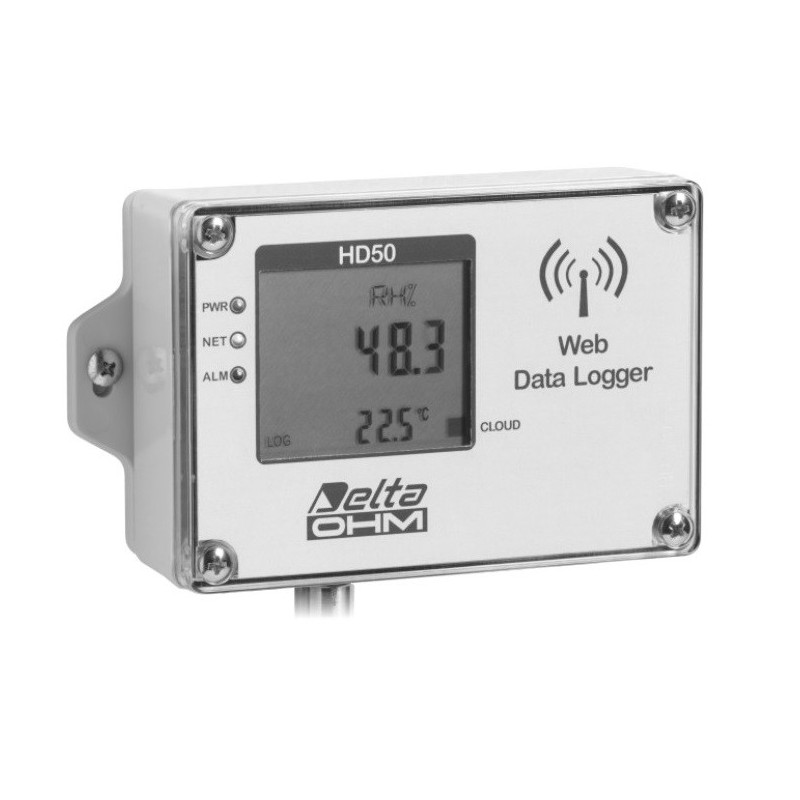

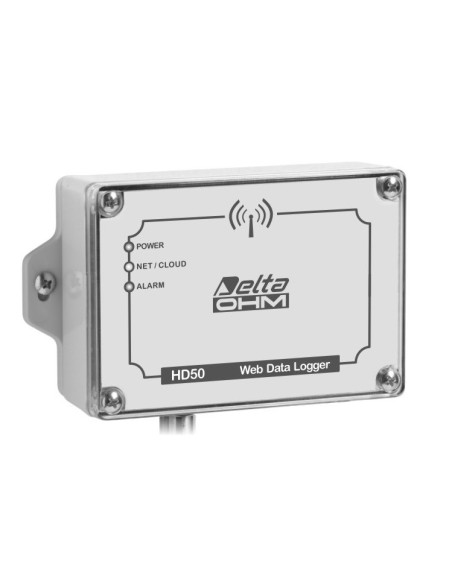

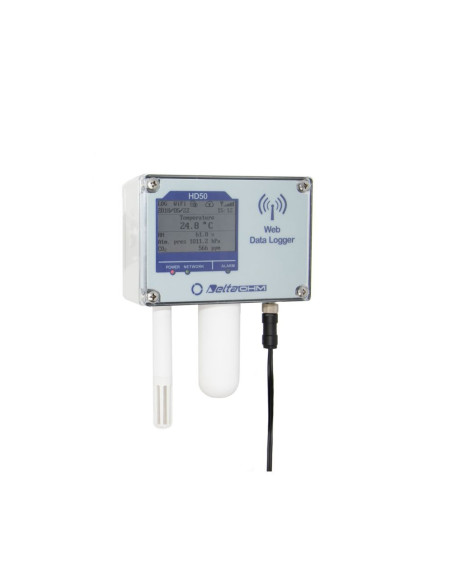

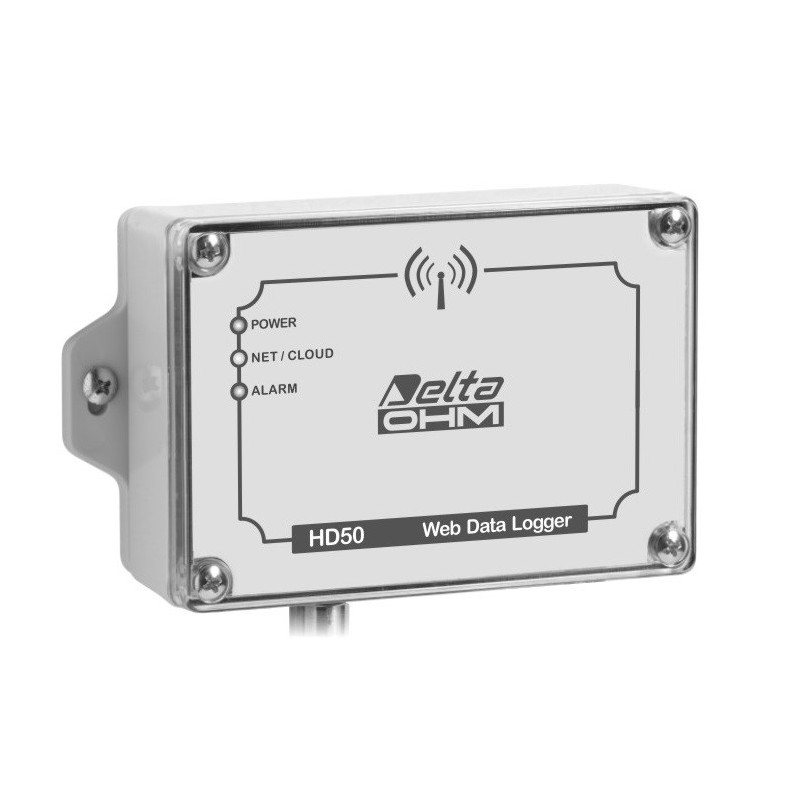

Data logger with integrated Web Server (except HD50R-MB). Depending on the model, it measures temperature, humidity, atmospheric pressure, carbon dioxide and illuminance.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
RELATED PRODUCTS
SPECIFICATIONS
Models
Data sheet
Download

-----------------DATA LOGGERS----------------	Data Acquisition
Environment of Use	Indoor
IP Classification	IP54
Communications	Wifi/Ethernet

HD50 Series Data Sheet Download (1.43M)

HD50 Series Manual Download (3.16M)

A model for the acquisition of standard analog sensors is available.

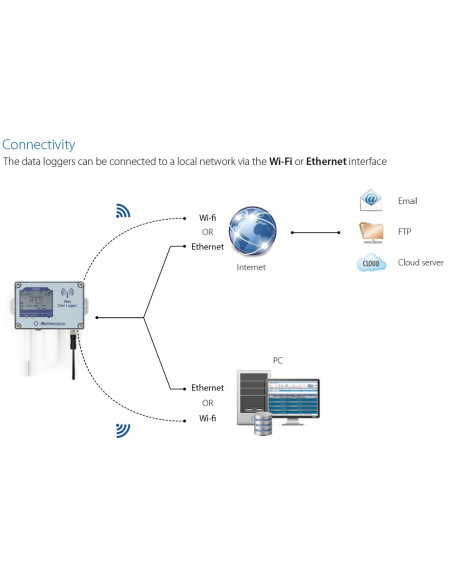

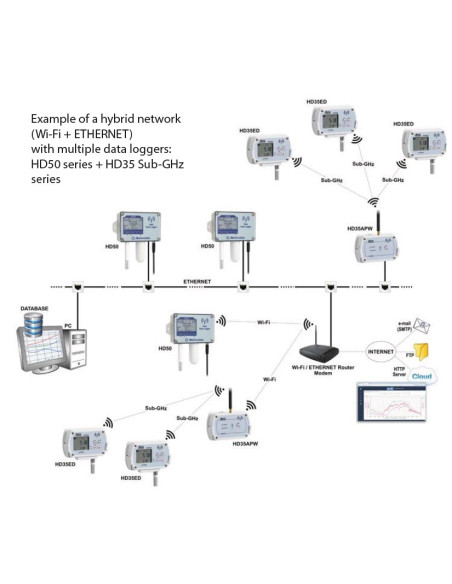

Wi-Fi (except HD50R-MB) and Ethernet connection with proprietary TCP/IP or Modbus TCP/IP protocol.
It stores the measures in the internal memory and transmits the acquired data to an FTP address, to an HTTP server (Cloud) and via e-mail.

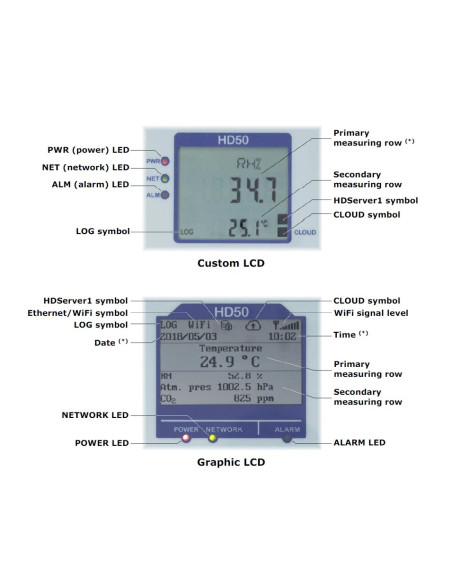

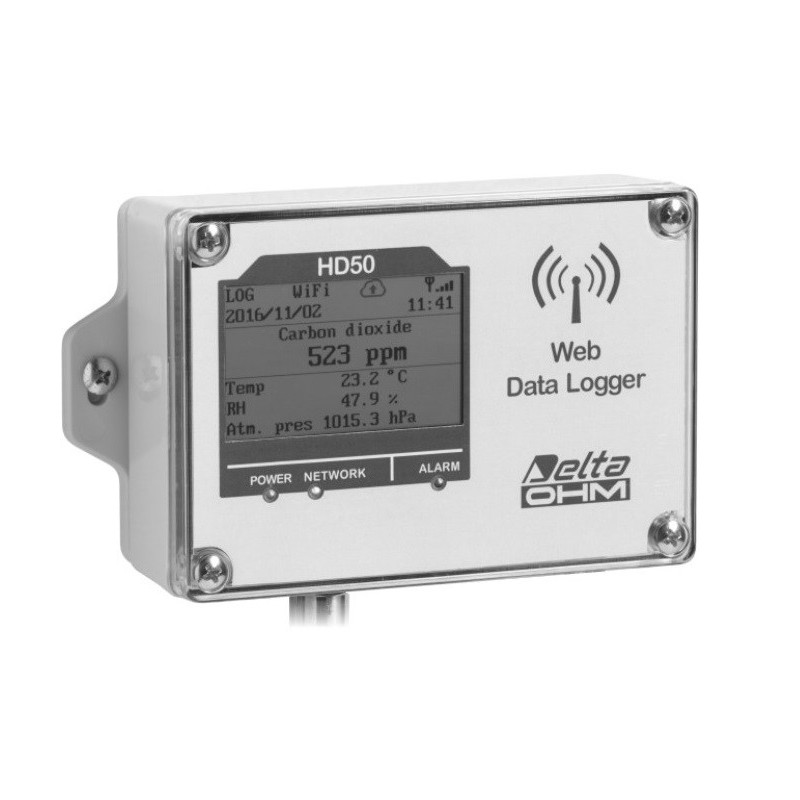

Optional LCD display. Acoustic (internal buzzer) and visual (front LED) alarm, alarm notification via e-mail. The internal clock can be regularly synchronized with a NIST reference server.
External 7…30 Vdc power supply.
It includes HD35AP-S software downloadable from Delta OHM web site.

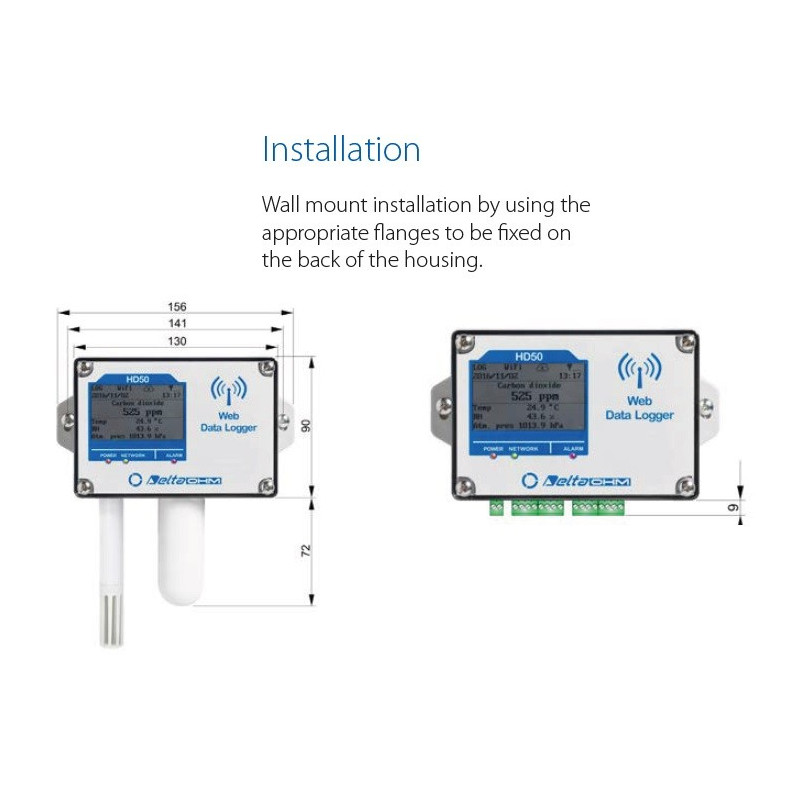

Supplied with: pair of flanges for wall mounting, adapter from M8 connector to screw terminals for connecting the power supply, operating manual.
The external probes and the SWD10M8 power supply or the CPM8… power supply cable have to be ordered separately. The Ethernet cable is not included.
