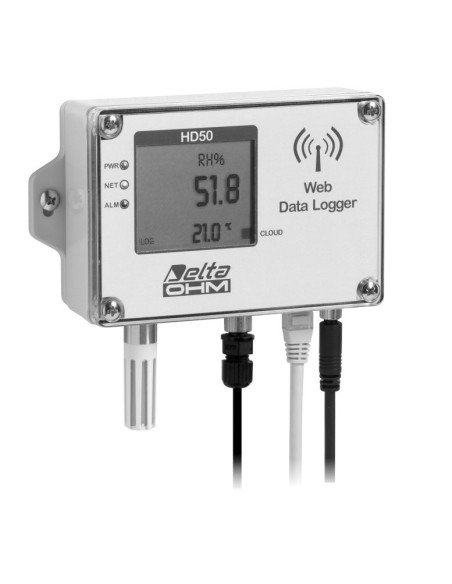

HD 50 1NI… TCV Temperature, Humidity and Illuminance Data Logger

Reference

Manufacturer: Delta Ohm

Condition: New

◆ Number of samples: Min. = 356,180, Max. = 906,640 (according to the number of quantities stored).
◆ Optional customized LCD screen (option L) or graphic (option G).
◆ Fixed combined vertical temperature and relative humidity probe (with NTC10KΩ temperature sensor).
◆ One input with M12 connector for the LP 35 PHOT lighting probe.
◆ Photodiode with spectral response similar to the standard photopic curve V (λ).

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

530,00 €

tax excl.

Quantity

Select Model

Add to wishlist

OVERVIEW
RELATED PRODUCTS
SPECIFICATIONS
MODELS
Data sheet
Download

-----------------DATA LOGGERS----------------	Data Acquisition
Environment of Use	Indoor
IP Classification	IP54

HD 50 Manual Download (3.16M)

HD 50 Data Sheet Download (1.43M)

Sensors measuring ranges:
- temperature: -40 ... + 105 ° C
- relative humidity: 0 ... 100% RH
- illuminance:

0 ... 20,000 lux (HD 50 1NI TCV)
0 ... 200,000 lux (HD 50 1NI2 TCV)

RH. Sensor operating temperature: -20 ... + 80 ° C.
Instrument operating temperature / humidity: -20 ... + 70 ° C / 0 ... 100% RH.
Calculated quantities: dew point, wet bulb temperature, absolute humidity, mixing ratio, partial vapor pressure.
It includes HD35AP-S downloadable software from Delta OHM web site.
Supplied with: pair of flanges for wall mounting, M8 connector for connecting the power supply, operating manual. The LP 35 PHOT illuminance probe, the LP BL base or the LP BL3 wall mount support, the SWD10M8 power supply or the CPM8 ... power supply cable have to be ordered separately. The Ethernet cable is not included.
