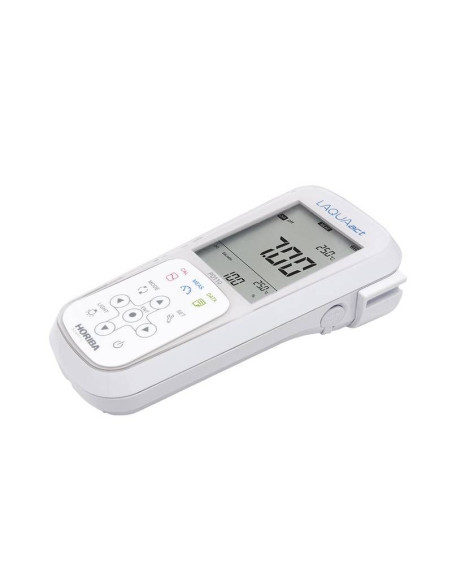

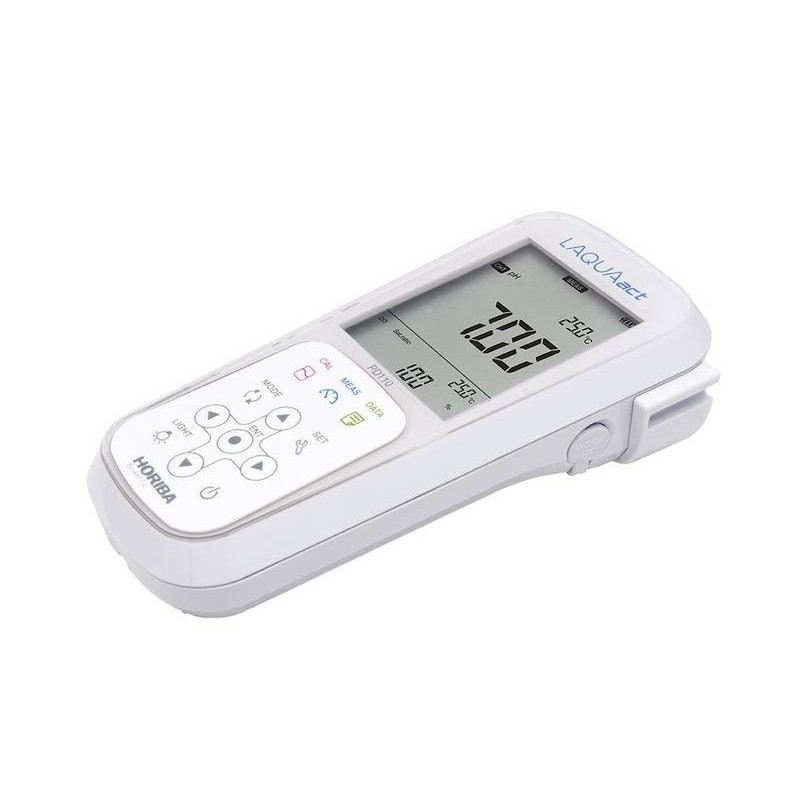

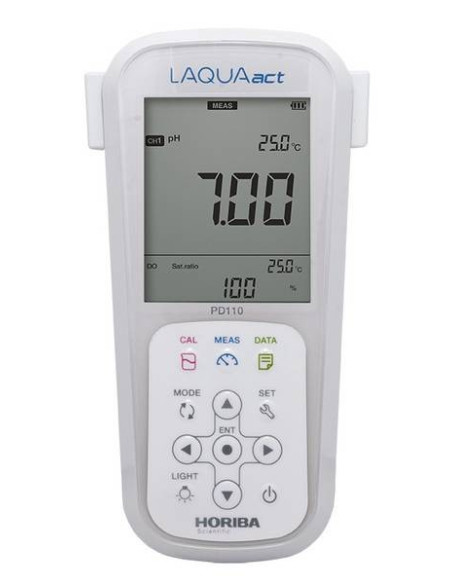

PD110 LAQUAact Handheld Meter for Water Quality

PD110 (3200739843)

HORIBA

New

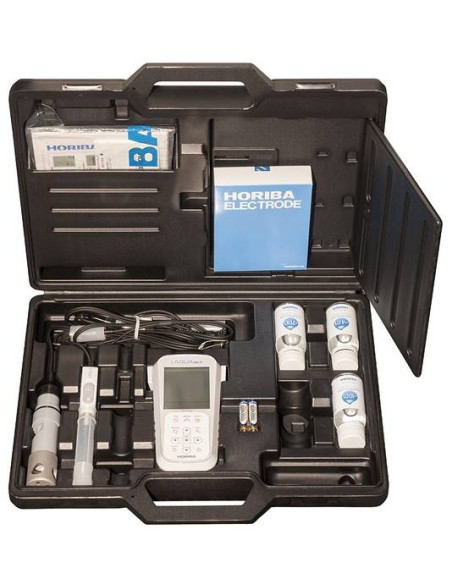

Handheld Meter only (includes electrode attachment, manual & 2 x AAA batteries)

Add to wishlist

Number of Channels 2 channels
With Display LCD
Communications RS232C
Memory Capacity 1000
The Sensor measures: Water Flow
Power Supply: 2xAAA/Ni-MH/power adaptor
Sensor for use in: Water Quality

- Dual channel, switchable display
- Automatic pH calibration up to 5 points using NIST, USA, or custom pH buffers
- 0.01 pH resolution
- Offset and slope display
- Automatic / manual temperature compensation
- Temperature calibration function
- Measures dissolved oxygen (DO) concentration in mg/L and % saturation units
- 0.01 mg/L or 0.1% DO resolution
- Compensates salinity, temperature, and atmospheric pressure
- Up to 2 DO calibration points
- Auto log data
- Built-in memory can store up to 1000 data
- Auto-shut off (programmable: 1 to 30 minutes)
- Auto-Hold / Auto-Stable measurement
- Caibration alarm (programmable: 1 to 400 days)
- Built-in electrode holder allows 2 electrodes to be attached on both sides of the meter
- Large backlit LCD: 52mm x 64mm
- RS232C output for connecting the meter to compatible printer or computer
- IP67-rated case: waterproof (withstand 30 mins. immersion in 1m depth of water) and dustproof
- Powered by 2 x AAA (LR03) or Ni-MH rechargeable batteries or power adaptor
- Packaged in new molded carrying case
- 2 years meter warranty

Model

LAQUAact PD110

Dual Channel pH/ORP/DO/Temperature(°C)

pH Range

-2.00 to 16.00 pH

Resolution

0.01 pH

Accuracy

± 0.01 pH

Calibration Points

Up to 5

Buffer Options

USA / NIST / Custom

ORP Range

± 2000 mV

Resolution

1 mV

Accuracy

± 1mV or 0.2% of reading (Whichever is greater)

DO Range

0.00 to 20.00 mg/L / 0.0 to 200.0 %

Resolution

0.01 mg/L or 0.1 %

Accuracy

± 0.1 mg/L

Salinity Compensation

0.0 to 40.0 ppt

Barometric Pressure Compensation

Yes

Temperature Compensation

Yes

Calibration Points

Up to 2

DO Probe

Galvanic with integrated temperature sensor

Temperature Range

-30.0 to 130.0 °C

Resolution

0.1 °C

Accuracy

± 0.4 °C

Calibration Option

Yes

Memory Data

1000

Auto Log Data

Yes

Real-time Clock

Yes

Date / Time Stamp

Yes

Auto-Shut Off

Yes (Programmable: 1 to 30 minutes)

Auto-Hold / Auto-Stable

Yes

Offset / Slope Display

Yes (Independent acid and alkaline slopes depending on calibration)

Calibration Alarm

Yes (Programmable: 1 to 400 days)

Electrode Status

On screen display

Diagnostic Messages

Yes

Display

Custom Backlit LCD / Dual Channel / Switchable Display

Inputs

2 x BNC, 2 x phono, DC sockets

Output

RS232C

IP Rating

IP67, shock-resistant

Power Requirements

2 x AAA (LR03) or Ni-MH rechargeable batteries or power adaptor

Battery Life

> 500 hours
