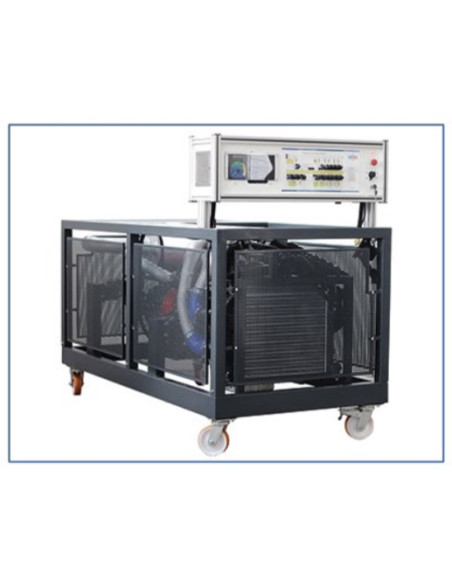

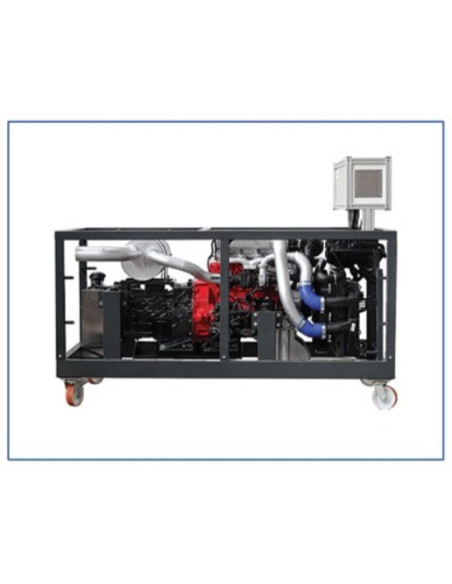

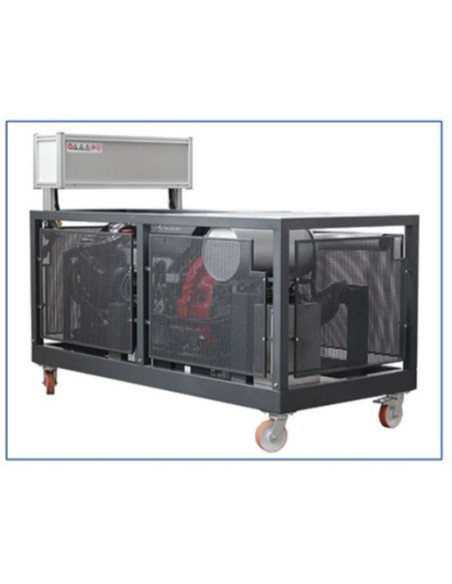

MVSPLD 1 Automotive Educational Engine model with the Pump – Line – Nozzle (PLD) Fuel Supply System

Truck engine educational model with pump - line - injectors (PLD) and fuel supply system

Description

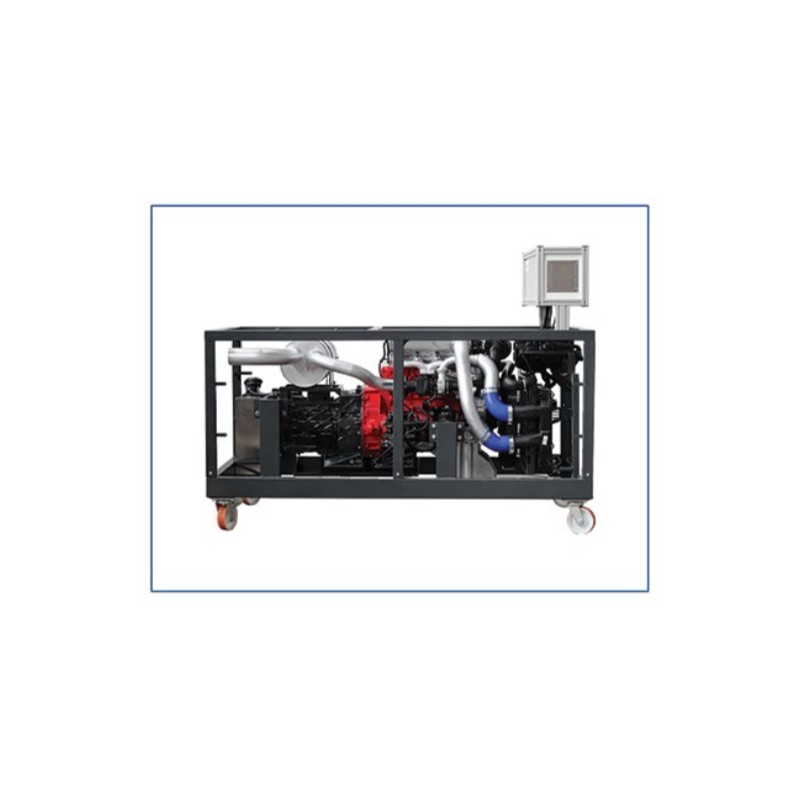

A fully functional diesel engine is installed in a movable structure. This training engine is specially designed to show the diesel pump-line-injectors system and its operational structure. The educational training engine is based on a Mercedes ATEGO (refurbished), with original components, and a Bosch EDC engine control system.

Technical specifications and functions

    The educational engine has PLD fuel storage system, dashboard, cooling system, power supply and exhaust system;
    Finished with removable safety panels to protect against hot and rotating parts;
    Wiring diagram with built-in connectors for measuring and simulating fault in the code system;
    Ability to simulate more than 10 failures only by unplugging the connector cables;
    The engine with external components is clearly visible after removing the safety panels. Easy access to the engine and its components for maintenance;
    Emergency engine stop button integrated;

Diagnosis and measurements

Oscilloscope / multimeter

    System parameters are measured by plugging the connector cables;
    Ability to measure the parameters of the electrical signal of each component (such as the sensor or solenoid);

Diagnostic control units

    Diagnosis via the OBD 16 connector pin
    Electronic Identification Control Unit (ECU)
    Reading / deleting error code
    Display of operating system parameters (live data)
    Solenoid Activator (Depends on the control unit)
    Encoding / configuration control unit

Other

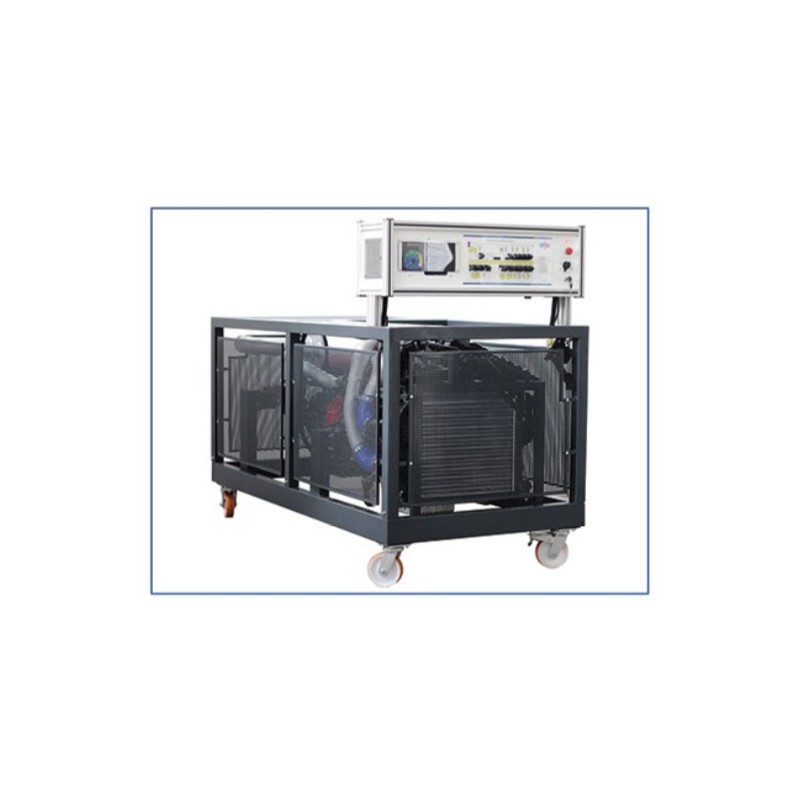

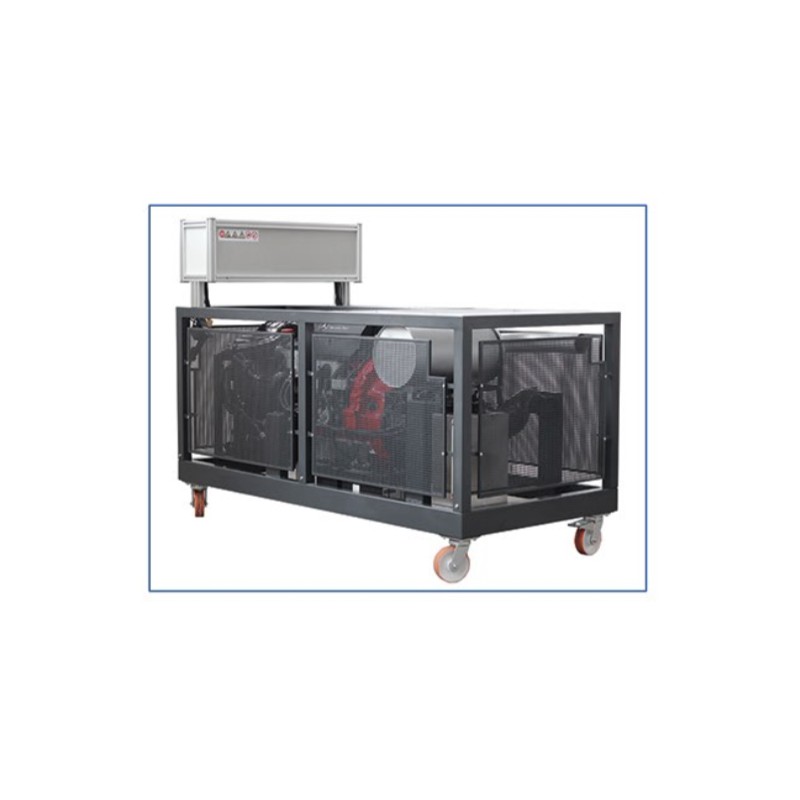

    The stand has a closed structure - the internal wiring is not visible; dashboard, the measurement and fault simulation panel is integrated in a closed aluminum structure;
    Dimensions approx .: (Height x Length x Width) 1900x2600x1100 mm
    Net weight approx .: 950 Kg
    Gross weight approx .: 1200 Kg
    Made in Lithuania
    CE certificate

Optional gadgets

    Evaluation console for 10 simulations of hidden faults
    Automotive oscilloscope
    OBD diagnostic analysis tool
    Diesel smoke meter
    Exhaust system

There is the possibility of manufacturing a functional model of car or truck engine (oil or diesel) at the request of the customer!

- The educational functional engine model with PLD fuel supply system, instrument cluster, cooling system, power supply and the exhaust system;
- Completed with safety removable panels to protect against hot and rotating parts;
- Electrical wiring diagram with built – in banana plug jumpers for measurements and simulation of system fault codes;
- Ability to simulate more than 10 faults by disconnecting banana plug jumpers;
- After removing safety panels clearly visible the engine with external components, easy access to the engine and its components for service and maintenance;
- Integrated engine emergency stop button;
- The stand has a closed structure – internal wiring is not visible; instrument cluster, measurement and fault simulation panel is integrated in a closed aluminum frame construction
- Dimensions approx. (HxLxW): 1900x2600x1100 mm
- Nett weight approx.: 950 Kg
- Gross weight approx.: 1200 Kg
- Made in EU
- CE certificate
