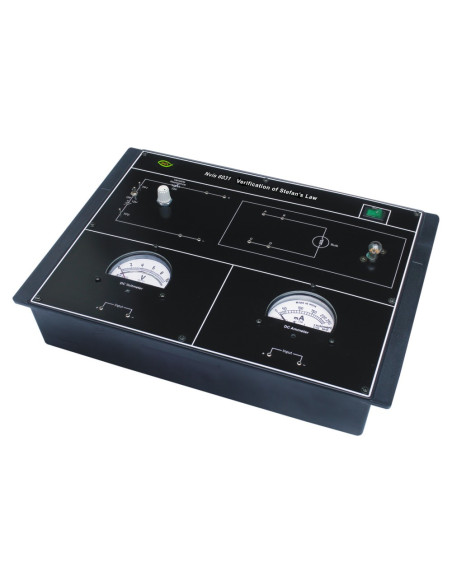

Nvis 6031 Laboratory for Verification of Stefan's Law

Nvis 6031 Laboratory for Verification of Stefan's Law

Nvis 6031 Laboratory for Verification of Stefan's Law

Nvis 6031 Laboratory for Verification of Stefan's Law

Nvis 6031 Laboratory for Verification of Stefan's Law

Nvis 6031 Laboratory for Verification of Stefan's Law

Nvis 6031 Laboratory for Verification of Stefan's Law

Reference: Nvis6031 - Manufacturer: NVIS TECHNOLOGIES

Nvis 6031 Verification of Stefans Law illustrates the basic phenomenon of thermodynamics. The Trainer gives an idea of how energy loss depends on temperature.

Stefans Law states that the power radiated by a body is proportional to the 4 power of the absolute temperature. The phenomenon can be studied using a light-bulb filament used as radiating body. The power can be determined from the voltage and current of the filament. The temperature of the filament can be determined indirectly by first computing the electrical resistance and then using a standard resistance versus temperature relationship.

Nvis 6031, Verification of Stefan`s Law is an ideal platform to enhance education, training, skills & development amongs our young minds.

Product Features:

Inbuilt Ammeter and Voltmeter

Variable DC supply

Easy to Operate

Designed by considering all Safety Precautions

Verification of Stefan's law by electrical method
Study the temperature dependence of total radiation and hence, verify the Stefan's law

Category: Laboratories

Download (3.54MB)
