MVMPI 1 Automotive Educational Engine Model with Petrol Injection System MOTRONIC

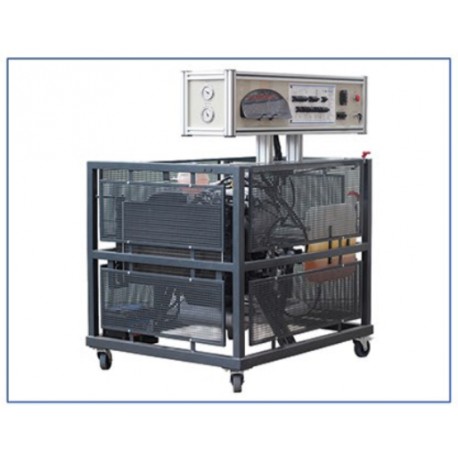

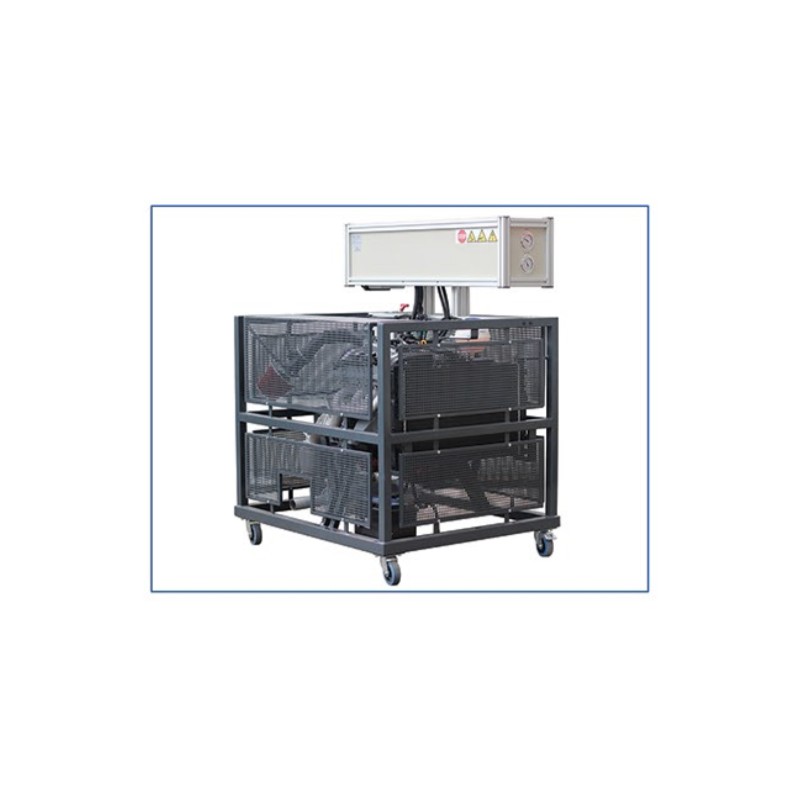

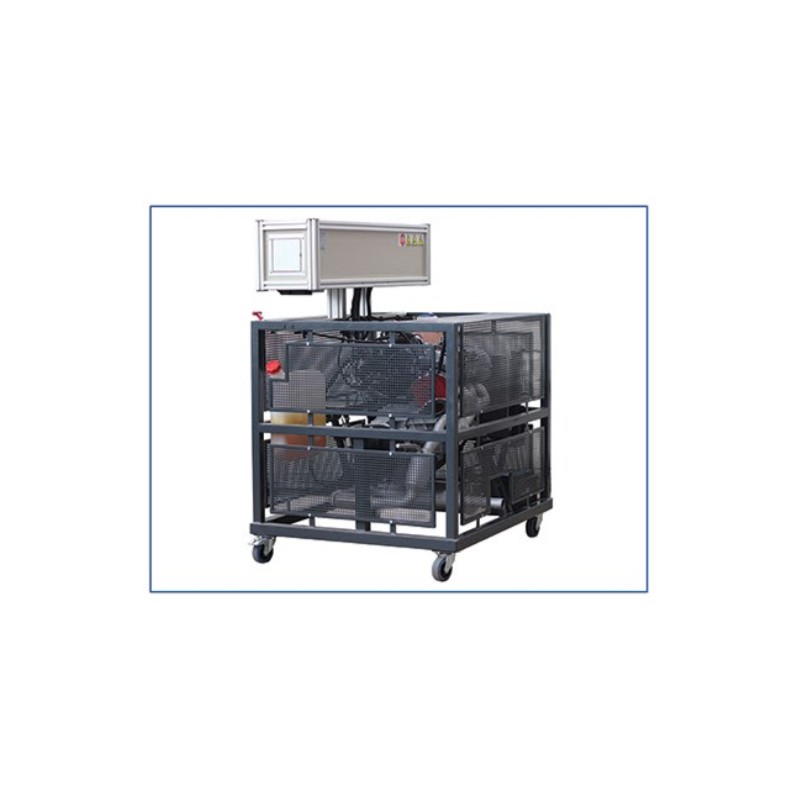

Self – contained, fully operational engine is installed in a mobile frame. This training engine with multipoint petrol injection (MPI) system MOTRONIC is specially designed to demonstrate the engine management system and operational structure. The educational training engine is based on Audi/VW original (refurbished) components.

• Diagnostic and measurement:

Oscilloscope/multimeter
- System’s parameters are measured by connecting to the banana connector
- Ability to measure electrical signal parameters of each system component (such as sensor or actuator)
- Ability to measure high voltage circuit of the ignition system

Control unit diagnosis
- Diagnosis through OBD 16 – pin diagnostic connector
- Electronic control unit (ECU) identification
- Reading/erasing fault codes
- Displaying the operating system parameters (live data)
- Actuator test (depends on the control unit)
- Throttle adaptation
- Control unit coding/configuration

• Optional accessories:

- Vacuum gauge
- The pressure gauge in the fuel supply line
- Automotive oscilloscope
- OBD diagnostic scan tool
- The gas analyzer
- The exhaust extraction system

- The educational functional engine model with fuel supply system, instrument cluster, cooling system, power supply system and the exhaust system
- Ability to measure the exhaust gas before and after the catalytic converter
- Completed with safety removable panels to protect against hot and rotating parts
- Electrical wiring diagram with built – in banana plug jumpers for measurements and simulation of system fault codes
- Ability to simulate more than 20 faults by disconnecting banana plug jumpers
- After removing safety panels clearly visible the engine with external components, easy access to the engine and its components for service and maintenance
- Integrated engine emergency stop button
- The stand has a closed structure – internal wiring is not visible; Instrument cluster, measurement and fault simulation panel is integrated in a closed aluminum frame construction
- Dimensions approx. (H x L x W): 1550 x 1000 x 1200 mm
- Weight (netto) approx.: 310 Kg
- Made in EU
- CE certificate
