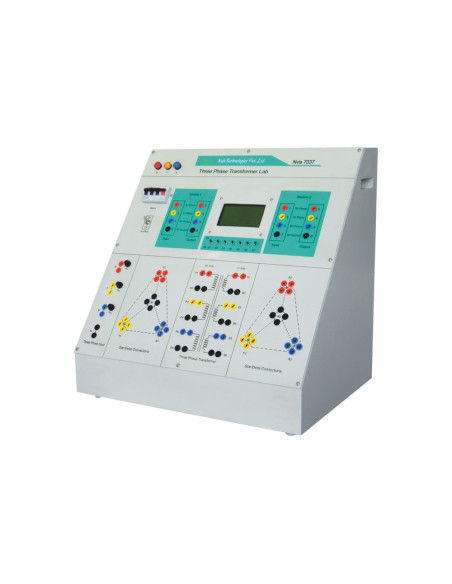

Nvis 7037 Three Phase Transformer Lab

Nvis 7037 Three Phase Transformer Lab is an ideal platform to enhance education, training, skills & development amongs our young minds.

• Features:

- Stand alone operation
- Graphical LCD display for high resolution
- Flexibility to use in star and delta configuration
- Equipped with Supply Indication Lamps
- Facility to display entire parameter in single shot
- Designed by Considering All the Safety Standards
- Diagrammatic Representation for the Ease of Connections
- Learning material CD

- Mains Supply: 415 V ±10 %,50 Hz
- Transformer Specifications:
          -- Type: Three Phase
          -- Power Rating: 1 kVA
          -- Primary Voltage: 415 V
          -- Secondary Voltage: 230 V
          -- Rated Current: 4 A
- Graphical LCD display: 240 x 125 Pixel
- Dimensions (mm): W 600 x D 450 x H 600
- Weight: 33 kg (approximate)
- Optional:
          -- Three Phase Variac, 10 A
          -- Three Phase Resistive Load

- Study of Three Phase Configurations
- Study of Open Circuit Test in a Three Phase Transformer
- Study of Short Circuit Test in a Three Phase Transformer
- Study of Load Test and correspondingly determine the Efficiency and Voltage Regulation in a Three Phase Transformer
