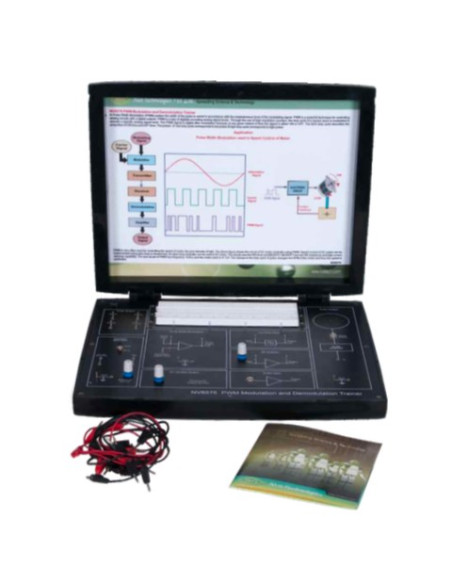

Nvis 6576 Techbook for PWM Modulation and Demodulation Trainer

Nvis 6576 Techbook for PWM Modulation and Demodulation Trainer  is an ideal platform to enhance education, training, skills & development amongs our young minds.

PWM is a way of digitally encoding analog signal levels. The duty cycle of a square wave is modulated to encode a specific analog signal level. The PWM signal changes the width at any given instant of time.

• Features:

- Self contained Trainer
- Selectable 4 pulse frequencies on board
- On board Sine and Square wave Generators
- Voice Communication using Dynamic Microphone and Speaker
- On Board Filter and AC Amplifier
- Functional Blocks indicated on board mimics
- Input-Output and test points provided on board
- In-built DC Power Supply
- Compact Size
- Learning material CD

- To study the Pulse Width Modulation
- Concept of Duty Cycle
- To study the Demodulation
- To study the Voice Modulation and Demodulation
