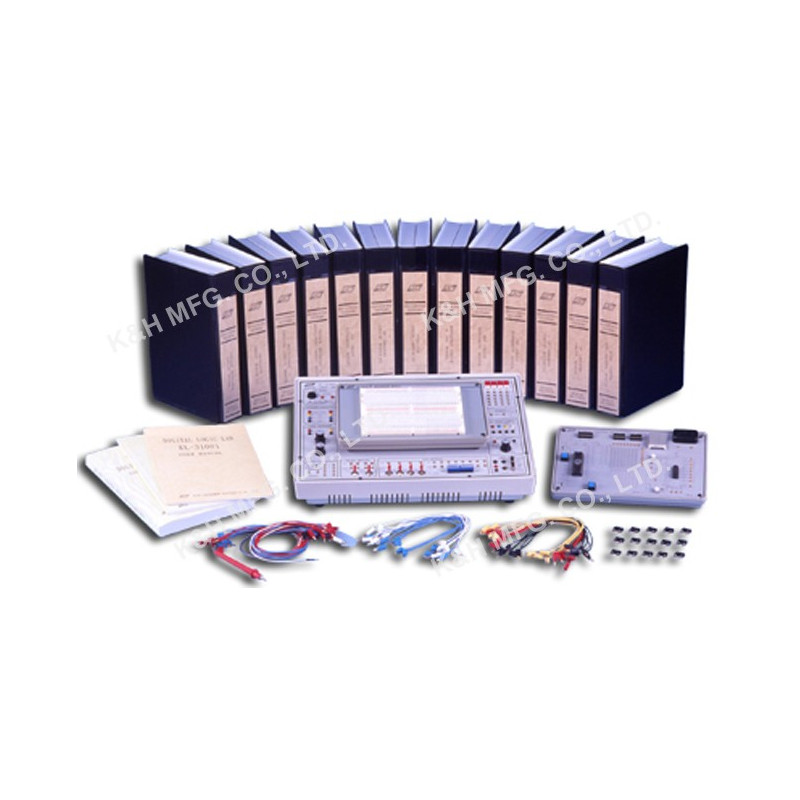

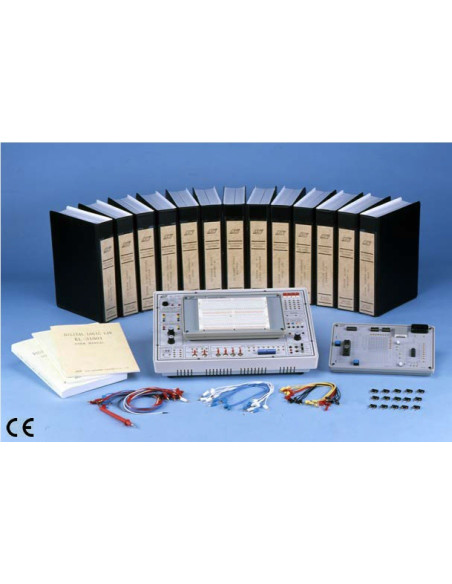

KL-300 Digital Logic Lab

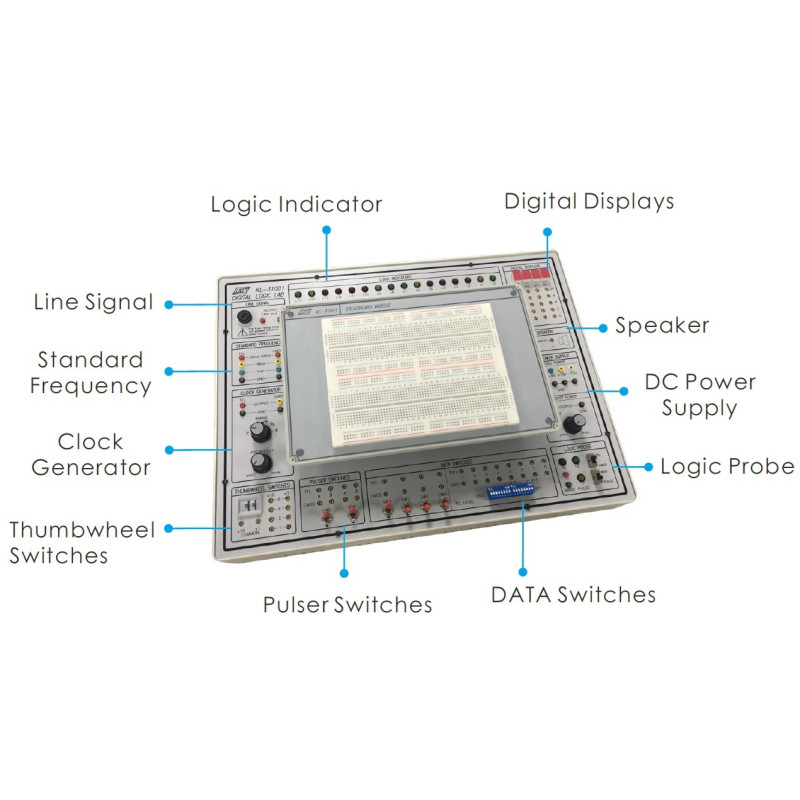

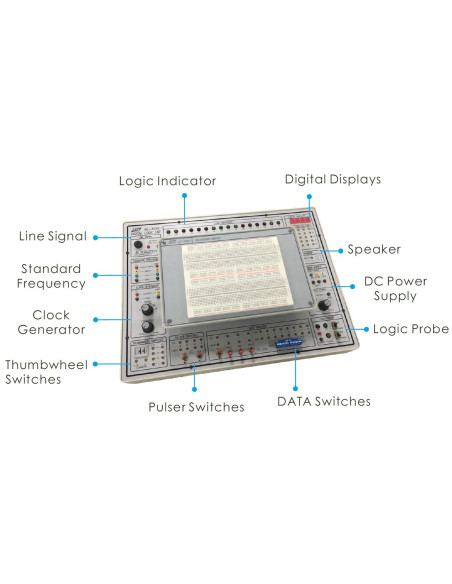

All the necessary equipment for digital logic experiments such as power supply, signal generator, switches and displays are installed on the main unit.

The 13 modules cover a large variety of essential topics for digital logic. It is a time and cost saver for both students and engineers interested in developing and testing circuit prototypes.

01. Suitable for combination logic, sequential logic and microprocessor circuits design and experiments.
02. Ideal tool for learning the basics of digital logic circuits.
03. Comprehensive power, signal supply and testing devices for convenient experiments.

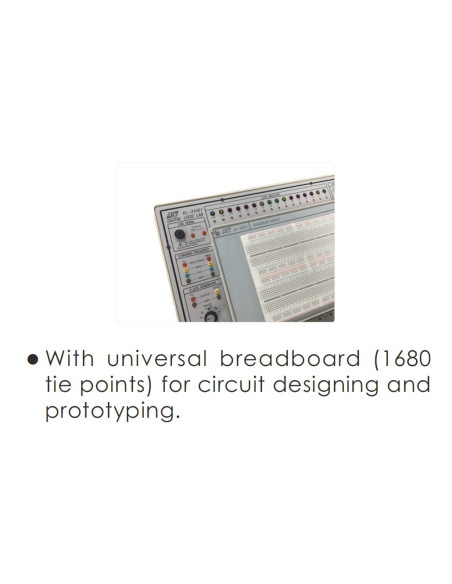

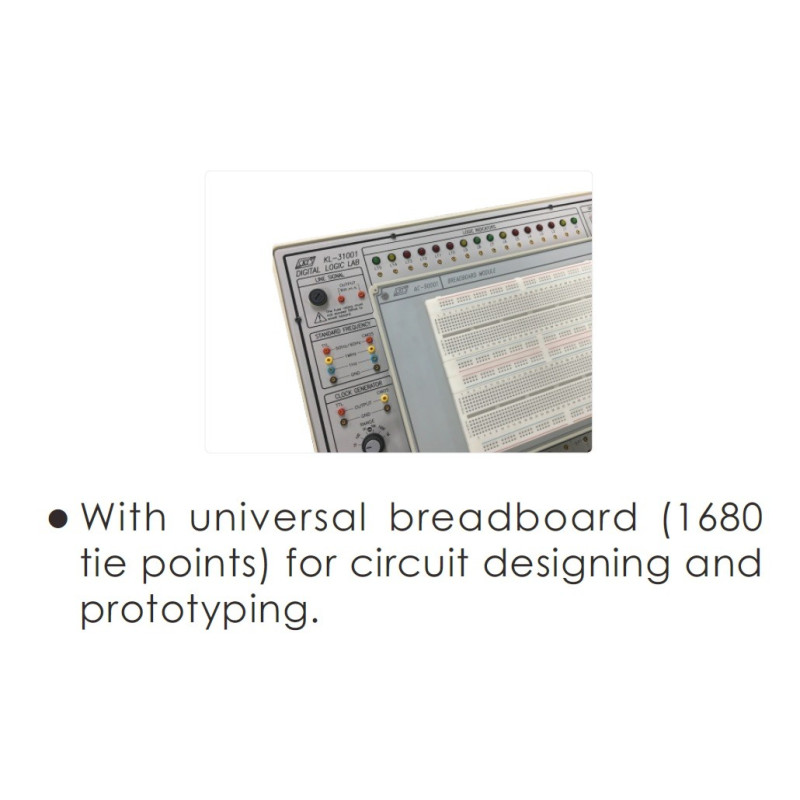

04. Experiments are expandible and flexible with universal breadboard.

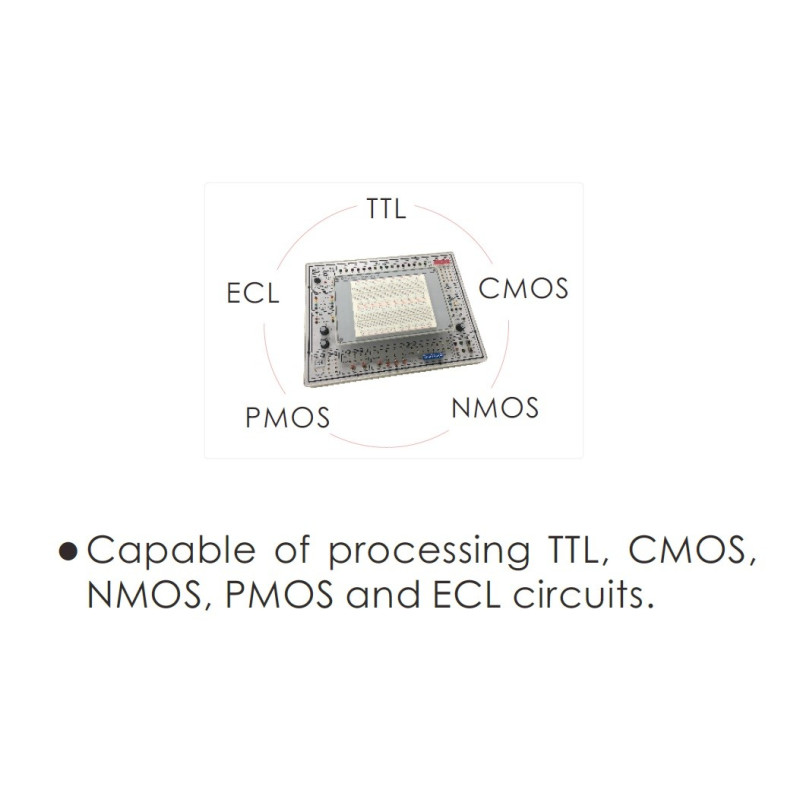

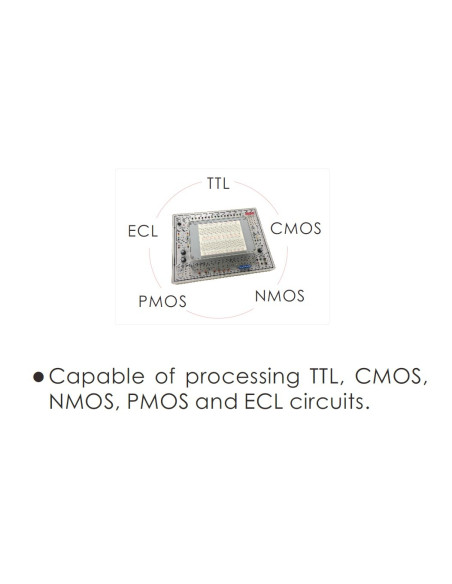

05. Capable of processing TTL, CMOS, NMOS, PMOS and ECL circuits.
06. All supply units are equipped with overload protection for safety purpose.

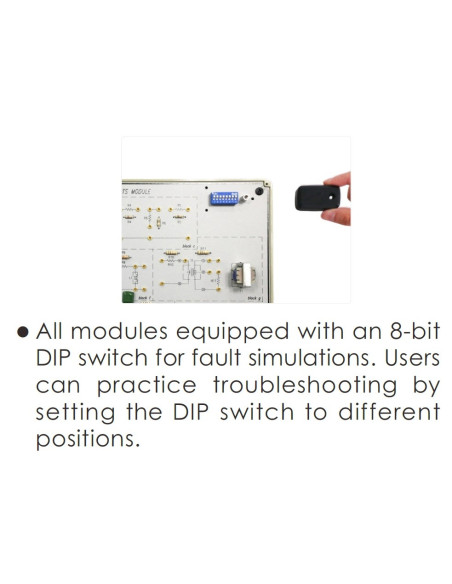

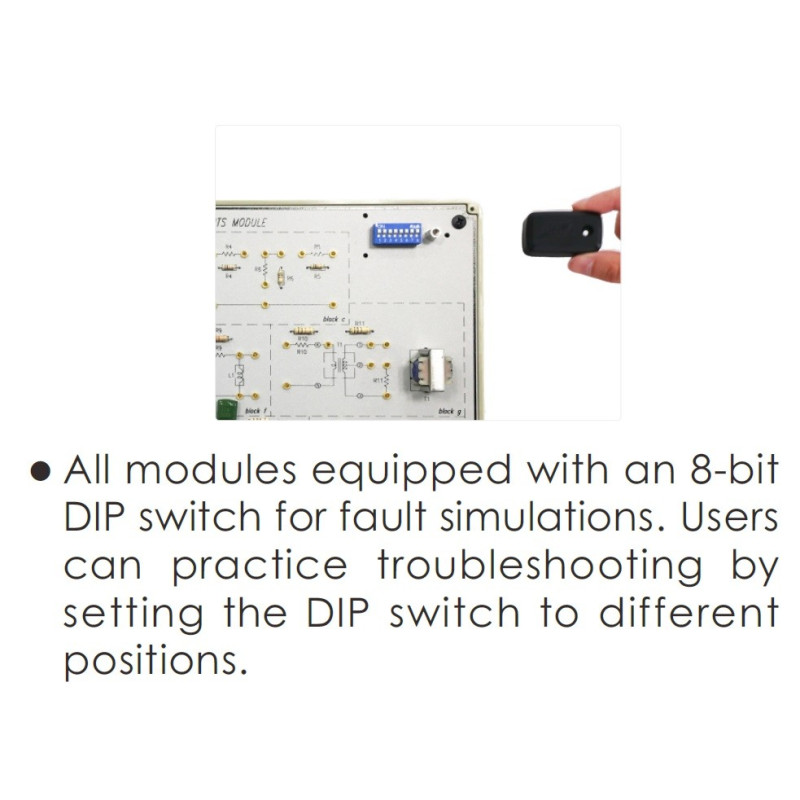

07. All modules equipped with 8-bit DIP switch for fault simulations.
08. Individual keeping cases for all modules for easy storing and carrying.
09. All signal generators have independent and simultaneous TTL and CMOS level output terminal.

01. Basic Logic Gates Experiments
02. Combinational Logic Circuits Experiments
03. Clock Generator Circuit Experiments
04. Sequential Logic Circuit Experiments
05. Memory Circuit Experiments
06. Converter Circuit Experiment

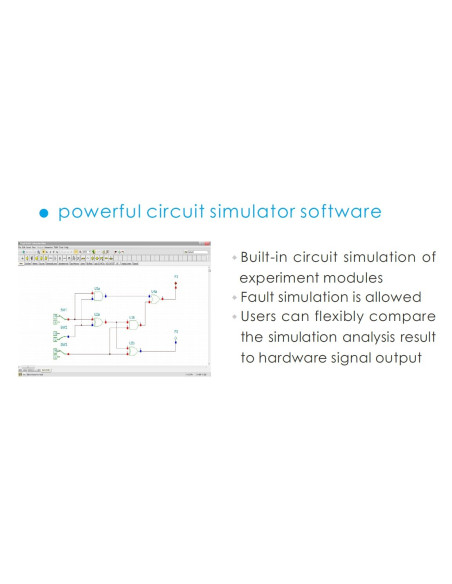

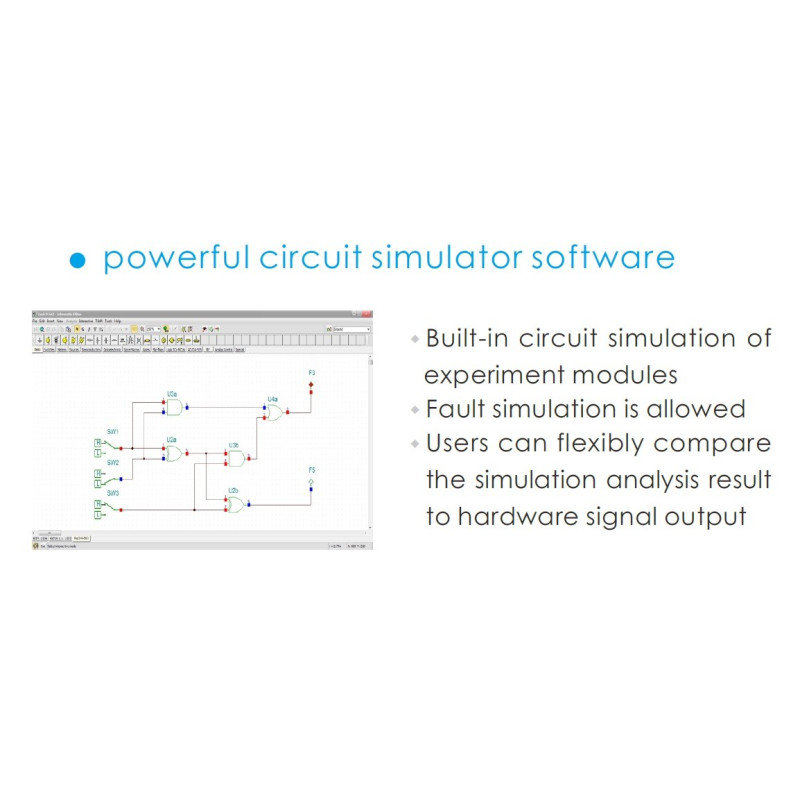

We would like to introduce the pre-circuited systems with comprehensive step-by-step experiment manual, allowing students to learn efficiently.  In addition to experiments by hardware, we also provide material for students to conduct some experiments by simulation software.

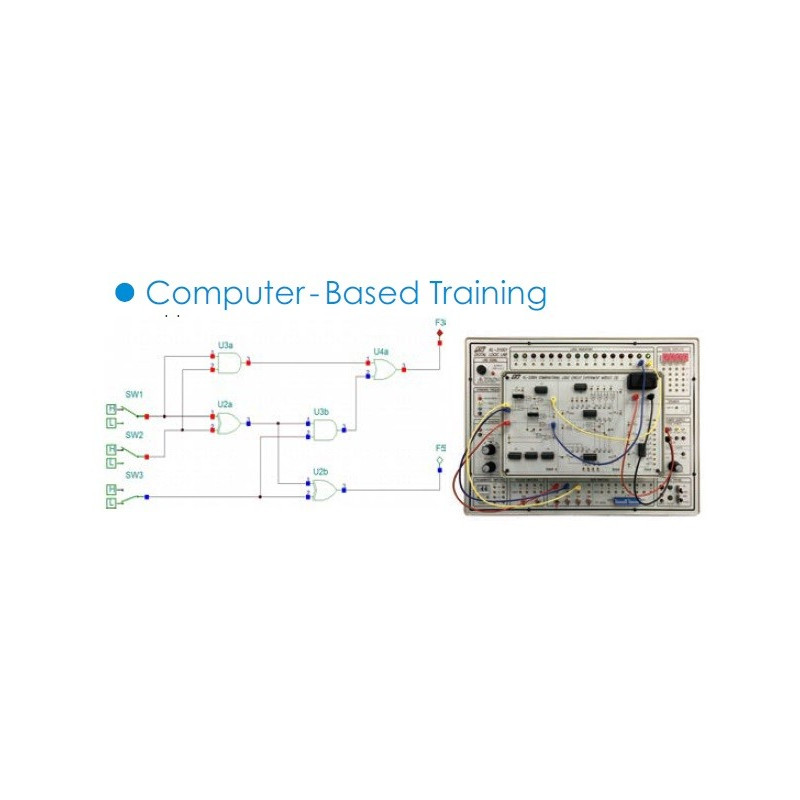

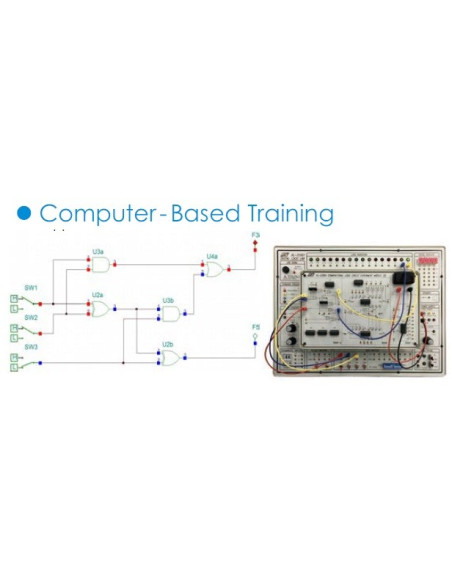

Below is a demo video; an experiment is made by hardware first, and then the same experiment is conducted again by the software. This will assist students in their learning.

Later, students can divide into 2 groups and take turns using the hardware or software.
