CE CERTIFIED

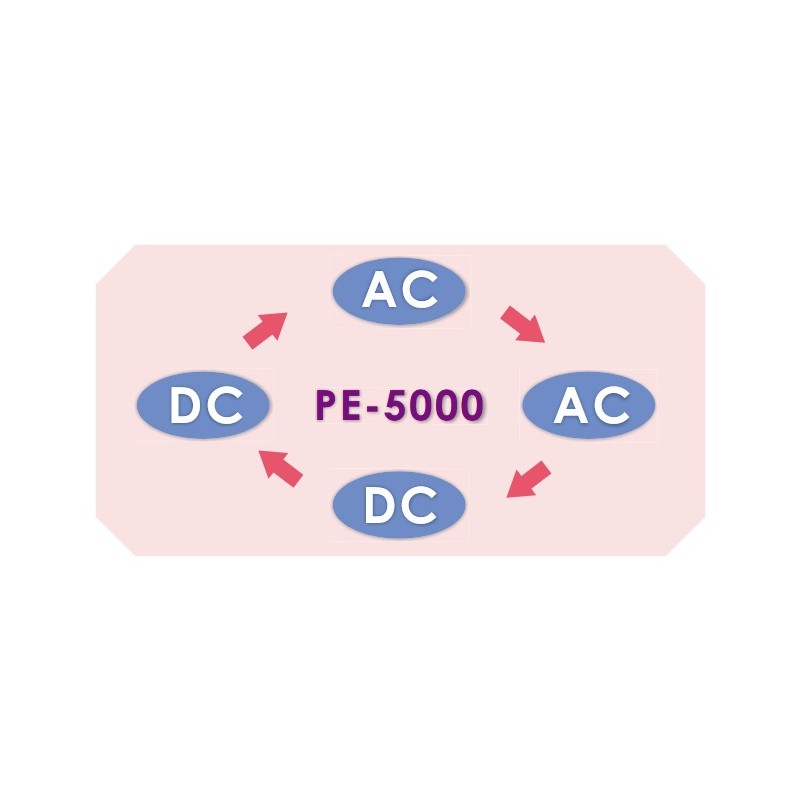

◆ The PE-5000 System is the combination of power, electronics and
control.
◆ It has wide range of applications, from solid-state electronics
to the control & conversion of electric power.
◆ Popular circuits of power electronics contain rectifiers, choppers and inverters.
◆ The experimental modules include converters, a power supply,
load and control and testing modules.

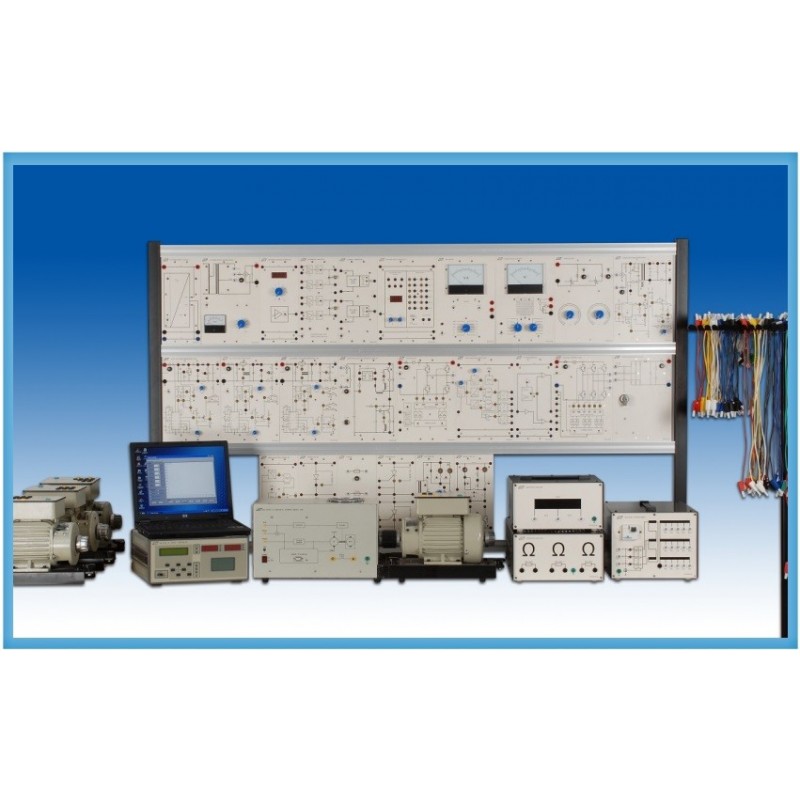

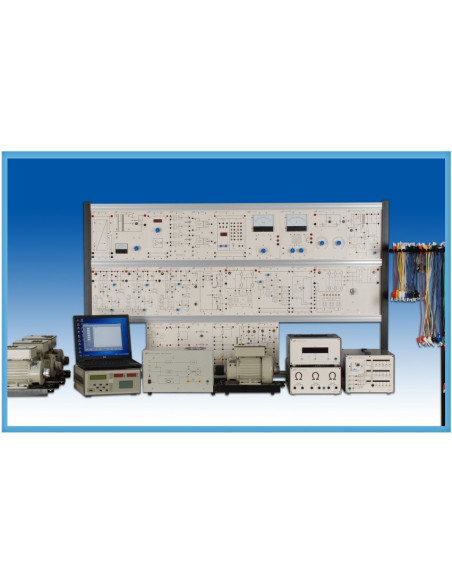

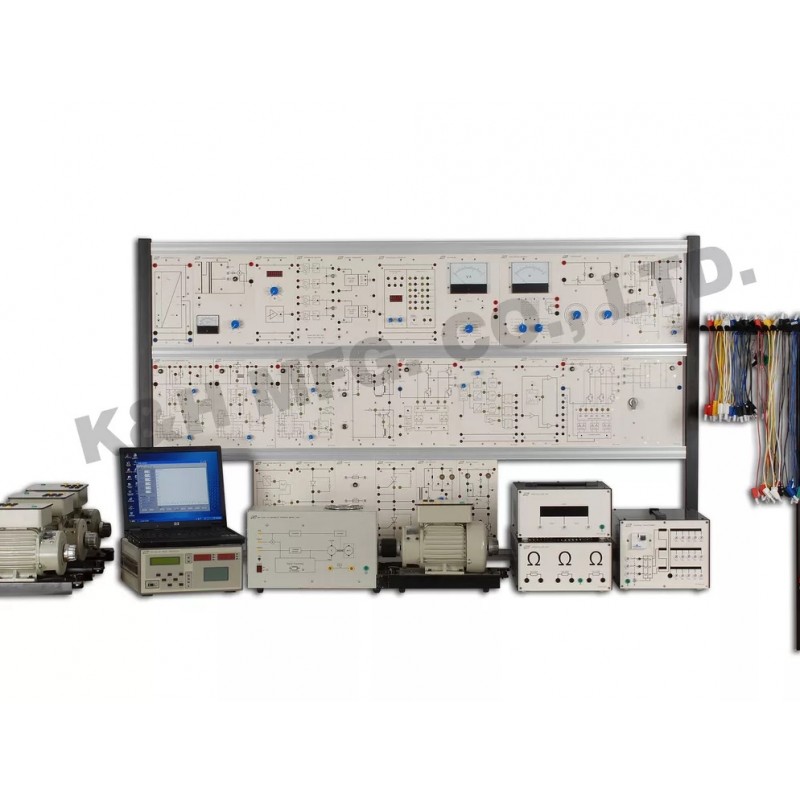

The PE-5000 Power Electronics Training System consists of 28 experimental modules, a three-phase squirrel cage motor, load, control and measuring devices. It includes single-phase rectifiers, three-phase rectifiers, DC choppers, inverters and application experiments.

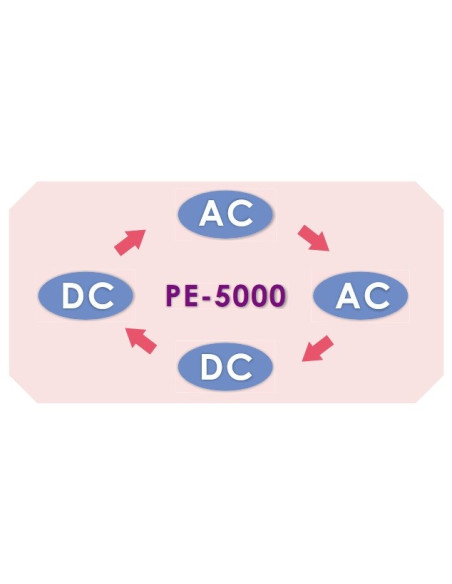

The PE-5000 is the combination of power, electronics and control. It has wide applications of solid-state electronics to the control and conversion of electric power. Popular circuits of power electronics contain rectifiers, choppers and inverters. The experimental modules of PE-5000 include converter, power supply, load, control and testing modules. These experimental modules and instruments are introduced and demonstrated in the subsequent experiments.
The PE-5000 Power Electronics Training System includes the following Experiment Modules:
PE-5310-1A DC POWER SUPPLY ( ±15V/2A )
PE-5310-1B DC POWER SUPPLY ( 0-40V/3A, 0-20V/6A )
PE-5310-2A REFERENCE VARIABLE GENERATOR
PE-5310-2B DIFFERENTIAL AMPLIFIER
PE-5310-2C CURRENT TRANSDUCER
PE-5310-2D THREE PHASE ANGLE CONTROLLER
PE-5310-3A R.M.S METER
PE-5310-3B POWER METER ( 0.3W-30KW )
PE-5310-3C RESISTOR LOAD UNIT
PE-5310-3D RESISTOR LOAD
PE-5310-3E INDUCTIVE LOAD UNIT
PE-5310-4A FLYBACK SWITCHING POWER SUPPLY
PE-5310-4B BOOST SWITCHING POWER SUPPLY
PE-5310-4C BUCK SWITCHING POWER SUPPLY
PE-5310-4D BUCK-BOOST SWITCHING POWER SUPPLY
PE-5310-4E ELECTRONIC BALLAST FLUORESCENT LAMP
PE-5310-4F IGBT DRIVE SET
PE-5310-4G DC PWM GENERATOR
PE-5310-4H SINGLE PHASE PWM CONTROLLER
PE-5310-4I THREE PHASE PWM CONTROLLER
PE-5310-4J THREE PHASE RECTIFIER & FILTER
PE-5310-4K UNIVERSAL INVERTER 3×230V
PE-5310-5A POWER DIODE SET - 3 pieces
PE-5310-5B FUSE SET
PE-5310-5C THYRISTOR - 3 pieces
PE-5310-5D SCR/TRIAC SET
PE-5310-5E MOSFET / IGBT SET
PE-5310-5F SCR DC. CHOPPER SET
PE-5340-3A ISOLATING TRANSFORMER
EM-3340-3B SYSTEM TRANSFORMER ( TO 3-PHASE 220V)
EM-3310-1E THREE-PHASE POWER SUPPLY MODULE
EM-3320-1C MAGNETIC POWDER BRAKE UNIT
EM-3320-1N BRAKE CONTROLLER
EM-3330-1A DC PERMANENT-MAGNET MACHINE
EM-3330-3C THREE-PHASE SQUIRREL CAGE MOTOR
EM-3380-2B EXPERIMENTAL FRAME - THREE LAYERS
EM-3390-2A COUPLING
EM-3390-2B COUPLING GUARD
EM-3390-2C SHAFT END GUARD
EM-3390-3A CONNECTING LEADS SET
EM-3390-4A SAFETY BRIDGING PLUGS SET
EM-3390-1A CONNECTING LEAD HOLDER
EM-3380-1A LABORATORY TABLE
MANUAL
To be locally prepared by the user when operating the PE-5000:
►3 PHASE POWER
►DIGITAL MULTIMETER
►DIGITAL STORAGE OSCILLOSCOPE
►PC/ LAPTOP (NOT NECESSARY)
Chapter 1 : Basic Measurement and Characteristic of SCR and TRIAC
1-1: Three-Phase source voltage measurement
1-2: Digital storage oscilloscope and differential amplifier
1-3: SCR characteristic and measurement
1-4: TRIAC characteristic and measurement
Chapter 2 : Single-Phase Rectifiers and AC Voltage Controller (AC→DC、AC→AC)
2-0: Trigger pulse measurement
2-1: Single-Phase Half-Wave uncontrolled rectifier
2-2: Single-Phase Full-Wave uncontrolled rectifier
2-3: Single-Phase Half-Wave controlled rectifier
2-4: Single-Phase Full-Wave controlled rectifier
2-5: Symmetrical Single-Phase Full-Wave Semi-Controlled rectifier
2-6: Asymmetrical Single-Phase Full-Wave Semi-Controlled rectifier
2-7: Single-Phase Semi-Controlled AC voltage controller
2-8: Single-Phase Full-Controlled AC voltage controller
Chapter 3 : Three-Phase Rectifiers and AC Voltage Controller (AC→DC、AC→AC)
3-1: Three-Phase Half-Wave uncontrolled rectifier
3-2: Three-Phase Full-Wave uncontrolled rectifier
3-3: Three-Phase Half-Wave controlled rectifier
3-4: Three-Phase Full-Wave Semi-Controlled rectifier
3-5: Three-Phase Full-Wave Full-Controlled rectifier
3-6: Three-Phase Full-Wave Semi-Controlled AC voltage controller
3-7: Three-Phase Full-Wave Full-Controlled AC voltage controller
Chapter 4 : DC Choppers (DC→DC)
4-0: IGBT characteristic measurement
4-1: DC PWM controller
4-2: Single-Quadrant DC chopper
4-3: Two-Quadrant DC chopper
4-4: Four-Quadrant DC chopper
4-5: SCR DC chopper
Chapter 5 : Inverters (AC→DC→AC)
5-1: Single-Phase PWM controller
5-2: Single-Phase inverter
5-3: Three-Phase PWM controller
5-4: Three-Phase inverter
Chapter 6 : Applications of Power Electronics
6-0: Power MOSFET characteristic measurement
6-1: Buck switching power supply
6-2: Boost switching power supply
6-3: Buck-Boost switching power supply
6-4: Flyback switching power supply
6-5: Electronic ballast
