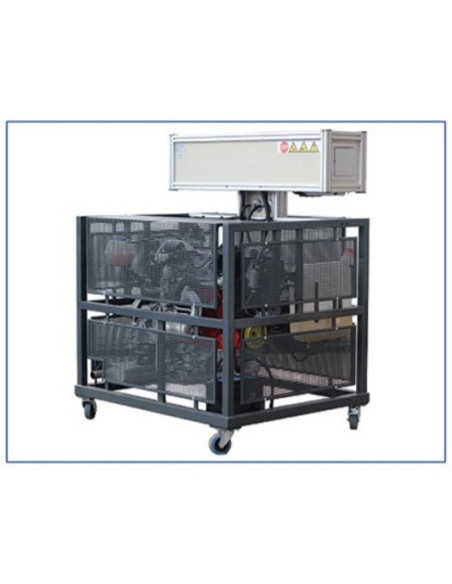

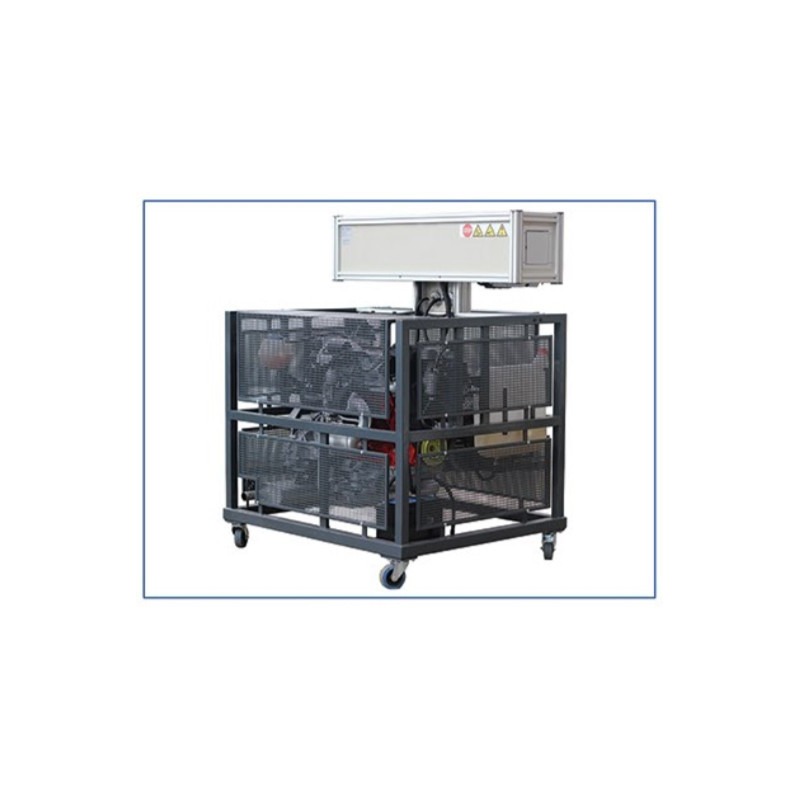

MVCR1 Educational diesel engine model with CR EDC - 15 fuel supply system

Self – contained, fully operational diesel engine model is installed in a mobile frame. This training engine is specially designed to demonstrate Common Rail diesel injection system and operational structure. The educational training engine is based on Renault original (refurbished) components with functional engine control system Bosch EDC 15.

• Diagnostic and measurement:

Oscilloscope/multimeter
- System’s parameters are measured by connecting to the banana connector
- Ability to measure electrical signal parameters of each system component (such as sensor or actuator)
Control unit diagnosis:
- Diagnosis through OBD 16 – pin diagnostic connector
- Electronic control unit (ECU) identification
- Reading/erasing fault codes
- Displaying the operating system parameters (live data)
- Activating the actuators (depends on the control unit)
- Control unit coding/configuration

• Optional accessories:

- Vacuum gauge
- Low pressure gauge in the fuel supply line
- Automotive oscilloscope
- OBD diagnostic scan tool
- Diesel smoke meter
- The exhaust extraction system

- Educational functional engine model with CR fuel supply system, instrument cluster cooling system, power supply system and exhaust system;
- Completed with safety removable panels to protect against hot and rotating parts;
- Electrical wiring diagram with built – in banana plug jumpers for measurements and simulation of system fault codes;
- Ability to simulate more than 20 faults by disconnecting banana plug jumpers;
- After removing safety panels the engine with external components are clearly visible, easy access to the engine and its components for service and maintenance;
- Integrated engine emergency stop button;
- The stand has a closed structure – internal wiring is not visible; Instrument cluster, measurement and fault simulation panel is integrated in a closed aluminum frame construction
- Dimensions approx. (H x L x W): 1550 x 1000 x 1200 mm
- Nett weight approx: 350 Kg
- Made in EU
- CE certificate
