MSVAZ02 Educational trainer for Wheel Alignment and Electronics

Name: MSVAZ02 Educational trainer for Wheel Alignment and Electronics
Brand: Autoedu
SKU: MSVAZ02

Reference: MSVAZ02 - Manufacturer: Autoedu

Open training stand for teaching wheel alignment, suspension, steering, braking, lighting and OBD diagnostics in one realistic educational unit.

Ask for Quote

General

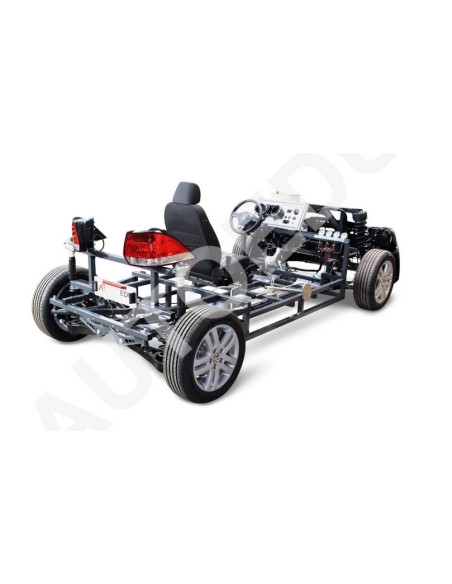

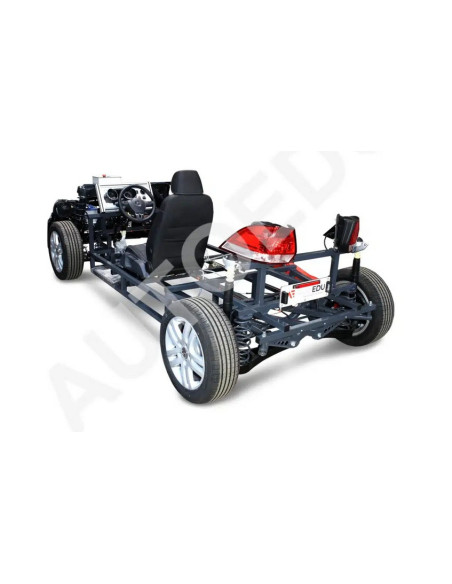

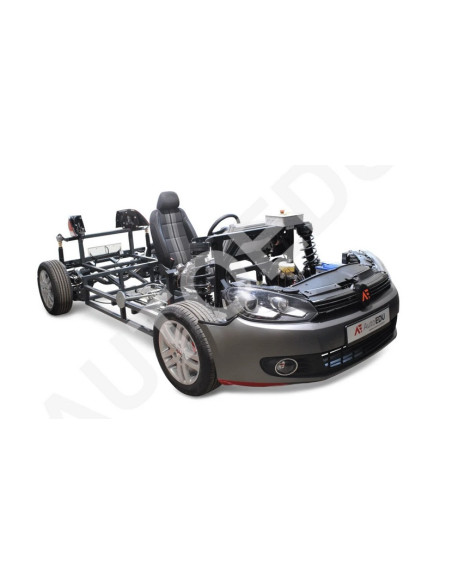

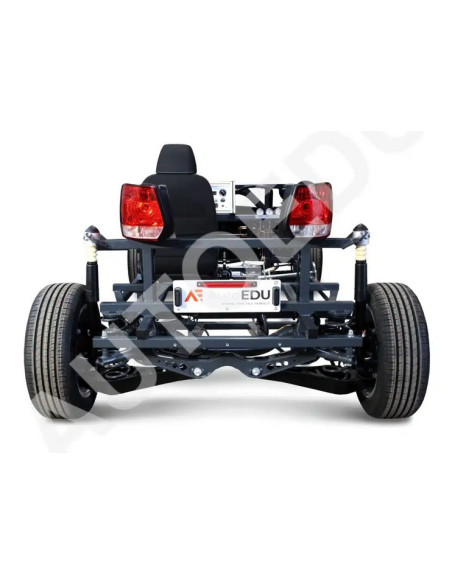

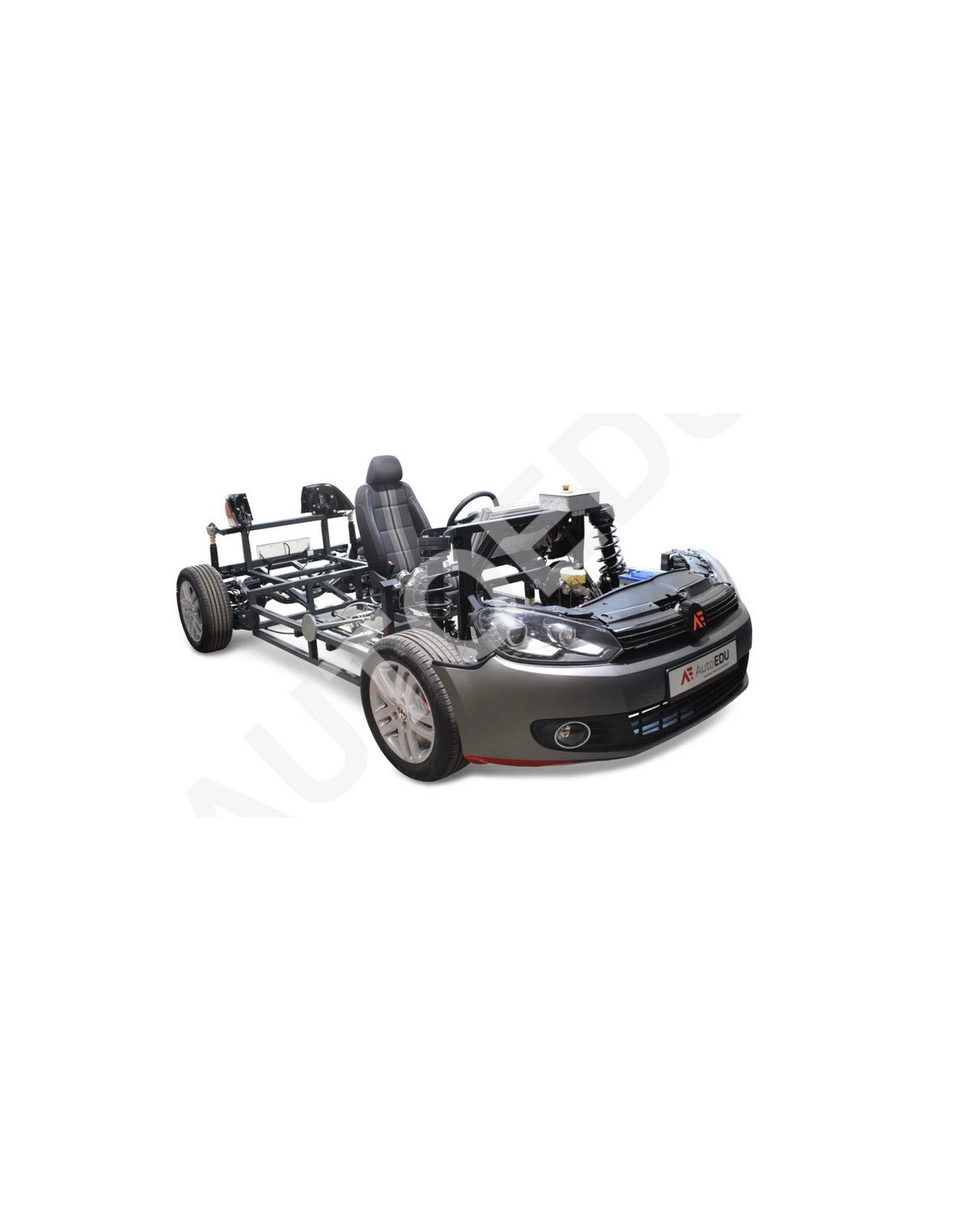

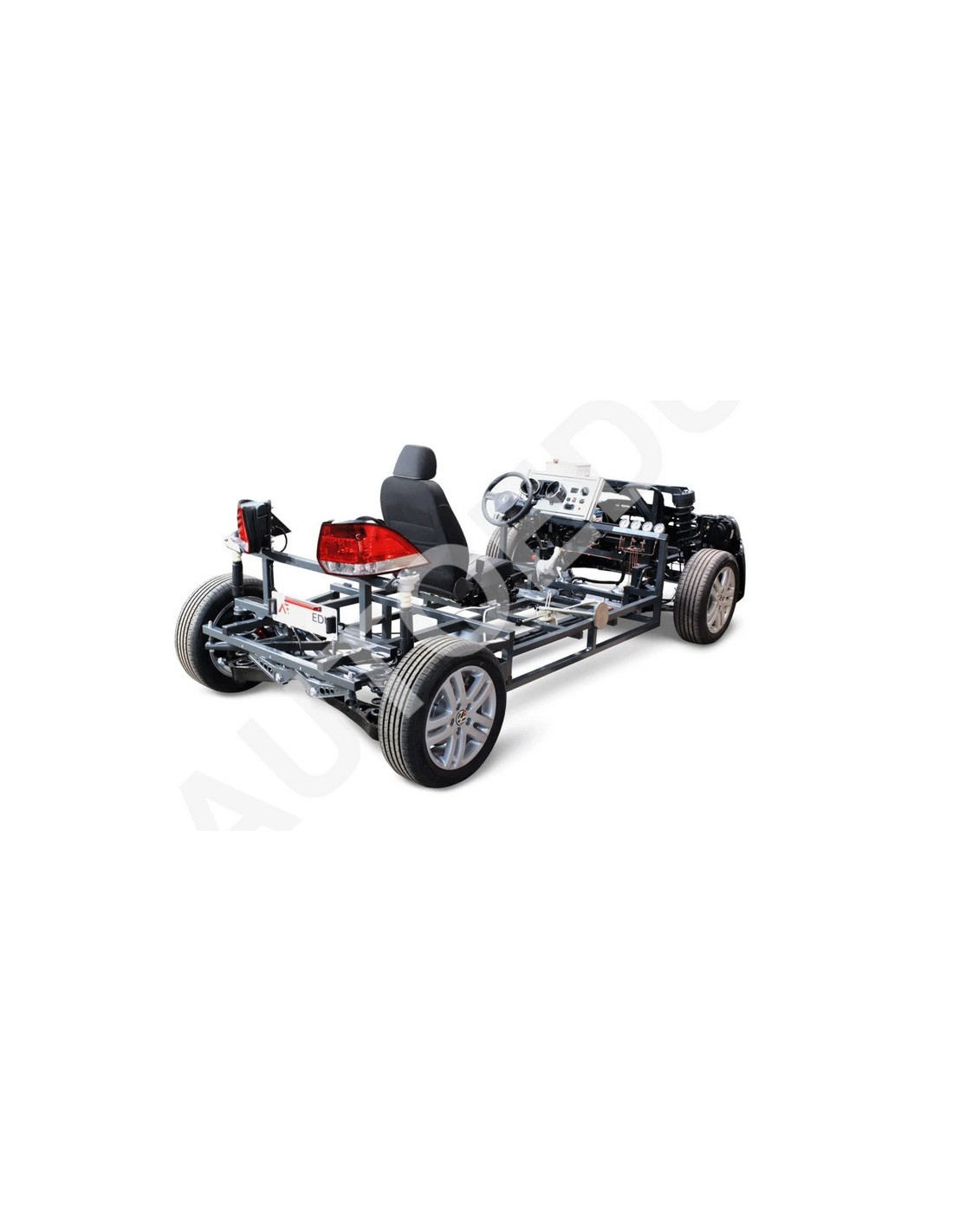

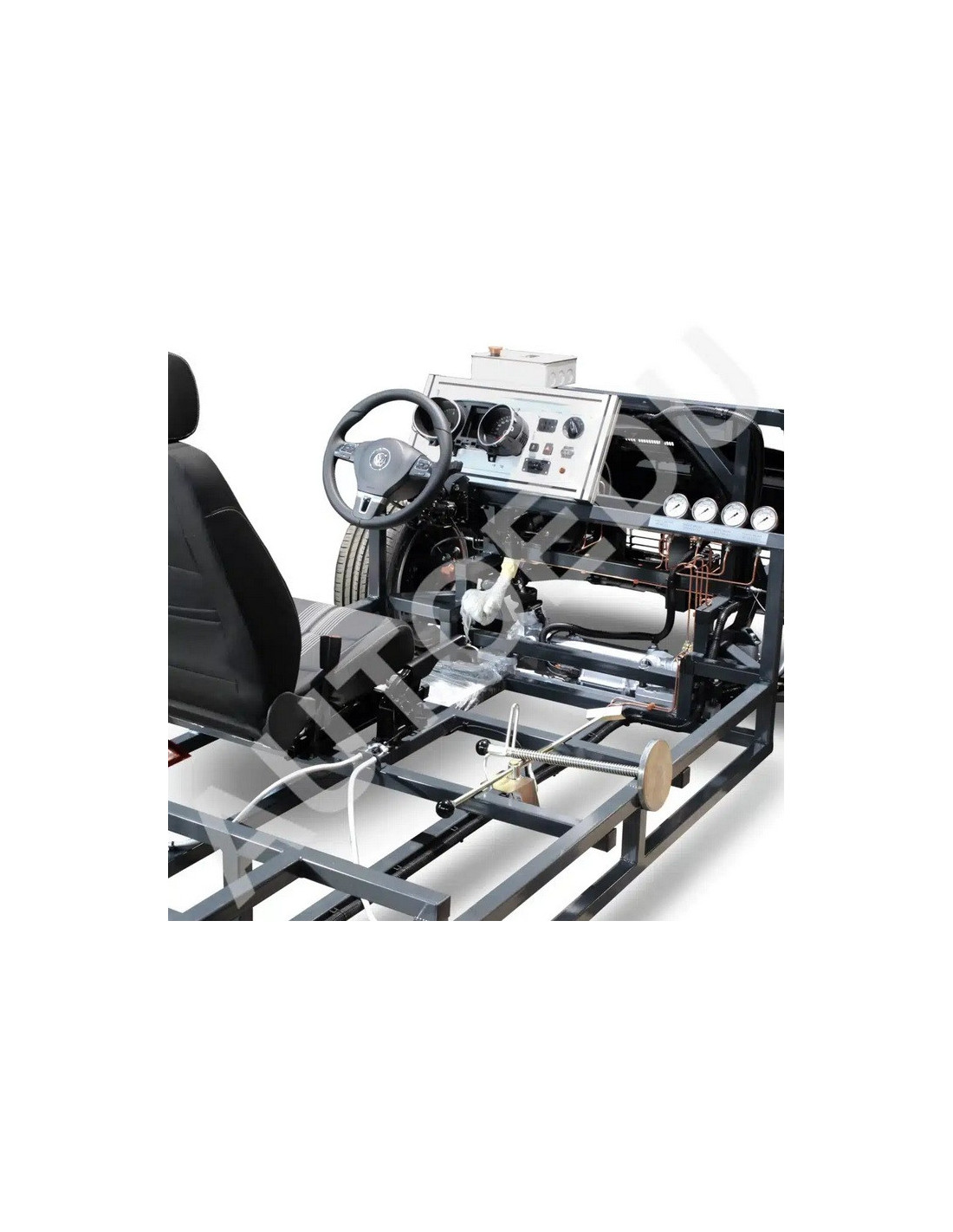

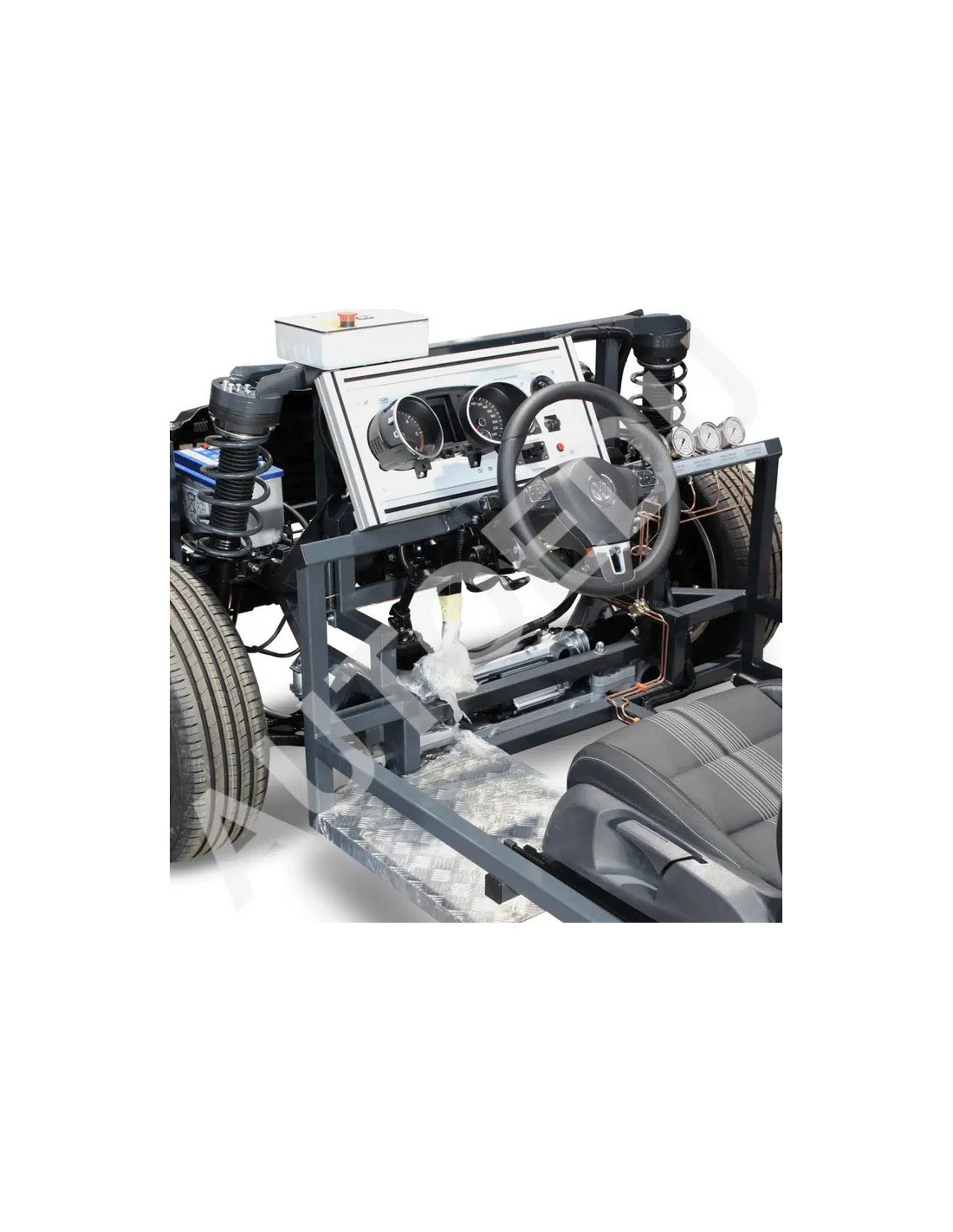

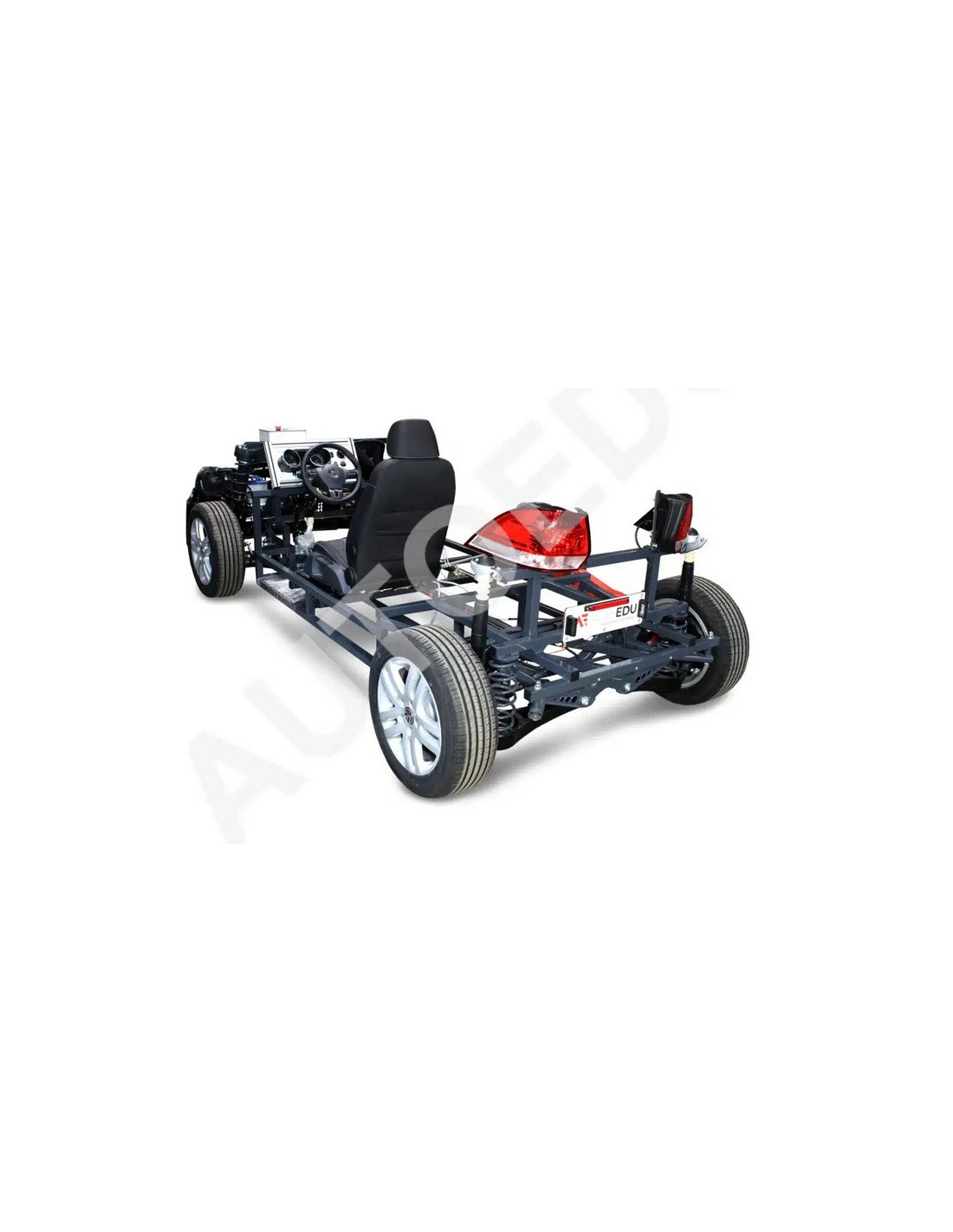

The MSVAZ02 Wheel Alignment and Electronics Training Stand is designed to teach wheel geometry adjustment together with steering, suspension, braking, and lighting systems in a realistic and fully open training environment. The unit simulates a real vehicle chassis, built with accurate suspension mounting points and real automotive components. Its open-frame construction ensures full visibility and accessibility for hands-on learning and system analysis.

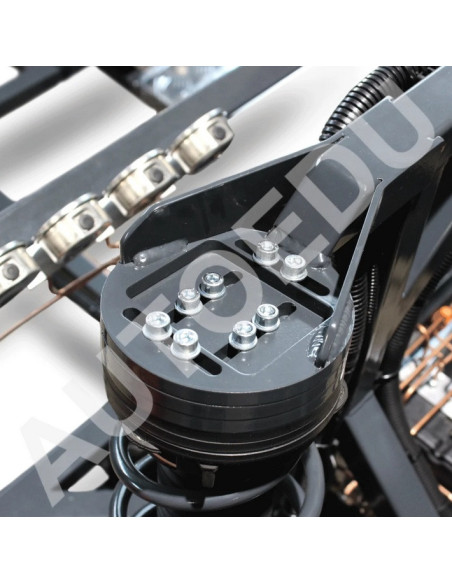

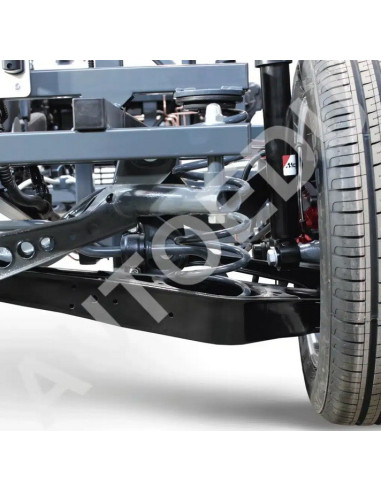

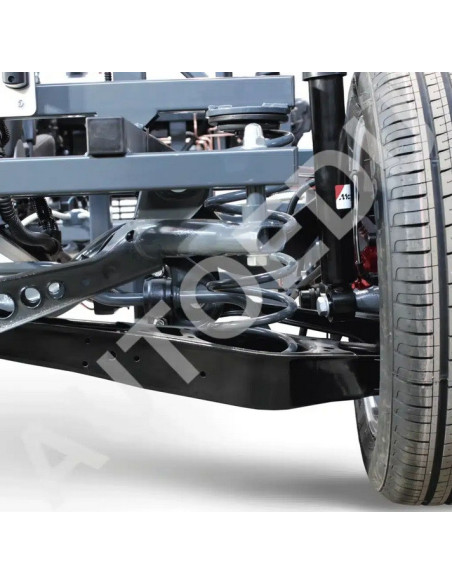

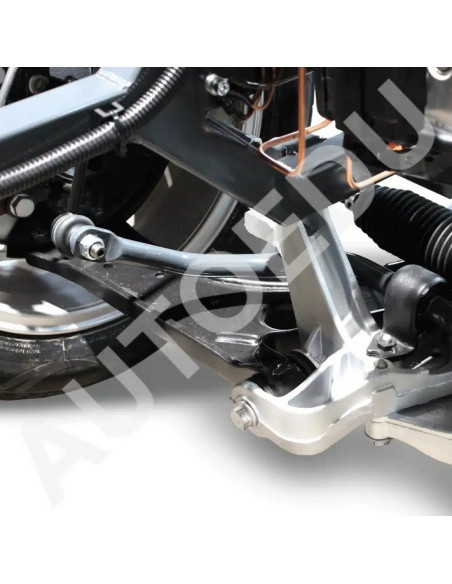

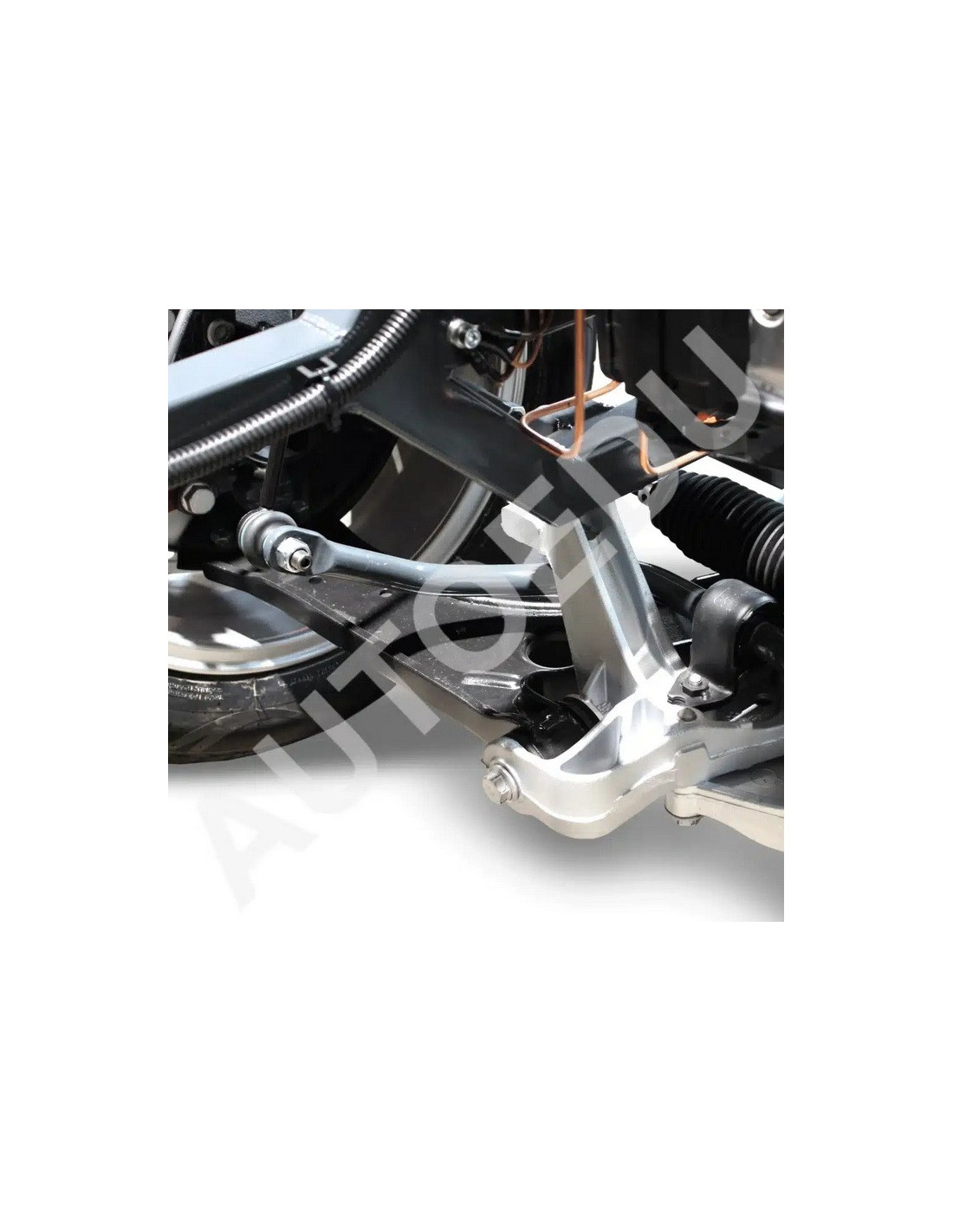

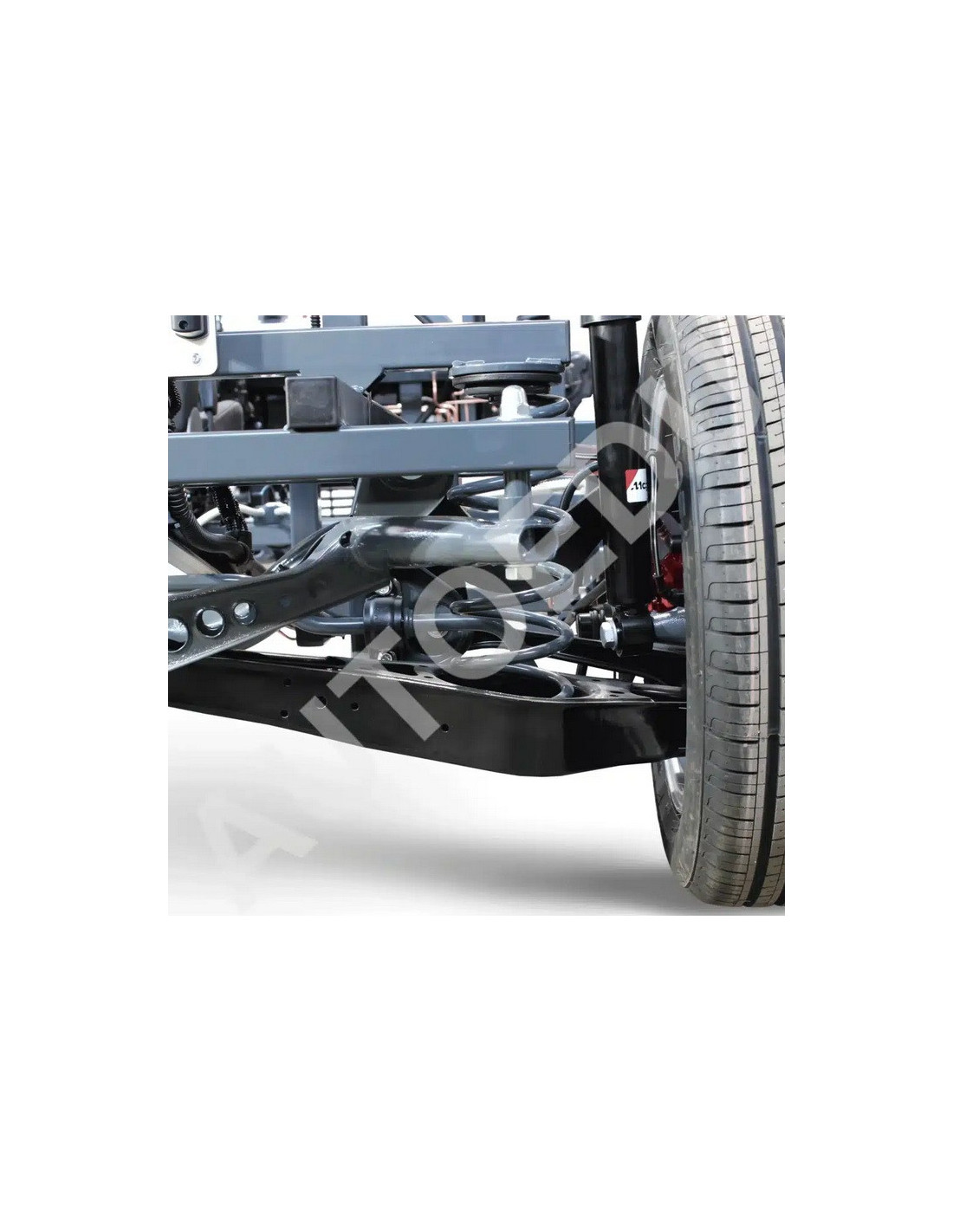

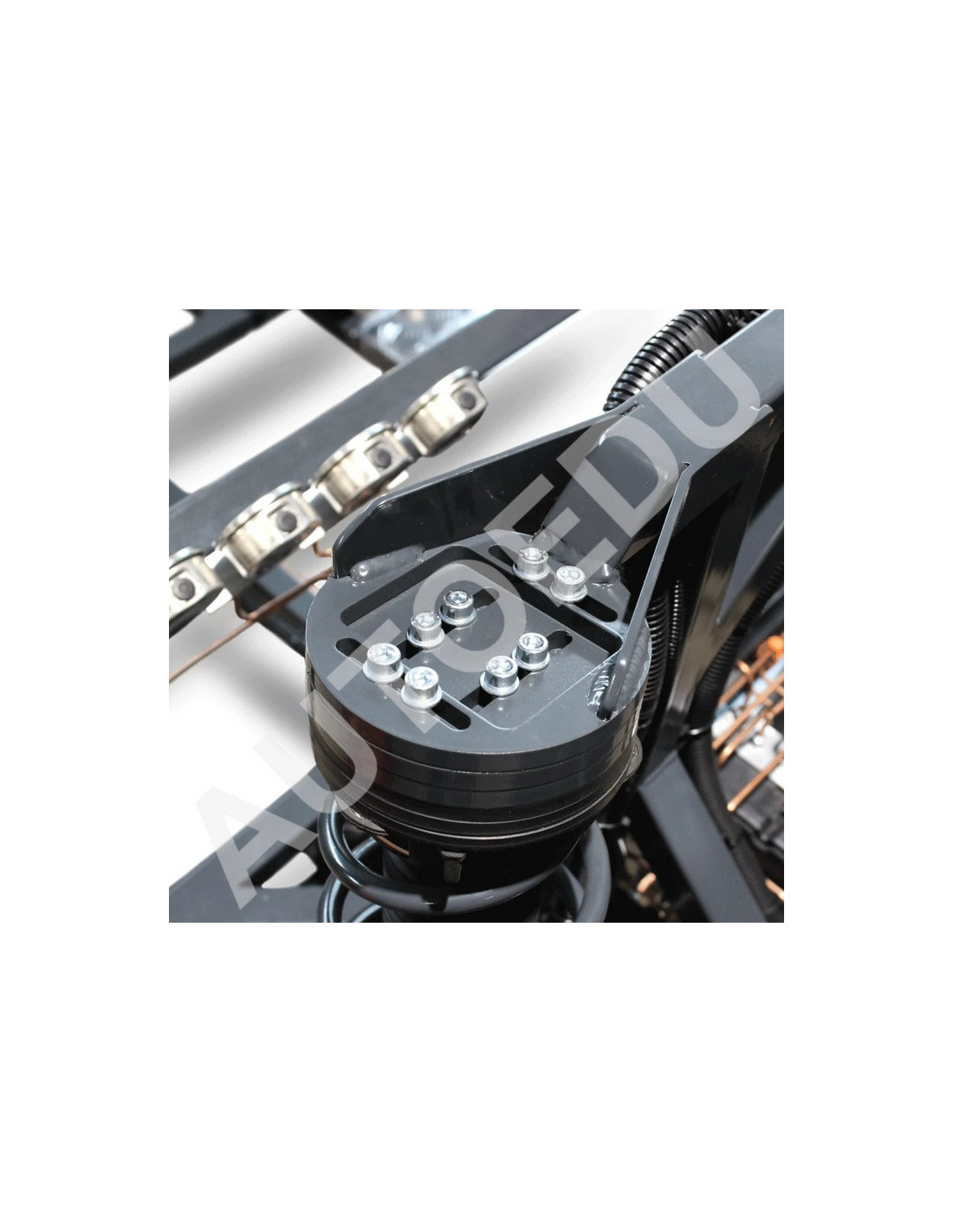

Front McPherson-type suspension with adjustable upper strut mount for camber and caster angle adjustment.

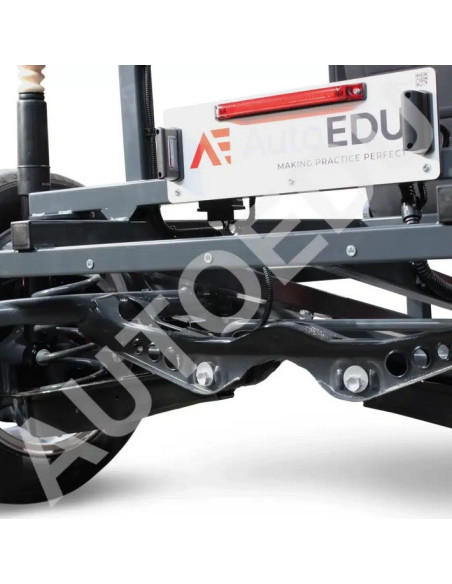

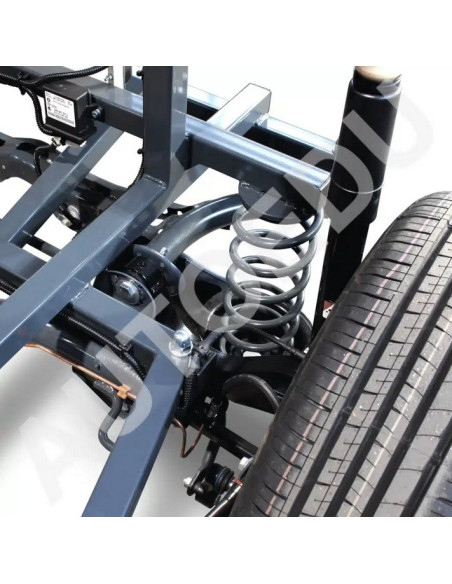

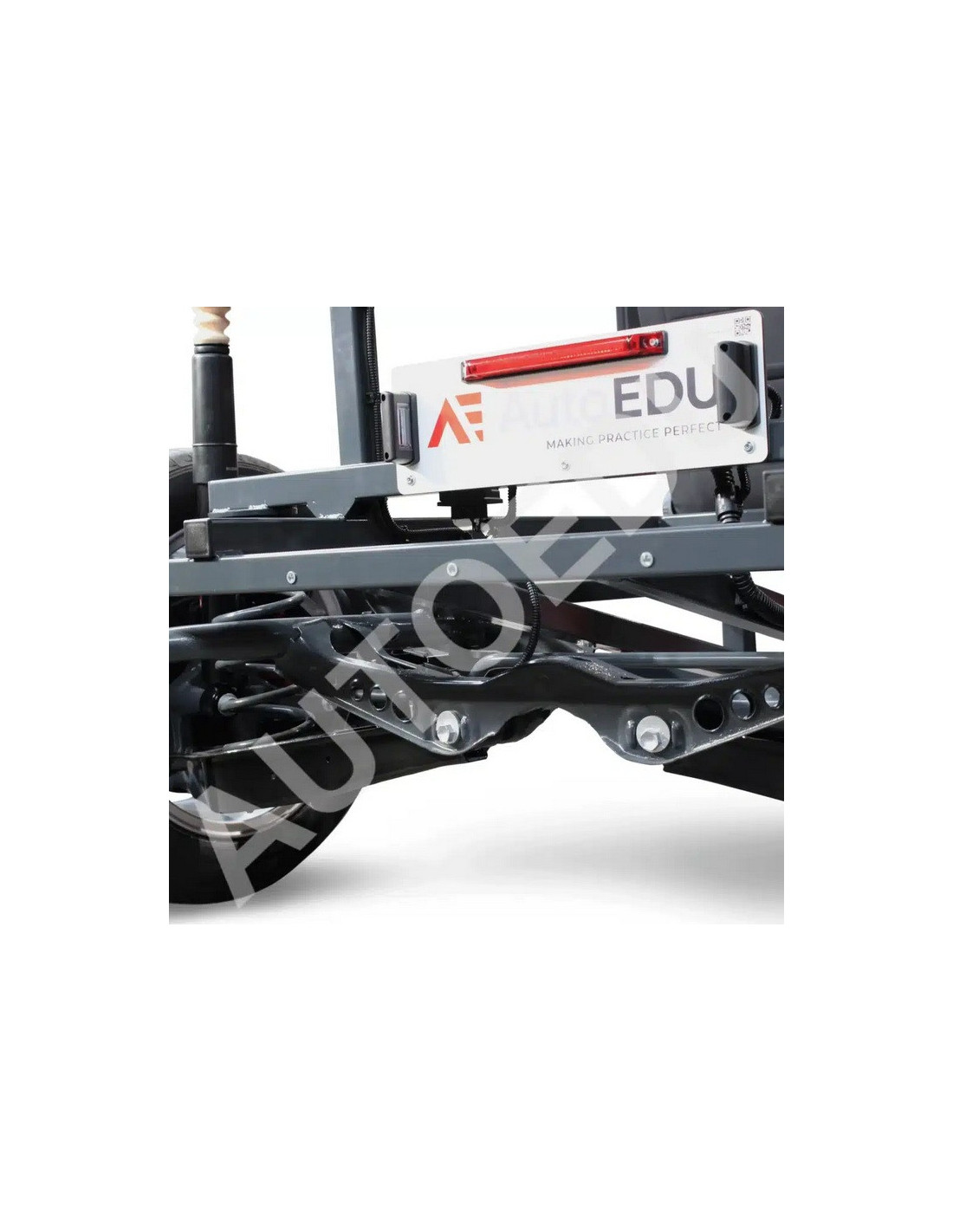

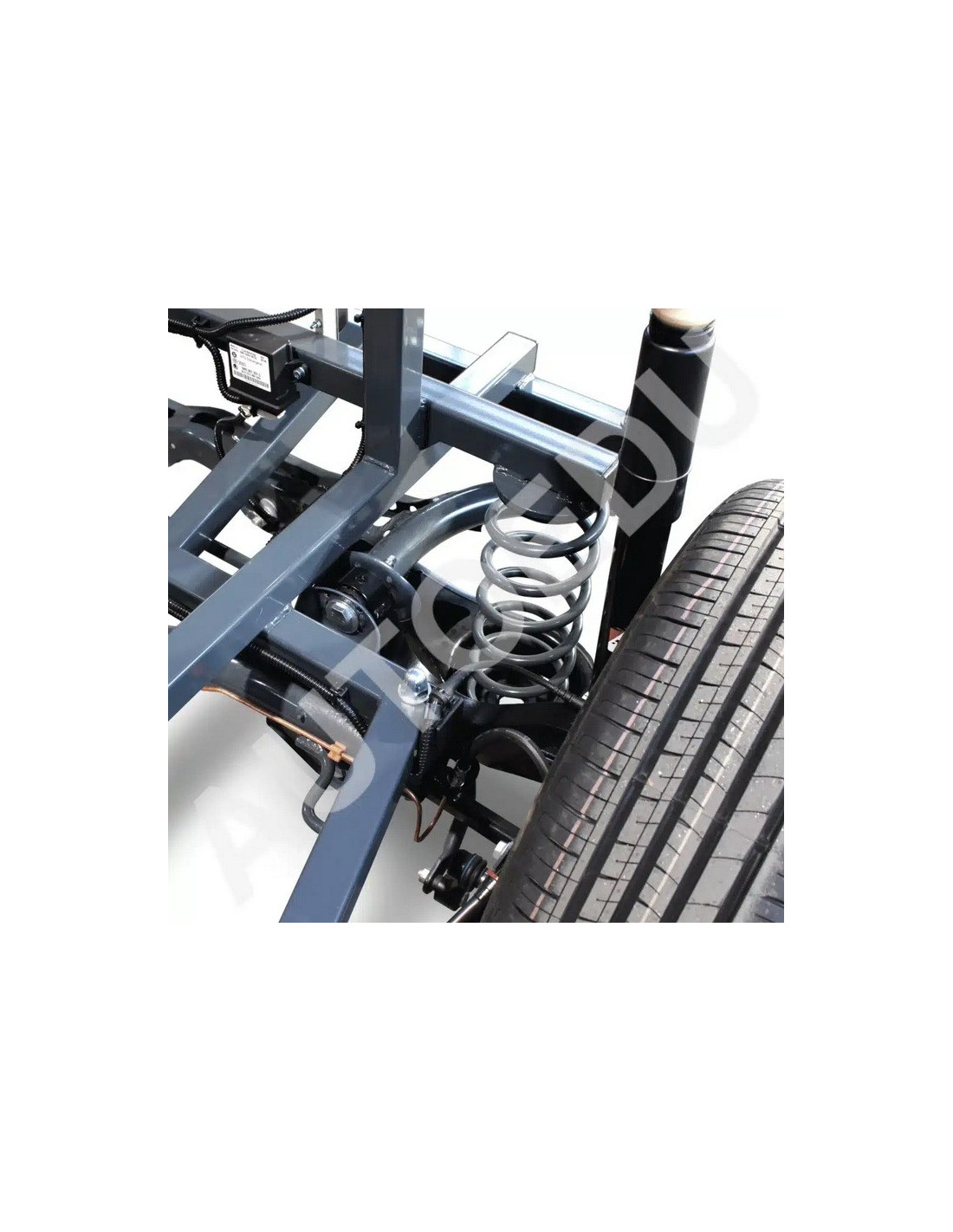

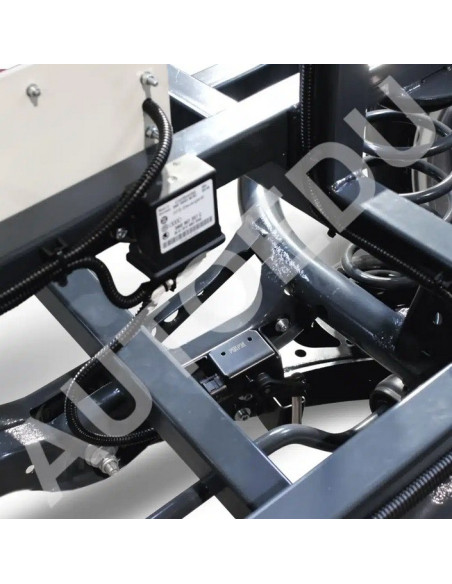

Rear independent multi-link suspension with separate spring and shock absorber layout.
Fully operational lighting system including headlights, fog lights, tail lamps, and adaptive functions.

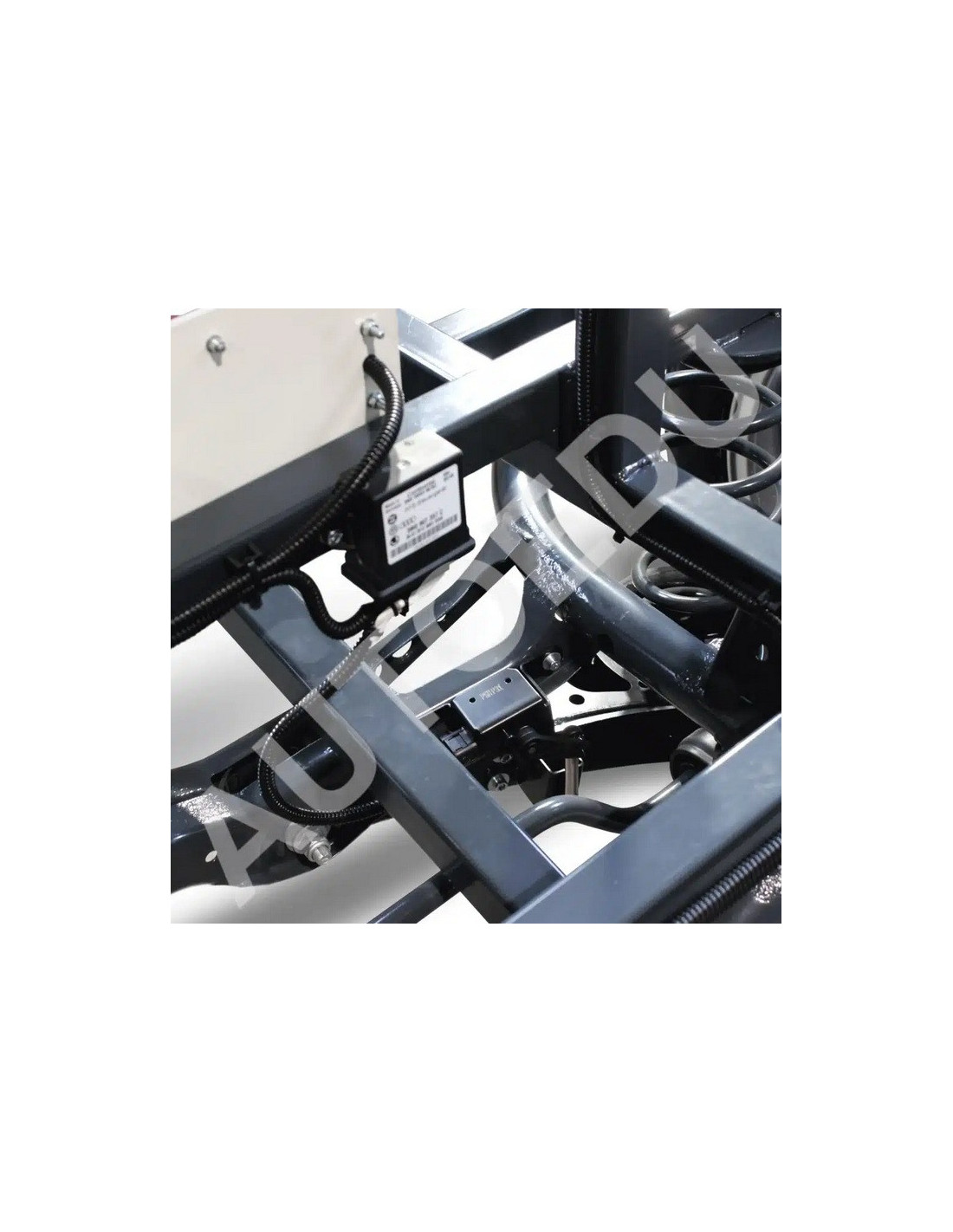

Height and light sensors to demonstrate automatic and adaptive lighting control.
Adaptive fog lights respond to steering direction for realistic cornering light behavior.

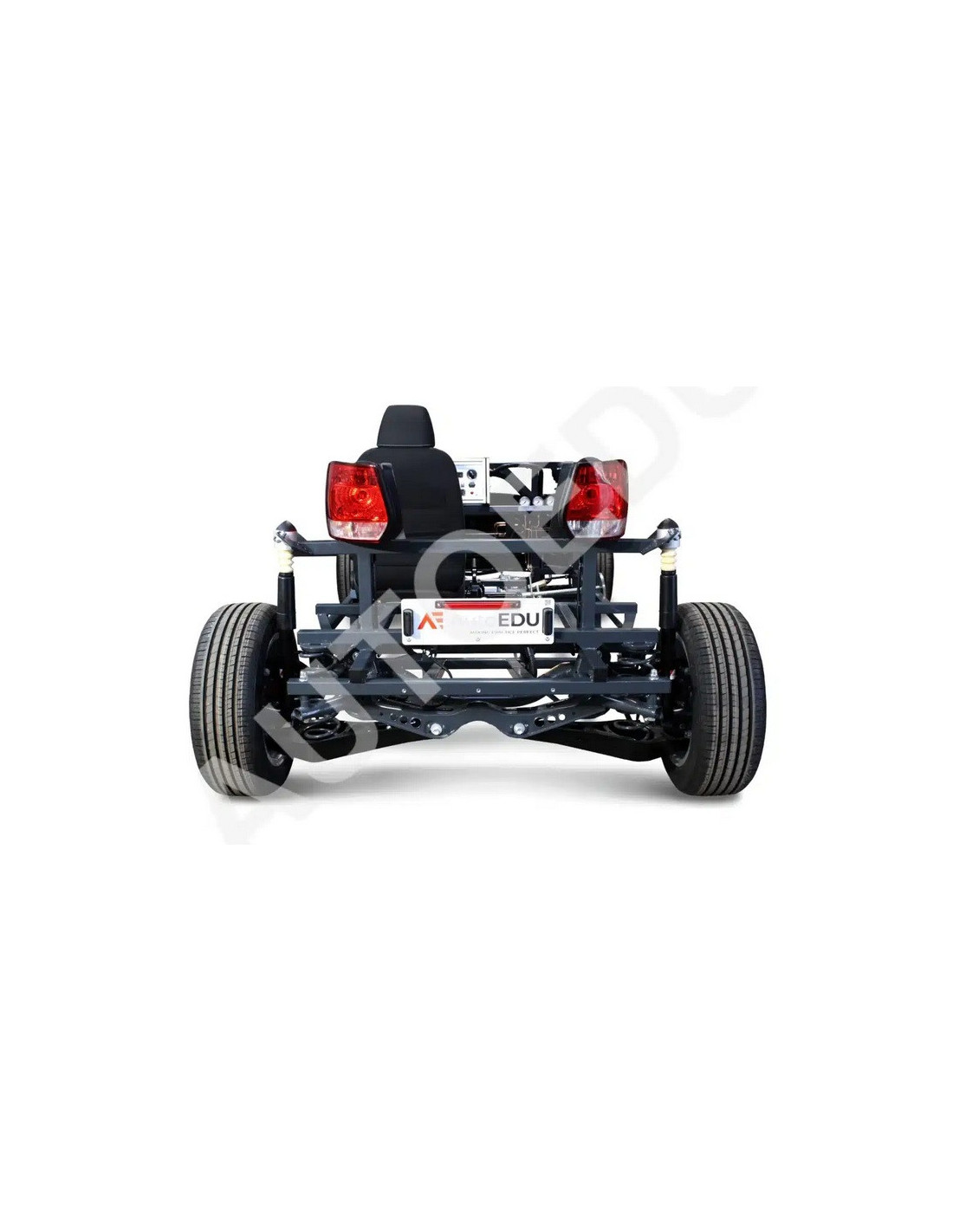

Working rear lights with brake, reverse, and fog functions.

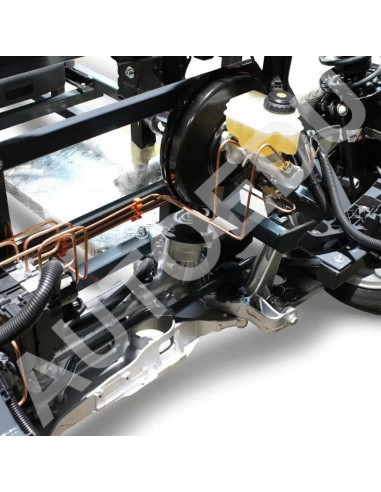

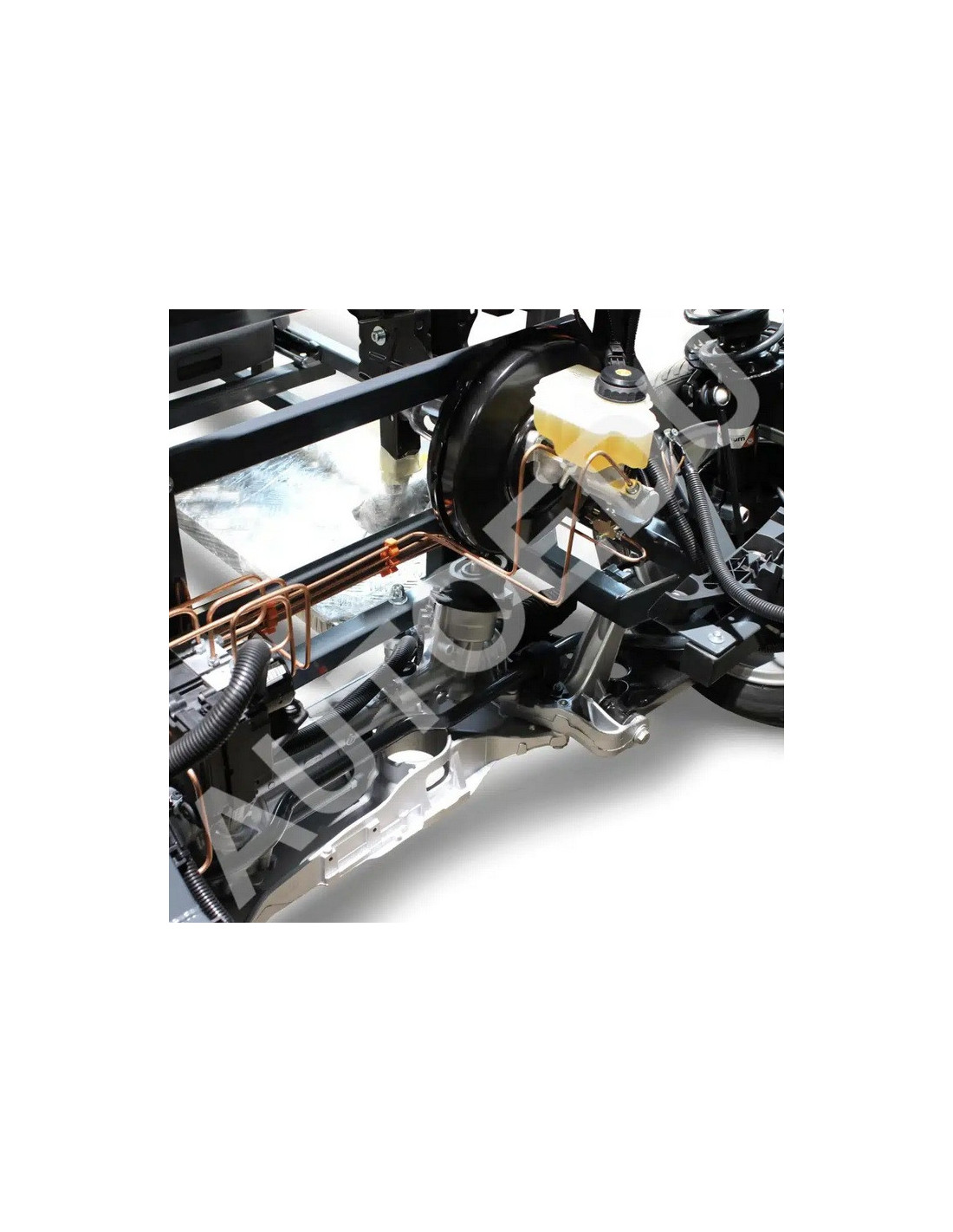

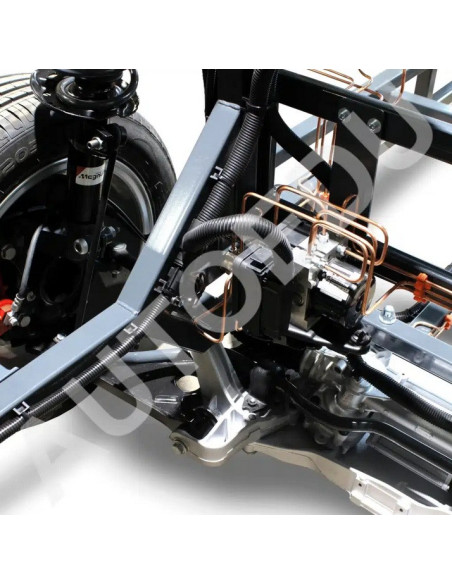

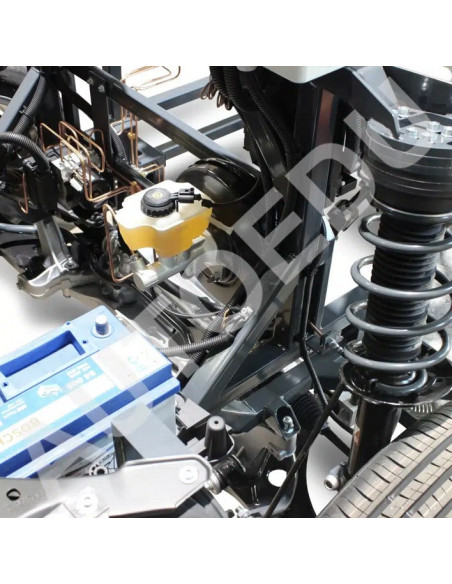

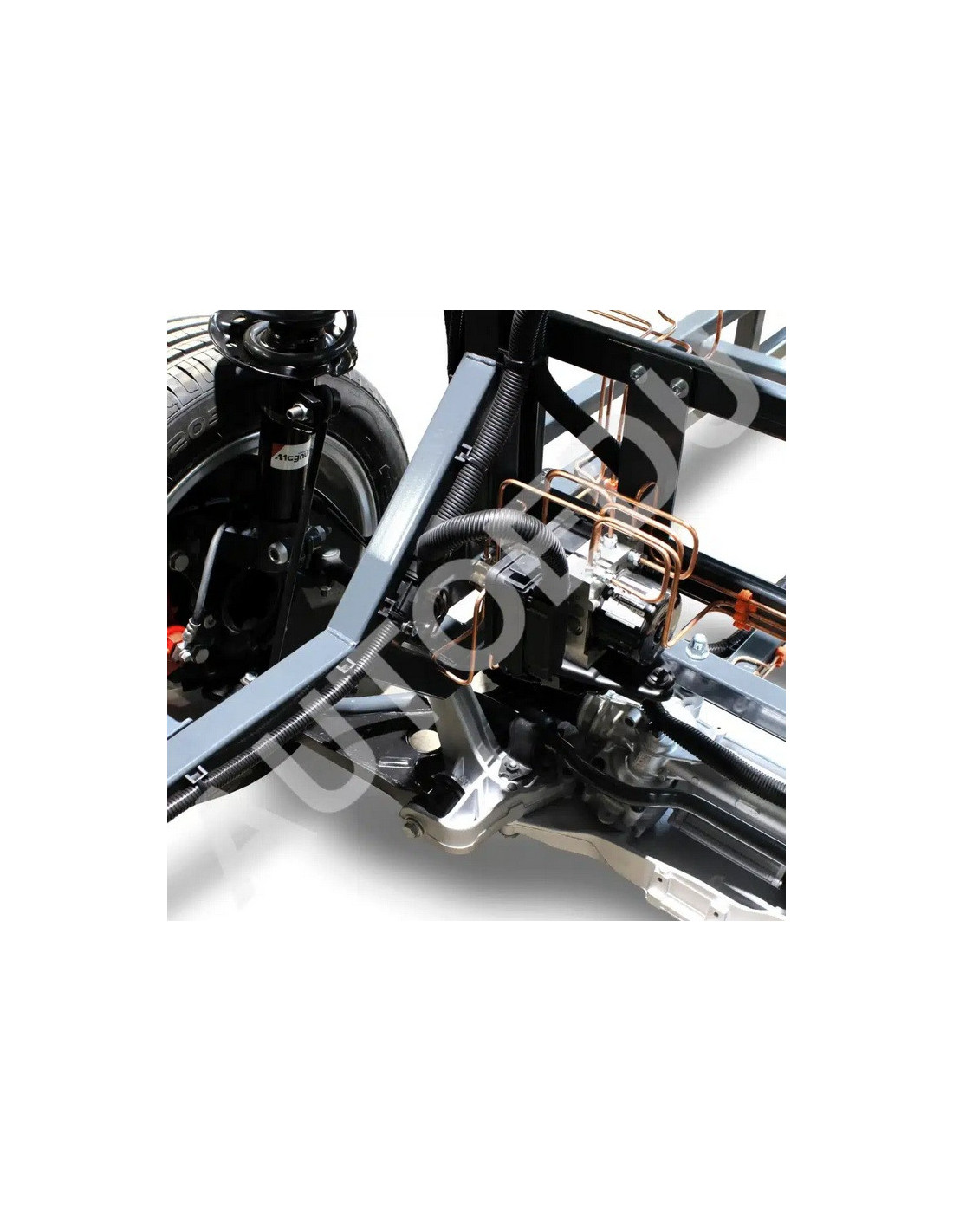

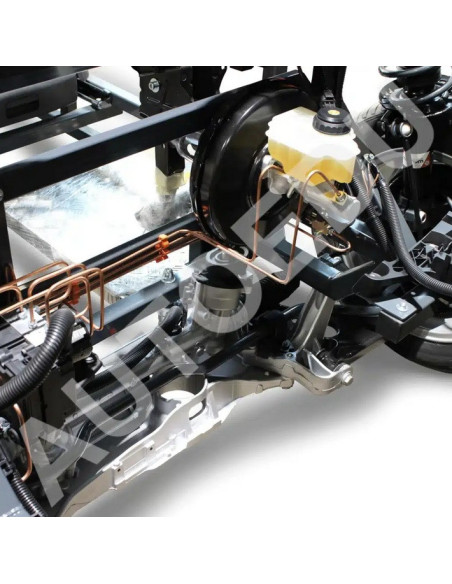

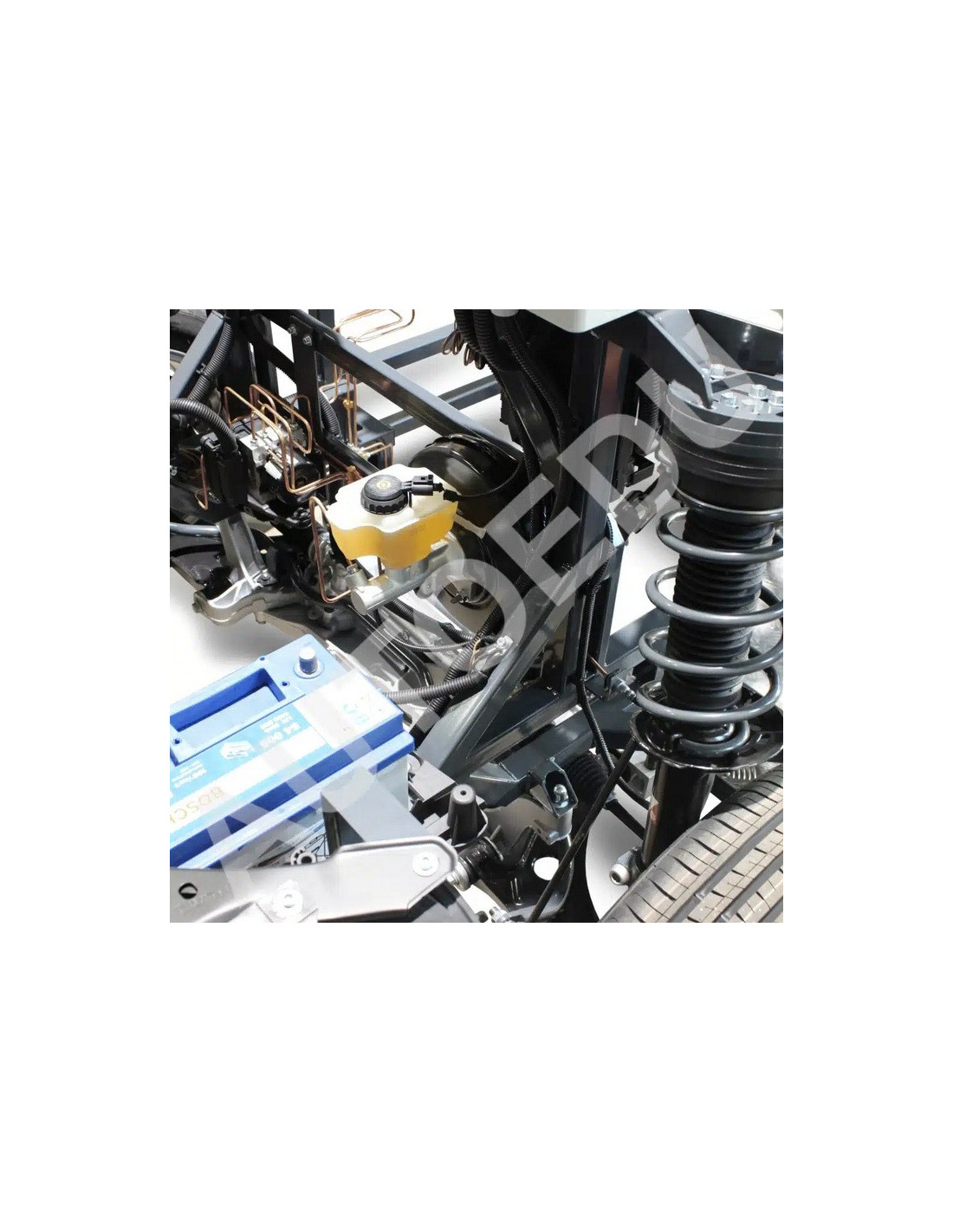

Complete hydraulic brake system with pedal, ABS module, parking brake, and visible lines.

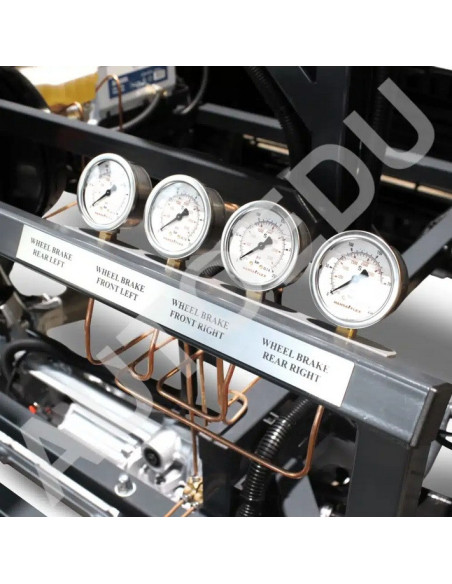

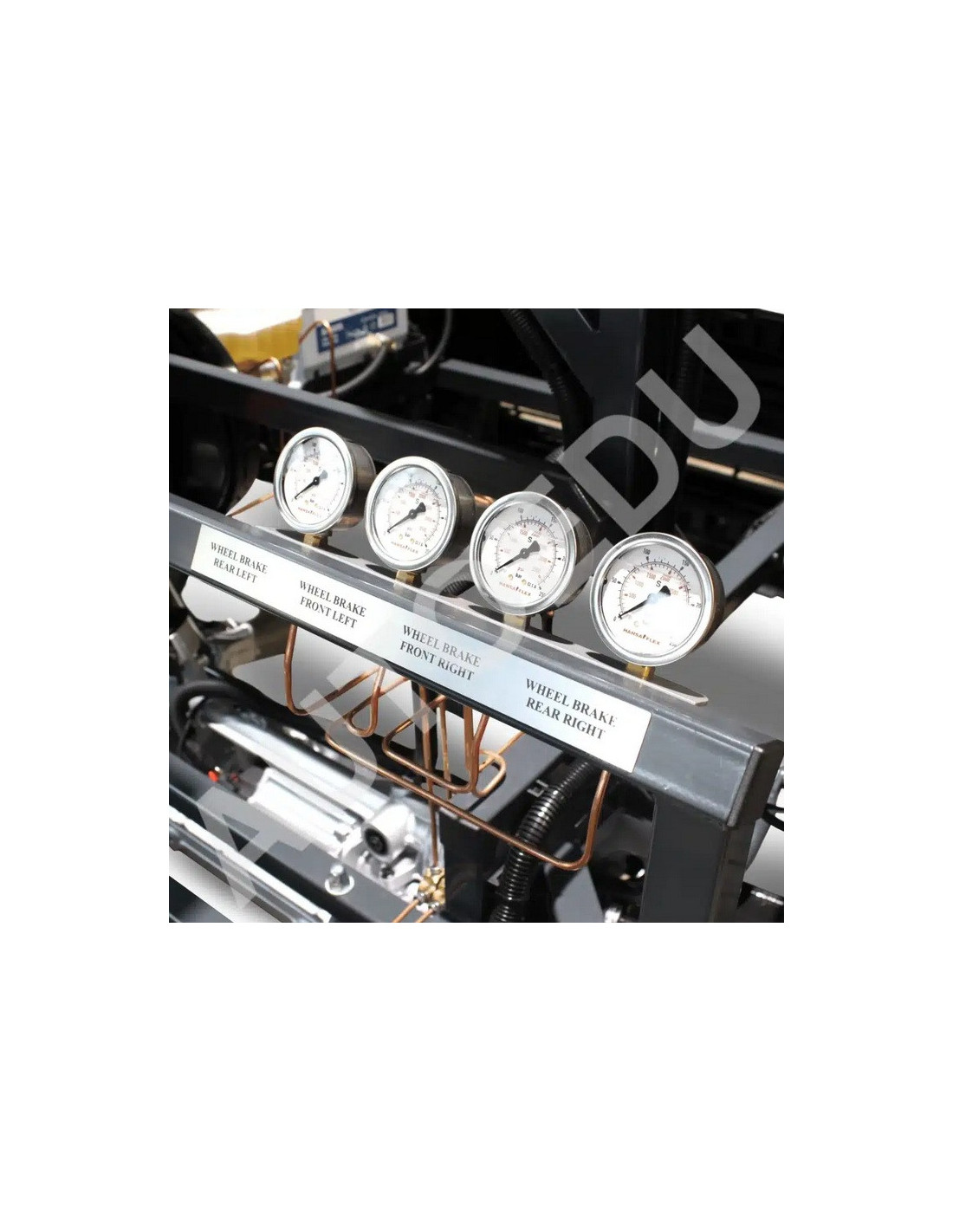

Pressure gauges on each wheel to display hydraulic pressure during braking.

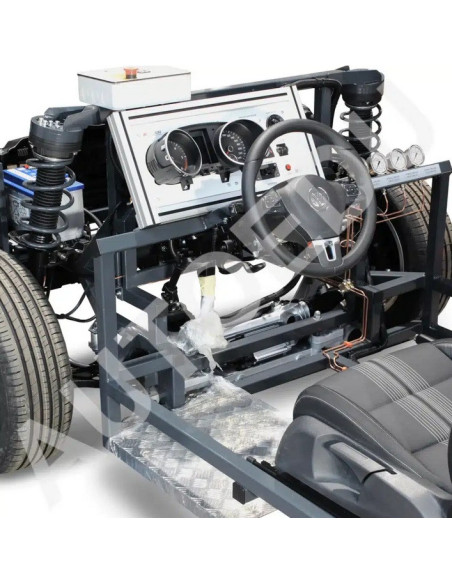

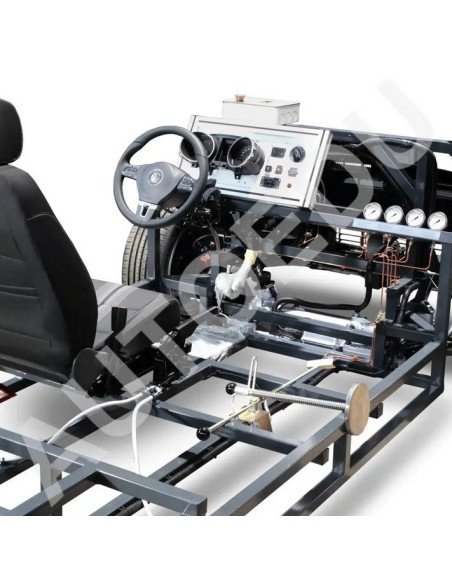

Electric power steering (EPS) system with OEM steering column and dashboard switches.

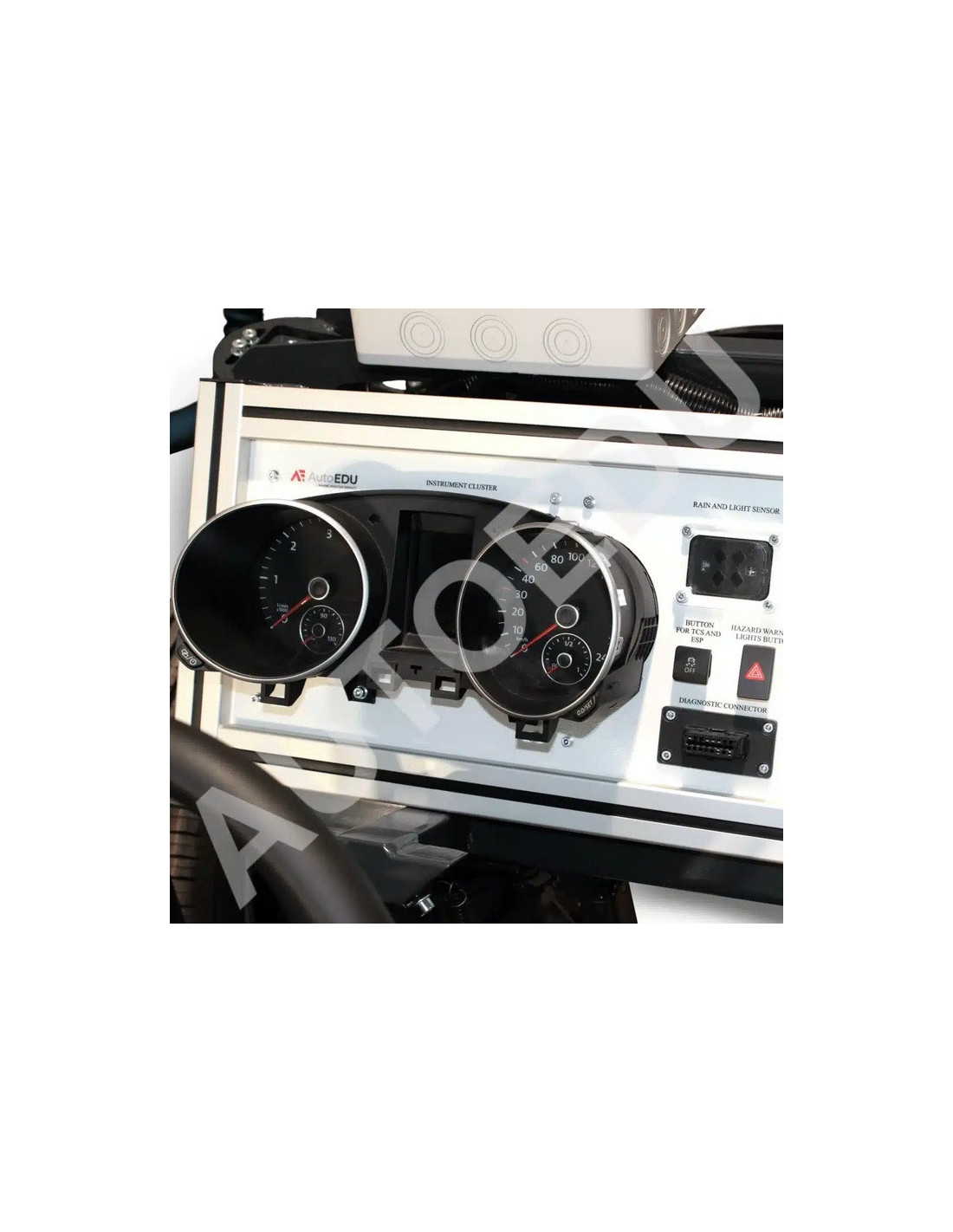

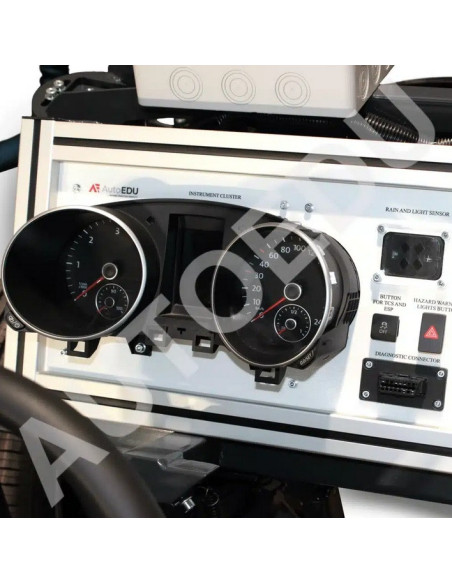

Functional turn indicators, lighting control, and instrument cluster operation.
OBD diagnostic connector for testing lighting, braking, and instrument systems.
Compact mobile steel frame design providing easy access and full system visibility.

Value for Students

Hands-on learning of wheel alignment, suspension geometry, and steering principles.
Practical exercises in lighting system control, diagnostics, and adjustment.
Direct observation of brake pressure and ABS operation.
Experience in real OBD-based testing and troubleshooting.
Safe and interactive environment for multi-system automotive training.

Value for Instructors

Demonstrates all key chassis and electronics systems in a single compact platform.
Simplifies wheel alignment training with visible and adjustable components.
Enables diagnostic sessions with real OBD data and live system responses.
Ideal for group instruction and detailed component demonstration.
Supports curriculum integration for suspension, steering, lighting, and braking lessons.

Specifications

Manufacturer reference: MSVAZ02.
Brand: AutoEDU.
ASE category: A3.
Product type: wheel alignment and electronics training stand.
Training application: wheel geometry adjustment, suspension, steering, braking, lighting, and OBD diagnostics.
Front McPherson suspension with adjustable upper mount.
Rear independent multi-link suspension.
Fully operational lighting system with adaptive functions.
Integrated height and light sensors.
Hydraulic brake system with ABS module and pressure gauges on each wheel.
Electric power steering EPS with OEM steering column.
OBD connector for testing and diagnostics.
Mobile steel frame with open structure.

This equipment provides a practical and interactive platform for learning about various vehicle systems, allowing students to understand their operation visually and practically.

Hands-on learning of wheel alignment, suspension geometry, and steering principles.
Exercises on controlling, diagnosing, and adjusting the lighting system.
Direct observation of brake pressure and ABS system operation.
Real-world experience in testing, diagnosing, and troubleshooting using OBD.
A safe and educational environment for training in multiple automotive systems.

This equipment facilitates hands-on teaching of the vehicle's main chassis and electronic systems on a single, compact, visual, and easy-to-use platform in the classroom or workshop.

It allows for the demonstration of the main chassis and electronic systems on a single training bench.
It simplifies wheel alignment training thanks to visible, accessible, and adjustable components.
It facilitates diagnostic sessions with real OBD data and real-time system responses.
It is suitable for group instruction and detailed component explanations.
It integrates easily into training programs on suspension, steering, lighting, and braking.
