Reference: PMTP01 - Manufacturer: Autoedu

Toyota PRIUS II Hybrid ½ Educational Trainer PMTP01

Functional Vehicle PMTP-01 based on Toyota Prius II

Teaching hybrid systems should not be limited by space or complexity!

This functional model is a great educational tool that allows students to learn the components of the hybrid system, air conditioning system, ABS system, SRS AIRBAG system and other systems and its components, operation modes, various measurements, tests and other diagnostic procedures.

help_outlineAsk for Quote

PMTP01 Toyota Prius II HYBRID Technology Functional Model

I accept privacy policy rules

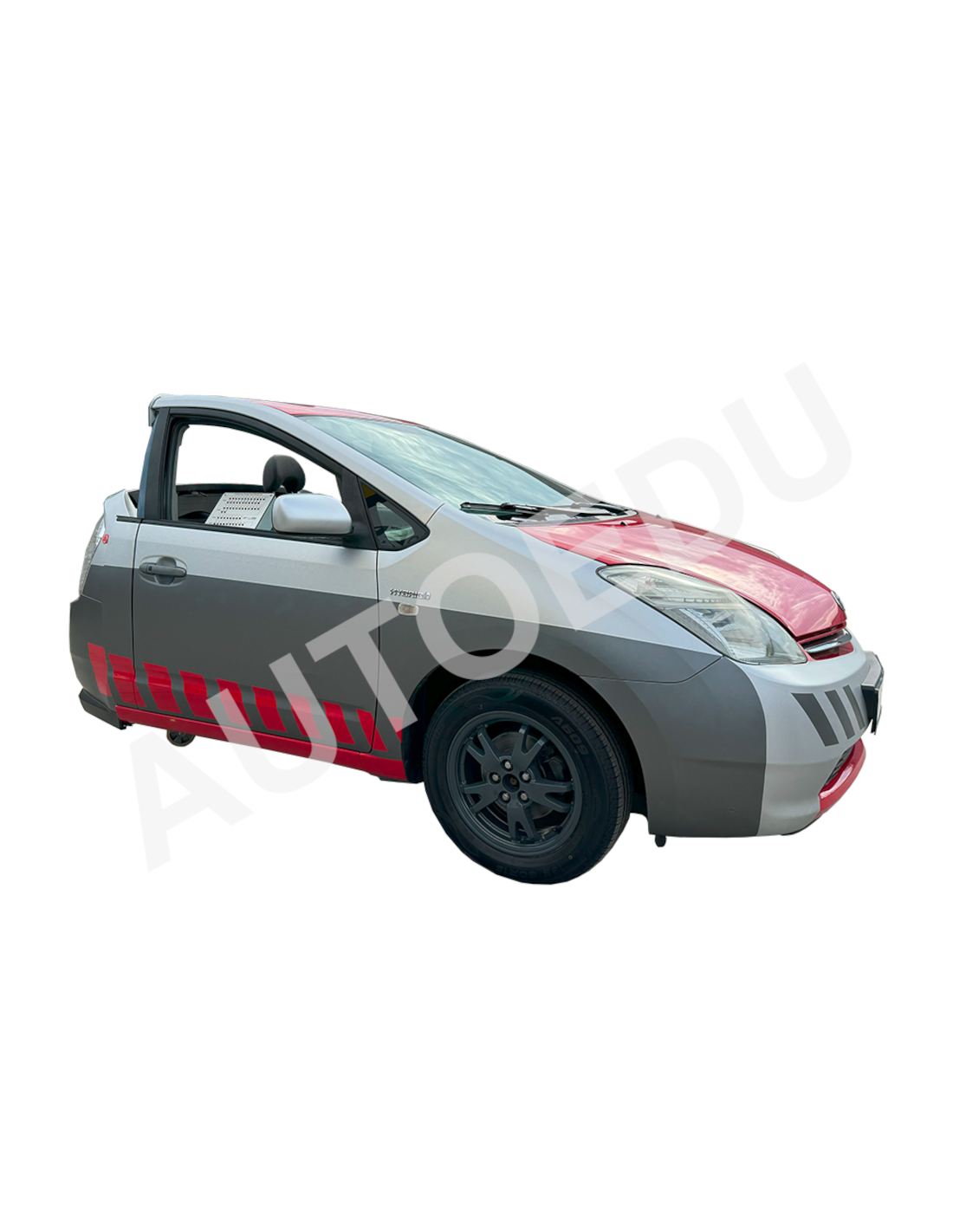

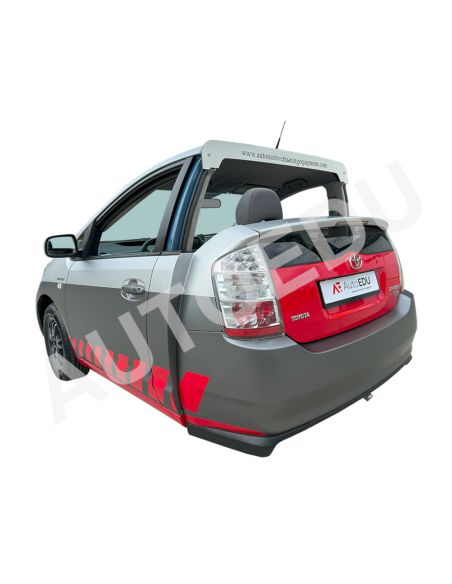

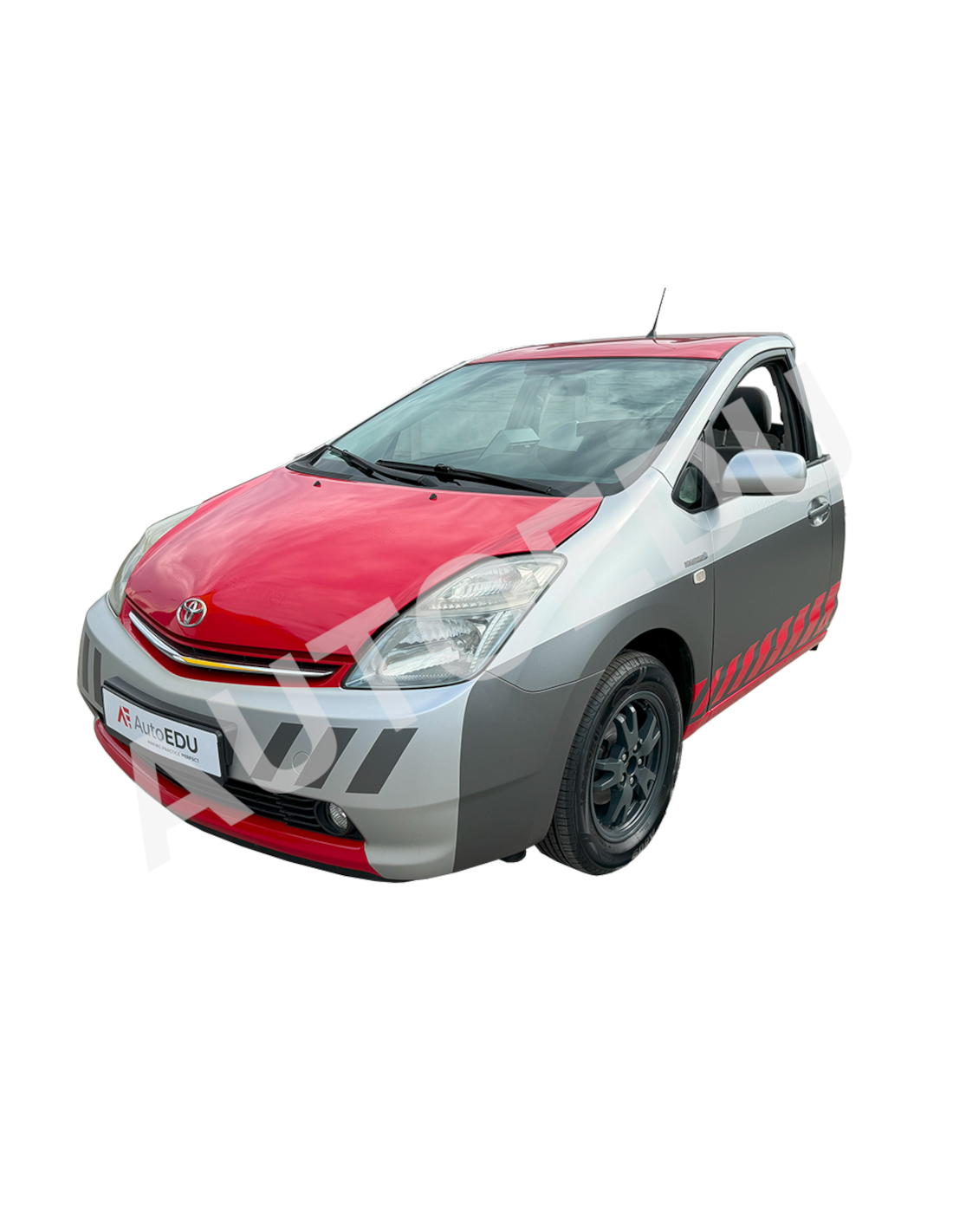

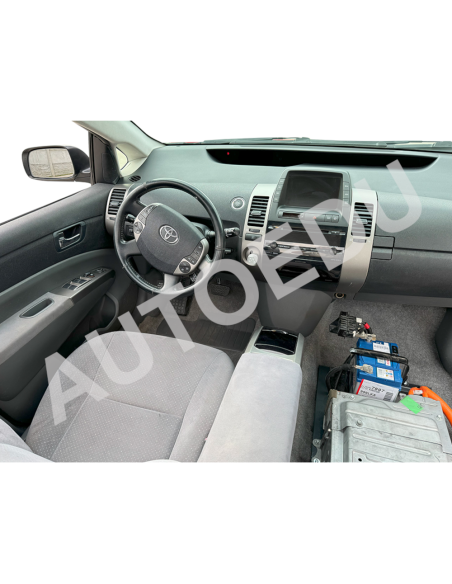

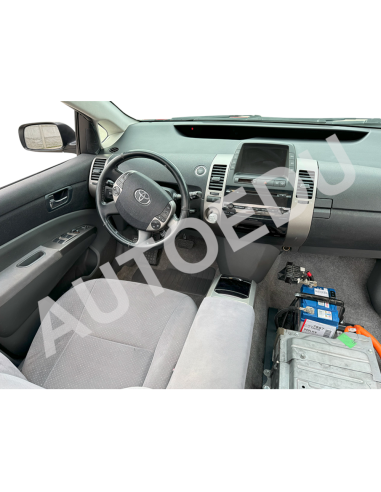

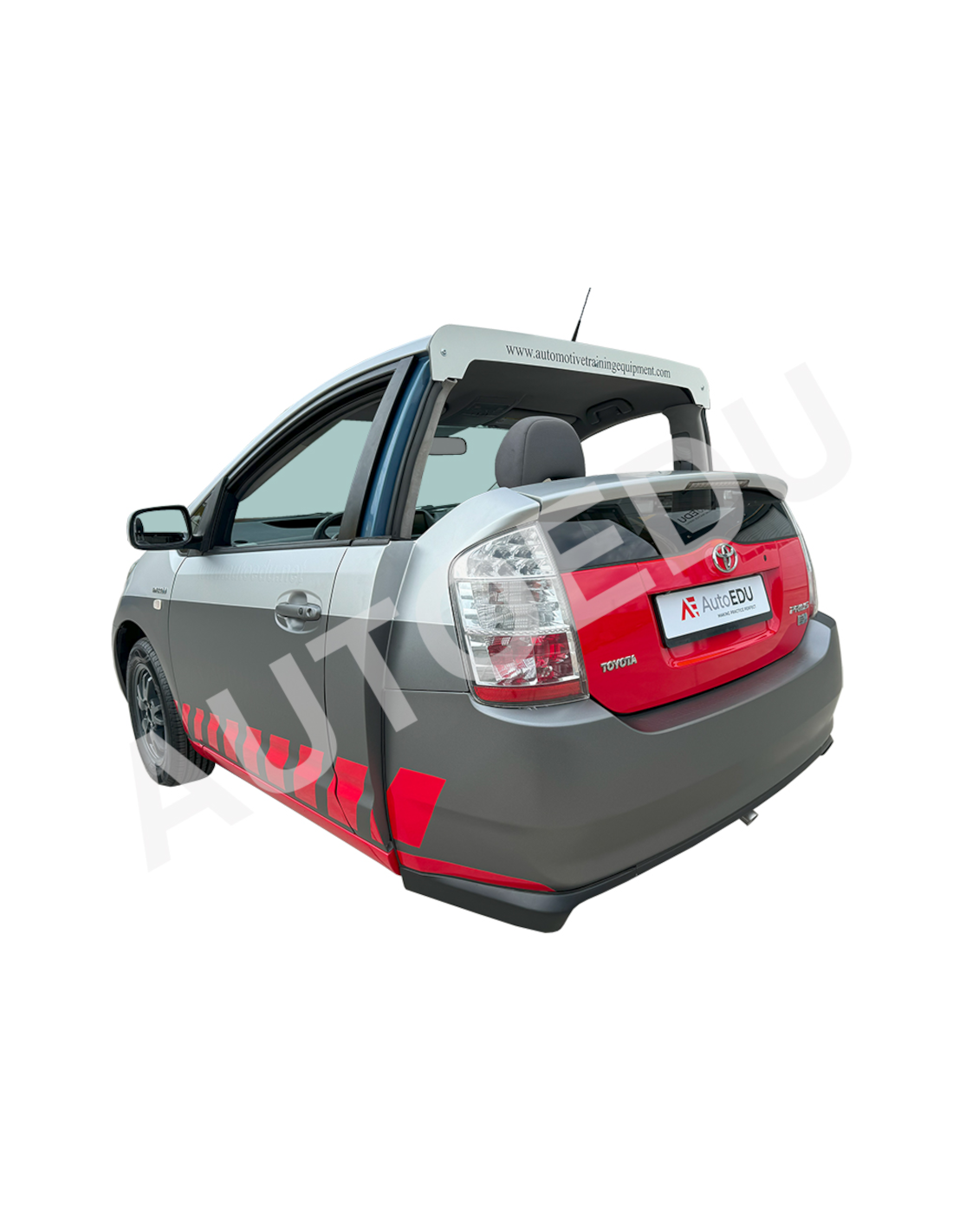

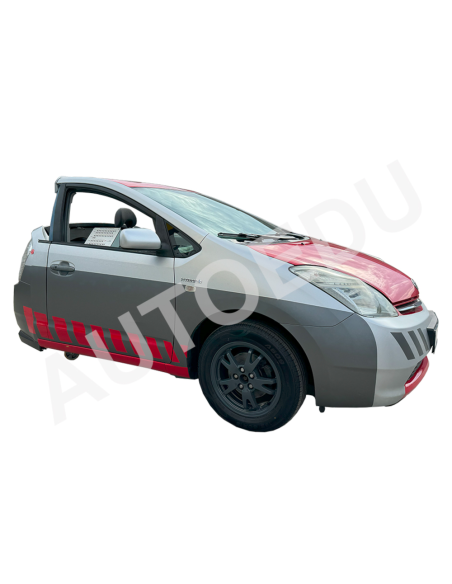

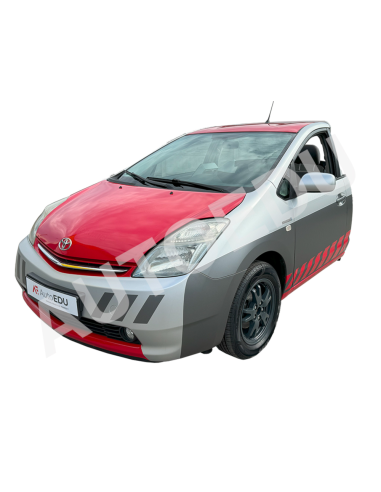

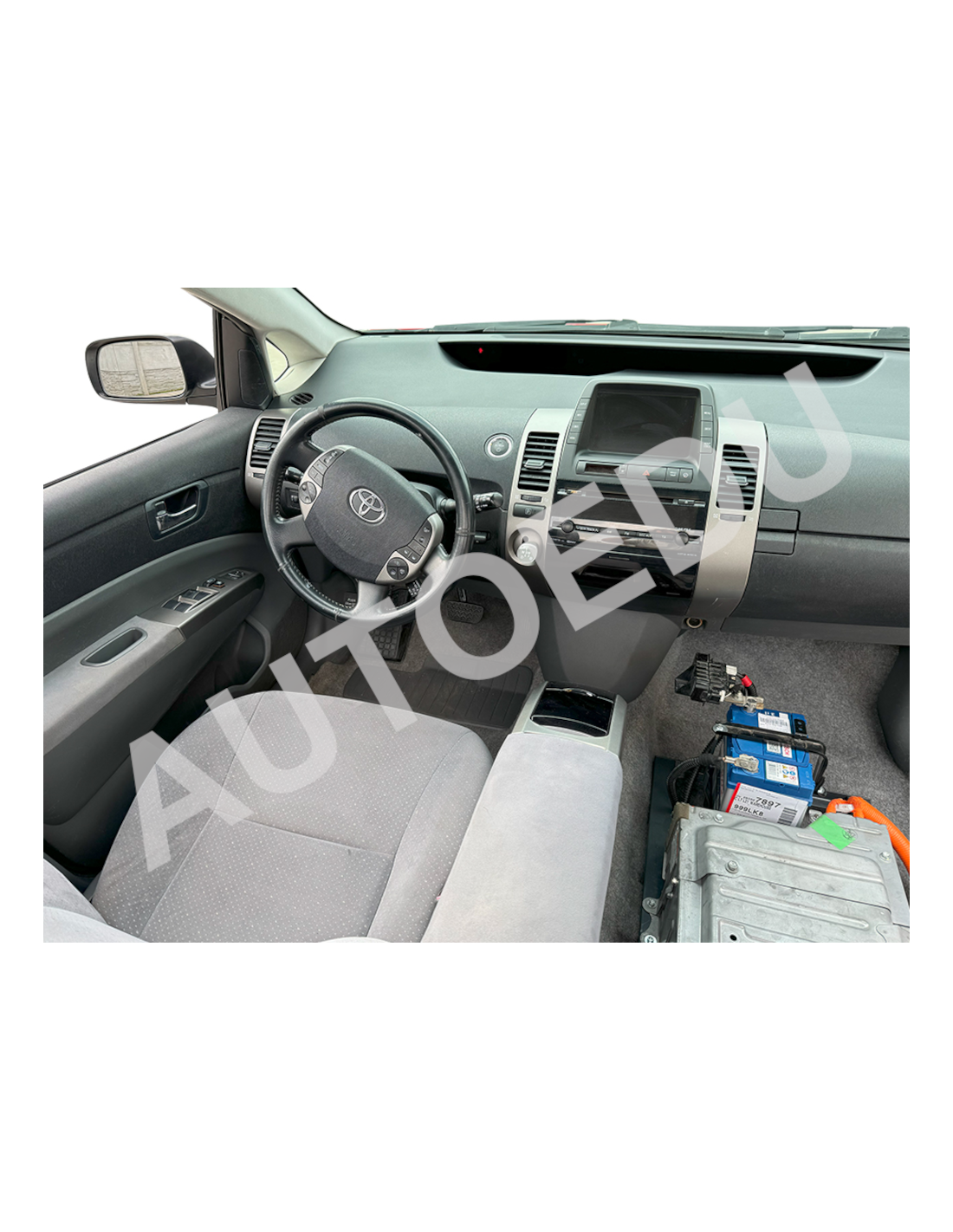

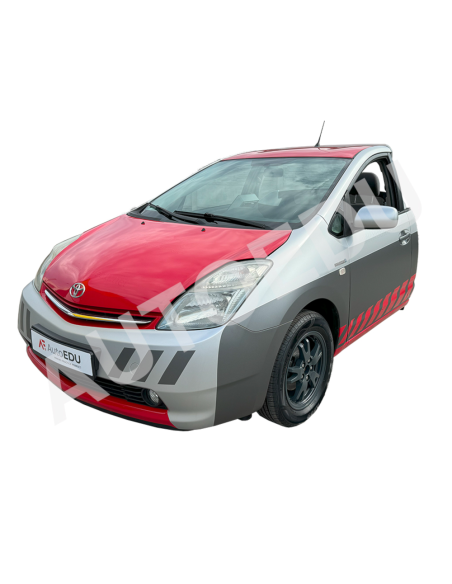

Educational fully operational functional model with hybrid petrol / electric system. This functional model is as an alternative for a complete vehicle, just in space saving version, and it has the same advantages of a complete car. The functional model made from Toyota Prius II, by separation of body just after the B-pillars. In the front end all the components like engine air conditioning system and other components remain fully functional. The functional model remains mobile with the help of additional swivel casters.

  • Diagnostic and measurement:

Control unit diagnosis:
- Diagnosis through OBD 16 – pin diagnostic connector
- Electronic control unit (ECU) identification
- Reading/erasing fault codes
- Displaying the operating system parameters (live data)
- Actuator test (depends on the control unit)
- Control unit coding/configuration (depends on the control unit)
- Automatic search of ECU’s (depends on scan tools possibility)

    • The educational functional model with:

    - Petrol/electric TOYOTA HYBRID CONTROL SYSTEM – II (THS–II)
    - Automatic gearbox
    - Climate control
    - CAN Gateway network
    - Exhaust system
    - SRS Airbag system (Integrated inactive airbag igniters (after activation))

    • Other

    - Dimensions approx. (H x L x W): 1700 x 2900 x 1700 mm (standard version PMTP – 01)
    - Netto weight approx.: 900 Kg

    Key learning areas:

    • Hybrid petrol/electric drive system operation
    • Automatic transmission control
    • Engine management diagnostics
    • ABS system testing and troubleshooting
    • Air conditioning and climate control diagnostics
    • SRS airbag system fault simulation
    • CAN Gateway communication analysis
    • Live signal measurement using integrated test points and wiring diagrams

    Key advantages:

    Complete hybrid vehicle training platform
    Compact and mobile cabrio design
    Real OBD II diagnostic functionality
    ECU identification and fault code management
    Live parameter monitoring
    Integrated measurement and fault simulation
    Safe enclosed construction
    Suitable for long-term educational use
    Optional EHVS01 Protective Tools Set for enhanced safety

    Recommended Accessories and Optional Equipment:
    The system can be complemented with dedicated measurement and fault simulation modules, as well as professional diagnostic tools for advanced practical training.

    Measurement and Fault Simulation Boxes:

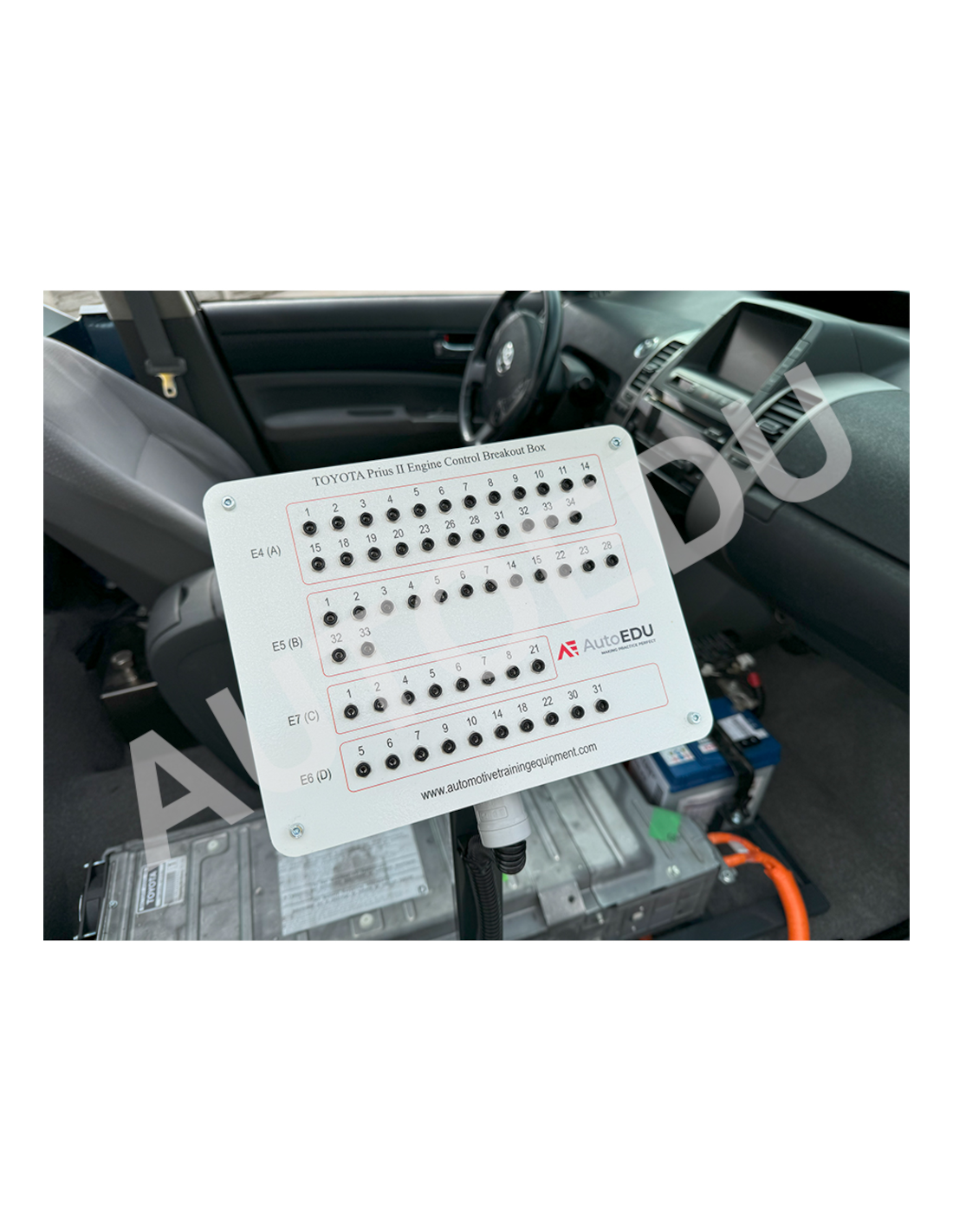

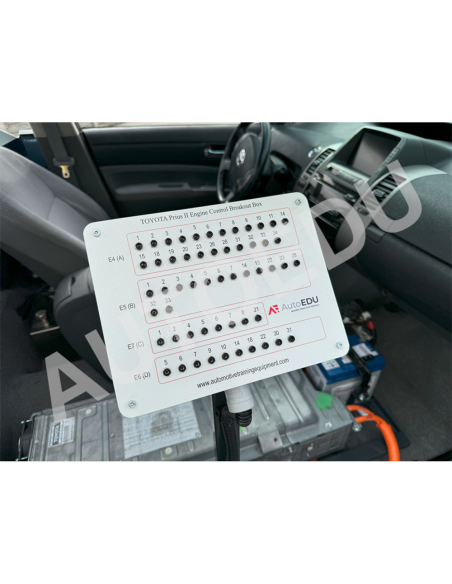

    - PMTP-ENG/Box – Engine measurement box
    - PMTP-ENG/Faults – Engine fault simulation module
    - PMTP-SRS/Box – SRS airbag measurement box
    - PMTP-SRS/Faults – SRS airbag fault simulation module
    - PMTP-AC/Box – Air conditioning measurement box
    - PMTP-AC/Faults – Air conditioning fault simulation module

    Recommended Diagnostic Tools and Equipment:
    - Automotive oscilloscope
    - OBD diagnostic scan tool
    - Gas analyzer
    - Exhaust extraction system
    - Air conditioning service station

    Optional Equipment Sold Separately:
    - TXT MULTIHUB CAR diagnostic scan tool
    - AutoCOM ICON diagnostic scan tool
    - NANO S TEXA diagnostic scan tool
    - TEXA Uniprobe diagnostic tool
    - ADK5004D TiePie automotive diagnostics kit
    - Foxwell OS100 oscilloscope
