MVHY 1 Petrol/Electric HYBRID Technology Working Engine Model

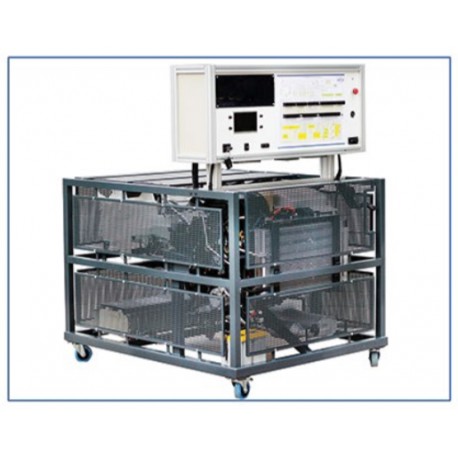

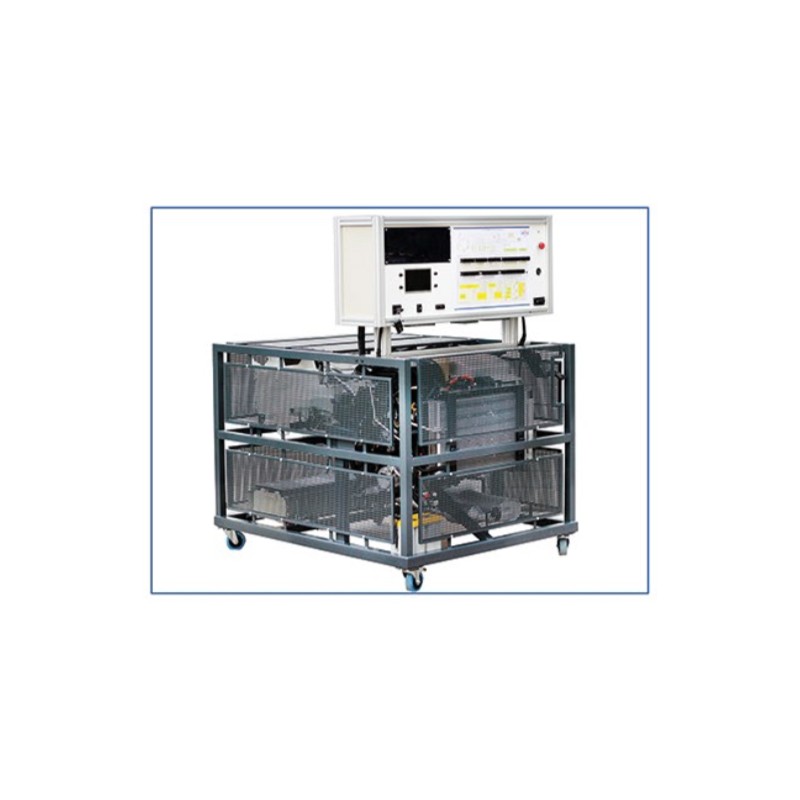

There are a lot of  questions about the hybrid technology cars.  Fully operational, automotive training equipment, hybrid electric system with petrol internal combustion engine mounted in a mobile frame made from a donor car. The hybrid system is designed to demonstrate the internal combustion engine, electric motor, gearbox and structure of the rechargeable energy storage system. The educational aids, hybrid engine trainers are based on Toyota original (refurbished) engines.

• Diagnostic and measurement:

Oscillosope/multimeter:
- System‘s parameters are measured by connecting to the banana plug jumpers;
- Ability to measure electrical signal parameters of each system component (such as sensor or actuator);
Control unit diagnosis:
- Diagnosis through OBD (J1962) 16 – pin diagnostic connector;
- Electronic control unit (ECU) identification;
- Reading/erasing fault codes
- Displaying the operating system parameters (live data)
- Actuator test (depends on the control unit)
- Control unit coding/configuration
- The hybrid engine trainer contains these ECU’s which could be found and readout with the scan tool:
               – Hybrid Control System ECU
               – Power Source ECU
               – Engine ECU
               – Transmission Control ECU
               – Hybrid Vehicle Battery ECU
               – AC Climate Control ECU
               – Gateway ECU
               – Transponder Key ECU
               – Combination Meter ECU

• Optional accessories:

- Vacuum gauge
- The pressure gauge in the fuel supply line
- Automotive oscilloscope
- OBD Diagnostic scan tool
- The gas analyzer
- The exhaust extraction system
- Air Conditioning service station

According to customer‘s request there is a possibility to manufacture didactic aids, car or truck (petrol or diesel) working engine models!

- The educational equipment, functional engine with petrol/electric TOYOTA HYBRID CONTROL SYSTEM – II (THS–II), automatic gearbox, climate control system, instrument cluster, cooling system, electric power supply system, CAN gateway network, exhaust system and etc.;

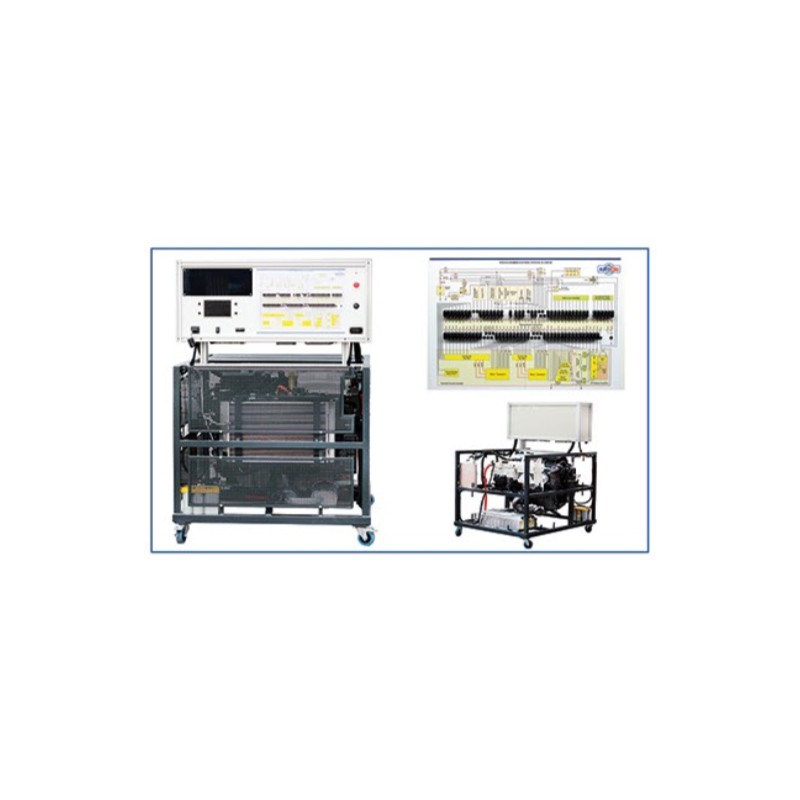

- Electrical wiring diagram with built – in banana plug jumpers for measurements and simulation of system fault codes;
- Ability to simulate, on a didactic aids, more than 50 faults by disconnecting banana plug jumpers;
- Ability to measure exhaust gas before and after the catalytic converter;
- Completed with safety removable panels to protect against hot and rotating parts;
- Engine with external components is clearly visible after removing safety panels. Easy access to the engine and its components for service and maintenance;
- Fully functioning automatic climate control system with all most important components like electric AC compressor, R134a refrigerant, service couplers and etc.
- Integrated emergency stop button;
- The, educational equipment, hybrid engine trainer has a closed structure – internal wiring is not visible; Instrument cluster, measurement and fault simulation panel is integrated in a closed aluminum frame construction
- Dimensions approx. (H x L x W): 1750 x 1450 x 1200 mm
- Nett weight approx.: 470 Kg
- Made in EU
