Nvis 5005 Techbook for 16-Bit Development Platform

Nvis 5005 Techbook for 16-Bit Development Platform

Name: Nvis 5005 Techbook for 16-Bit Development Platform
Brand: NVIS TECHNOLOGIES
SKU: Nvis5005

Reference: Nvis5005 - Manufacturer: NVIS TECHNOLOGIES

Nvis 5005 provides a perfect hardware and software platform to start the application development in no span of time and makes learning microcontroller a fun. Nvis 5005 allows users to evaluate, prototype and create application specific designs.

Ask for Quote

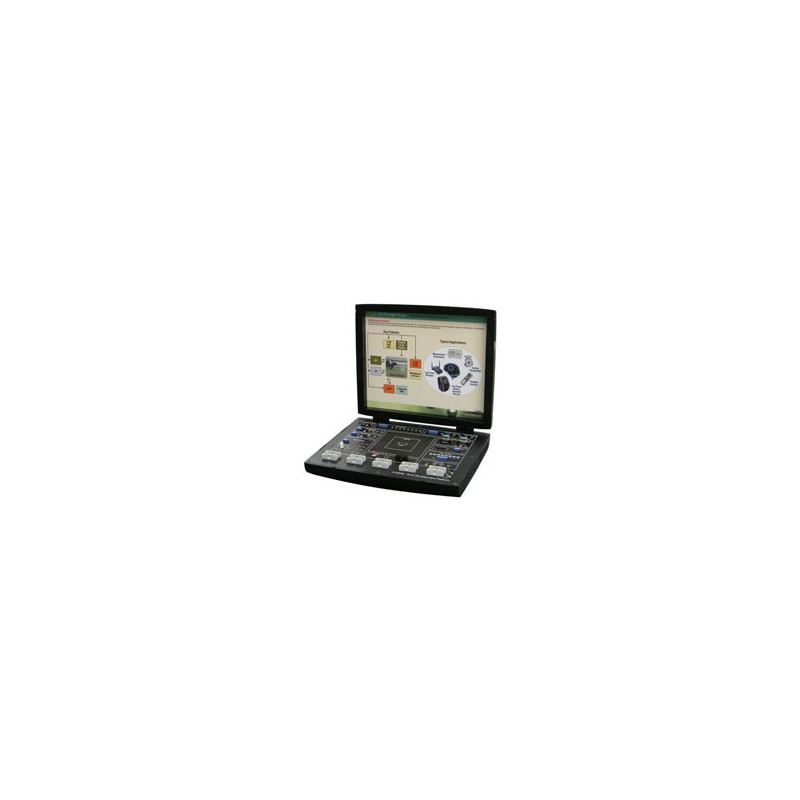

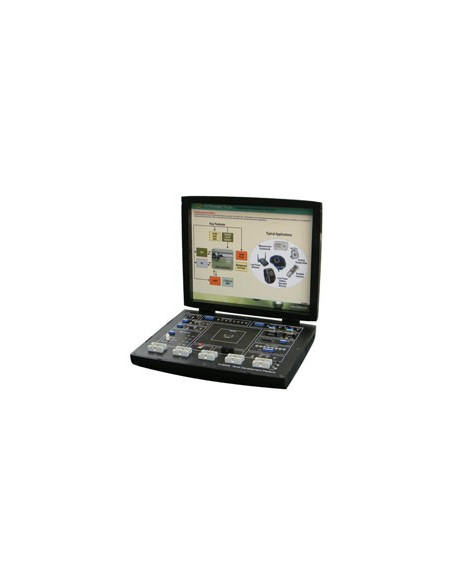

Nvis 5005 Techbook for 16-Bit Development Platform incorporating state of the art 16-bit MSP430F54xx microcontroller from Texas Instruments. The platform utilizes all the peripheral of microcontroller in a best possible way that suits the need of students and developers. Peripherals are brought out on the platform and categorized keeping in mind the ease of use. A full set of support software including examples are provided to quick start application development.

Nvis 5005 Techbook for 16-Bit Development Platformis an ideal platform to enhance education, training, skills & development amongs our young minds.

Features:

- MSP430F54xx (x430 core with 16-bit RISC architecture) ultra low power MCU clocked at maximum speed of 18 MHz
- 16 KB of on-chip static RAM and up to 256 kB of on-chip Flash
- 18 MHz maximum CPU clock available from programmable on-chip PLL
- Both Serial and JTAG Programming Interfaces
- One touch Power supply switch
- On platform GPIO Connectors
- Selectable On platform 3.3V and 5V Power Supply output to power external circuits
- Ultralow Power Consumption with five different power modes
- Self contained trainer with On platform DC Power Supply

- MCU: MSP430F54xx
- Main Oscillator: Internal Digitally Controlled Oscillator (DCO) with PLL
- LED's: 8 nos.
- ADC: Four 12 bit ADC Input Channels On-Platform with single variable DC Input
- Interrupts: Four External Interrupts on-platform
- TIMER: Seven Timer compare outputs and Timer clock output
- GPIO's: Ten GPIO Ports on Platform
- Clock Output: Three clock outputs from MCU
- Serial Communication: One RS232 Port
- Philips I2C: One I2C interface (Master/Slave) with Data and Clock bus pulled up to Vcc
- SPI: A four wire SPI interface (Master/Slave)
- Programmer: USB port for programming
- Programmer Mode: Run/ISP Switch Selection
- Interconnections: 2 mm Patch Chords with FRC Cables
- Learning Material: Online (Theory, procedure, reference results etc)
- Dimensions (mm): W 326 x D 252 x H 52
- Power Supply: 110V - 260V AC, 50/60Hz
- Weight: 1.5Kg (approximately)
- Operating Conditions: 0-40oC, 85% RH
- Included Accessories: RS232 serial cable FRC cable, Power Supply, Interface adaptor for MC Series, CD.
- Optional: NVIS Technologies makes MCXX Series extension module to interface with this platform.

- Study of MSP430 Microcontroller architecture
- Pin to pin study of MCU.
- To study serial protocol(I2C/SPI).
- To study internal PWM.
- To study Timer/Interrupt.
- To study RTC.
- To study Internal ADC Interface various external MCXX series modules.
