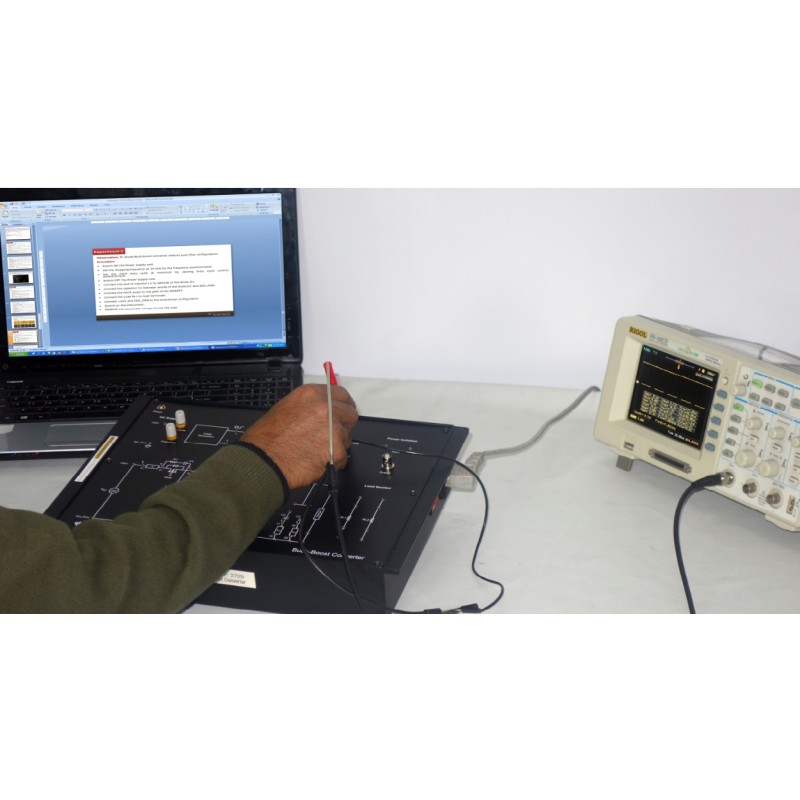

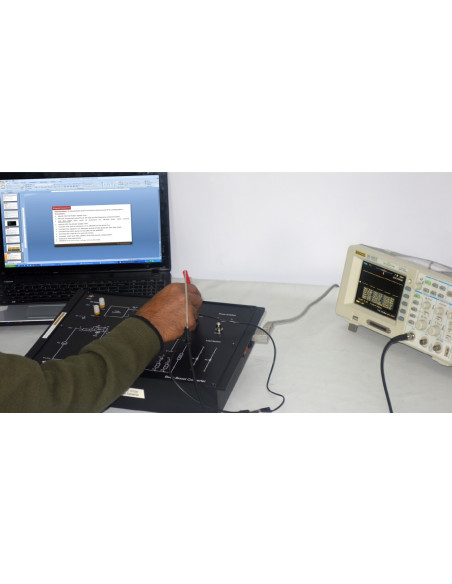

Scientech2729 Techbook for Buck - Boost Converter

Scientech2729 TechBook is a compact and user friendly learning platform which is very useful for students to understand the concept of PWM generation technique, and Buck-Boost Conver ter topology on various load configurations. It is also helpful for understanding the converter output on various filter configurations. Platform explains PWM generation technique, Buck-Boost Converter operation, and power isolation circuit to measure the isolated output.

Product Features:

• Easy to operate & understand.

• Optically isolated PWM generation with Gate driver.

• Inbuilt isolation section for measurement of the signal.

• Test Points provided at output of each section to measure the signals.

• To study PWM generation

• To study Buck-Boost Converter with different filter components and loads
