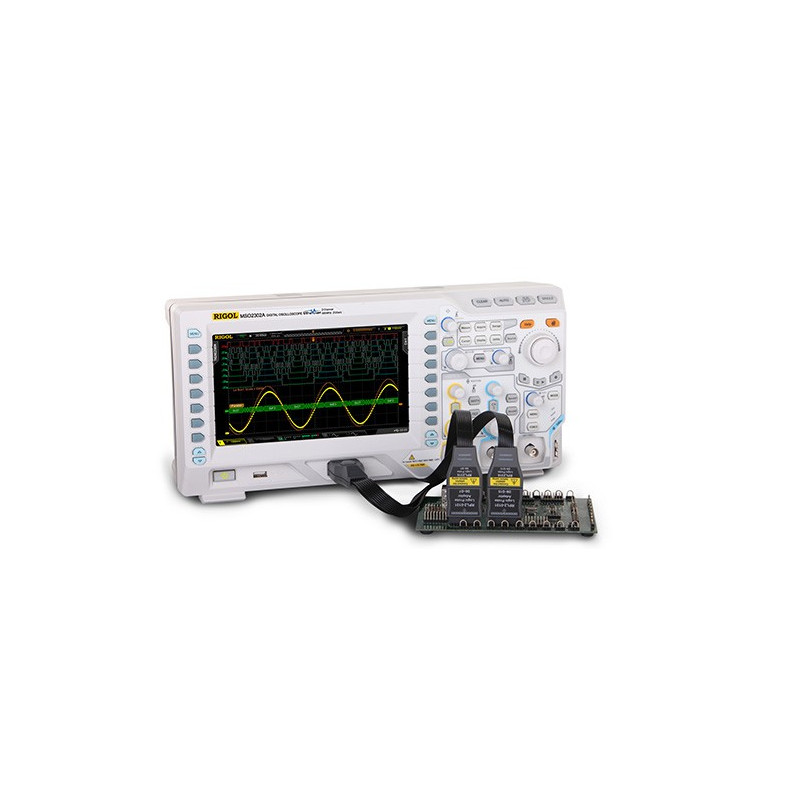

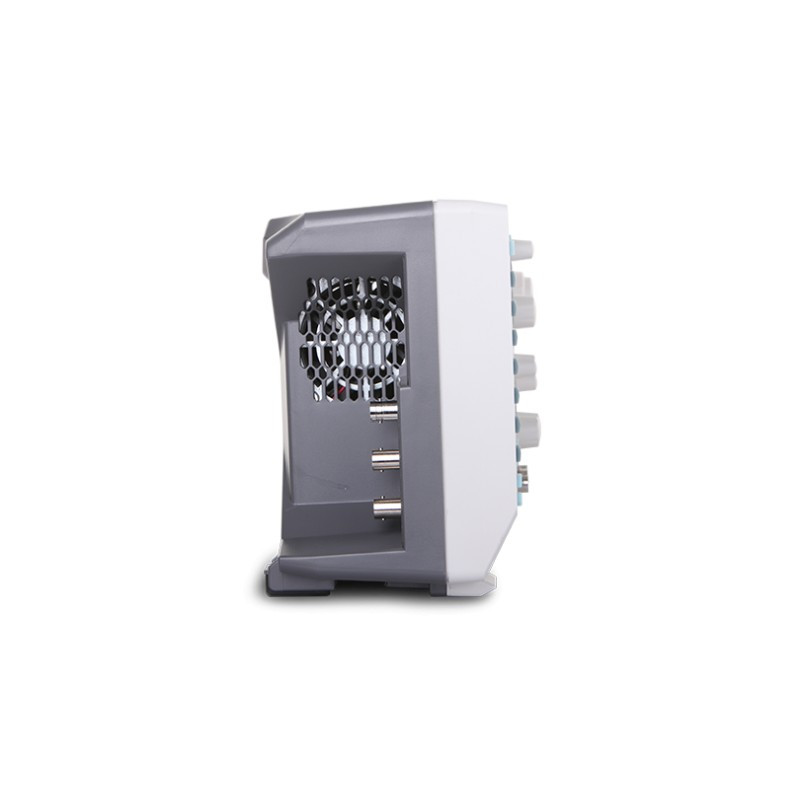

Digital Oscilloscope DS2102A, 100MHz, 2CH, 2GSa/s

Reference: DS2102A - Manufacturer: RIGOL

The MSO / DS2000A series are universal digital oscilloscopes with bandwidths from 100MHz to 300MHz and sample rates up to 2GSa / s, combined with a large memory depth and high waveform capture rates.

Bandwidth up to 100MHz, standard with 50Ω input
Two analog channels
Lower noise floor, wider vertical range (500uV/div ~ 10V/div)

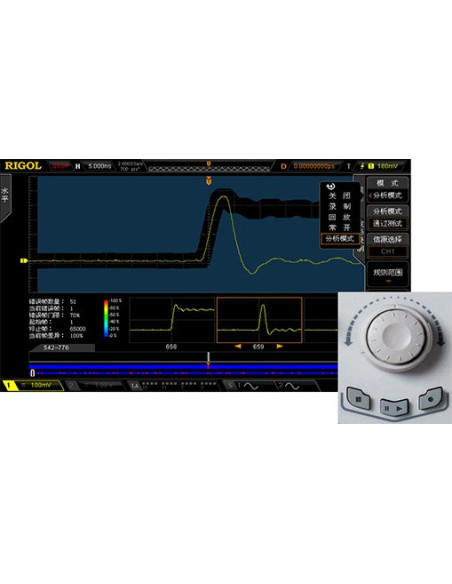

Waveform capture rate up to 50,000 wfms/s
Built-in 2 CH and 25MHz Waveform generator (-S model)
A variety of trigger and serial bus decoding functions

MEASUREMENT AND CALIBRATION INSTRUMENTS: Oscilloscopes

MSO2102A Data Sheet

Download (5.49MB)

MSO2102A Manual

Download (5.12MB)
