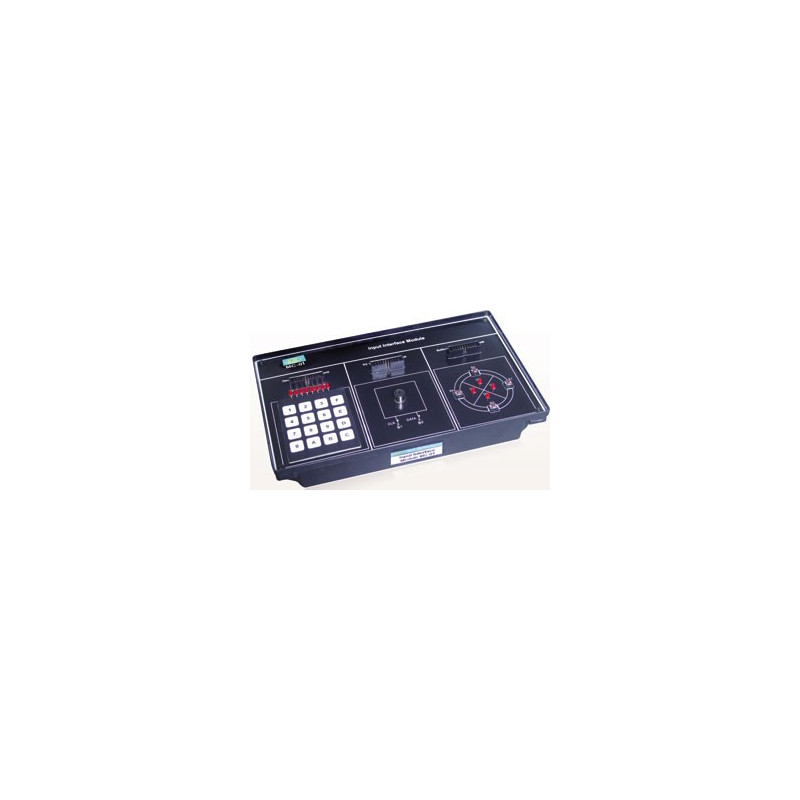

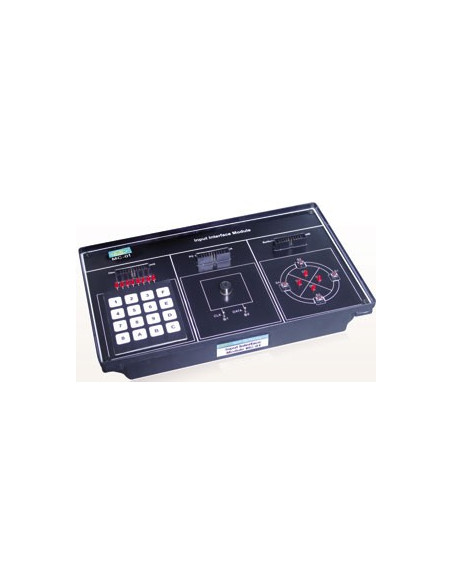

MC01 Input Interface Module

MC01 Input Interface Module is an extension module for Nvis Microcontroller development platforms. The module has been designed for students and practicing engineers to gain invaluable practical experience on the principle and applications of microcontroller. The object is to have a clear understanding of how input peripherals are interfaced and controlled with microcontroller. Input Interface module, MC01 has input and output terminals for connection to external real world applications. Matrix keypad controlling is shown with the help of LEDs.
