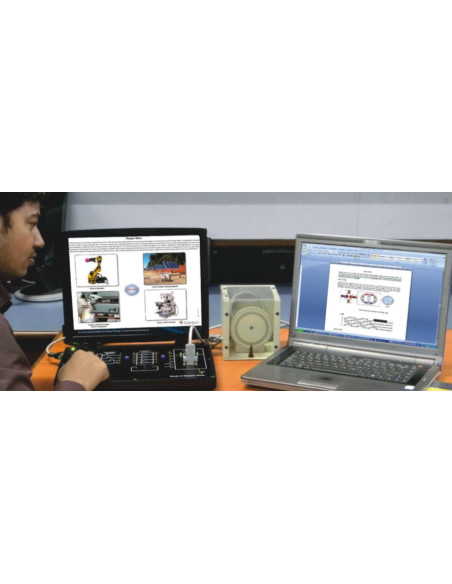

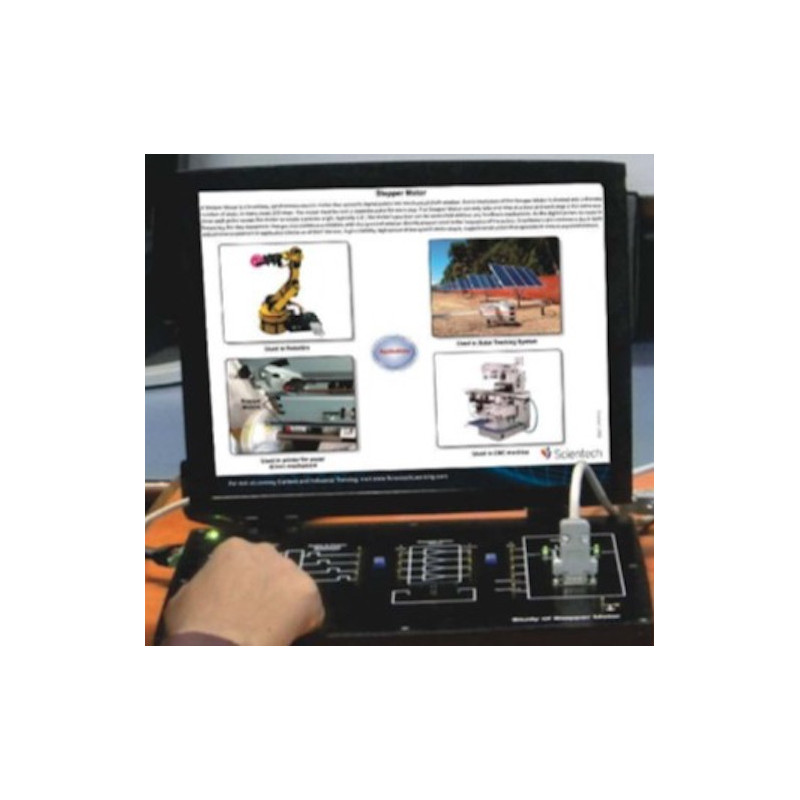

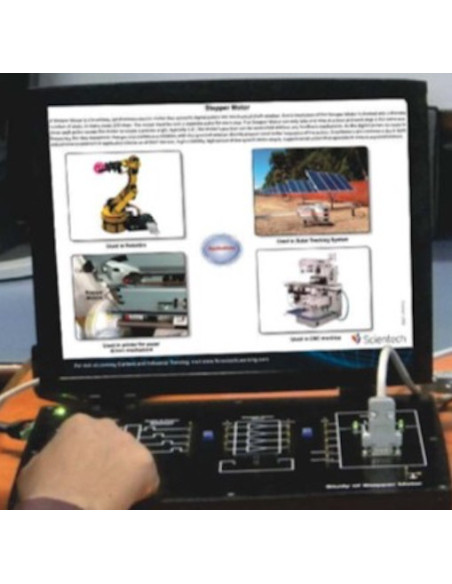

Scientech2458 Step-by-Step Engine TechBook

Scientech TechBooks are compact, easy-to-use learning platforms to provide a modern, portable, comprehensive and practical way to learn Technology. Each TechBook is provided with detailed multimedia learning material covering basic theory, the step-by-step procedure for performing the experiment, and other useful information.

Scientech TechBook Study of Stepper Motor explains students the operation and control of Stepper Motor effectively. It helps the student in understanding half and full step angle of Stepper Motor. The LED`s provides the visual indication of the coil excitation process. It has a provision for connecting the motor with an external controller. Stepper Motor are widely used for application such as Conveyor system, Robotics, Printing machine, Solar tracking system ,Elevator load etc.

Scope of Learning:

• Study and use of Stepper Motor in Wobble Mode.

• Study of Stepper Motor in Full Step, Single Phase, Free Running Mode.

• Study of Stepper Motor in Full Step, Single Phase, Step Running Mode.

• Study of Stepper Motor in Full Step, Two Phase, Free Running Mode.

• Study of Stepper Motor in Full Step, Two Phase, Step Running Mode.

• Study of Stepper Motor in Half Step, Free Running Mode.

• Study of Stepper Motor in Half Step, Step Running Mode
