Soilset 23 EMScloud with CS650 sensor and Sigfox

Soilset 23 - EMScloud with CS650 sensor and Sigfox (IoT Sensors)

Name: Soilset 23 - EMScloud with CS650 sensor and Sigfox (IoT Sensors)
Brand: EMS
SKU: Soilset 23

Reference: Soilset 23 - Manufacturer: EMS

Soilset 23 combines the Campbell Scientific CS650 probe with Sigfox transmission for continuous monitoring of volumetric water content and soil temperature.

It is built for long-term deployments with minimal maintenance, long battery life, and full EMScloud data visualization.

Ask for Quote

Soilset 23 is an IoT soil monitoring set manufactured by EMS and based on the Campbell Scientific CS650 probe. It is designed for accurate long-term measurement of volumetric water content in soil, with automatic data transmission to the Internet via the Sigfox network and a 60-minute time resolution.

The CS650 probe uses two 30 cm stainless-steel rods, allowing measurement across a larger soil volume and reducing the error associated with smaller samples. In addition to volumetric water content, the sensor also includes integrated temperature measurement in the probe body for a more complete view of soil conditions.

Data are visualized, archived, and downloaded through the EMScloud platform, with clear graphs, online aggregation, alerts for failures or unexpected events, and access from different browsers and devices. The system is powered by a long-life battery, requires minimal maintenance, and can also be managed with Mini32 software for long time-series work and fast statistical calculations.

Soilset 23 is intended for continuous soil monitoring with cloud communication and low maintenance.

Measuring and sending interval: 60 min
Soil temperature range: -40 to 60 °C
Temperature accuracy: ±0.15 °C
Battery lifetime: more than 2 years
Protection rating: IP68
Operating temperature: -40 to 60 °C
Operating humidity: 0 to 100%
Campbell Scientific CS650 probe with two 30 cm stainless-steel rods
Volumetric water content measurement in a larger soil profile
Integrated temperature measurement in the sensor body
Online transmission via Sigfox protocol
Data visualization, archiving, and download through EMScloud
Mini32 software support for aggregation, statistics, and long time-series analysis

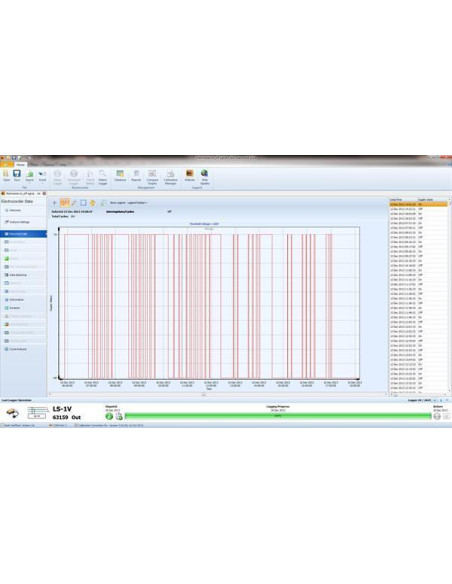

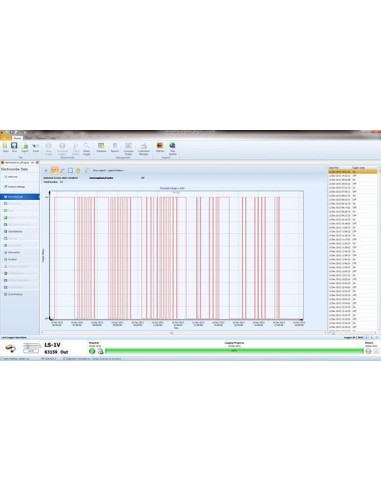

Mini32 software

◆ graphically oriented software intended for work with long time series

◆ fast calculation of hourly, daily, montly values

◆ fast brief statistics

◆ built-in efficient commands for summation and min-max-average calculation

Instructions for launching Mini32 under the iOS operating system here.

- graphically oriented software for fast and comfortable visualization and advanced processing of long time data series

- wide range of data processing options – multiregression analysis up to twenty parameters, histograms of frequency distribution, drawing of vertical profiles etc.

- includes the support of all EMS datalogging systems – configuration and data downloading

- free for processing of EMS system compatible files

Soilset 23 - EMScloud with CS650 sensor and Sigfox (IoT Sensors)

Mini32 software
