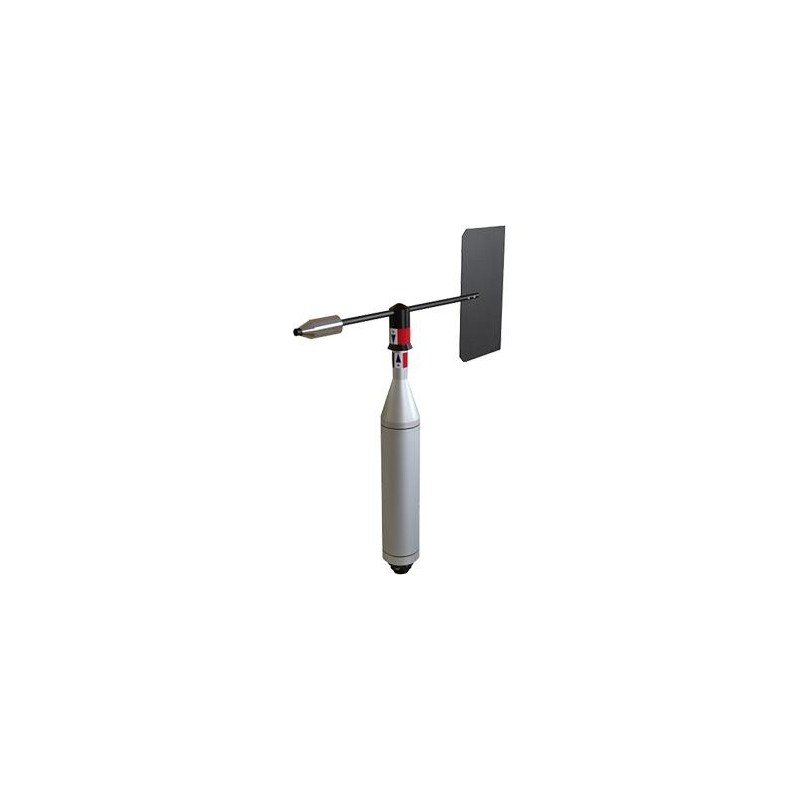

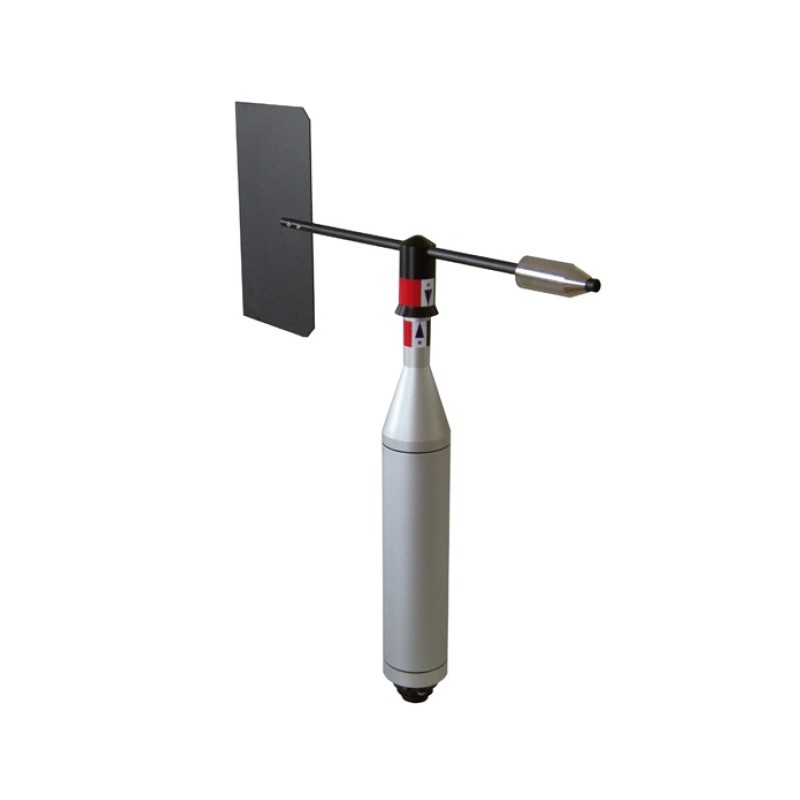

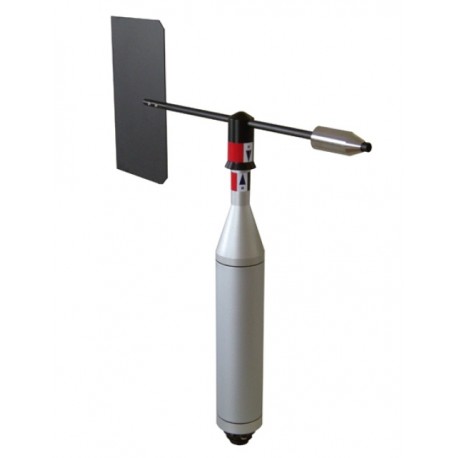

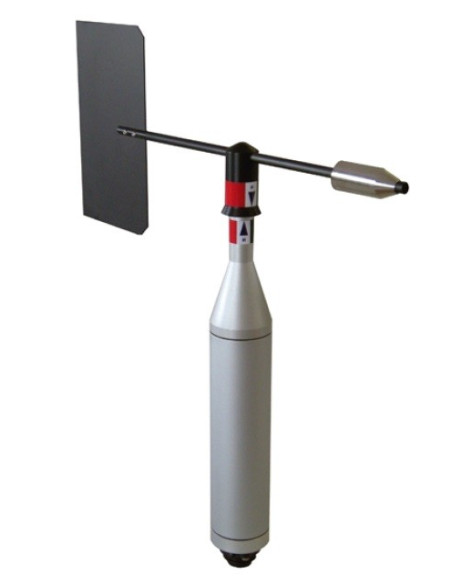

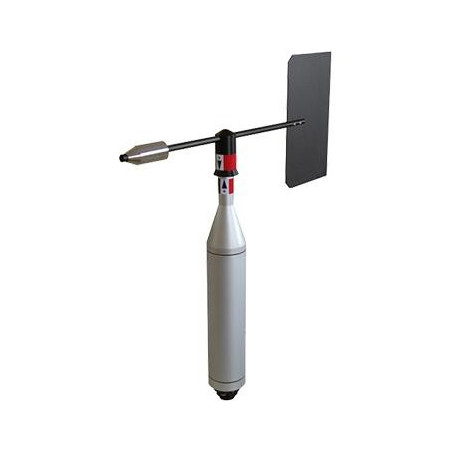

DVER Heated Precision Wind Vane with outputs: 0÷2Vdc, 4÷20mA or RS485/ModBus
DVER Heated Precision Wind Vane with outputs: 0÷2Vdc, 4÷20mA or RS485/ModBus
DVER Heated Precision Wind Vane with outputs: 0÷2Vdc, 4÷20mA or RS485/ModBus
DVER Heated Precision Wind Vane with outputs: 0÷2Vdc, 4÷20mA or RS485/ModBus
DVER Heated Precision Wind Vane with outputs: 0÷2Vdc, 4÷20mA or RS485/ModBus
DVER Heated Precision Wind Vane with outputs: 0÷2Vdc, 4÷20mA or RS485/ModBus

DVER Heated Precision Wind Vane with outputs: 0÷2Vdc, 4÷20mA or RS485/ModBus

Reference: DVER - Manufacturer: Nesa srl

Very High precision Wind Direction Sensor (better than 0.3°).

According to standards WMO, EN 15518-3:2011

Select Model


The wind direction measurement sensor (Gonio Anemometer) is made of materials with high reliability and durability, which maintain the characteristics of sensitivity and precision for a long time.

The shape of the mechanical body allows it to resist wind speed or gusts (up to 300km / h).

Using a special magnetic encoder that ensures very high resolution and accuracy by eliminating mechanical friction at a full 360 ° operating angle.

The output signal is normalized in voltage or current (4 ÷ 20mA or 0 ÷ 2Vdc) or digital in RS485 Modbus.

The sensor is manufactured according to the WMO (World Meteorological Organization) standard.

Code DVER-A: signal output 0-2Vdc already programmed.
Code DVER-B: signal output 4-20mA already programmed.
Code DVER-C: signal output ModBus/RS485 already programmed.

The Sensor measures:
Wind Direction 0-360º
Output Signal:
0-2Vdc, 4-20mA, RS485
