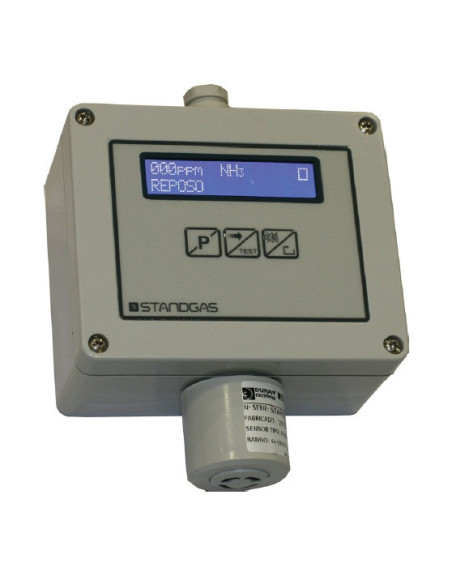

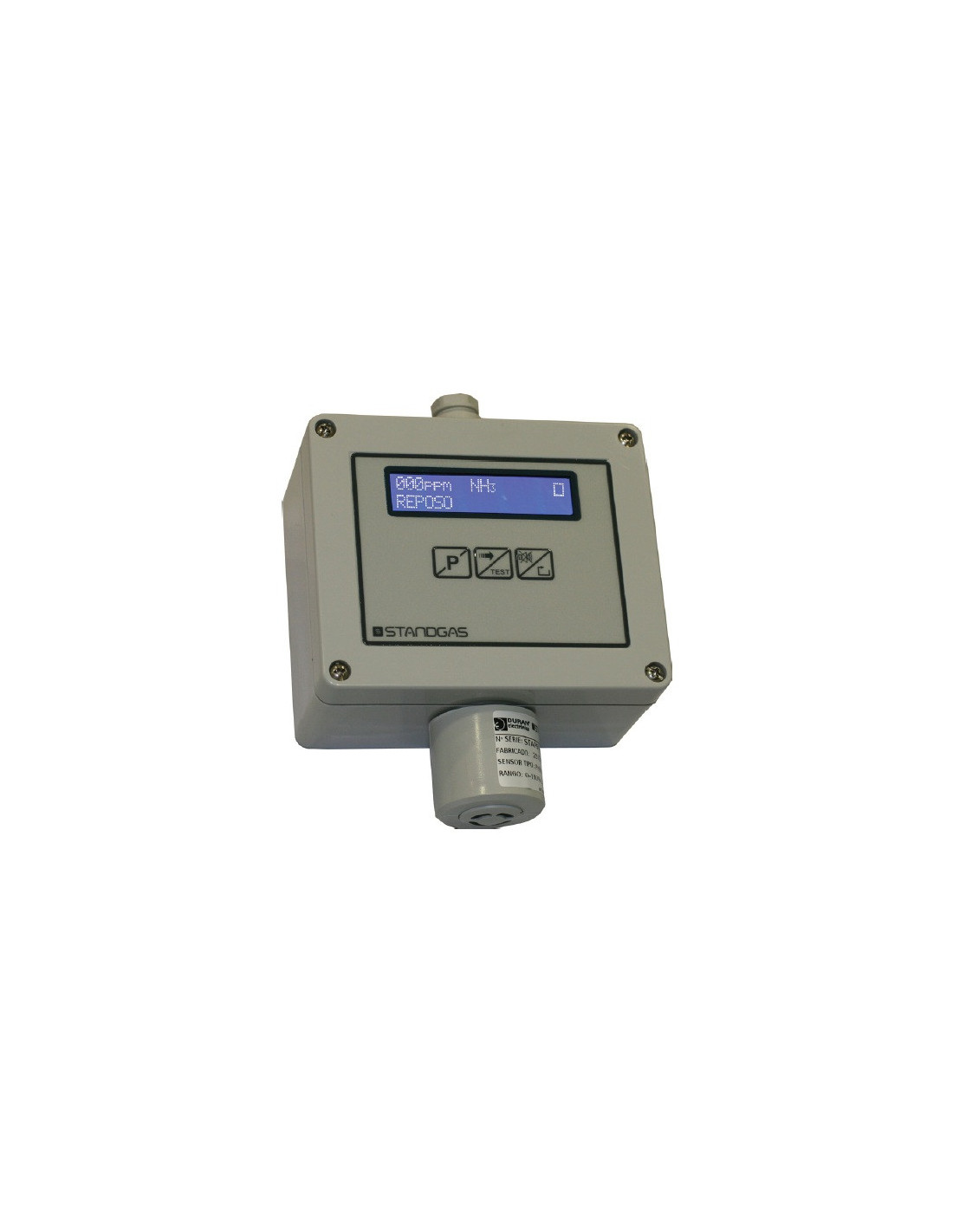

Reference: STANDGAS PRO - Manufacturer: DURAN

◆ Autonomous Detector with Three Relay Outputs for Toxic Gases CO - NO2 - NH3 - H2S - CI2 - CO2 -SO2 - O2 - SF6, Refrigerants and early detection of H2.

◆ Programmable detector designed for the detection of toxic gases and O2 with electrochemical technology, CO2 and A1 safety grade refrigerants with infrared technology.

Select Model
€450.00
Tax excluded Envío: 3 a 6 semanas



Special toxic functions:

• Digital monitoring of sensor status.
• Automatic hardware status testing.
• Digital filter based on variable sampling of average sensor values.
• Automatic thermal compensation that provides correct response to temperature variations.
• Exact automatic zero adjustment. Monitors zero in relation to the sensor and electronics response. STANDGAS automatically performs a test every 30 minutes: if the drift is greater or less than 2% of the full scale value, it will reset to zero; otherwise, the data will be displayed as a reading.
• Microprocessor-controlled infrared sensors with thermal compensation controls, linearization, and calibration parameter memory.
• Easy field replacement without recalibration and without gas.
• All detectors have been factory-calibrated with a standard gas.
• Stand-alone operation: without connection to a control panel.
• Flexible operation: Up to 3 output levels or two plus a fault output. Programming of rising or falling oxygen alarm levels.
• IP65 protection rating.
• Universal tilting bracket for ceiling and floor (optional)
• 230V power supply with capacity to connect 1 to 10 STANDGAS detectors (optional)

Available Gases:
Carbon Monoxide CO
- Nitrogen Dioxide NO2
- Ammonia NH3
- Hydrogen Sulfide H2S
- Chlorine CI2
- Carbon Dioxide CO2
- Sulfur Dioxide SO2
- Sulfur Hexafluoride SF6
- Oxygen O2
- Hydrogen H2

Refrigerants:
R-507/R-125/R-404a/R-407a/R-407f/R-410a/R-449/R-417a/R-448a/R-227ea/R-1233zd/R-513a/R-422d/R-452a/R-134a.
Consult for other options.

SSQN-H2MR  STANDGAS PRO H2 0-500 ppm
- Stand-alone
- Plastic enclosure
- With 3-programmable relay module

SSQN-O2MR STANDGAS PRO O2 0-25%
- Stand-alone
- Plastic enclosure
- With 3-programmable relay module

SIRYCO2MR STANDGAS PRO CO2 0-20,000 ppm
- Stand-alone
- Plastic enclosure
- With 3-programmable relay module

- Pharmaceutical Laboratories
- University Laboratories
- Aeronautical Industry
- Galleries
- Distilleries
- General Refrigeration Facilities
- Livestock Farms
- Boiler Rooms
- General Industry
- Ideal complement to fire stations
- Early detection of hydrogen leaks in lithium-ion batteries.
