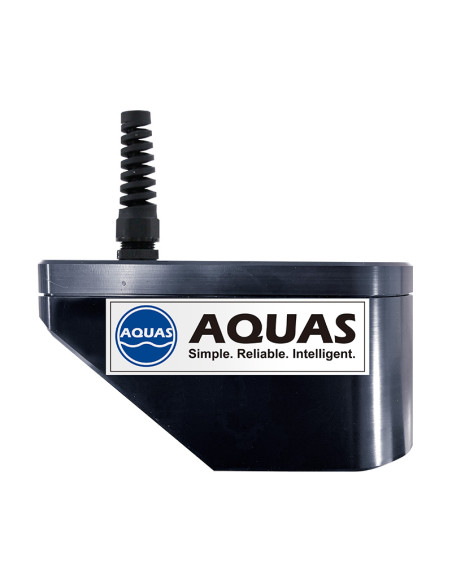

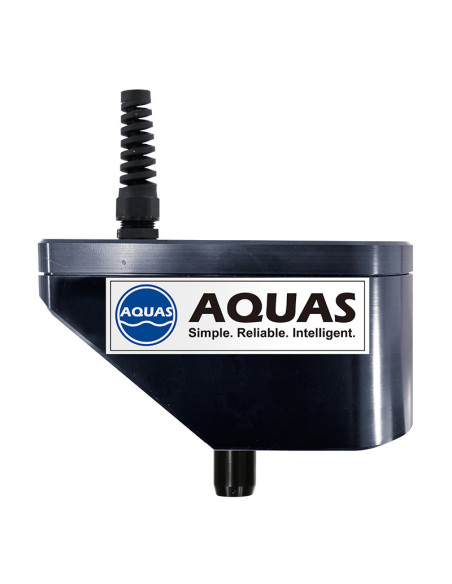

SMR63 Series Radar Flow Velocity Meter

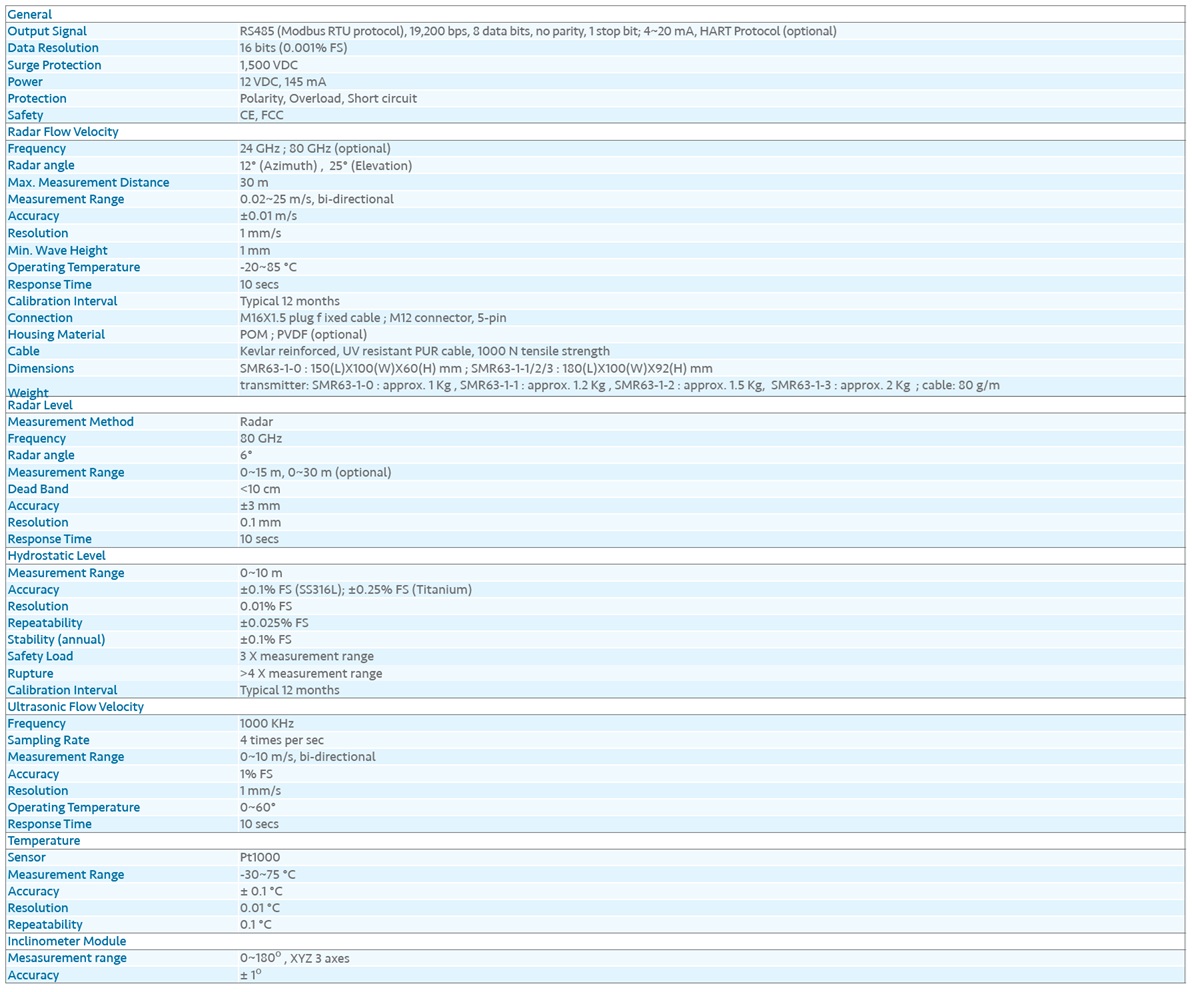

Specifications

• All-in-one compact housing with built-in transmitter and sensors.
• Robust IP68 submersible protection for direct field installation with no cabinet required.
• 80 GHz superior focusing radar beam with beam angle below 6 degrees to avoid obstacles and buildup in confined spaces.
• 120 dB wide dynamic range to accurately and reliably measure poorly reflective liquids, liquid down to bottom level, surface foam, extremely turbulent flow, and condensation on the antenna.
• Built-in temperature and humidity monitoring, radar level module, and self-diagnosis function for radar velocity module failure.
• Installed angle measurement and alarm if installation is incorrect or the position changes due to collision, drop, or unauthorized dismantling.
• Advanced intelligent algorithm and signal processing technology to eliminate echo noise.
• Backup hydrostatic level sensor to continue uninterrupted level measurement.
• Ultrasonic flow velocity sensor to continue uninterrupted velocity measurement.
• Ultra-low power consumption, ideal for outdoor applications.
• Kevlar reinforced cable with 1000 N tensile strength.
• Surge protection for power supply and RS485 communication.
• RS485 digital communication to minimize cabling and engineering cost.
• Standard Modbus RTU protocol with direct connection to PLC and HMI.
• Built-in tilt sensor with automatic angle compensation.
• Not affected by temperature, rain, snowfall, turbidity, suspended solids, vapor, steam, or sand storm conditions.
• Onboard memory to easily calibrate and configure the sensor in the lab and deploy it across different field sites.
• Software tool for data monitoring, calibration, configuration, and diagnosis.

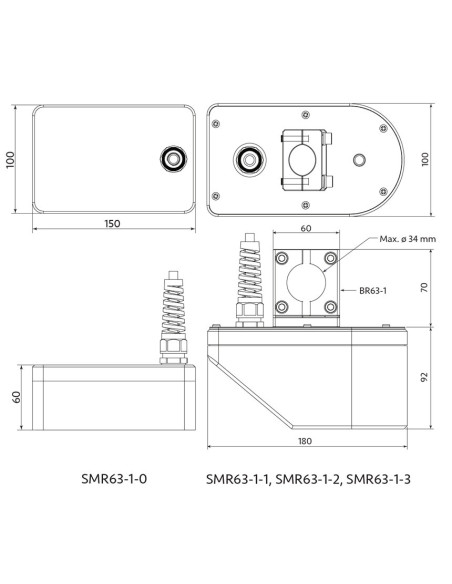

Models and mounting

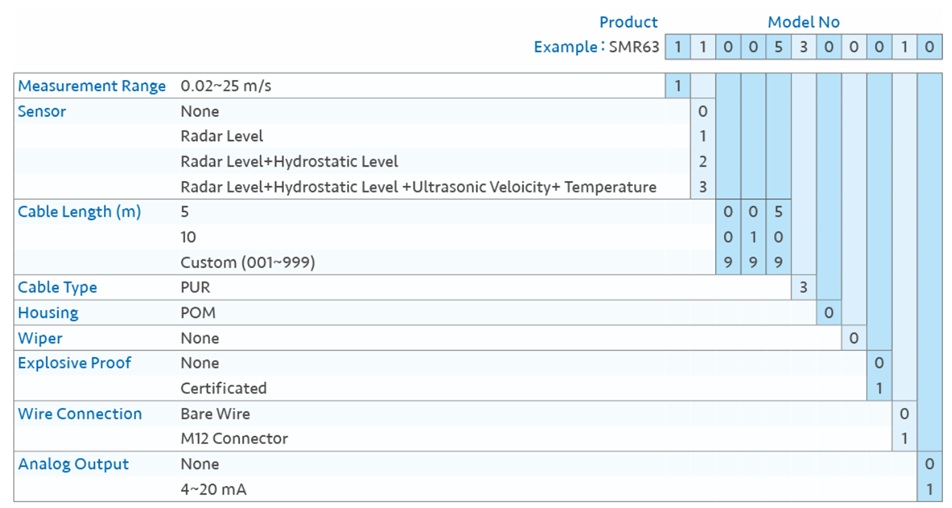

• Model: SMR63 Series.

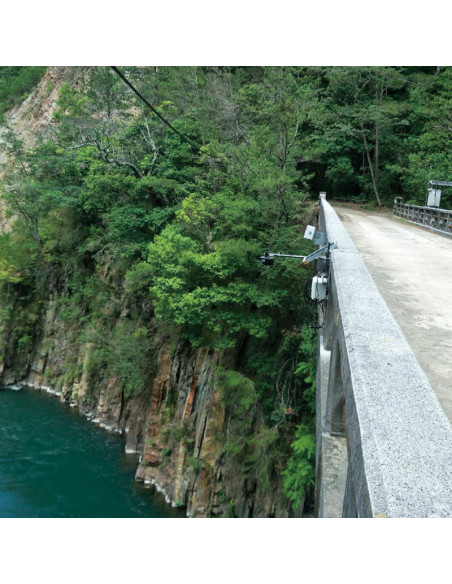

• Wall mounting or pole mounting.
