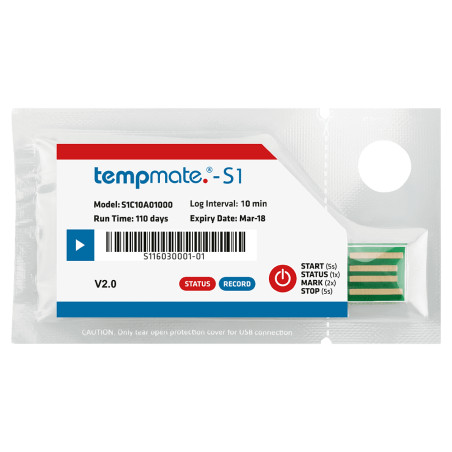

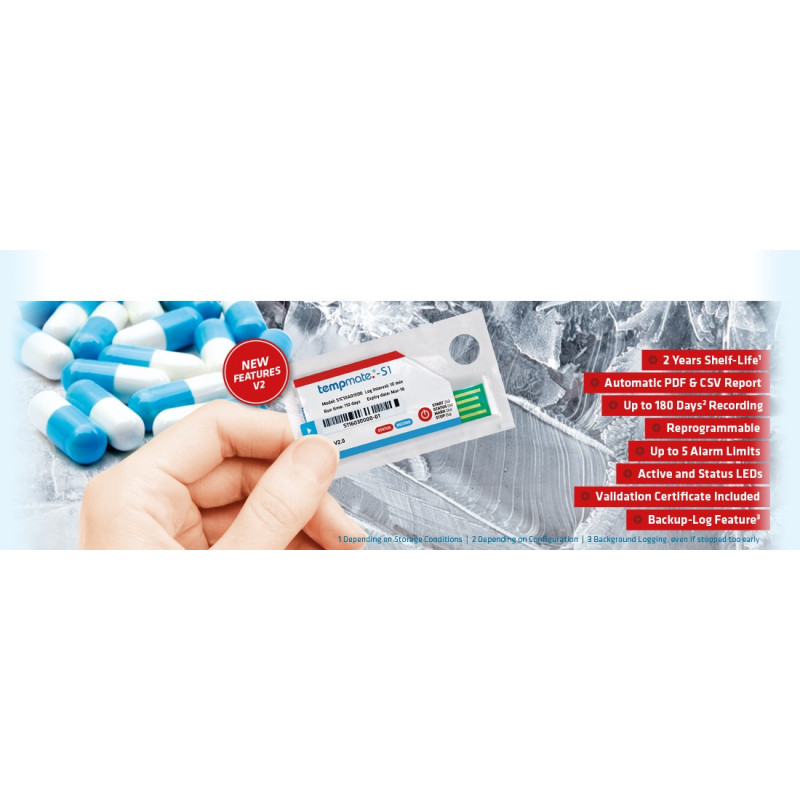

Tempmate.®-S1-V2 Disposable USB one-use Temperature Data Loggers

Reference Tempmate.®-S1-V2

Manufacturer: Tempmate

Condition: New

Economic single-use GDP conform temperature logger with automated PDF & CSV reports for smart logistics.

Volume discounts

Quantity	Price (tax excl.)	You Save %
1+	25,00 €	0%
100+	22,50 €	10%

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
Use & Application
FAQ's
VIDEO
Data sheet
Download

Number of Channels	1 temperature channel single use -30°C to 70°C, Resolution: 0.1°C
ADC Bits	10 bit
With Display	No
IP Classification	IP67
Communications	USB 2.0, A-Type
Battery Life	2 years
Memory Capacity	16.000 readings, PDF and CSV Report Including Graph and Table
The Sensor measures:	Temperature

Tempmate.®-S1 V2 Download (273.18k)

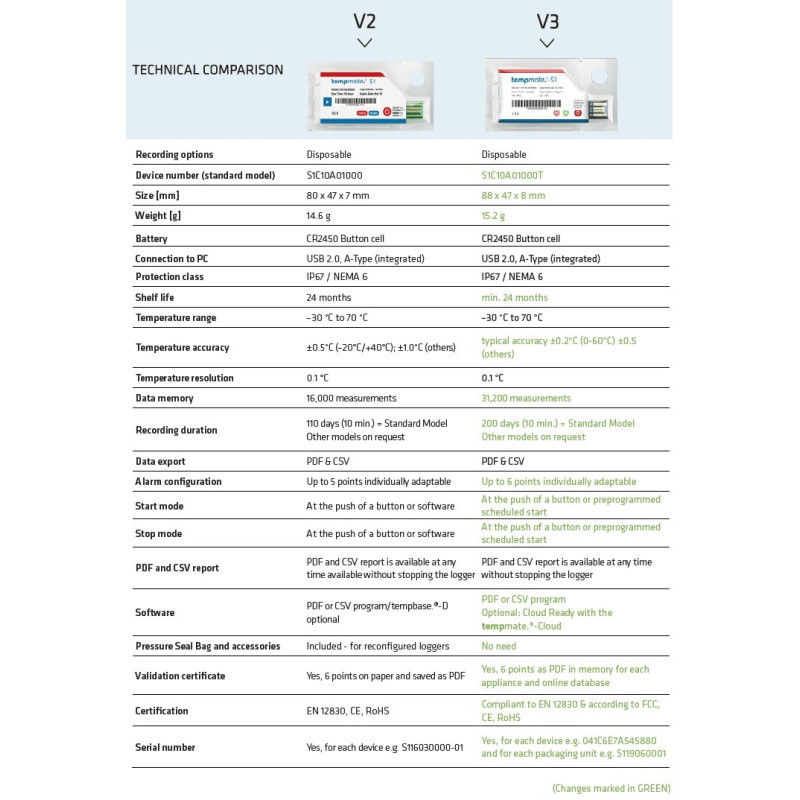

Tempmate.®-S1 V2-V3 comparison Download (741.21k)

Tempmate.®-S1 Manual

Tempmate.®-S1 Manual Download (540.27k)

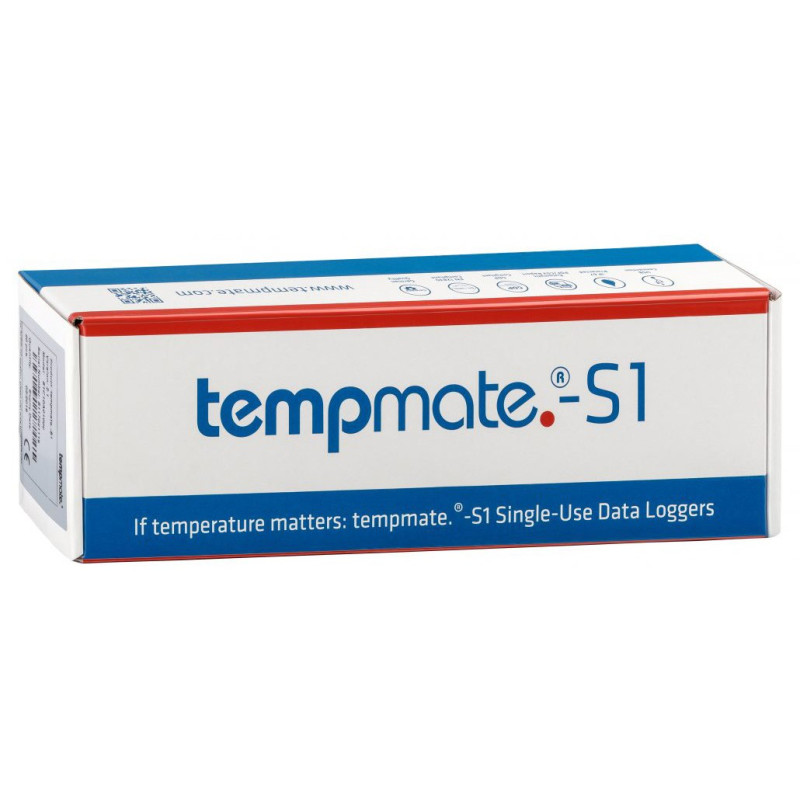

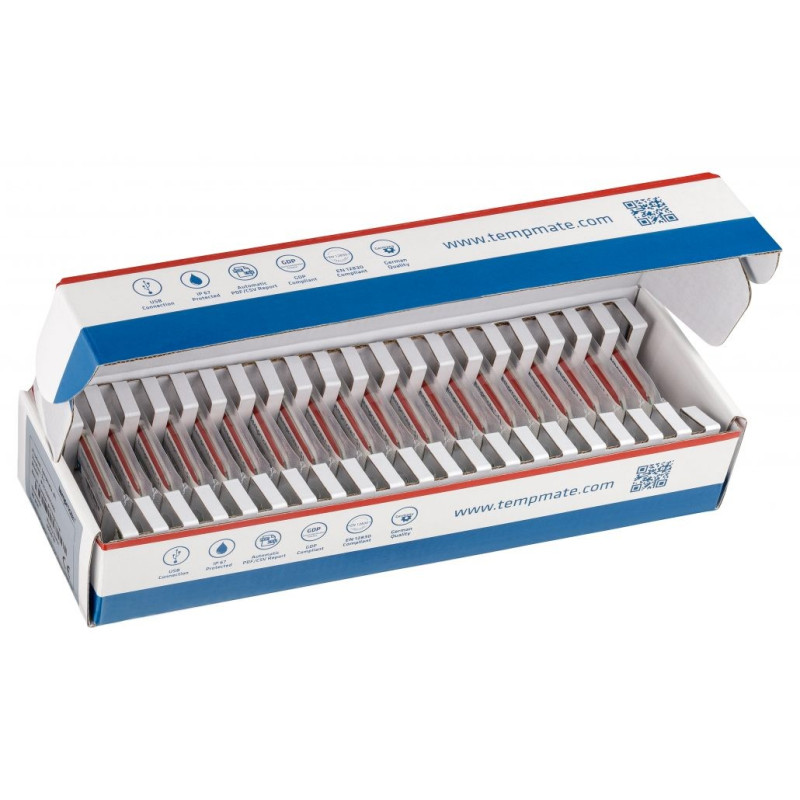

Minimum Pack of 20 one-use disposable Data loggers.

Curious about your cold chain?

tempmate.® continuously monitors all relevant data.
tempmate.® loggers are specially designed for temperature monitoring in pharmaceutical cold chain logistics.
As preprogrammed device tempmate.® can be instantly used to control your temperature sensitive consignment.
The PDF report created contains detailed information such as data curve, every single measurement as a table and statistical information.

Your Benefits at a Glance:

Product-related temperature monitoring along the entire cold chain

Cost-eff ective and reliable

Smart design, intuitive operation

Waterproof and food compatible

No additional hardware or software required

Detailed PDF report including graph and table

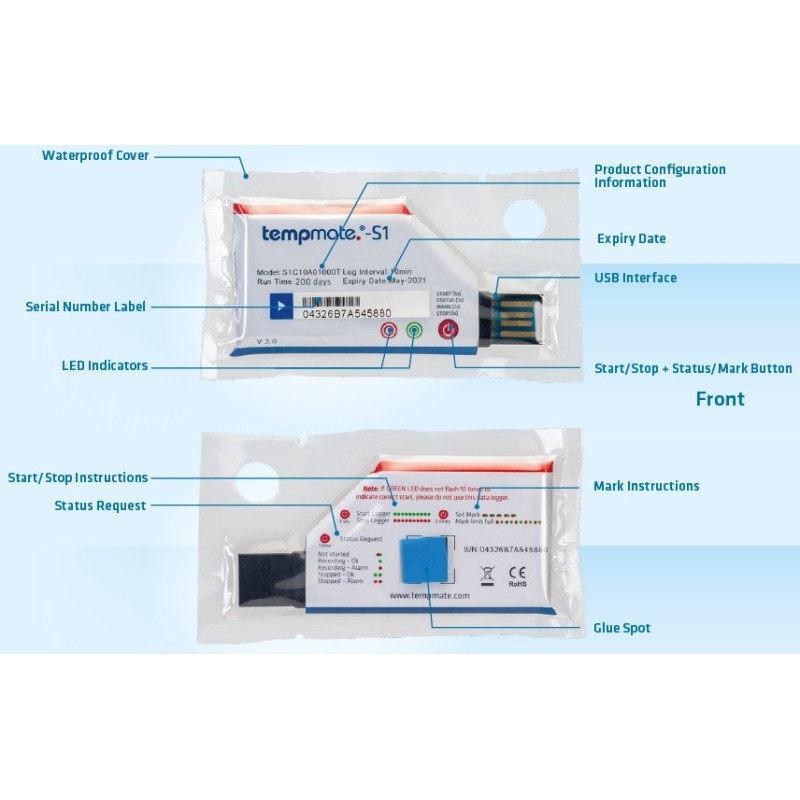

Intelligent LEDs for status monitoring

Recording options: Single-Use
Temperature range: –30 °C to 70 °C (–22 °F to 158 °F)
Temperature accuracy: ±0.5 °C / 0.9 °F
Temperature resolution: 0.1 °C / °F
Data storage capacity: 12960 readings
Shelf life / battery: 1 year / 3.0 v lithium battery
Recording interval: 10 minutes
Recording cycle: up to 90 days
Startup mode: Manual start
Stop mode: Manual stop or automatic after 90 days
Protection class: IP67 / NEMA 6
Dimensions: 80 mm × 47 mm × 4 mm (L × W × H)
Weight: approx. 10 g
Certifications: EN 12830, CE, RoHS
Software: PDF reader
Auto PDF report generation: Applicable
Connection interface: USB 2.0, A-Type

TEMPMATE-S1-SPECS

Frequently Asked Questions about tempmate.^® single-use temperature data loggers.

In this chapter you can find answers to the most frequently asked questions. Please choose the topic by clicking on the mouse.

Show all answers

Is tempmate IATA compliant and can therefor be used in aircrafts?
Yes, tempmate.^® single-use loggers contain a 3V Lithium battery as power source, which according to IATA can be used in aircrafts. Please use the following documents to attach with you consignment:
- Certification-for-Safe-Transport-of-Chemical-Goods.pdf
- Lithium-Battery-Label.pdf
Which time is displayed in tempmate's PDF reports?

tempmate data loggers have an integrated real time clock (RTC), which is factory set to UTC time zone. That means, date and time displayed in PDF report is based on UTC and 24-hour clock [MM/DD/YY HH:MM:SS].

The start time is in seconds accurately documented and stop time always corresponds to the last measurement interval during the device was stopped.
Is tempmate's PDF report protected against manipulation?

Like any electronic document, a PDF file can be manipulated. However, even after the data analysis, the original data remains stored on the tempmate logger so that the data can always be downloaded again and compared with the questionable PDF report. Therefore, it is important that the logger is retained.
Why can I not open the PDF report?

You need Adobe Acrobat version 9.0 or higher to open the PDF file correctly. If you have a previous version installed on the computer, please update:www.get.adobe.com / uk / reader
What is the analysis of a PDF report?

The temperature is displayed as a graph, and table all individual values. In addition, other statistical information is included (eg, serial number). See sample PDF report
Are tempmate loggers calibrated?

Yes, with each delivery, you will receive a free certificate. See Sample Certificate
How long the logger are durable / storable?

Shelf life of tempmate loggers is 12 months for recording mode. Reading the data is always possible as the device is power supplied by USB port of computer. The expiry date is printed on each logger. We are not supplying any loggers with less than 6 months to our customers.
Exactly how the built real-time clock (RTC)?

The real-time clock of the logger does the production. Technical reasons, there may be an error of Â± 2 minutes after 5 months or Â± 4 minutes after 10 months.
How to dispose of tempmate loggers?

After usage the tempmate loggers belong to electronic scrap. So many components can be recycled.
