PMTPK-01 Toyota Prius II HYBRID Technology Cabrio Version Functional Model

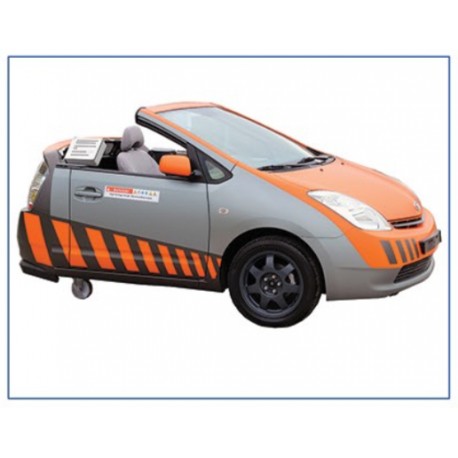

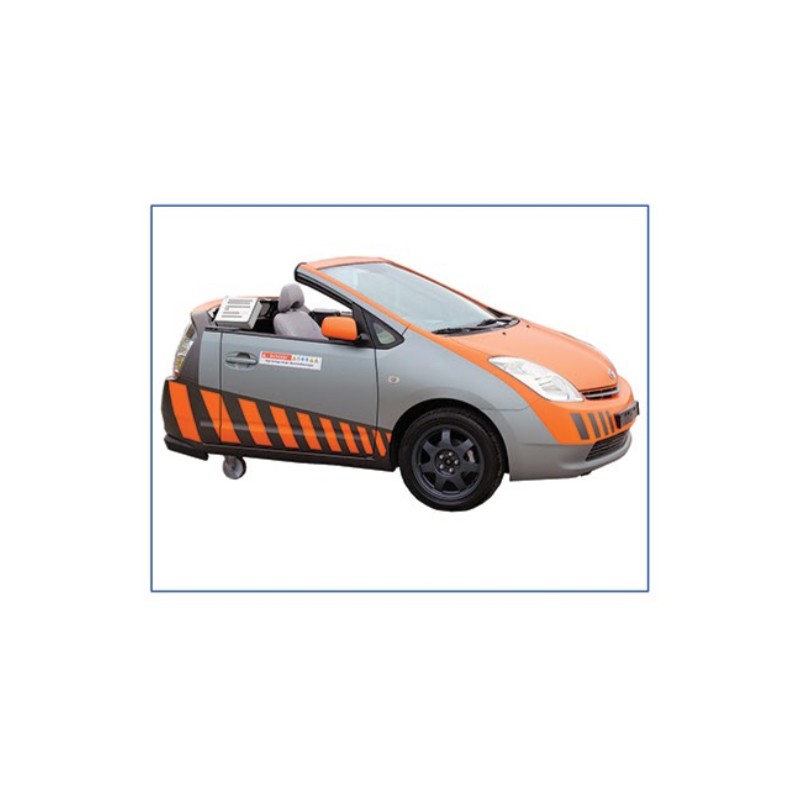

Educational fully operational functional cabrio version model with hybrid petrol / electric system. This cabrio version functional model is an alternative for a complete vehicle, just in space saving version and it has the same advantages of a complete car. The functional model made from Toyota Prius II, by separation of body just after the B-pillars. In the front end all the components like engine air conditioning system and other components remain fully functional. The functional model remains mobile with the help of additional swivel casters.

• Diagnostic and measurement:

Control unit diagnosis:
- Diagnosis through OBD 16 – pin diagnostic connector
- Electronic control unit (ECU) identification
- Reading/erasing fault codes
- Displaying the operating system parameters (live data)
- Actuator test (Depends on the control unit)
- Control unit coding/configuration (Depends on the control unit)
- Automatic search of ECU’s (depends on scan tools possibility)

• Optional accessories:

- Built in measuring box with open contacts and wiring diagram for engine control system
- Fault simulation for engine control system
- Built in measuring box with open contacts and wiring diagram for climate control
- Fault simulation for climate control
- Built in measuring box with open contacts and wiring diagram for SRS AIRGAG
- Fault simulation for SRS AIRGAG

• Optional accessories for functional models:

- PMTP-ENG /Box
- PMTP-ENG/Faults
- PMTP-SRS/Box
- PMTP- SRS/Faults
- PMTP-AC/Box
- PMTP-AC/Faults

• Optional tools and equipment for measurement and services:

- Automotive oscilloscope
- OBD Diagnostic scan tool
- The gas analyzer
- The exhaust extraction system
- Air Conditioning service station

• Educational functional model with:

- Petrol/electric TOYOTA HYBRID CONTROL SYSTEM – II (THS–II)
- Automatic gearbox
- Climate control
- CAN Gateway network
- Exhaust system
- SRS Airbag system (Integrated inactive airbag igniters (after activation))

• Other:

- Dimensions approx.: (H x L x W) 1300 x 2900 x 1700mm (Cabrio version PMTPK – 01)
- Weight (netto) approx.: 900 Kg
