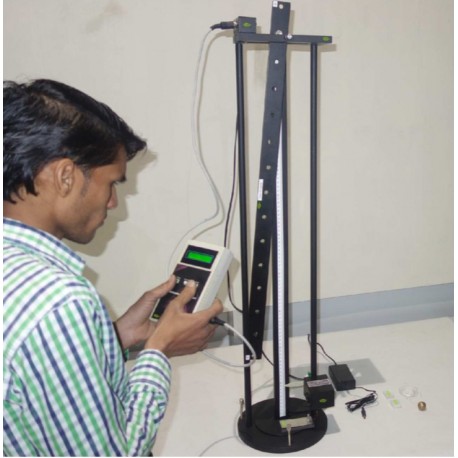

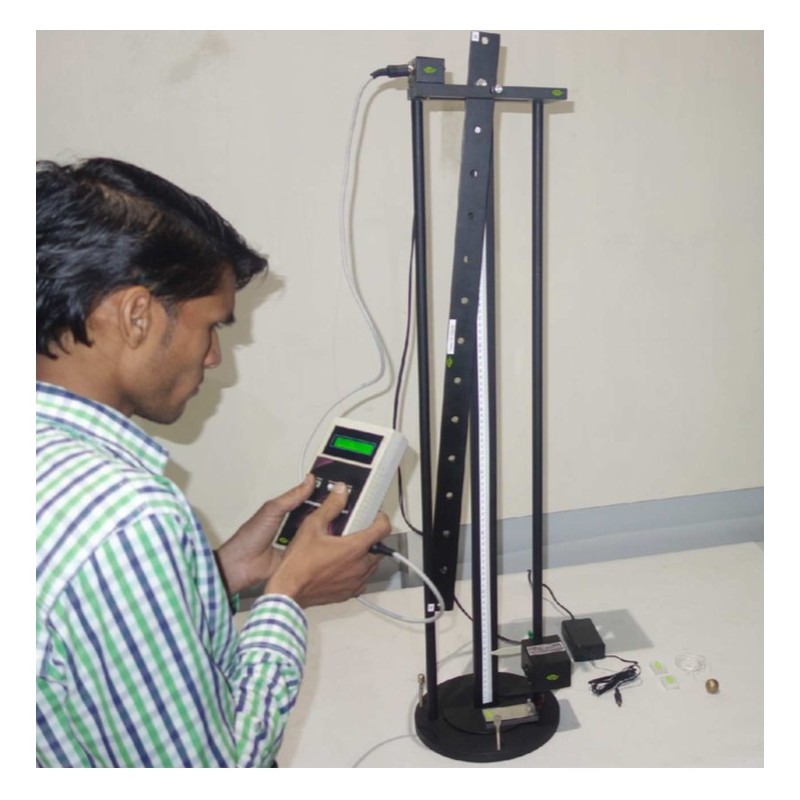

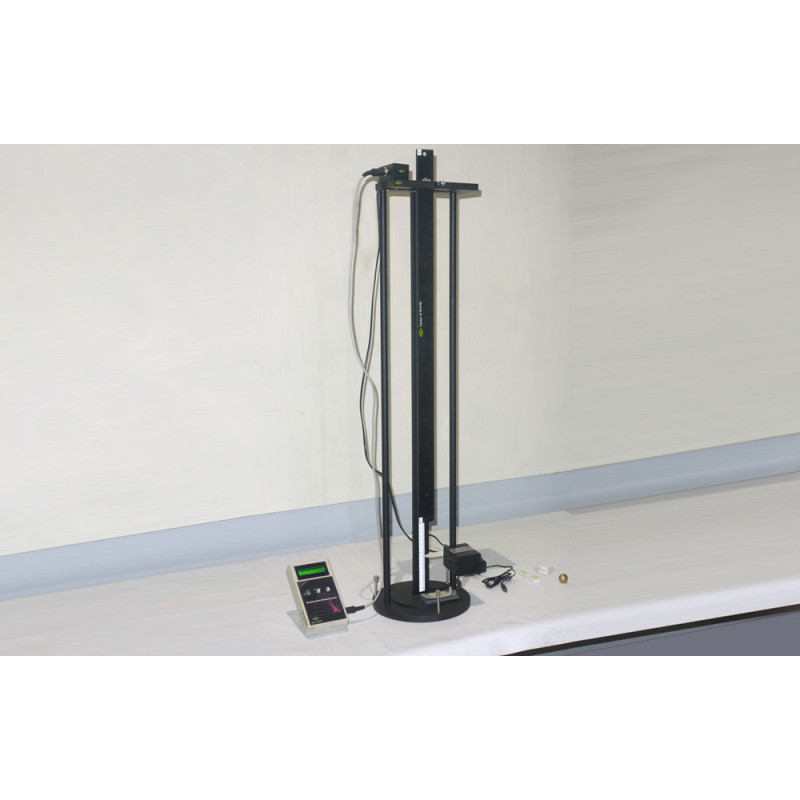

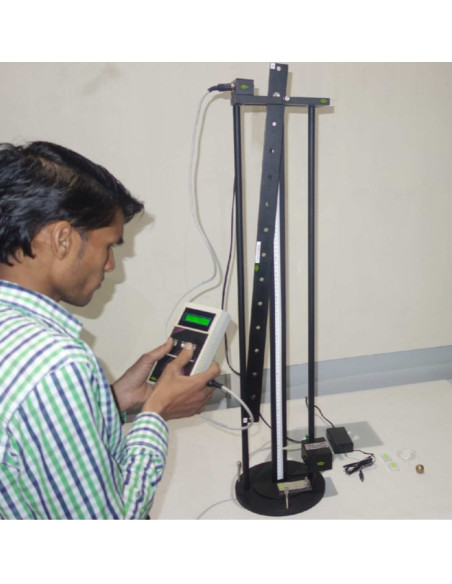

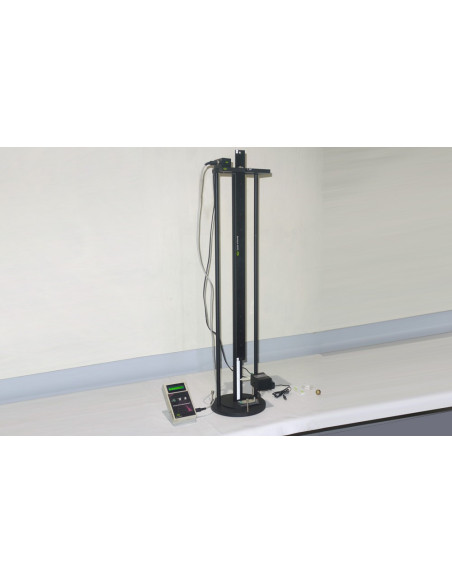

Nvis 6051 Acceleration Measurement Setup

Acceleration Measurement Setup Nvis 6051 is very useful to understand the concept of Gravitational force of earth. It includes Simple Pendulum, Compound Pendulum and concept of object drop method. Acceleration due to gravity can be easily determined with Simple Pendulum which is suspended by a weightless, inextensible and perfectly flexible string. Practically it is not possible to have such ideal pendulum because neither we can get a single material particle nor a weightless and inextensible string.

Compound Pendulum is the basic apparatus, by which we can find acceleration due to gravity, moment of inertia and radius of gyration of any rigid body. In free falling body (object displacement) method we can drop an object from various distances and measure its time of drop by a measurement unit. The body follows Gravitational law. A Measurement Unit is provided in this setup for measuring time of oscillations. It has a microcontroller based LCD display which has automatic and manual mode.

Nvis 6051, Acceleration Measurement Setup is an ideal platform to enhance education, training, skills & development amongs our young minds.
