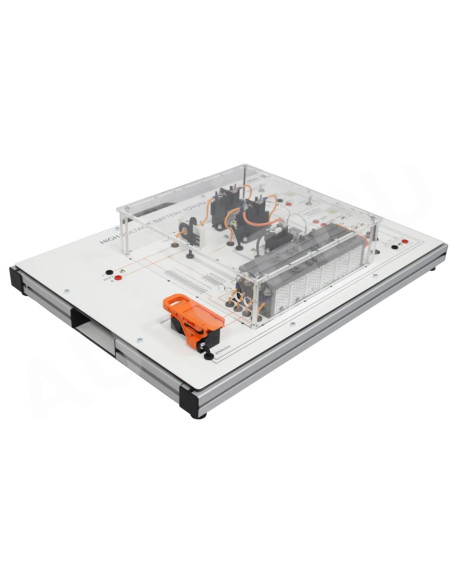

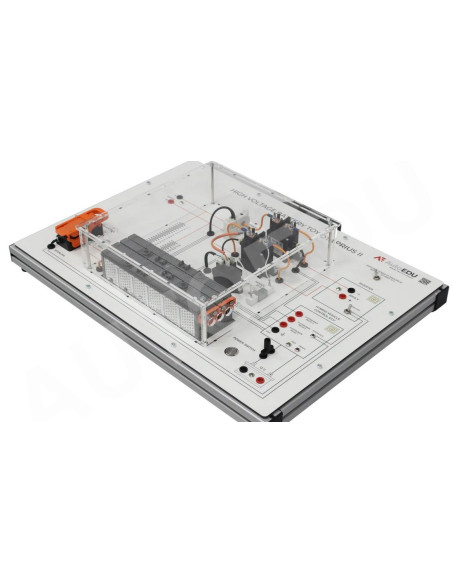

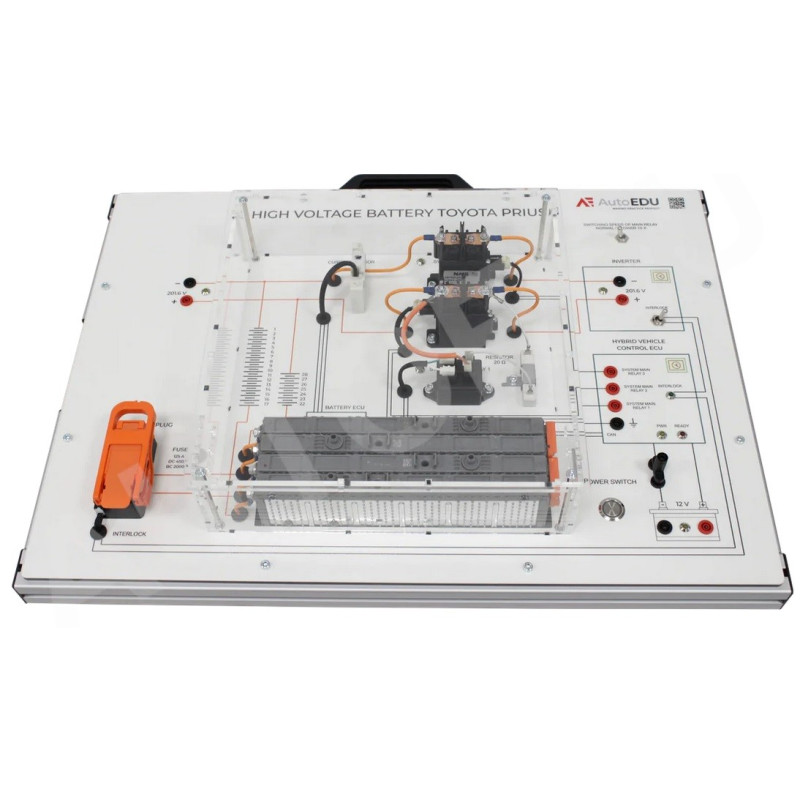

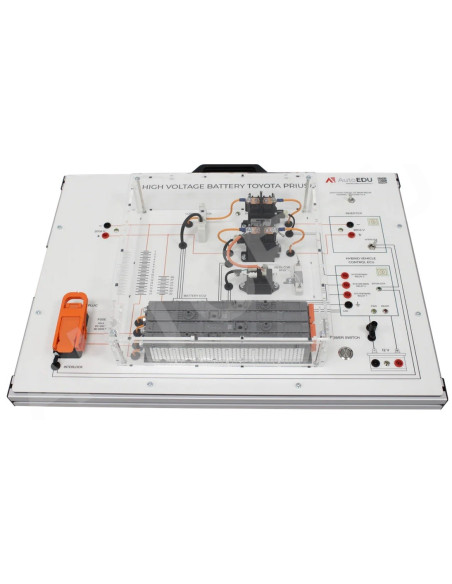

AutoEdu HYBBAT02 High-Voltage Battery System Educational Trainer for Toyota Prius II

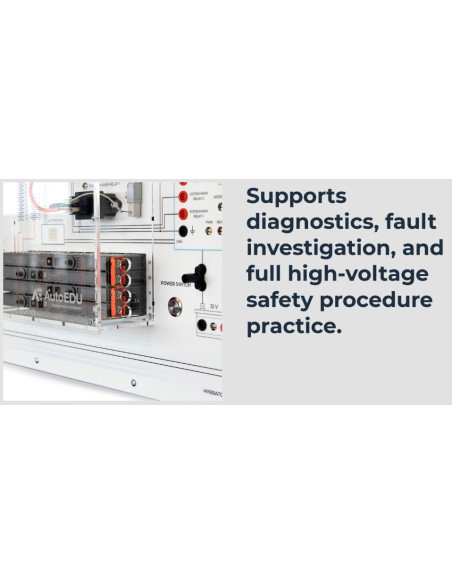

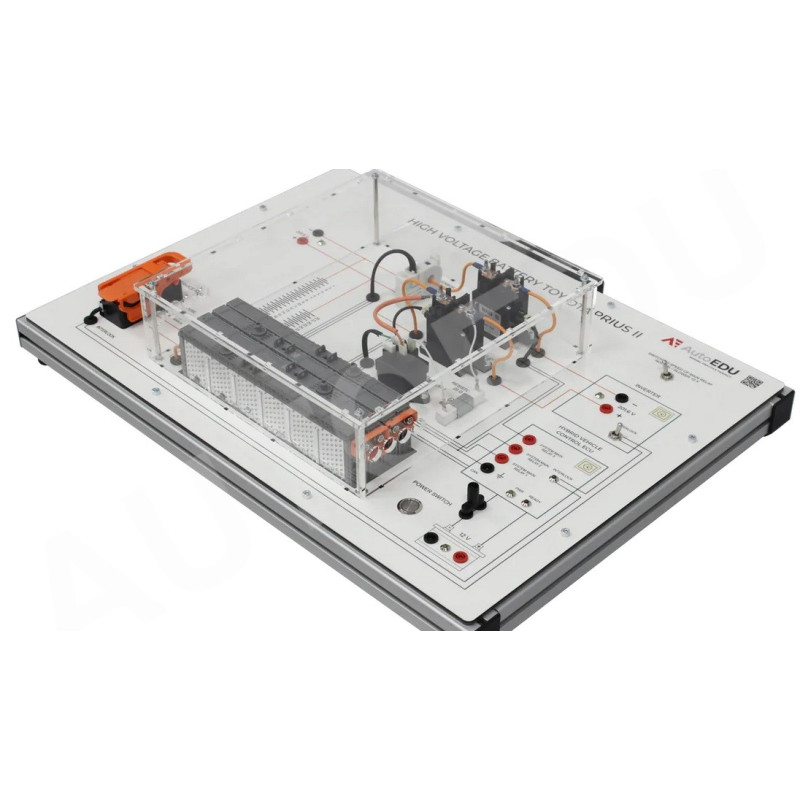

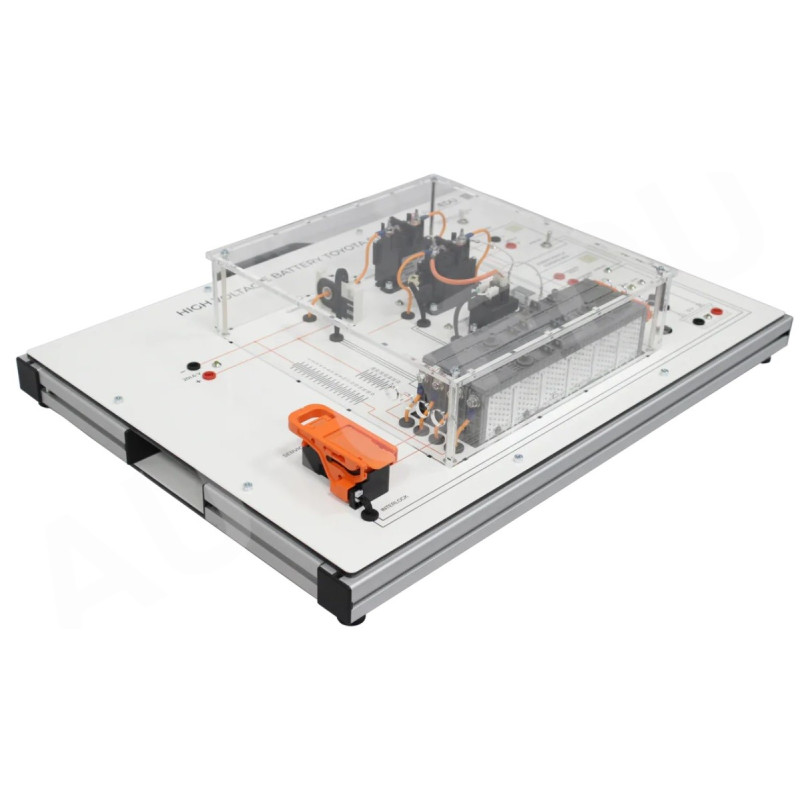

The High Voltage Battery Training System is a compact, interactive training unit designed for teaching high-voltage battery management and diagnostics, using components from the Toyota Prius II OEM model.

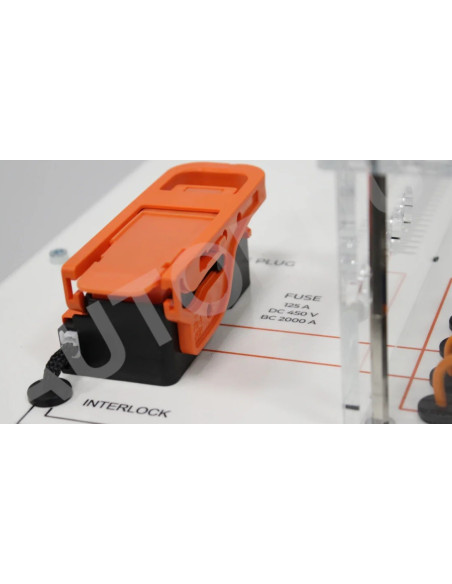

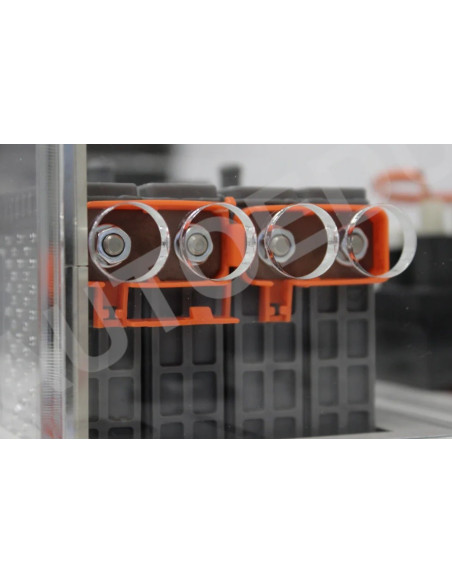

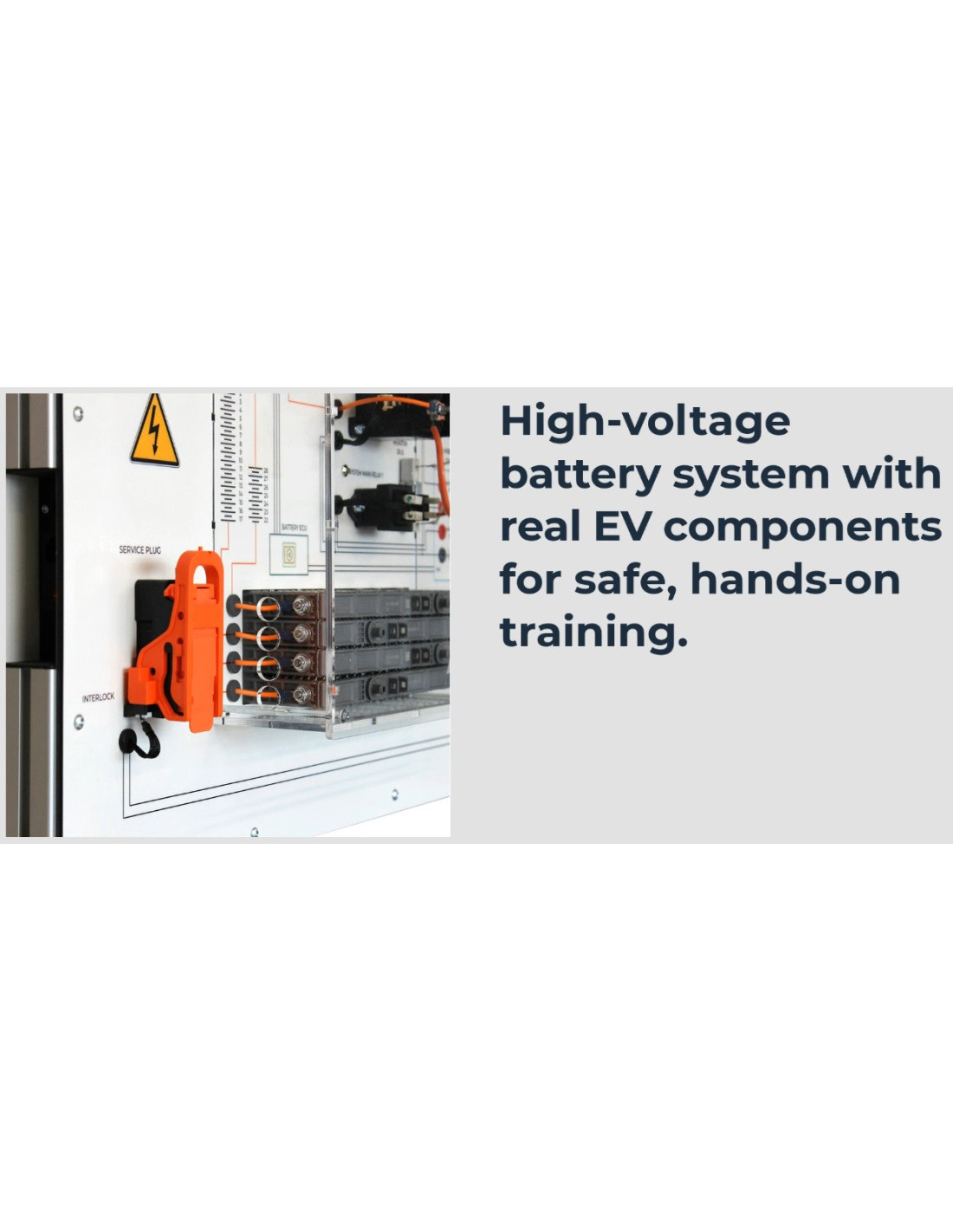

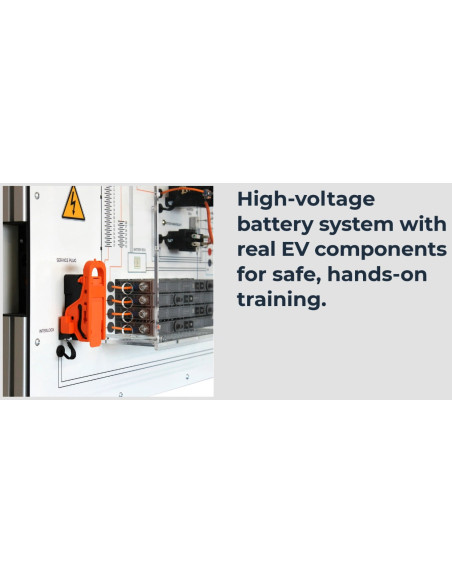

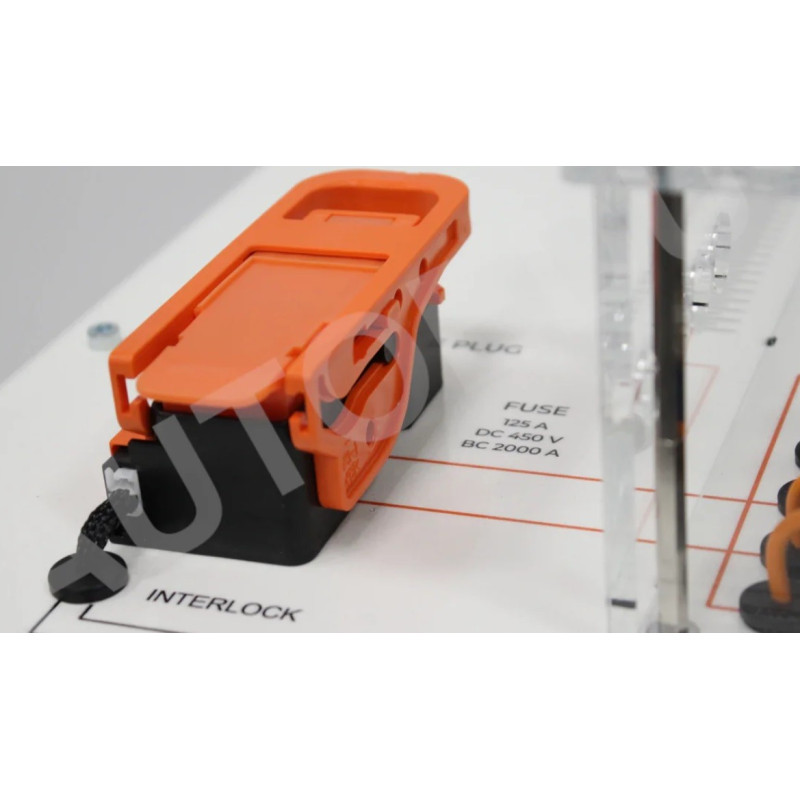

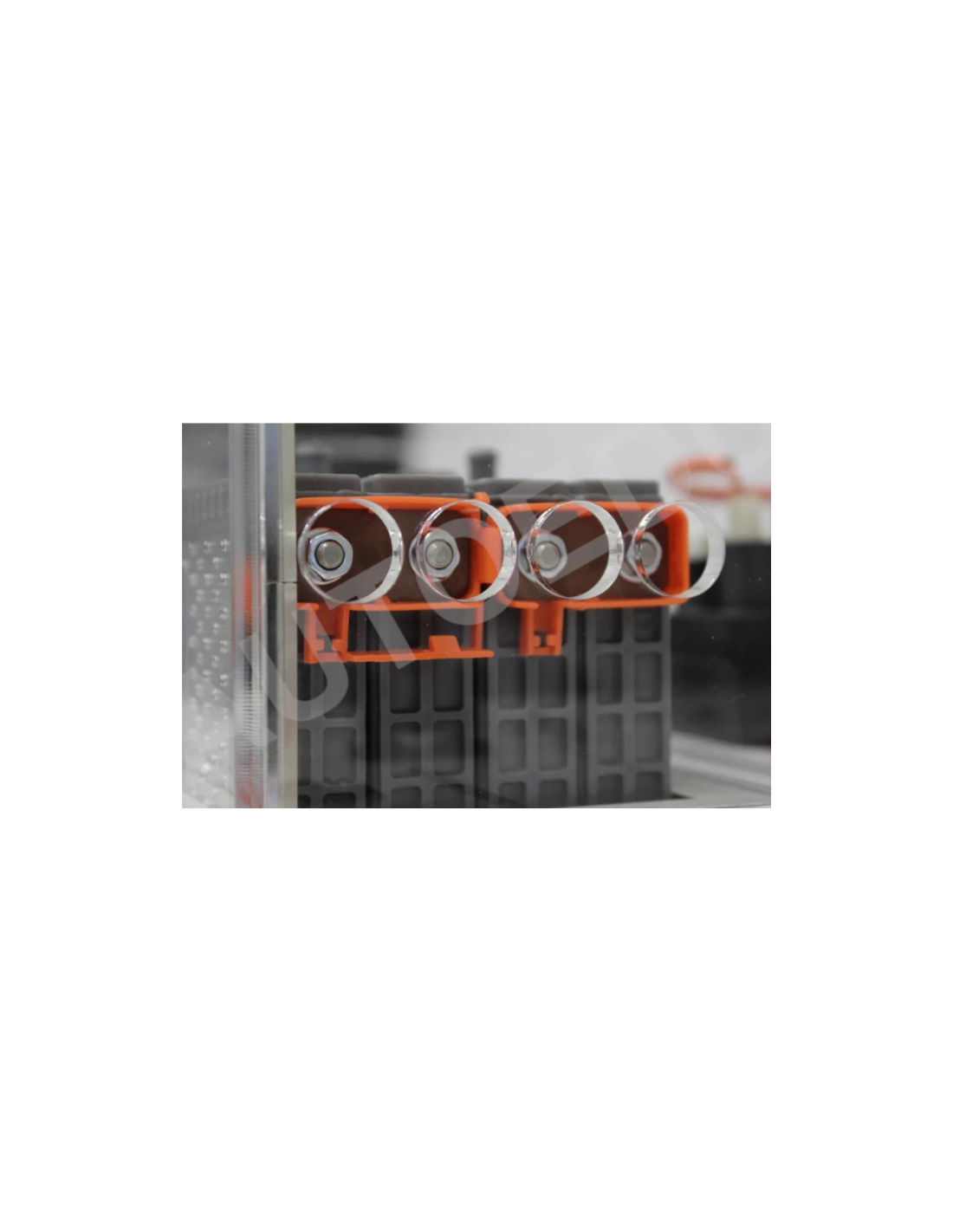

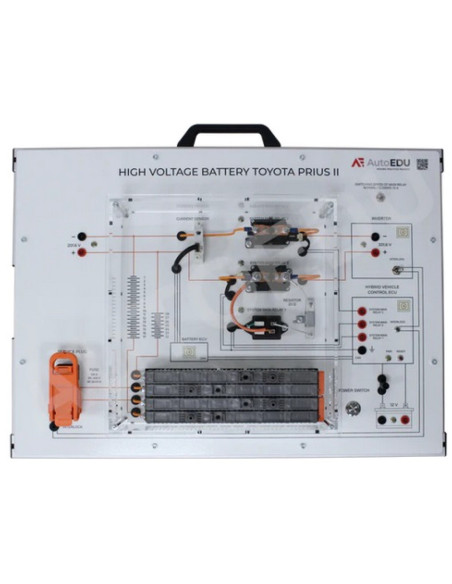

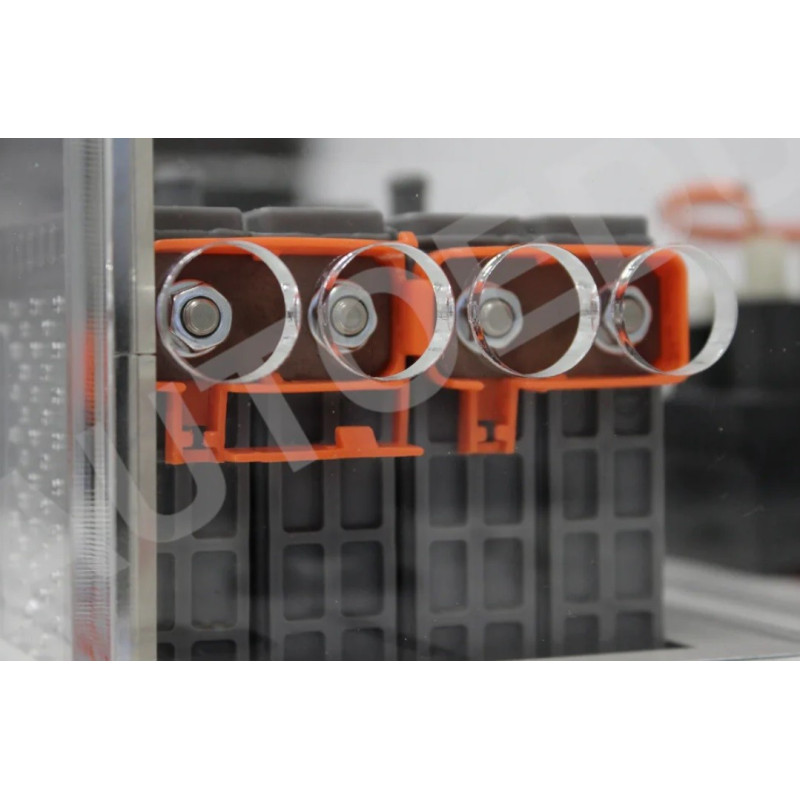

It enables students to connect and disconnect service plugs, measure battery voltage, and understand power transfer from the battery to the inverter. Equipped with a detailed wiring diagram and the ability to measure each battery cell separately, this trainer replicates real-world electric car conditions.

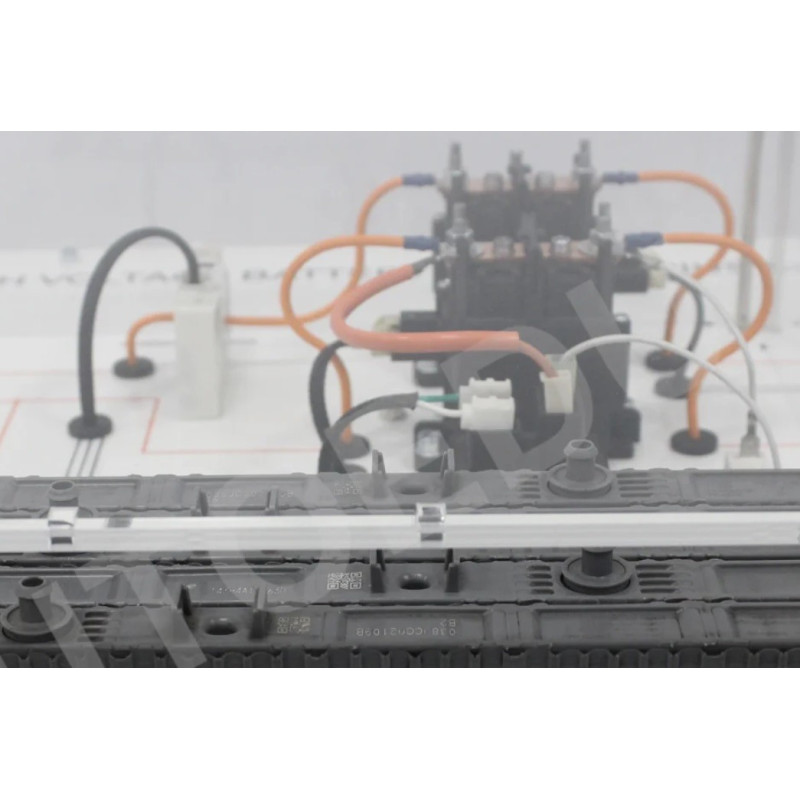

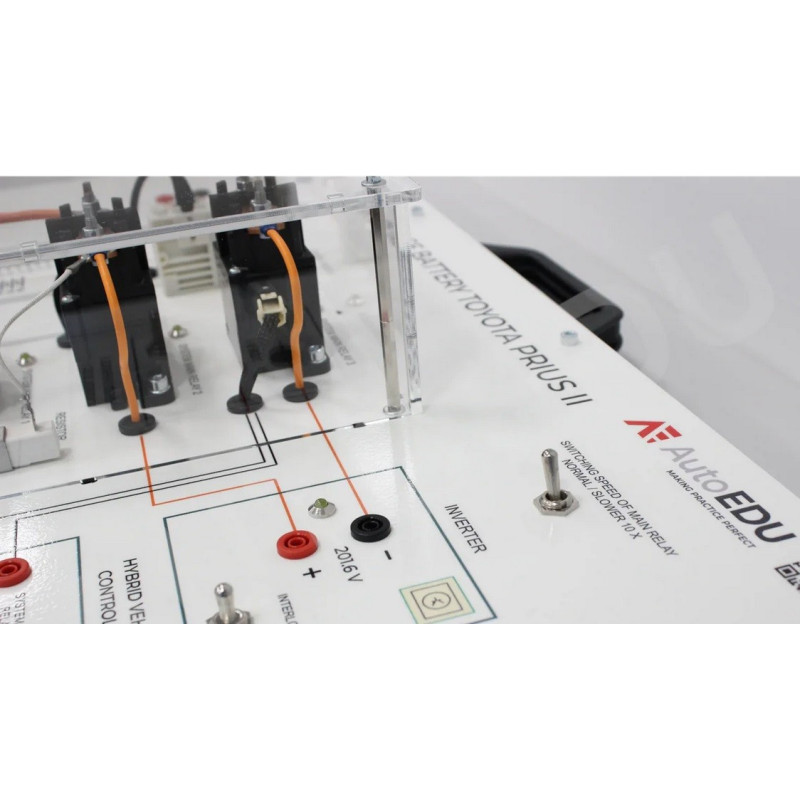

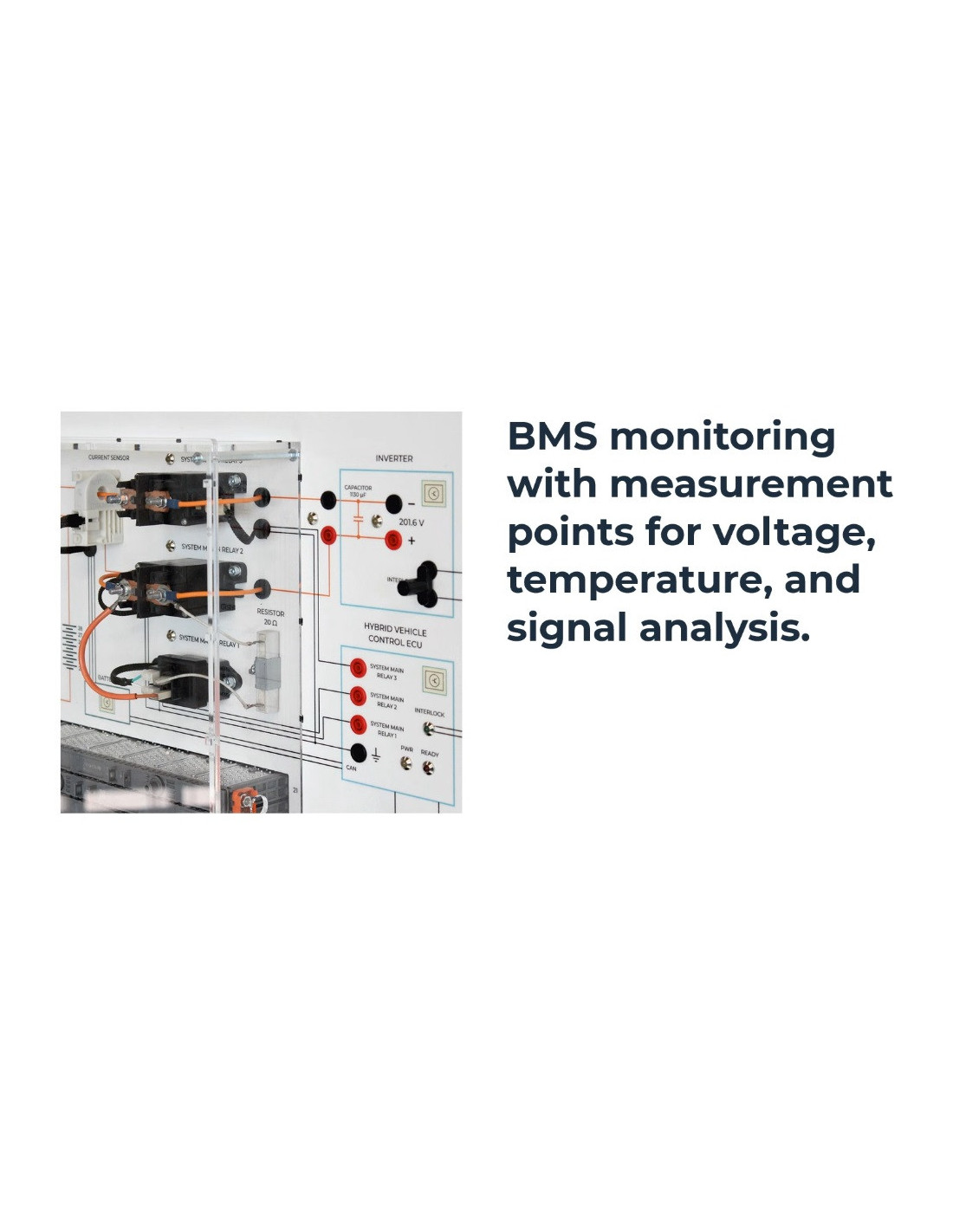

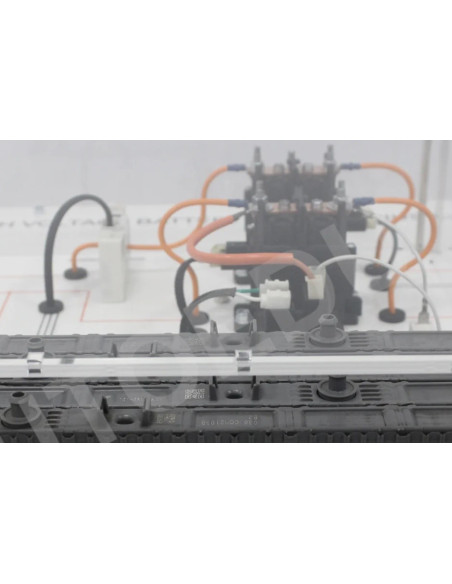

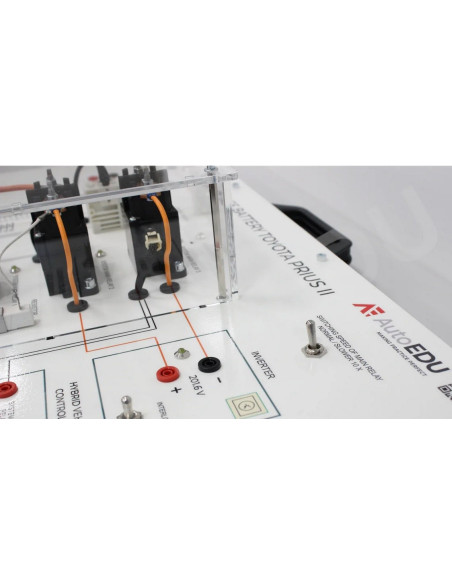

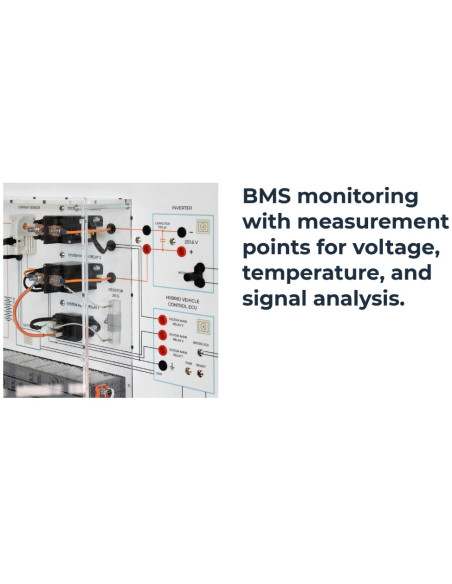

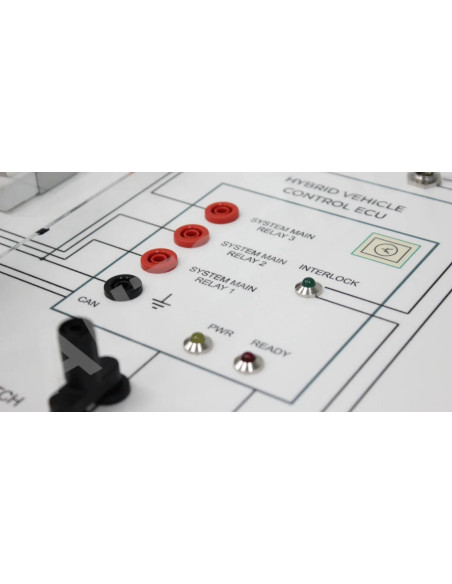

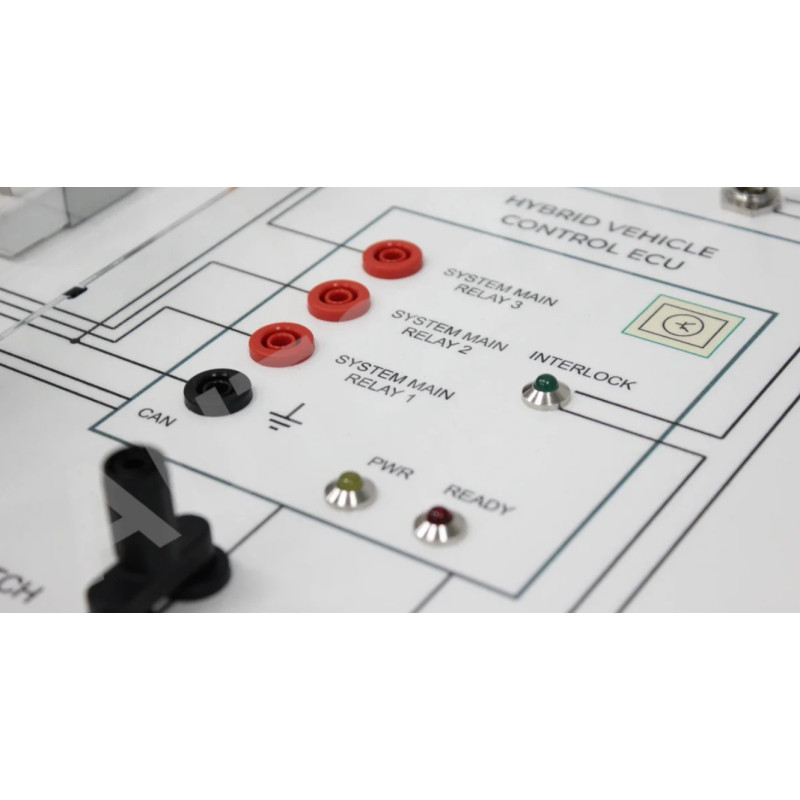

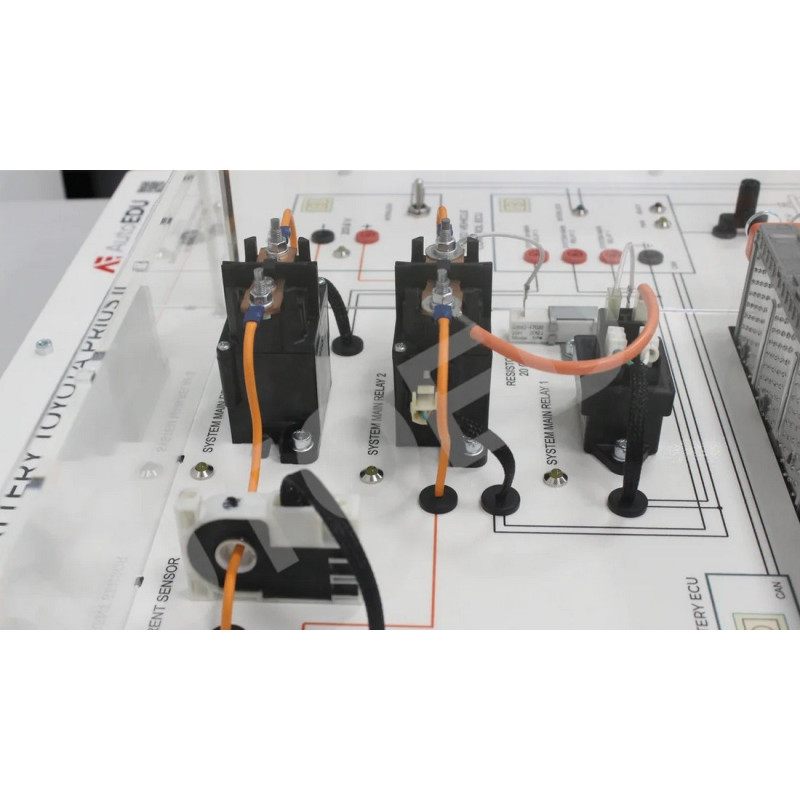

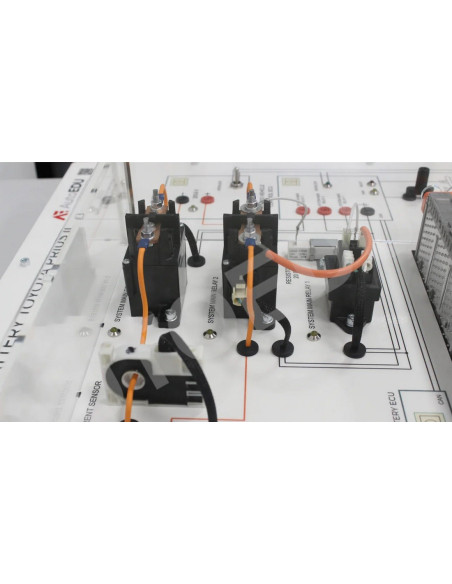

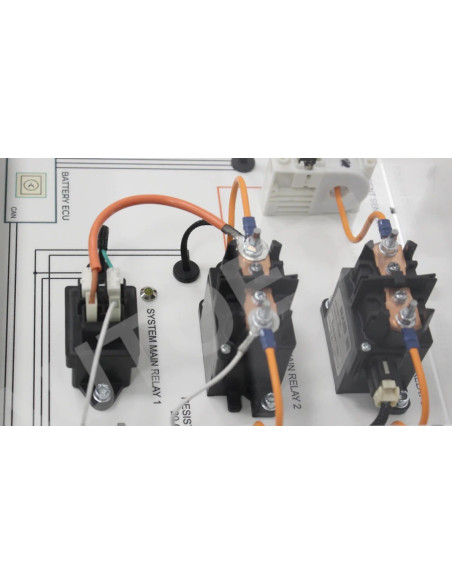

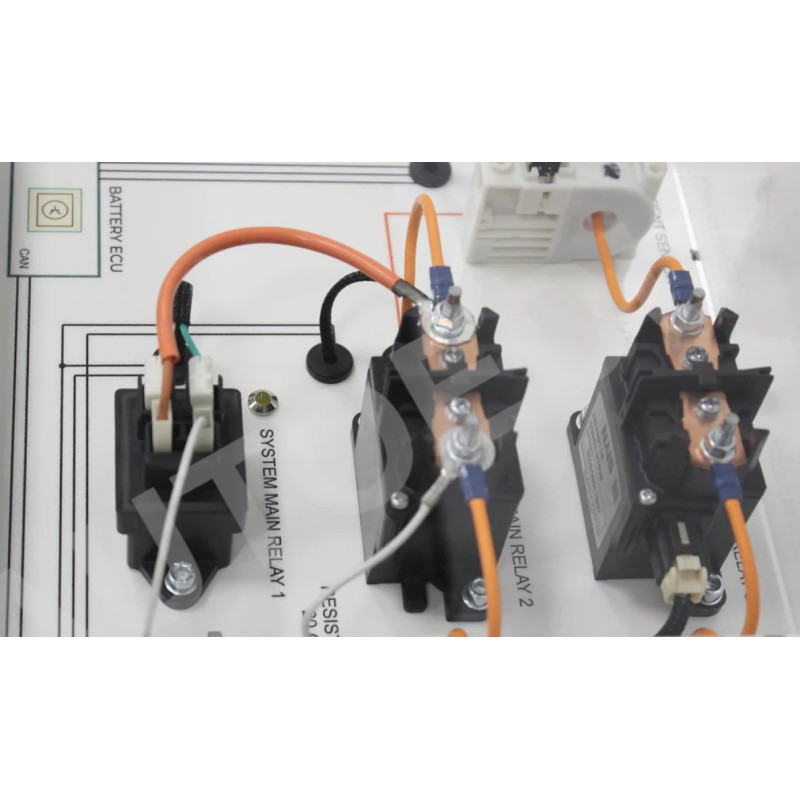

The system includes LED indicators for monitoring relay and inverter status and offers a slowed start-up mode to facilitate step-by-step analysis of the activation sequence. All high-voltage components are safely enclosed under plexiglass for enhanced safety during hands-on training.
► Dimensions: 560 x 715 x 60 mm (22 in x 28.14 in x 2.36 in)
► Power supply: 230 V/110 V (US version), 12V battery, DC 12V power source
► Product number: HYBBAT02
The HYBBAT02 is an advanced tool is designed to meet the growing demand for practical training in hybrid and electric vehicle systems.
Key Features:
• Hands-On High-Voltage Training: Offers real-world experience in diagnosing, operating, and maintaining high-voltage battery systems.
• Integrated Diagnostic Tools: Enables students to measure voltage, analyze battery behavior, and simulate real-life scenarios.
• Safe and Controlled Environment: Built with OEM components and multiple safety features to ensure risk-free learning.
• Interactive Fault Simulation: Allows instructors to create and troubleshoot various faults, enhancing problem-solving skills.
• Plug-and-Train Technology: Delivered fully assembled and ready to be used immediately in classrooms or training workshops
- Category
- Automobile-Automotive
- Function
- High Voltage Batteries
