MSABS-ASR01 ABS/ASR System Educational Trainer

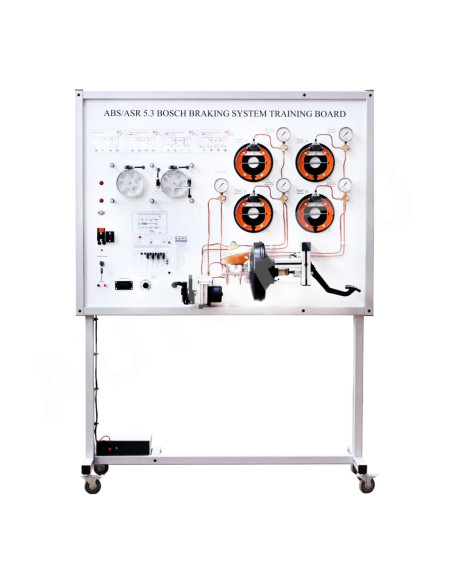

► Housed in a mobile aluminum frame, this trainer incorporates Audi/VW OEM components and a BOSCH 5.3 ABS/ASR system, offering an in-depth educational experience for students and teachers in technical and vocational automotive education.

► Value for Students

● Gain detailed knowledge of the Anti-lock Braking System (ABS) / Anti-Slip Regulation (ASR) control system, including its components, operation modes, and the principles behind electronic braking.

● Perform precise measurements using installed pressure gauges to monitor main brake circuit pressure and individual wheel pressures. Use banana plug connectors for electrical signal measurements of system components.

● Engage in practical fault code simulations and diagnostic procedures through the OBD 16-pin diagnostic connector, learning to identify and rectify system faults.

● Observe and understand the operation of the hydraulic brake system, including the movement of brake pads and fluid pressure dynamics during braking.

● Use an oscilloscope or multimeter to measure live system parameters, enhancing diagnostic skills and technical proficiency.

● Clearly visible all airbrake components, its working principles. Safe and informative stand to understand all functions.


► Value for Instructors

● Fully functional ABS/ASR braking system to demonstrate real-world automotive systems, ensuring students receive practical and relevant training.

● Provides easy, safe, and comfortable training that builds confidence, using OEM components to offer a realistic truck repair experience.

● Provide a safe learning environment with a closed structure and no visible internal wiring, reducing the risk of accidental damage or injury.

● Board on castors version, which is mobile and space saving in the classroom, allows concurrent use by multiple students, promoting collaborative learning and practical training opportunities.

● Training stand is designed for simplicity, requiring only small adjustments to reset to default parameters, making it easy to prepare and start each lesson quickly and efficiently.

● Functional BOSCH 5.3 ABS/ASR system includes all necessary components to demonstrate the operational structure and various modes of ABS/ASR systems.

● Equipped with pressure gauges to monitor the main brake circuit and individual wheel pressures.

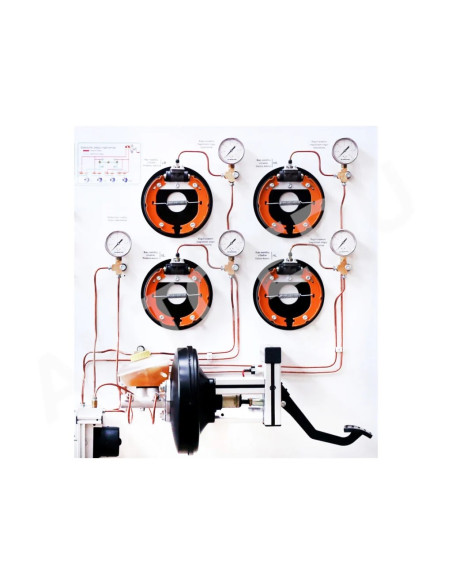

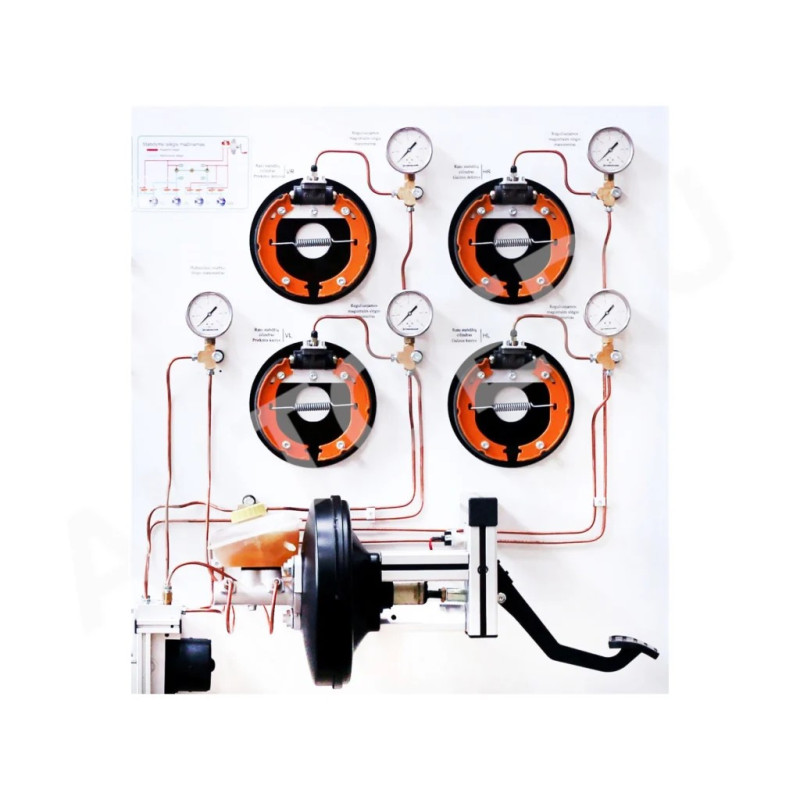

● Features original hydraulic components, including brake pads and drums, to illustrate braking pressure dynamics.

● Contains detailed wiring diagram with built-in banana plug jumpers for measurement and fault simulation.

● Offers comprehensive diagnostic functions through an OBD 16-pin connector, including ECU identification, fault code management, and live data display.

● Supports connection to oscilloscopes and multimeters for detailed measurement of electrical signal parameters.

● Simulate various system faults for practical troubleshooting exercises.

● Closed structure with no visible internal wiring, ensuring safety and durability.



● Dimensions: 1820 x 1360 x 500 mm (71.65 in×53.54 in×19.69 in)
● Weight: approx. 60 kg (132 lb)
● Power supply: 12 V from the battery (not included as standard accessory)
● Product number: MSABS-ASR01

● 12V Battery
● 220/12V Power Supply
● Automotive Oscilloscope
● OBD Diagnostic Tool

► Optional Equipment (Sold Separately)

● OBDEleven Diagnostic Tool
● VCDS Diagnostic Tool
● TXT MULTIHUB CAR Diagnostic Tool
● AutoCOM ICON Diagnostic Tool
● TEXA NANO S Diagnostic Tool
● TEXA Uniprobe Diagnostic Oscilloscope
● ADK5004D TiePie Automotive Diagnostic Kit
● Foxwell OS100 Diagnostic Oscilloscope
