Reference: Nvis6509C - Manufacturer: NVIS TECHNOLOGIES

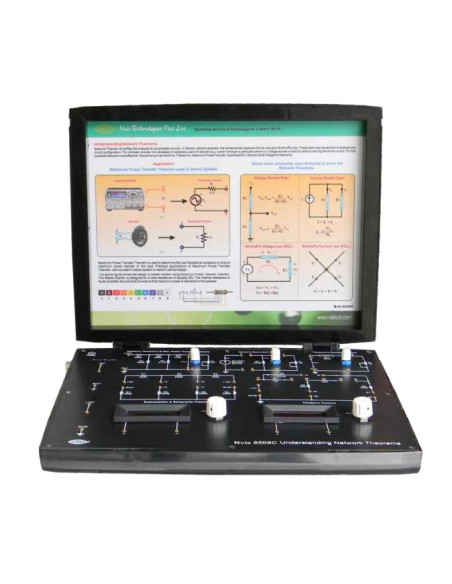

Nvis 6509C Techbook for Understanding Network Theorems  is a compact, ready to use experiment board and has been designed specifically for the study & verification of network theorems in DC circuits. In network analysis, the fundamental rules are ohm`s law and Kirchhoff`s laws. These laws may be applied to analyze any circuit configuration but for solving complex circuits, use of Network theorems� is much better because it simplifies the analysis of complicated circuits.

help_outlineAsk for Quote

Nvis 6509C Techbook for Understanding Network Theorems

I accept privacy policy rules



Nvis 6509C Techbook for Understanding Network Theorems  is an ideal platform to enhance education, training, skills & development amongs our young minds.

It is a useful product for students to study and verify Norton`s, Thevenin`s, Maximum Power Transfer, Superposition, Reciprocity & Tellegen`s Theorems. This product explains corresponding theorems in very easy way, Tellegen`s theorem is explained in individual block and Norton`s, Thevenin`s & Maximum Power Transfer Theorems are explained in a single circuit so that student can compare these theorems with each other. Superposition and Reciprocity theorems are also explained in a single circuit.

The product is designed and presented in such a way that student can easily measure all the electrical parameters like voltage, current and resistance.

  • Features:

- Exclusive and compact design
- In-built power supply
- Constant current source
- On board Voltmeter & Ammeter
- Straight forward representation of all theorems
- On board equivalent circuits
- Potentiometer is provided to vary load resistance
- Learning material CD

- Study and verification of Norton's theorem
- Study and verification of Thevenin's Theorem
- Study and verification of Maximum Power Transfer Theorem
- Study and verification of Superposition theorem
- Study and verification of Reciprocity theorem
- Study and verification of Tellegen's Theorem
