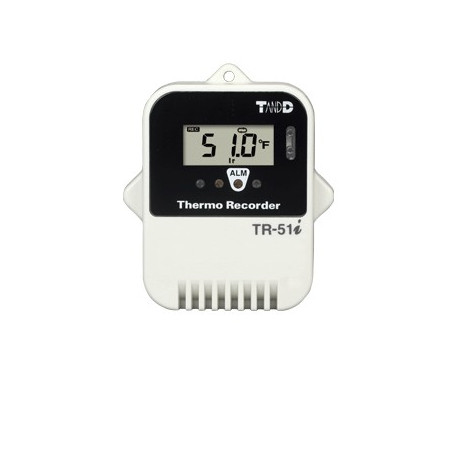

TR-51i Internal Sensor for Better Water Protection

View larger

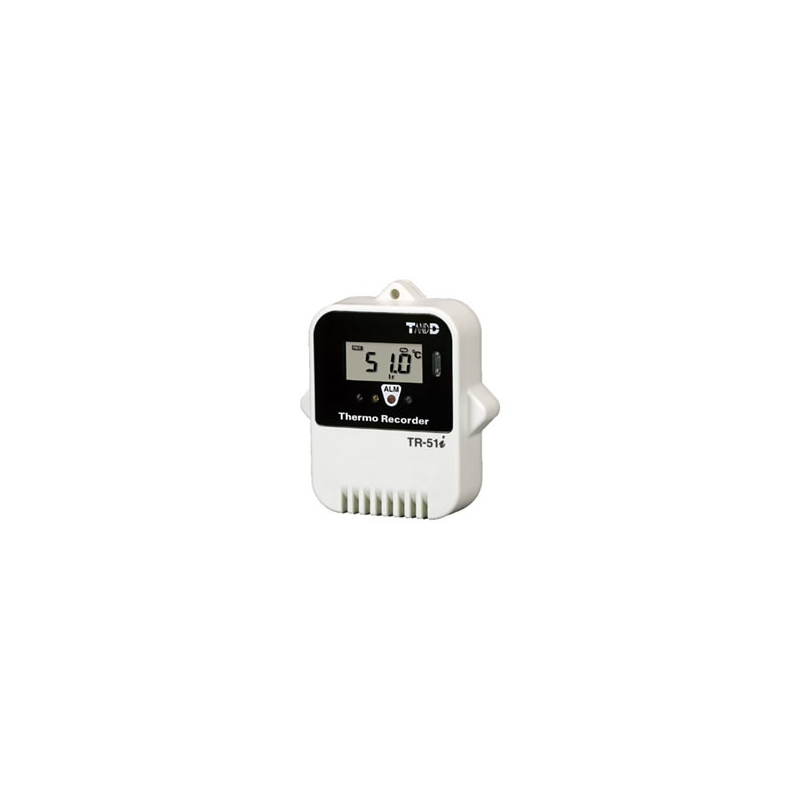

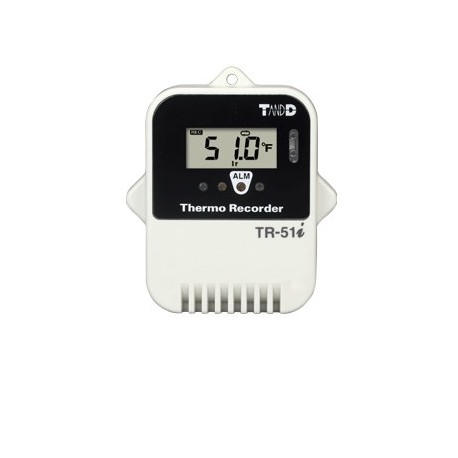

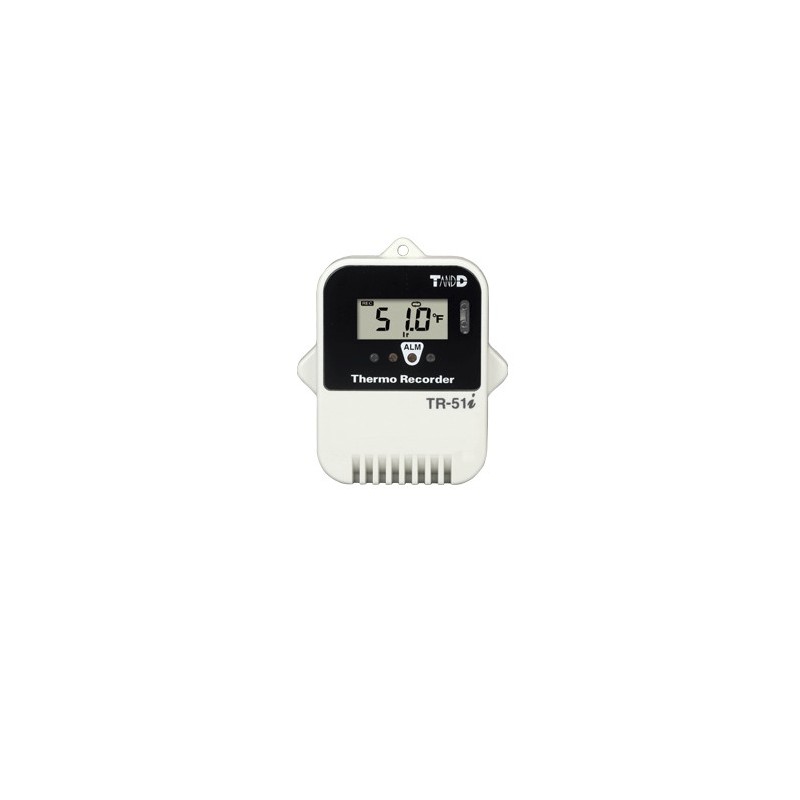

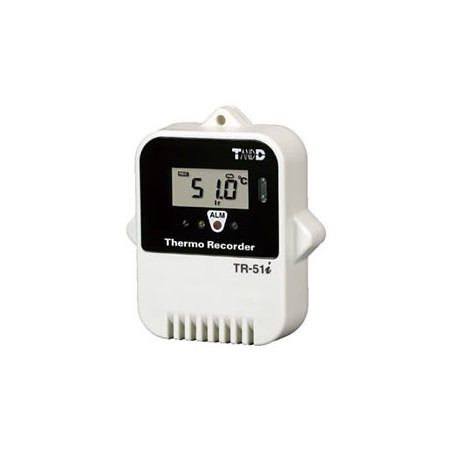

TR-51i Temperature Data Logger with internal sensor (-40 to 80°C)

Reference TR-51i

Manufacturer: TandD

Condition: New

The TR-5i Series includes easy-to-use waterproof compact durable loggers for measuring temperature, voltage, 4-20mA, and pulse count and their low energy consumption design means longer battery life.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
ESPECIFICATIONS
ACCESSORIES
Data sheet
Download

Environment of Use	Outdoor
Measured Parameters	0-20mA/4-20mA
Number of Channels	1 channel (temperature)
Precision	±0.5°C
With Display	LED's
IP Classification	IP67
Communications	Optical, Infrared
Battery Life	4 years
Memory Capacity	16,000 measures

TR-51I Download (663k)

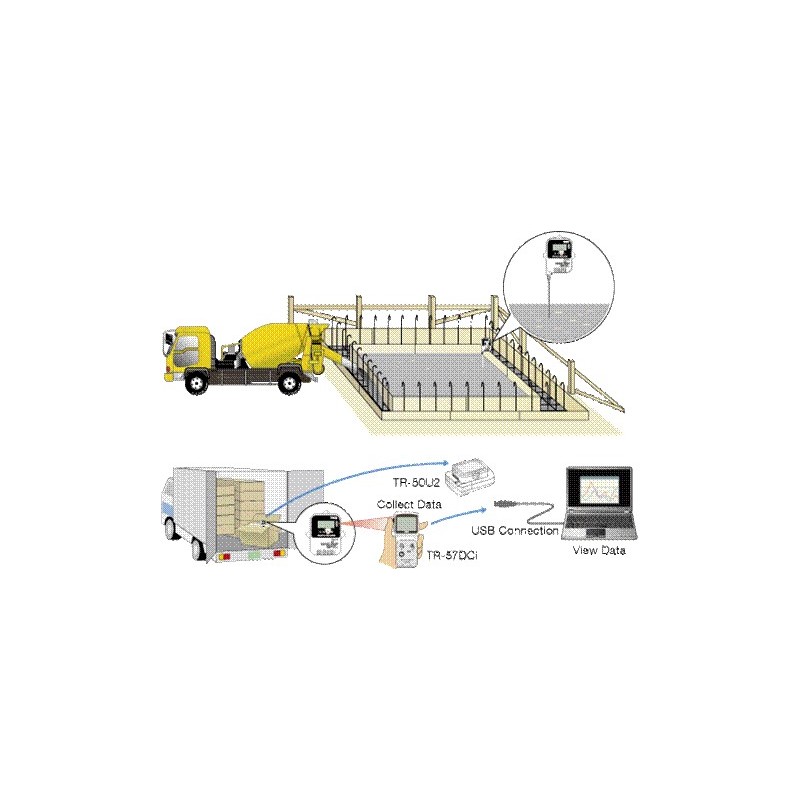

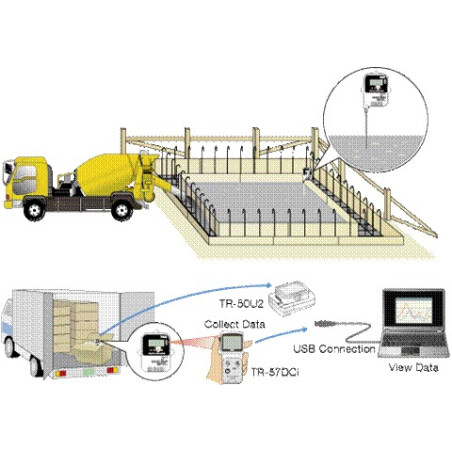

Collecting data is made easy with an IR enabled handheld collector for on site use or a portable USB connectable port for use with a PC.

General Specifications
Measurement Channels	Temperature 1ch (Internal)
Measurement Range	-40 to 80°C
Accuracy	±0.5°C
LCD Display	Measurements, Battery Life Warning, etc.
Logging Capacity	16000
Recording Intervals	15 choices from 1 sec. to 60 min.
Recording Mode	Endless/Onetime
Comm Interfaces	Optical, Infrared
Warning Norifications	LCD, LED
Power	Lithium Battery
Operating Environment	Temperature: -40 to 80°C
Dimensions	H:62mm × W:47mm × D:19mm
Waterproof Capacity	IP67
Battery Life	Approx. 4 years
Accessories	Lithium Battery, etc.
