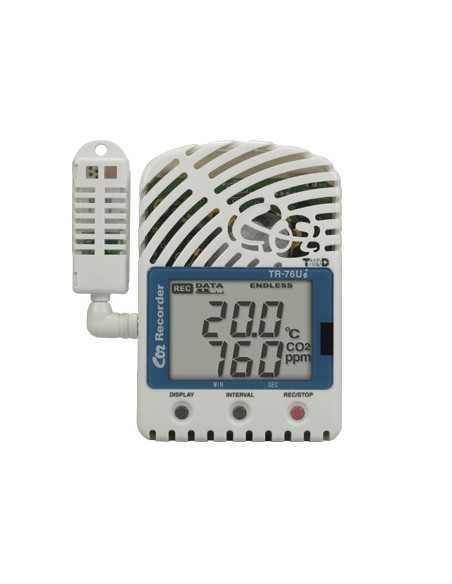

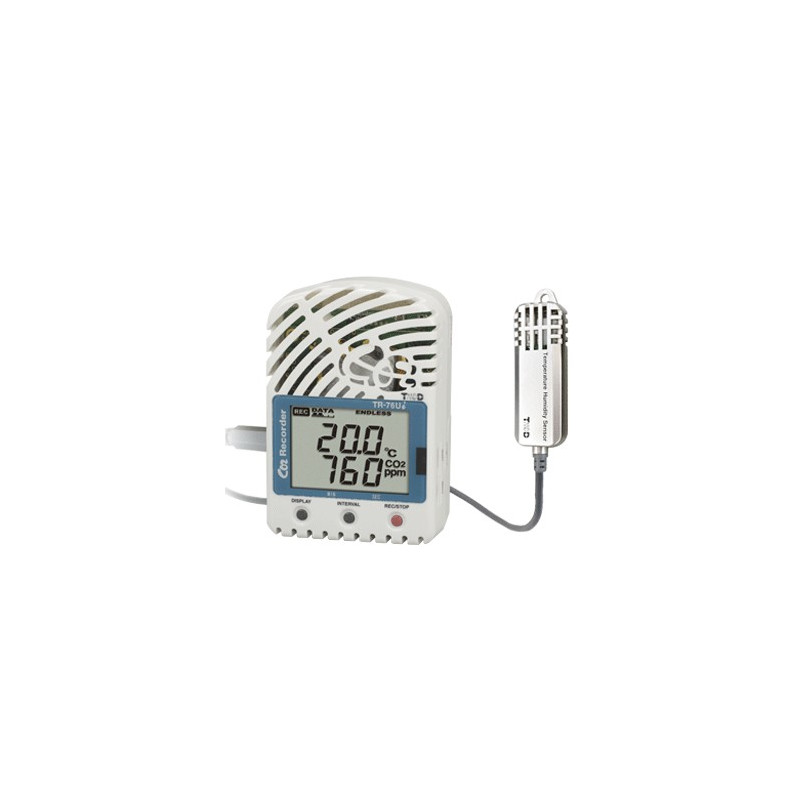

TR-76Ui CO2 concentration meter up to 9,999ppm

Reference

Condition: New

The TandD TR-76Ui data logger is a three-channel logger designed to simultaneously measure and record carbon dioxide concentration, temperature and humidity.

Volume discounts

Quantity	Price (tax excl.)	You Save %
1+	490,00 €	0%
5+	475,30 €	3%
10+	460,60 €	6%
15+	445,90 €	9%

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

490,00 €

tax excl.

Quantity

Select Model

Add to wishlist

OVERVIEW
SPECIFICATIONS
Data sheet
Download

Number of Channels	3 channels
With Display	Yes
Communications	USB, Serial, Infrared
Battery Life	Approx. 2 days
Memory Capacity	8,000 data

TR-76Ui/76Ui-S Download (91.21k)

Making atmospheric pressure settings for the measurement location ensures more stable and accurate Carbon Dioxide measurements. The supplied software enables the user to download data recorded by TR-76Ui to PC via USB connection, whereby data from all three channels can be simultaneously viewed in graph or table form.

The product is an all-in-one package that includes the data logger unit, sensors and software. We offer two types of packages with different temperature/humidity sensors depending on your required measurement range and accuracy needs.

By using a Data Collector TR-57DCi (sold separately), it is possible to collect recorded data from the TR-76Ui via infrared communication and immediately check the collected data on the spot.

This versatile data logger can be used in a wide range of applications from personal to business use; for measurements of home environment, CO2 measurements in offices and other buildings, and/or energy-saving measures such as ventilation and air conditioning controls.

Measurement Channels	CO2 Concentration, Temperature, Humidity
Measurement Range	TR-76Ui CO2: 0 to 9999ppm Temperature: 0 to 55°C Humidity: 10 to 95%RH TR-76Ui-S (High-Precision) CO2: 0 to 9999ppm Temperature: -25 to 70°C Humidity: 0 to 99%RH (-20°C~)
Accuracy	TR-76Ui CO2: ±50ppm±5% reading Temperature: ±0.5°C Humidity: ±5%RH TR-76Ui-S (High-Precision) CO2: ±50ppm±5% reading Temperature: ±0.3°C Humidity: ±2.5%RH
LCD Display	Measurements, Battery Life Warning, etc.
Logging Capacity	8,000 data sets
Recording Intervals	15 choices from 1 sec. to 60 min.
Recording Mode	Endless/Onetime
Comm Interfaces	USB, Serial, Infrared
Warning Notifications	External Contact Output
Power	AA Alkaline Battery x 4, AC Adaptor
Operating Environment	Temperature: 0 to 45°C Humidity: 90%RH or less (no condensation)
Dimensions	H:96mm × W:66mm × D:46mm
Waterproof Capacity	None
Battery Life	Approx. 2 days
Accessories	Temperature-Humidity Sensor, AC Adaptor, USB Communication Cable, etc.
